Product parameters:
Working voltage: 6--30V

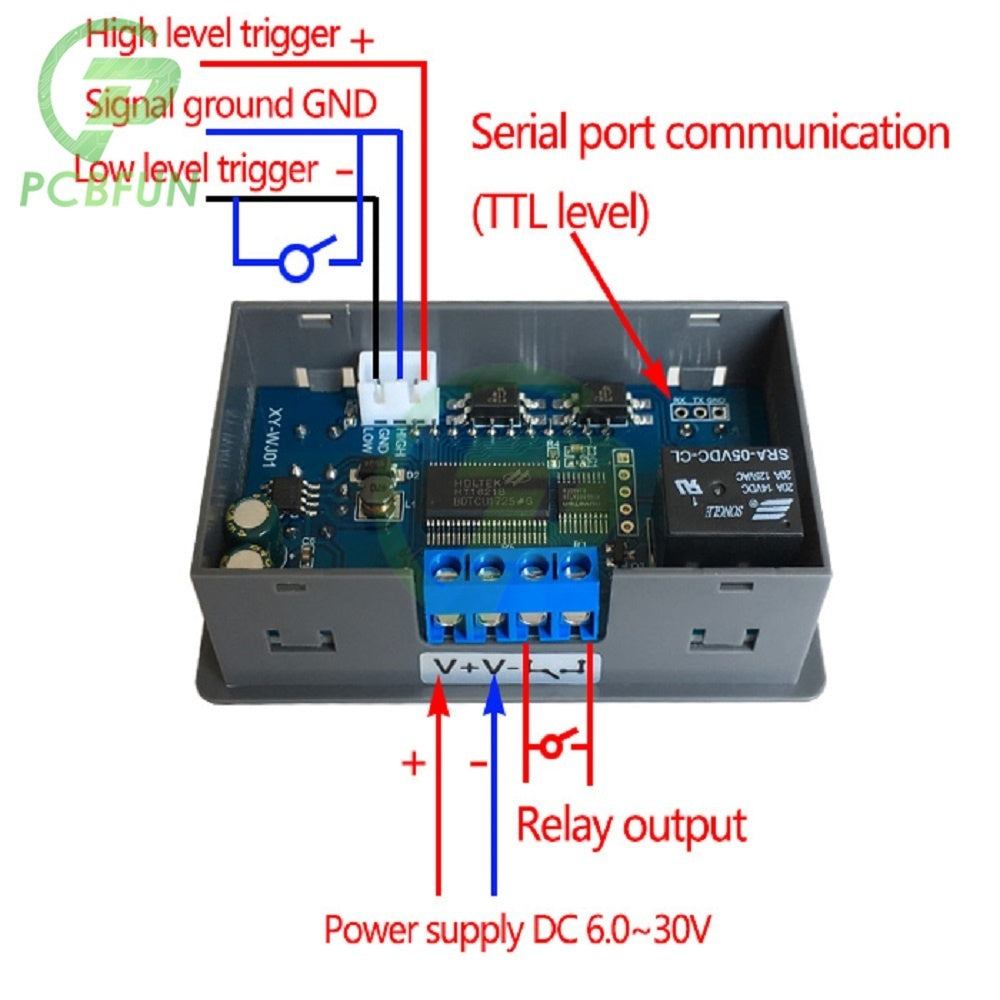

Power supply trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).

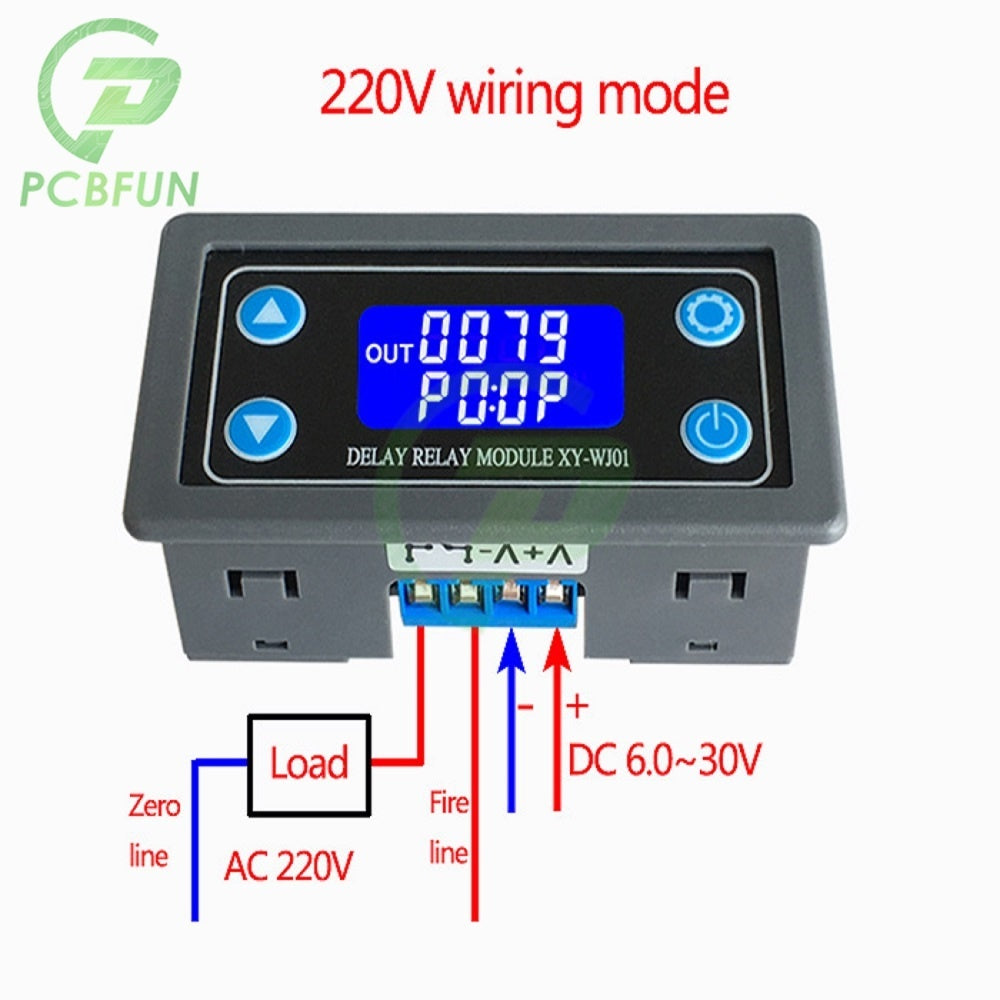

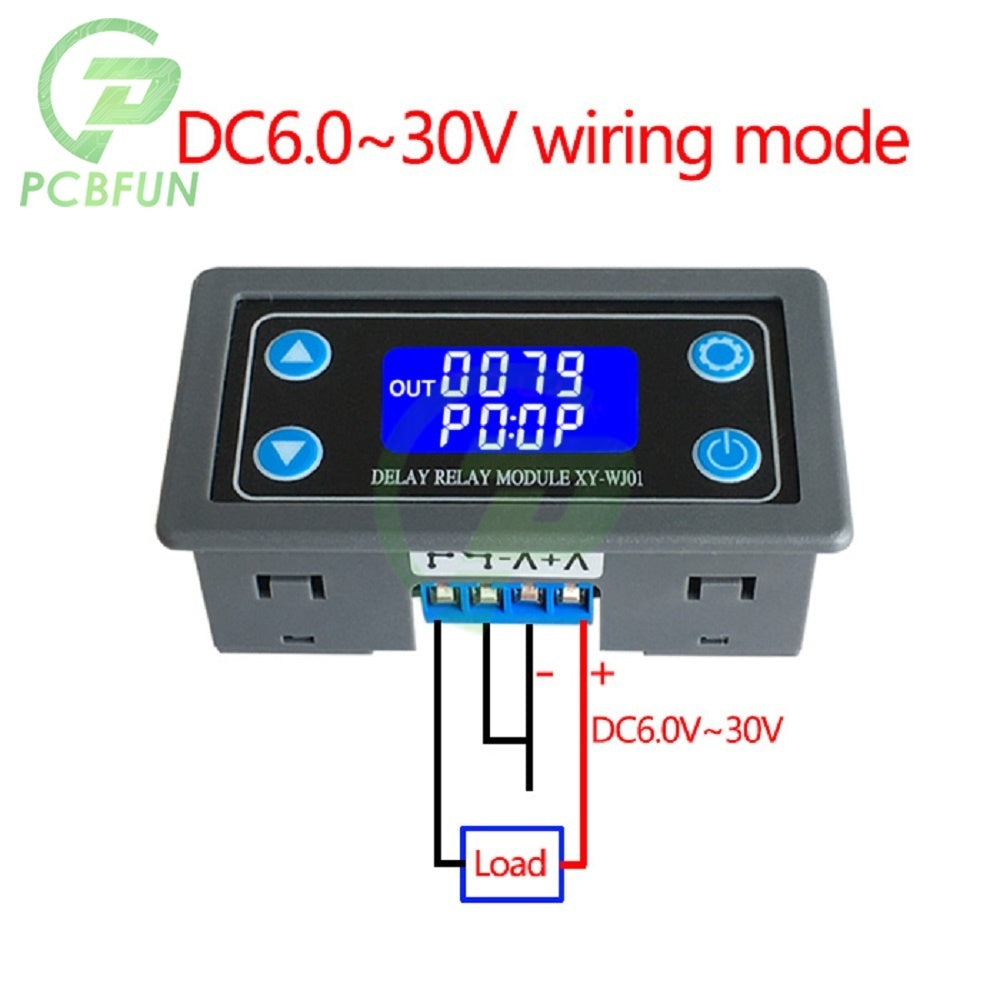

Output capacity: can control DC 30v within 10A or AC 220v within 5A
Static current: 15mA
Operating current: 50mA
Service life: more than 100,000 times
Operating Temperature: -40-85°C
Weight: 45g

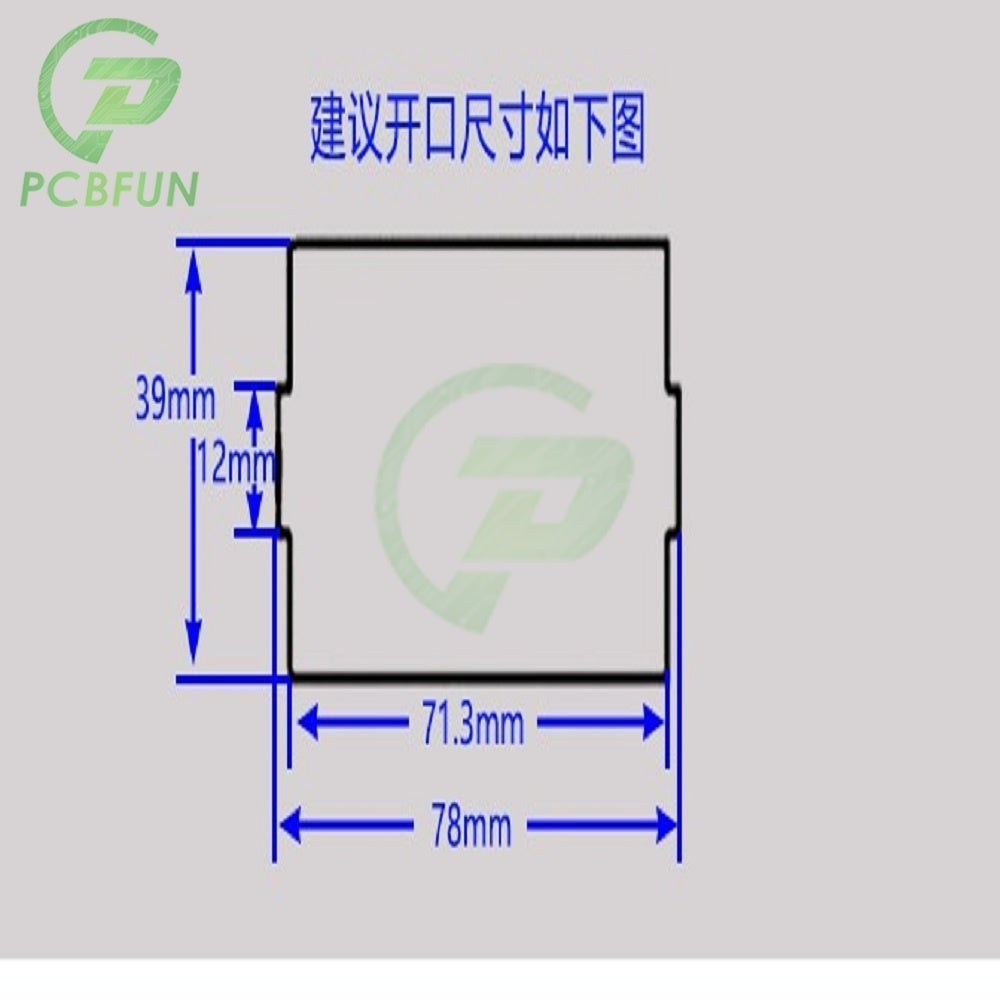

Size: 7.1*3.9*2.5cm (LWH)
With opto-coupler isolation to enhance anti-interference ability, industrial grade circuit board, set parameters are always memorized after power failure.
Timing range: 0.01 seconds (min) ~ 9999 minutes (max) continuously adjustable
Packing list:
Relay module *1
