Feature:
1. Two Chip Options: Domestic chip CS8673E, efficient, good distortion and anti popping, transparent sound quality, and strong driving force; Imported chip solution TPA3776D2 with AM interference suppression function; The output has a filter, pure HIFI fever sound quality, and low requirements for speakers

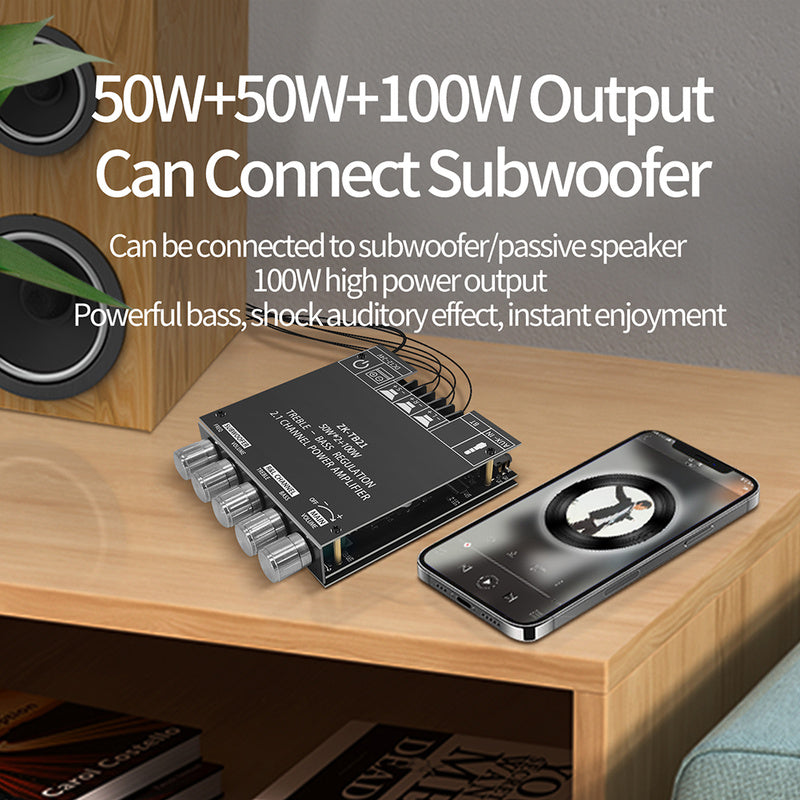

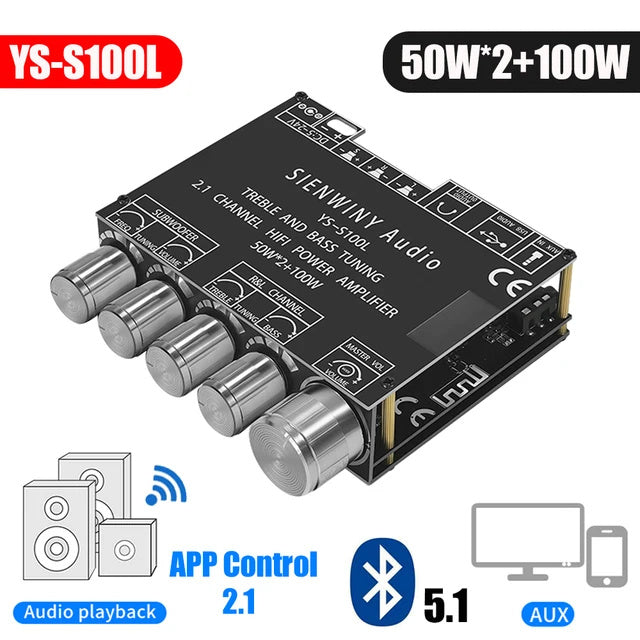

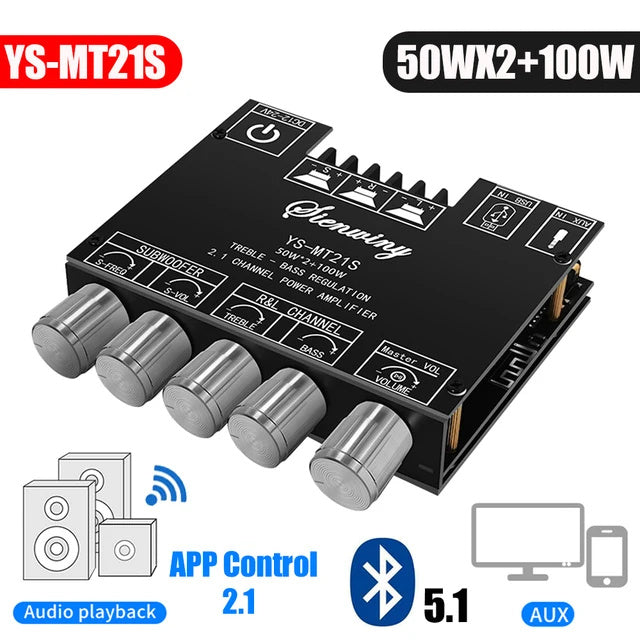

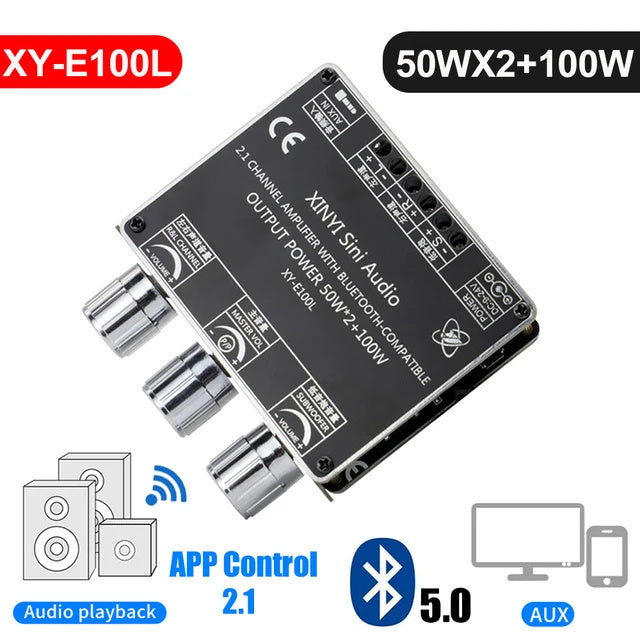

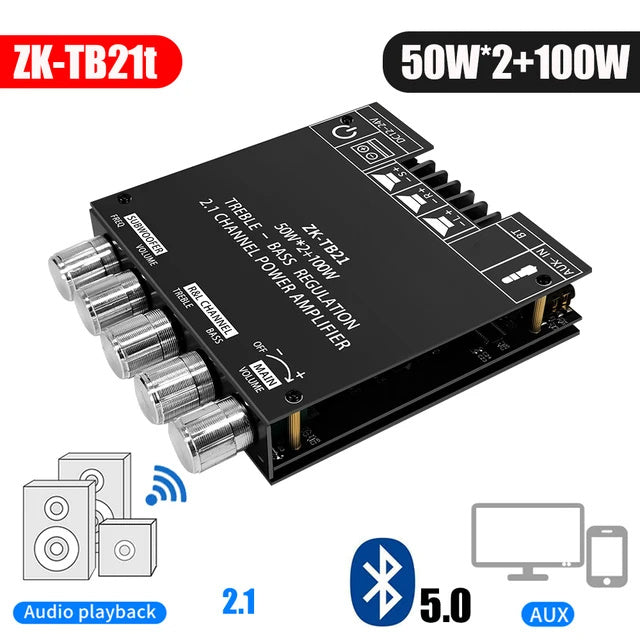

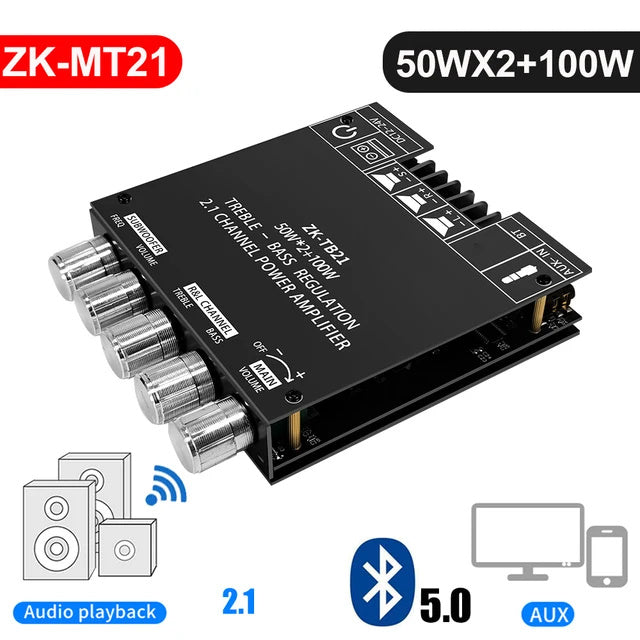

2. Bluetooth-compatible Audio Amplifier Module: 2.1 channels, maximum output power 2X50W+100W, with two audio input methods: AUX and Bluetooth-compatible, and a 2-in-1 amplifier board. Bluetooth-compatible 5.0, higher transmission efficiency and longer transmission distance
3. Knob Adjustment: The main knob adopts a rotary encoder only used in high-end power amplifiers, achieving 360 degree stepless tuning. Smooth touch, one click start stop, long press on/off operation is simple and convenient; Easily adjust the volume and enjoy the music sound you want. Widely used in shopping malls, home theaters, speakers, etc
4. Multiple Protection: Equipped with short circuit protection, overcurrent, overheating, and anti reverse connection protection to prevent comprehensive failure. When an overload occurs, the device reports the fault situation to the processor to protect itself from damage. Copper DC connectors and barrier terminals are used. Can withstand high currents, does not generate heat, and does not damage wires.
5. Heat Dissipation Mechanism: Special 50x25x10mm large-area heat dissipation fins are used, and copper coating is tightly attached to the shell for heat dissipation. The heat dissipation area is multiplied to ensure the high performance operation of the product with sufficient power.


Specification:
Origin: Mainland China
Power amplifier chip: TPA3116D2, CS8673E (optional)
TPA3116D2 chip: with filter and AM interference suppression function
Bluetooth-compatible version: 5.0 (unobstructed, 10 meters)
Input sensitivity: 500mV

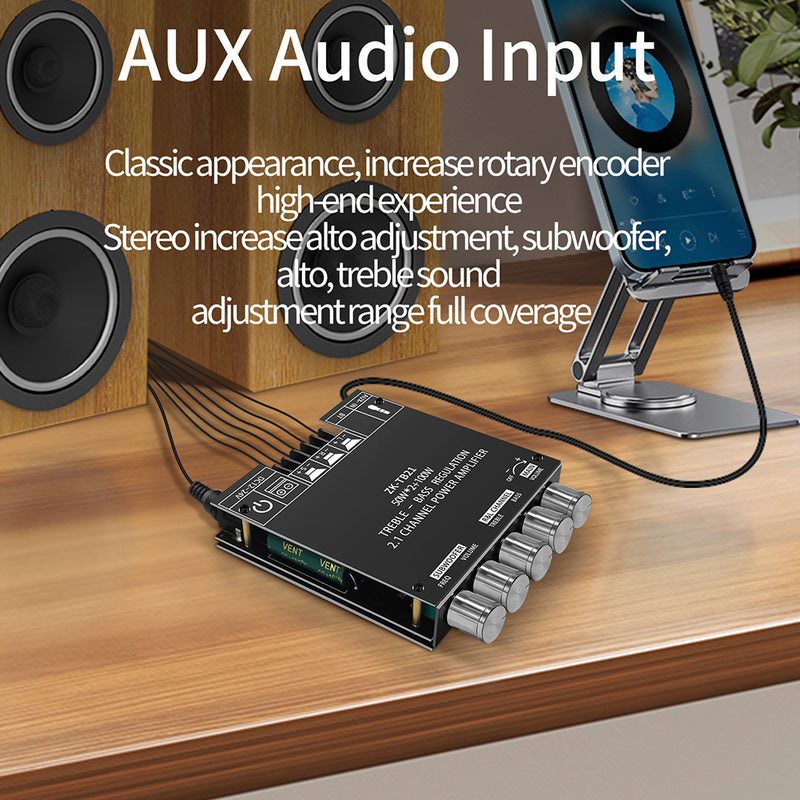

Input method: AUX+Bluetooth-compatible
Number of channels: 2.1 channels
Adapted power supply: DC12~24V/5A or above (higher voltage, higher output power) Adapted speaker: 20~100W, 4~8 Ω
Output power: Left and right channels ≤ 50W; Subwoofer ≤ 100W

Heat sink size: About 50x25x10mm/1.96x0.98x0.39inch
Amplifier board size: About 118x100x22mm/4.64x3.93x0.86inch
Product weight: About 190g
Tip: Only when the audio input is sufficient and the power supply voltage/current is sufficient can there be sufficient output power. The higher the power supply voltage, the greater the output power, and the smaller the horn impedance, the greater the output power.
Please ensure that the power of the adapter power supply is greater than the actual working power of the amplifier.
