FEATURES OF THE H6

     • Interchangeable input capsules

     • Six-track simultaneous recording

     • Four mic/line inputs with XLR/TRS combo connectors

     • Gain control knobs and -20dB pads for each input

     • Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack

     • Phantom power for all main inputs: +12/+24/+48V

     • Large full-color, angled LCD display

     • Records directly to SD, SDHC and SDXC cards up to 128GB

     • Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats

     • Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take

     • Built-in effects, including low-cut filtering, compression, and limiting

     • Multichannel and stereo USB audio interface for PC/Mac/iPad

     • Accepts standard AA alkaline or NiMH rechargeable batteries

     • Over 20 hours of operation with 4 AA alkaline batteries

     SPECIFICATION

     RECORDING MEDIA

     SD CARD:16MB to 2GB

     SDHC CARD:4GB to 32GB

     SDXC CARD:64GB to 128GB

     INPUTS

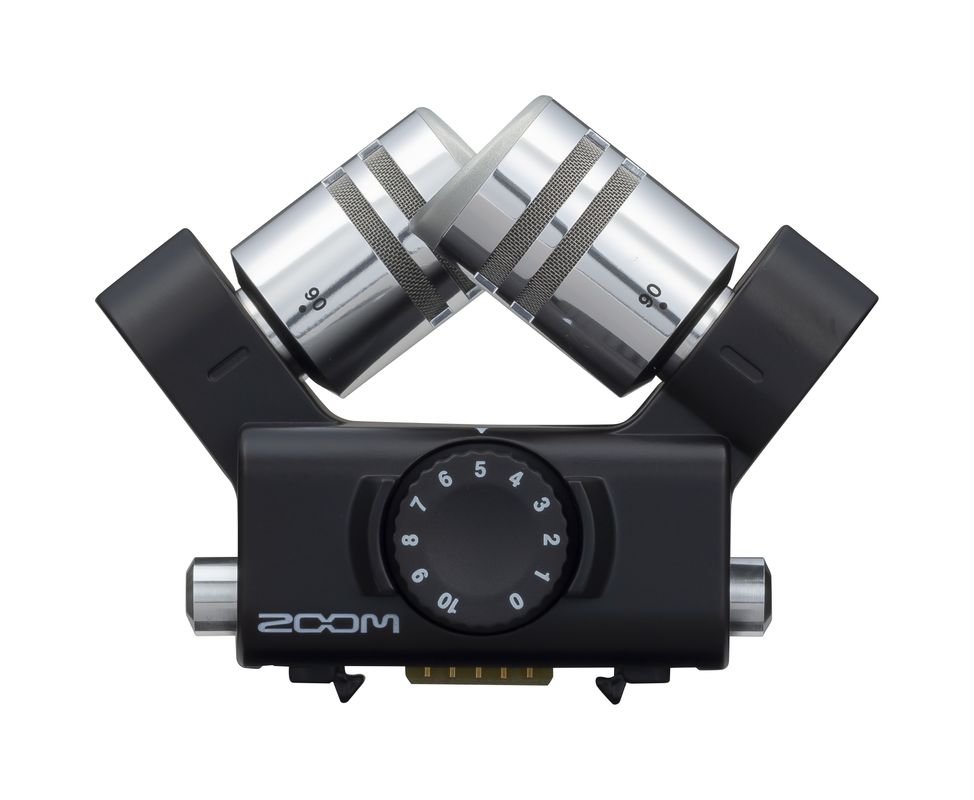

     XYH-6 X/Y MIC:Mic type: Unidirectional

     Sensitivity: -41 dB, 1 kHz at 1 Pa

     Input gain: -∞ to 46.5 dB

     Max sound pressure input: 136 dB SPL

     XYH-6 MIC/LINE IN:Connector: 1/8" stereo mini jack

     Input level: - ∞ to 46.5 dB

     Input impedance: 2 k Ω

     Plug-in power: 2.5V supported

     MSH-6 MS MIC:Mic types: Unidirectional and bi-directional

     Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional)

     -39 dB, 1 kHz at 1 Pa (bi-directional)

     Input gain: -∞ to 42.5 dB

     Max sound pressure input: 120 dB SPL (unidirectional)

     122 dB SPL (bi-directional)

     INPUTS 1 TO 4:Connectors: XLR / TRS combo jacks

     (XLR: Pin 2 hot / TRS: Tip hot)

     Input gain: (PAD OFF) -∞ to 55.5 dB

     Input gain: (PAD ON) -∞ to 35.5 dB

     Input impedance: 1.8kΩ or more

     Max input level: +22 dBu (PAD ON)

     Phantom power: +12V /+24V /+48V

     (Phantom power can be turned on/off independently for Inputs 1 - 4)

     Equivalent Input Noise (EIN): -120 dBu or less

     OUTPUTS

     LINE OUT:Jack type: 1/8" stereo mini jack

     Rated Output Level: -10 dBu when output load impedance is 10k Ω or more

     PHONE OUT:Jack type: 1/8" stereo mini jack

     Output Level: 20 mW +20 mW into 32 Ω load

     BUILT-IN SPEAKER:400mw 8 Ω mono speaker

     RECORDING FORMATS

     WAV:Sampling frequency: 44.1/48/96 kHz

     Bit rate: 16/24

     (Mono/Stereo, BWF-compliant)

     Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup)

     (Backup recording: -12dB lower than set L/R input ga

     MP3:Sampling frequency: 44.1kHz

     Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps

     Maximum simultaneous recording tracks: 2

     DISPLAY

     LCD SCREEN:2.0-inch full color LCD (320 x 240 pixels)

     USB

     MASS STORAGE CLASS OPERATION:Class: USB2.0 High Speed

     AUDIO INTERFACE OPERATION: MULTI-TRACK MODE:Class: USB2.0 High Speed

     Inputs / Outputs: 6 / 2

     Sampling frequency: 44.1/48kHz/96kHz

     Bit rate: 16/24 bit

     USB bus powered operation possible

     BATTERY LIFE

     Battery life (with alkaline battery, continuous recording) Over 20 hours

     DIMENSIONS AND WEIGHT

     H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g

         WHAT'S IN THE BOX?

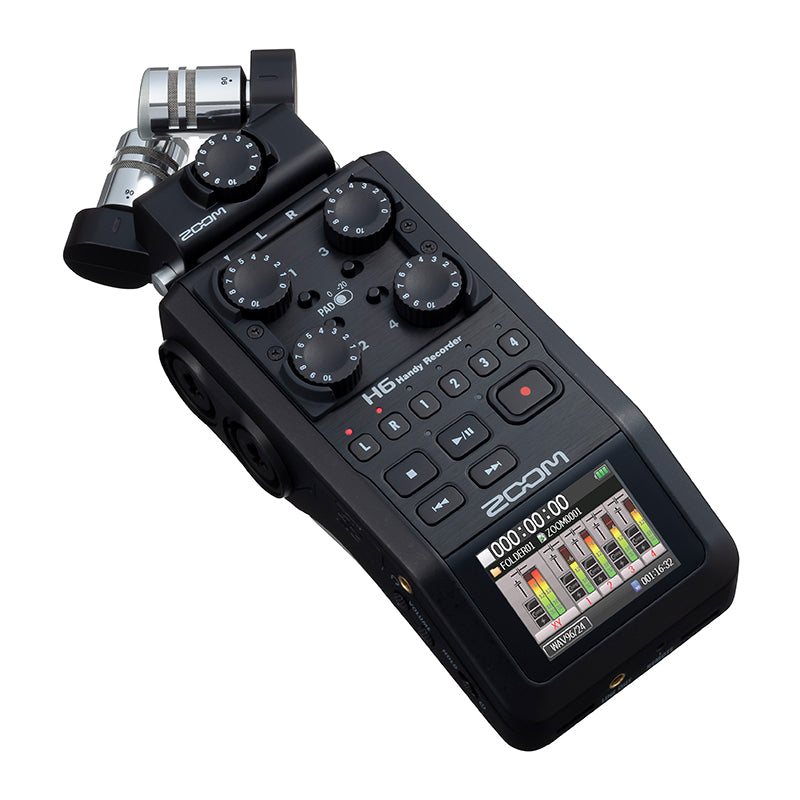

       • H6/BLK Handy Recorder

       • XYH-6 X/Y mic capsule

       • Quick Start Guide

       • Cubase LE & Wavelab LE Software

     NOTE: Not include battery and sd card !!!
