Video Features: Video output impedance 75 Ω, typical video output level 1Vp-p, typical video polarity negative
Video frequency response ± 5 decibels, maximum 50 Hz~6 MHz
Differential gain ± 5%, maximum value
Differential phase ± 5 degrees, maximum; 3dB IF broadband 16.5MHz
Signal-to-noise ratio S/N 38dB, Min; RSSI output voltage (-30dBm~-90dBm) 1.3-0.7V(Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.)
VRX-1G3-V2:

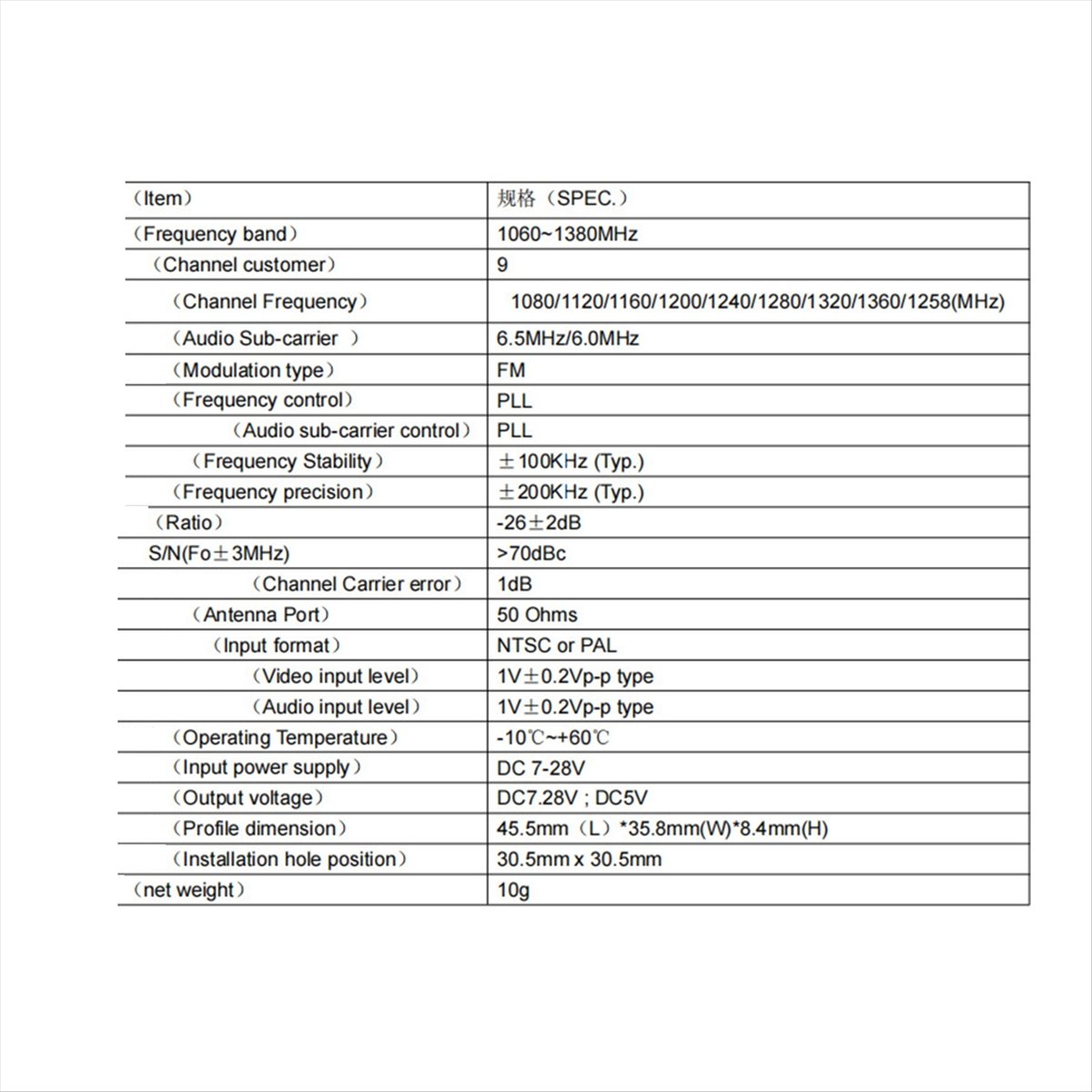

specifications
Band 1060-1380MHz
Channel Customers 9
Channel: frequency: 1080/1120/1160/1200/1240/1280/1320/1360/1258 (MHz)
Audio subcarrier 6.5MHz/6.0MHz
Modulation type frequency modulation
Frequency controlled phase-locked loop
Audio subcarrier controlled phase-locked loop
Frequency stability ±100KHz (typical value)
Frequency accuracy ±200KHz (typical value)
A/V ratio -26±2dB
Signal to noise ratio (Fo ± 3MHz)Greater than 70dBc
Channel carrier error 1dB
Antenna port impedance (50 ohms)
Input format NTSC or PAL
Video input level range: 1V ± 0.2vp-p type
Audio input level range: 1V ± 0.2vp-p type
Working temperature -10℃~+60℃
DC 7-28v input power supply
Power output (output voltage) DC7.28V; DC5V
Installation hole position 30.5mm x 30.5mm

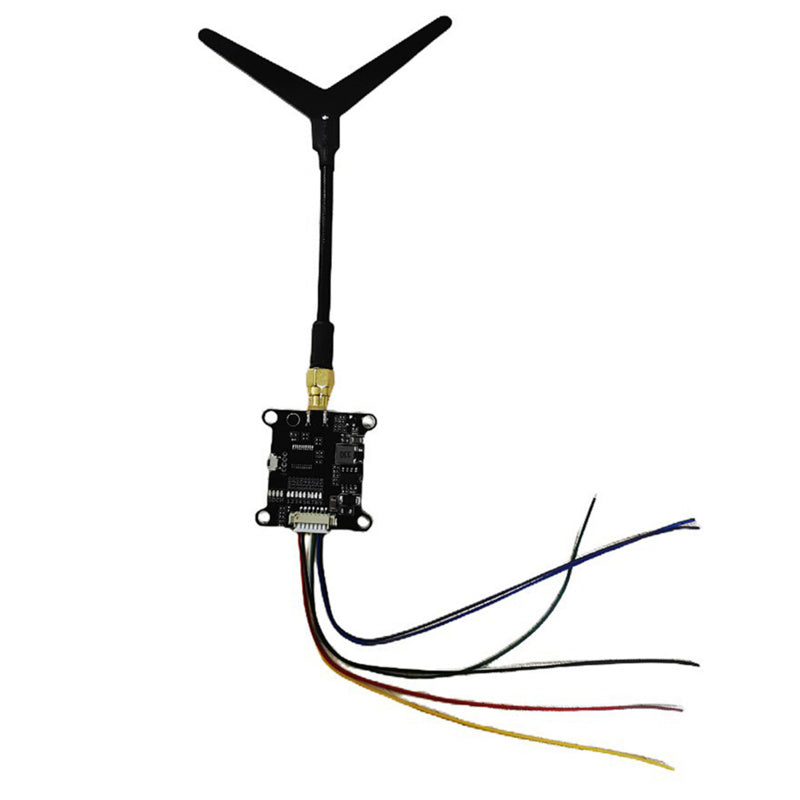

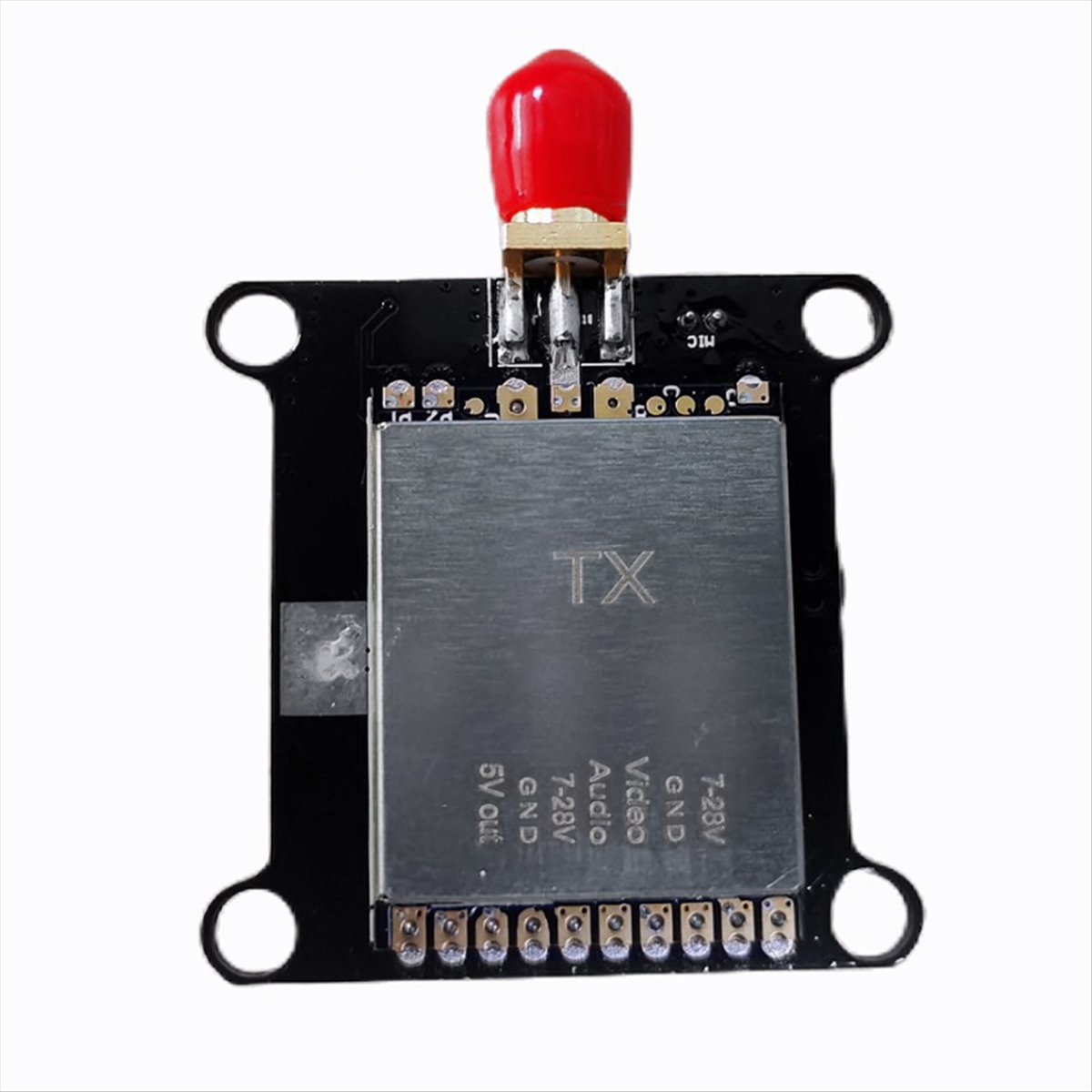

VTX-1G3SE
DC characteristics
Power supply voltage 5.0V
Current consumption (280±40) mA
Environmental regulations
Working temperature -10~+65℃
Storage temperature -30~+85℃
Working humidity 85% RH
Radio Frequency (RF)
Receiving frequency range 1050~1380MHz
Input voltage standing wave ratio 2: 1
FM/PLL demodulation system
Intermediate frequency IF 480MHz
ANT. Input impedance 50Ω, typical value LO frequency stability ±200kHz
LO frequency accuracy ±200kHz
LO control PLL
Input LO leakage -65dBm
Receiving sensitivity -95dBm
Input level range -95dBm to +5dBm
Material: PCB
colour: Black

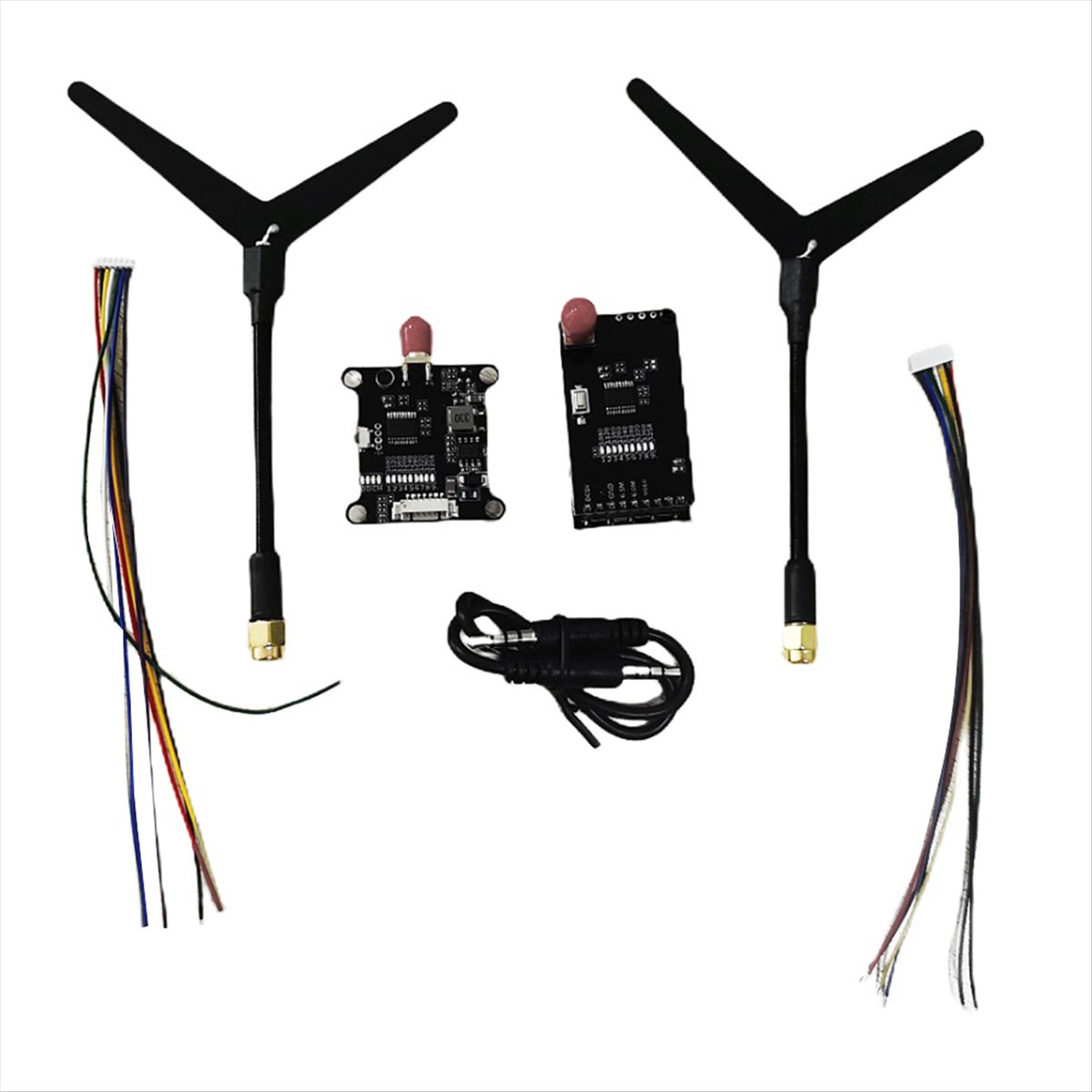

Package Contents:
1 x Receiver
1 x Transmitter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
