Specifications:
IO Port: 9
Power Supply: 5V 2A
WiFi: 820.11 b/g/n/e/i
SPI Flash: Default 32Mbit
Spectrum Range: 2412-2484MHZ
Serial Port Rate: Default 115200 bps
RAM: Internal 520KB + External 4M PSRAM
Antenna Form: Onboard PCB antenna, gain 2dBi
Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard
Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE
Feature
Support TF card.(Max 4G)
Support image WiFi upload.
Support multiple sleep modes.
Embedded Lwip and FreeRTOS.
Support secondary development.
Support STA/AP/STA+AP working mode.

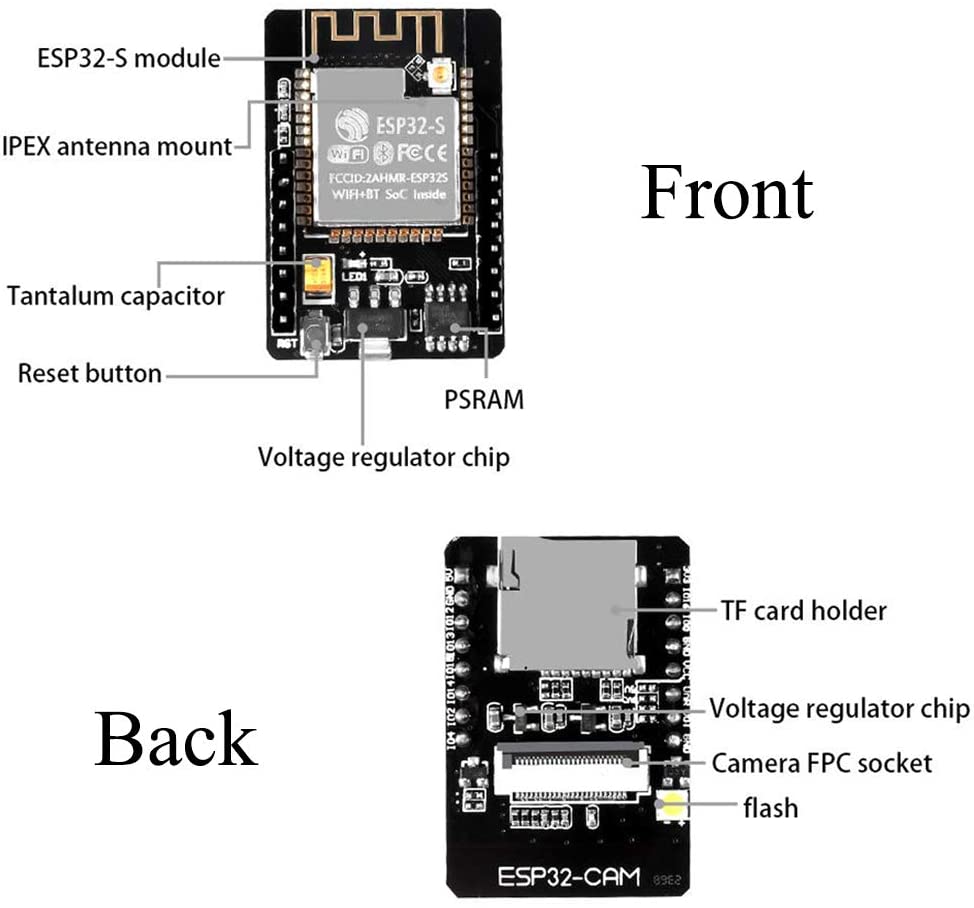

Built-in 520 KB SRAM, external 4M PSRAM.
Support OV2640 and OV7670 cameras, built-in flash.

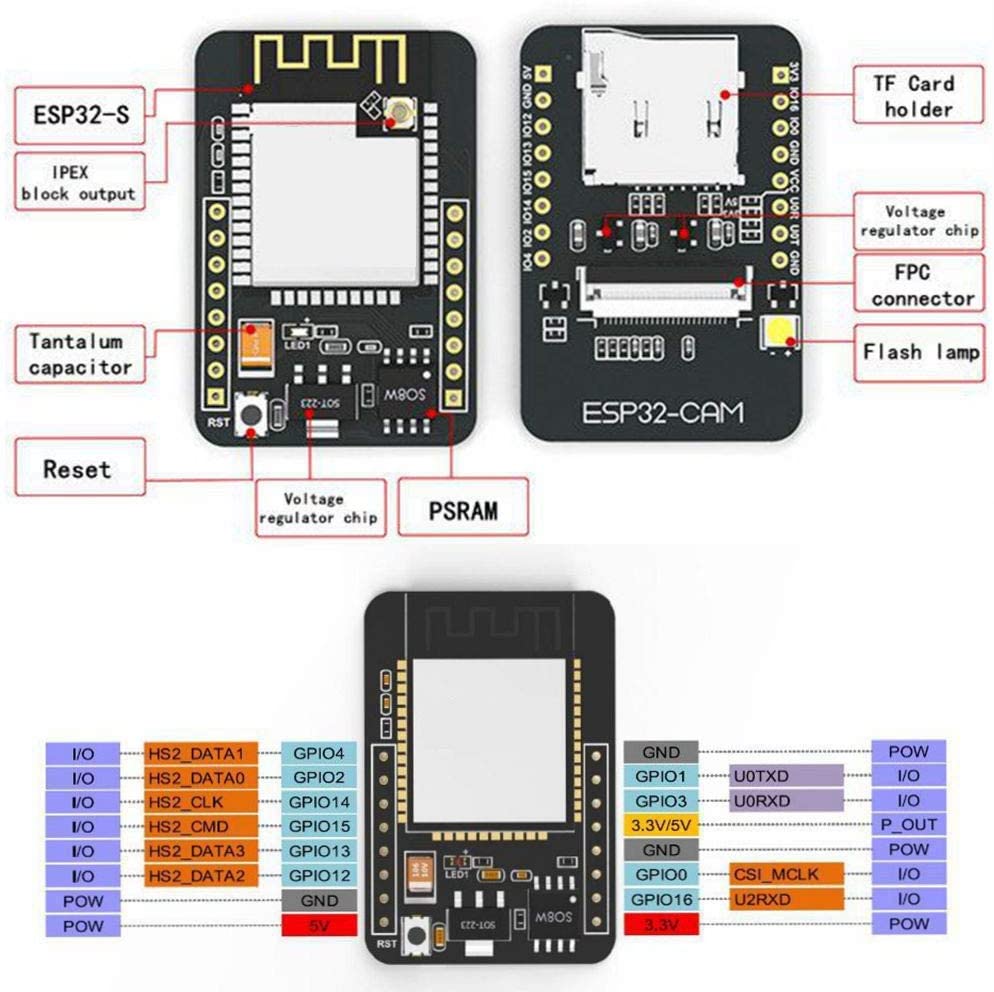

Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support Smart Config/AirKiss one-click distribution network.
Transmit Power:
820.11b: 17±2dBm (@11Mbps);
820.11g: 14±2dBm (@54Mbps);
820.11n: 13±2dBm (@MCS7)
Safety: WPA/WPA2/WPA2-Enterprise/WPS
Application:
Smart agriculture
Wireless monitoring
Home smart device map
QR wireless identification
Package Included:

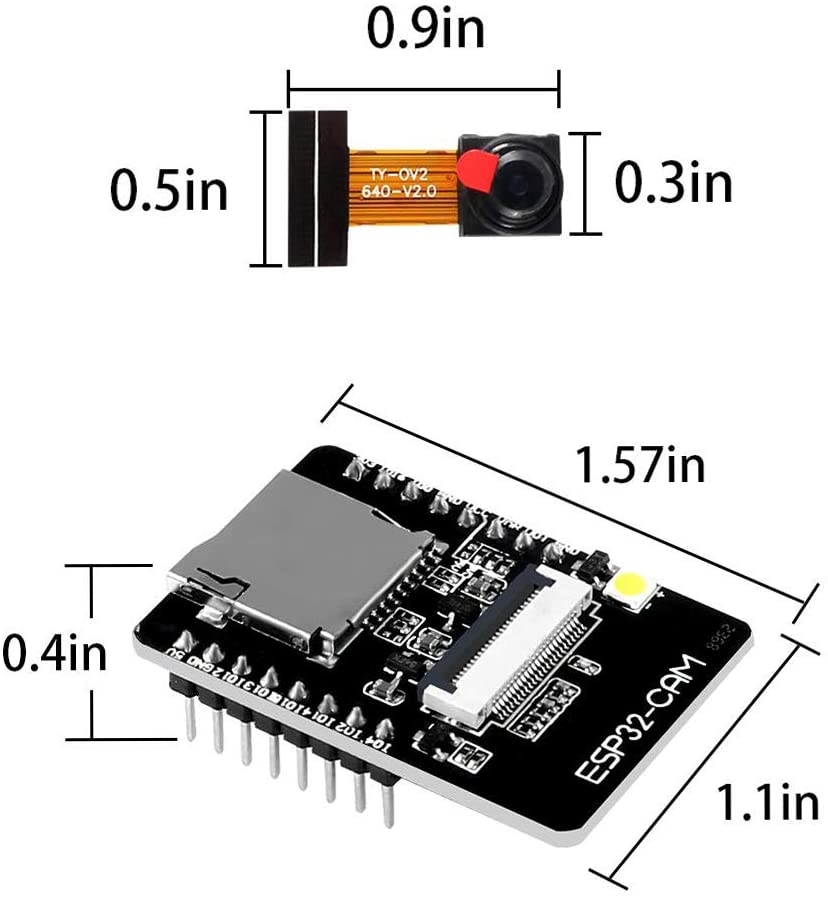

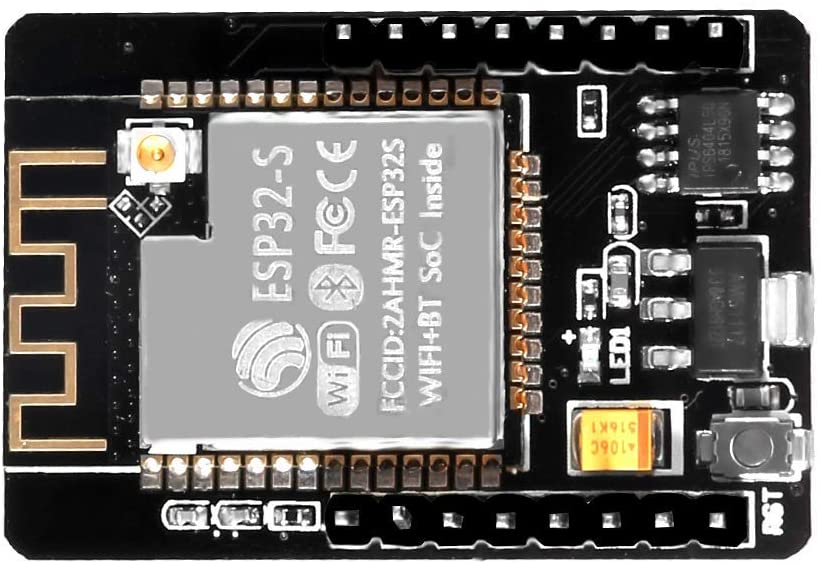

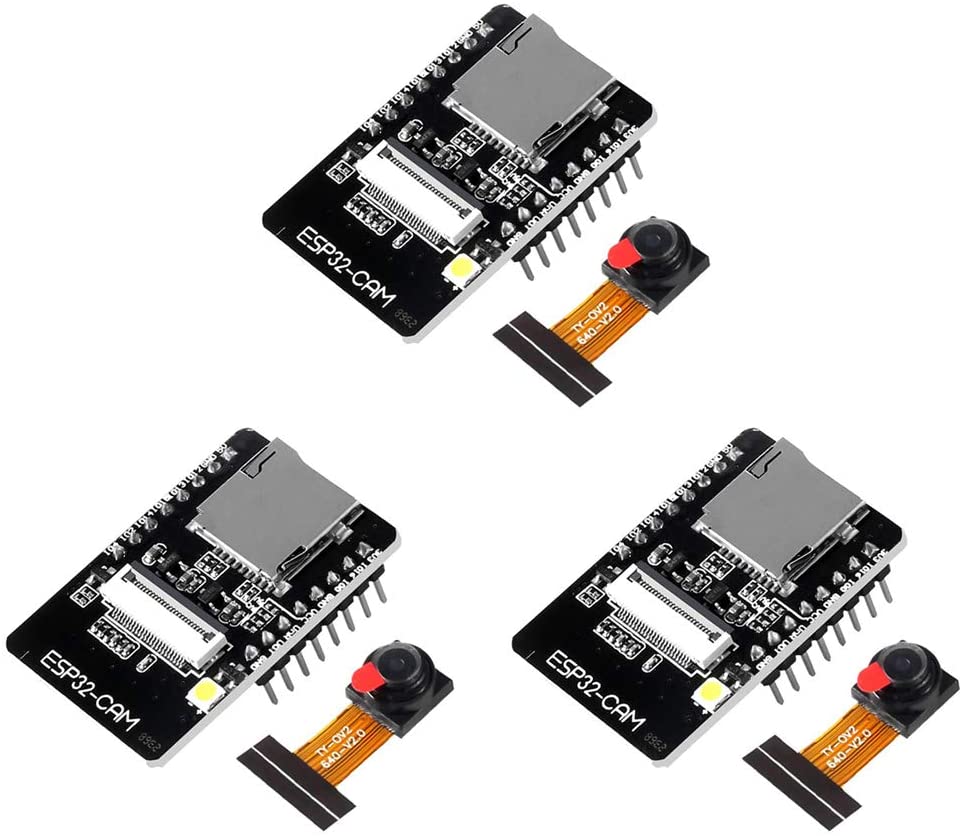

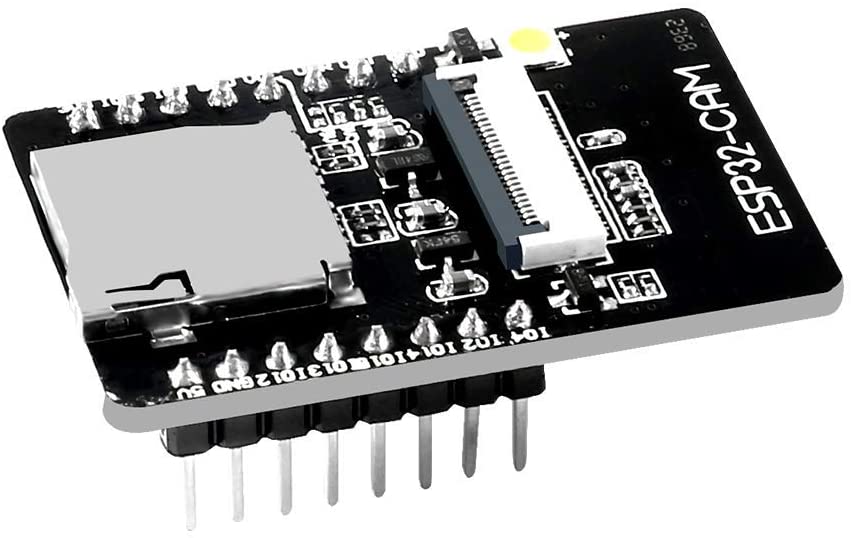

1 / 3 X ESP32-CAM Module
1 / 3 X OV2640 2MP Camera Module
