Raspberry Pi Picois NOT included.
DESCRIPTION

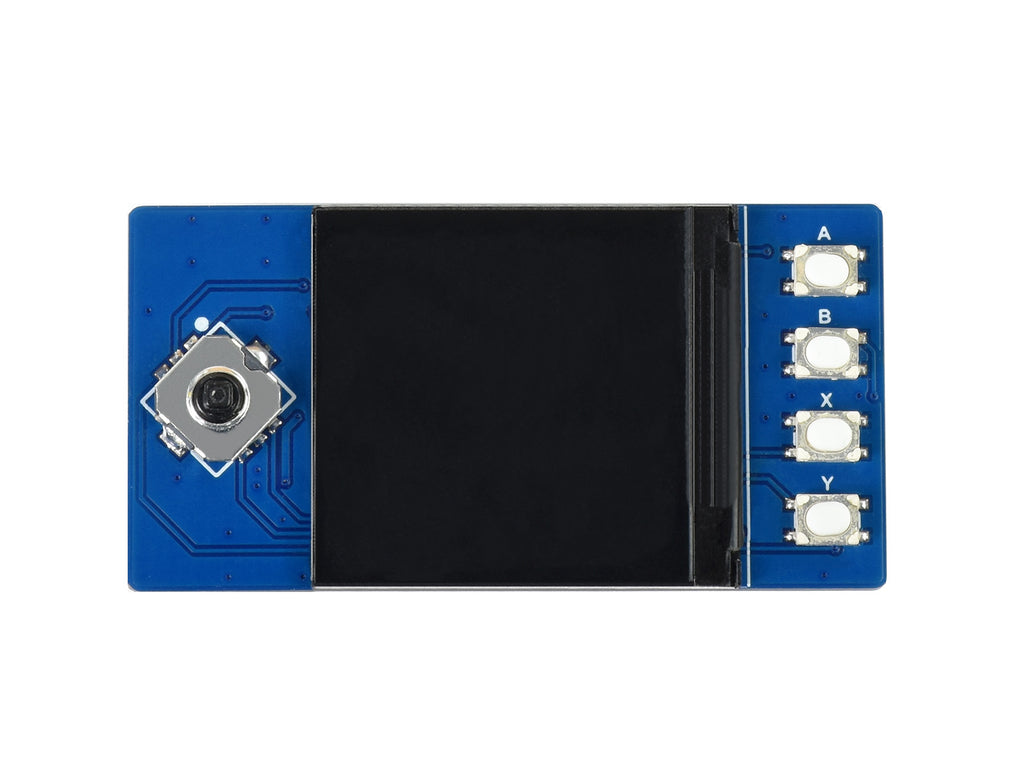

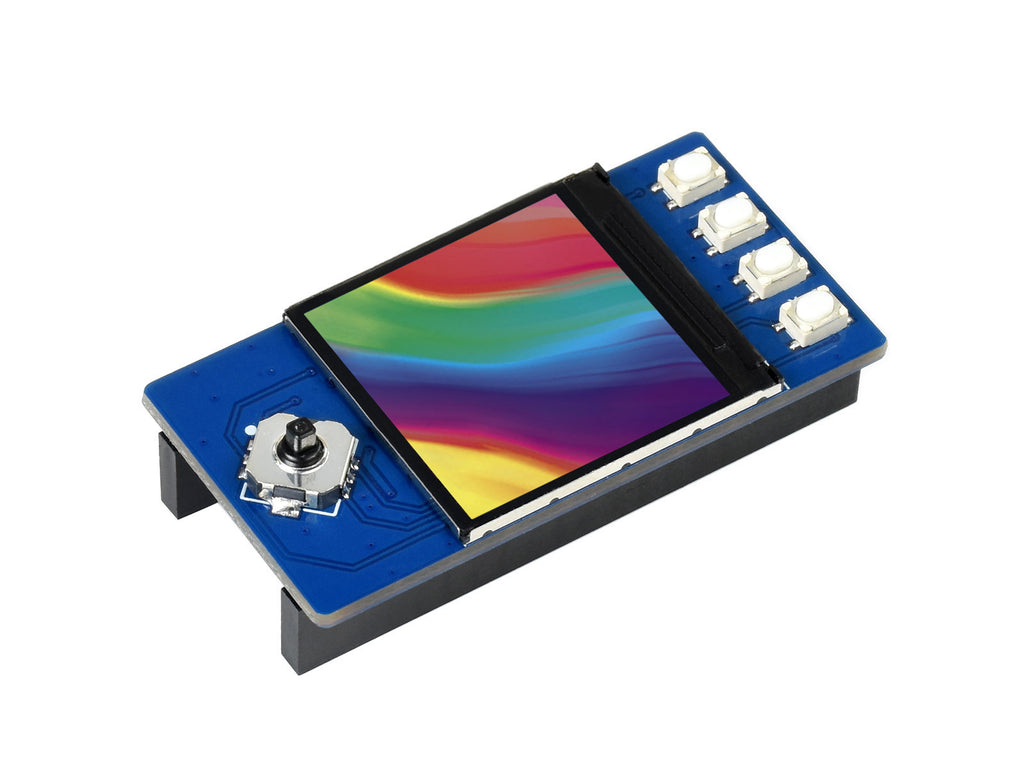

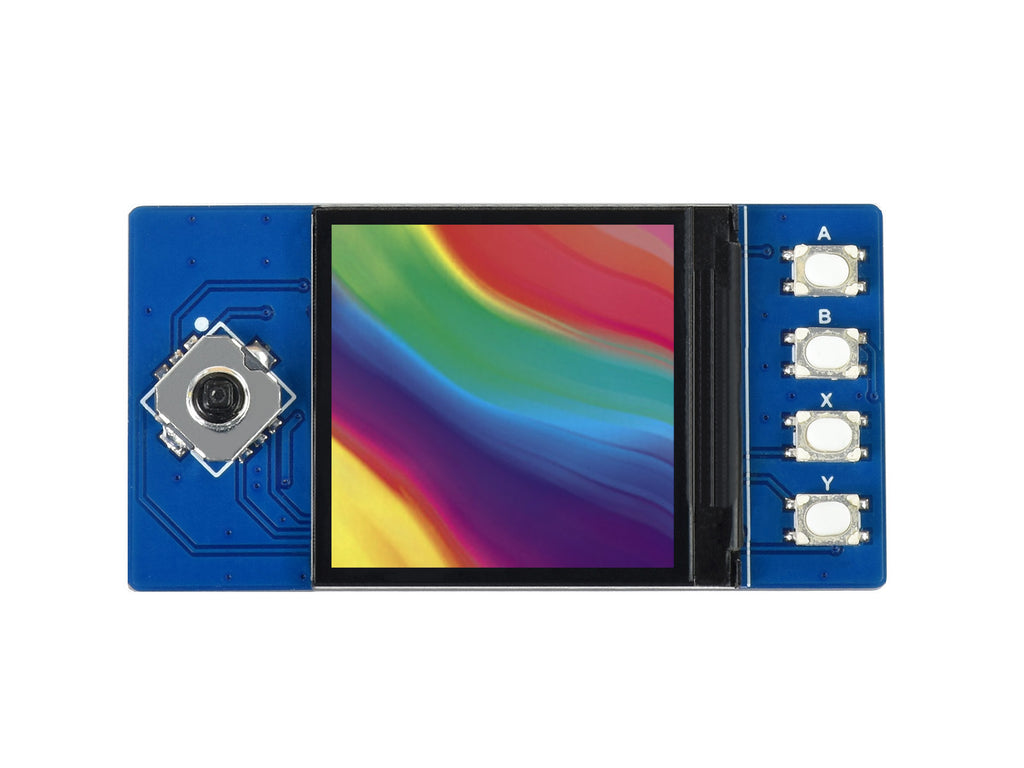

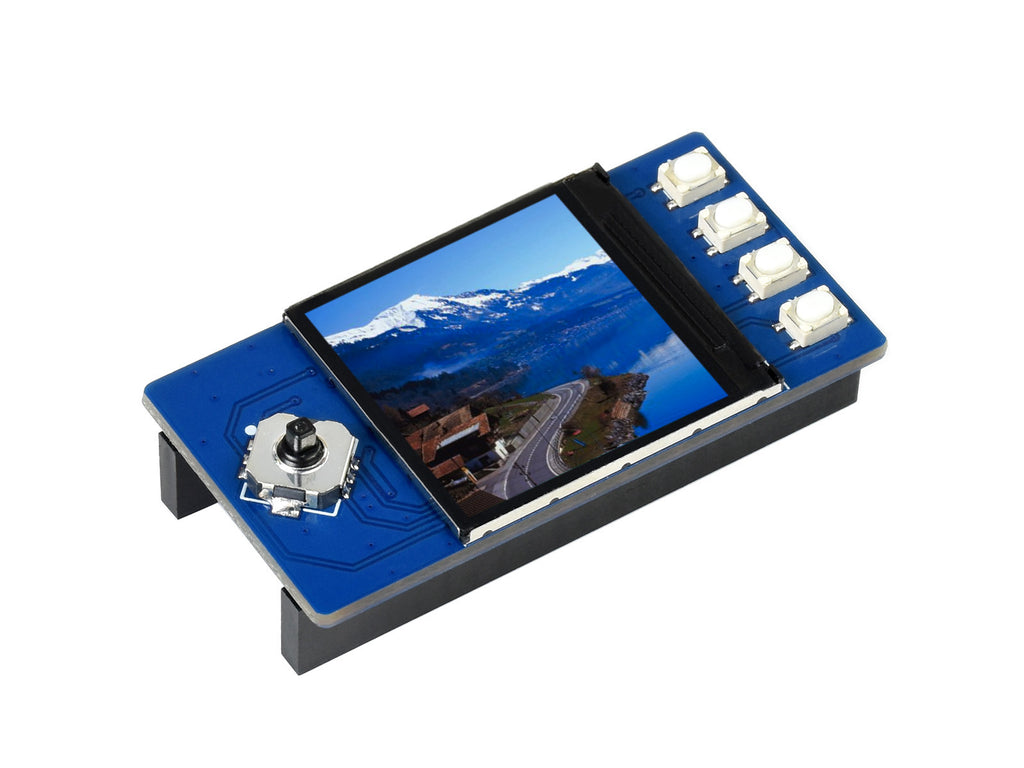

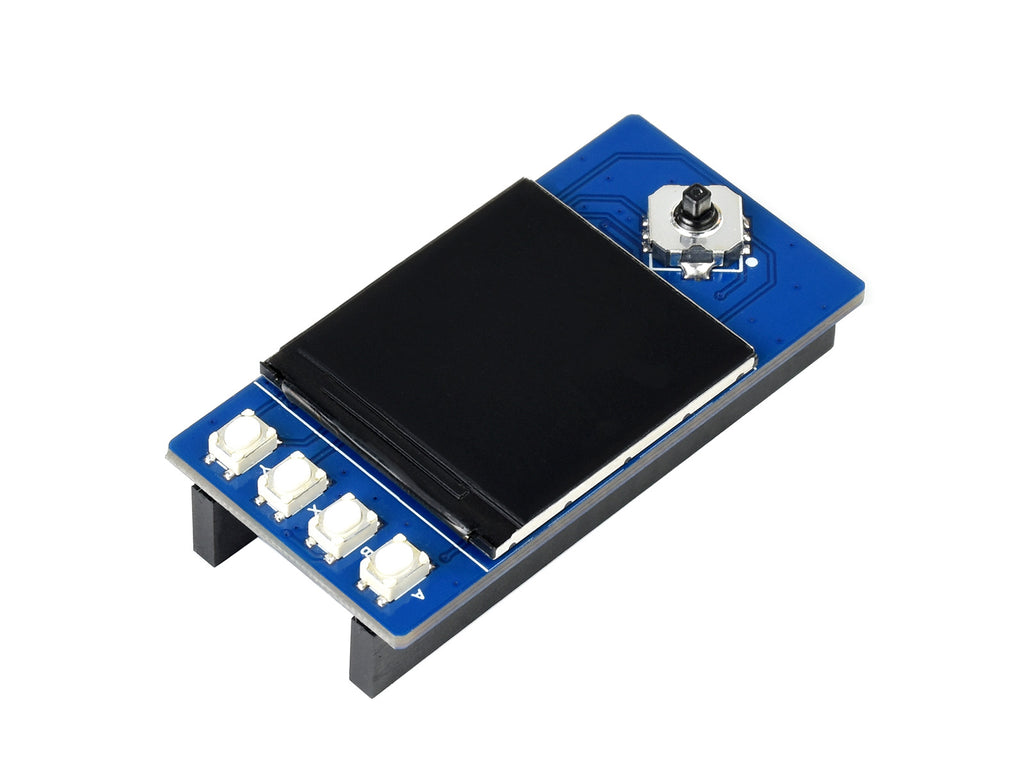

1.3inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, SPI Interface
1.3" LCD Display Module For Pico
Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Size1.3"
Resolution240×240
Display Color65K RGB
InterfaceSPI
Display PanelIPS
DriverST7789
Features At A Glance
240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
SPI interface, requires minimal IO pins
1x joystick and 4x user buttons for easy interacting
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE
2.6 ~ 5.5V
RESOLUTION
240×240 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
23.40 × 23.40mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.0975 × 0.0975mm
DRIVER
ST7789
DIMENSIONS
52.00 × 26.50mm
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 4x User Buttons For Easy Interacting
Raspberry Pi Picois NOT included.

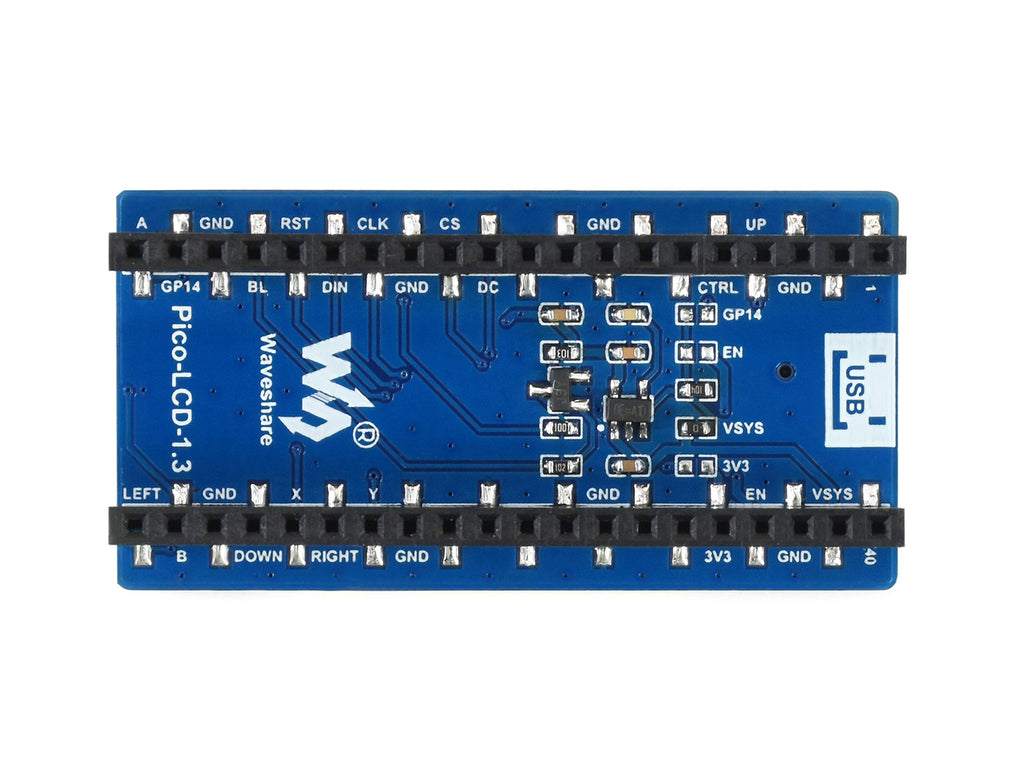

Pinout Definition
Outline Dimensions
Resources & Services
WIKI:www.waveshare.com/wiki/Pico-LCD-1.3
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
PART NUMBER
TYPE
DISPLAY COLOR
PIXELS
DISPLAY SIZE (MM)
BUS
DRIVER
DIMENSIONS (MM)
TOUCH
Pico-LCD-1.14
IPS
65K RGB
240×135
24.91×14.86
SPI
ST7789
52.00×25.00
×
Pico-LCD-1.3
IPS
65K RGB
240×240
23.40×23.40
SPI
ST7789
52.00×26.50
×
Pico-LCD-1.8
TFT
65K RGB
160×128
35.04×28.03
SPI
ST7735S
52.00×34.50
×
PACKAGE CONTENT
Weight:0.012 kg
Pico-LCD-1.3 x1
1
