10-100V 50A 100A 200A 300A 400A Bidirectional Current Detection Coulomb Meter 3.5-inch Touch Color Screen Battery Level Indicator H80C
Features:

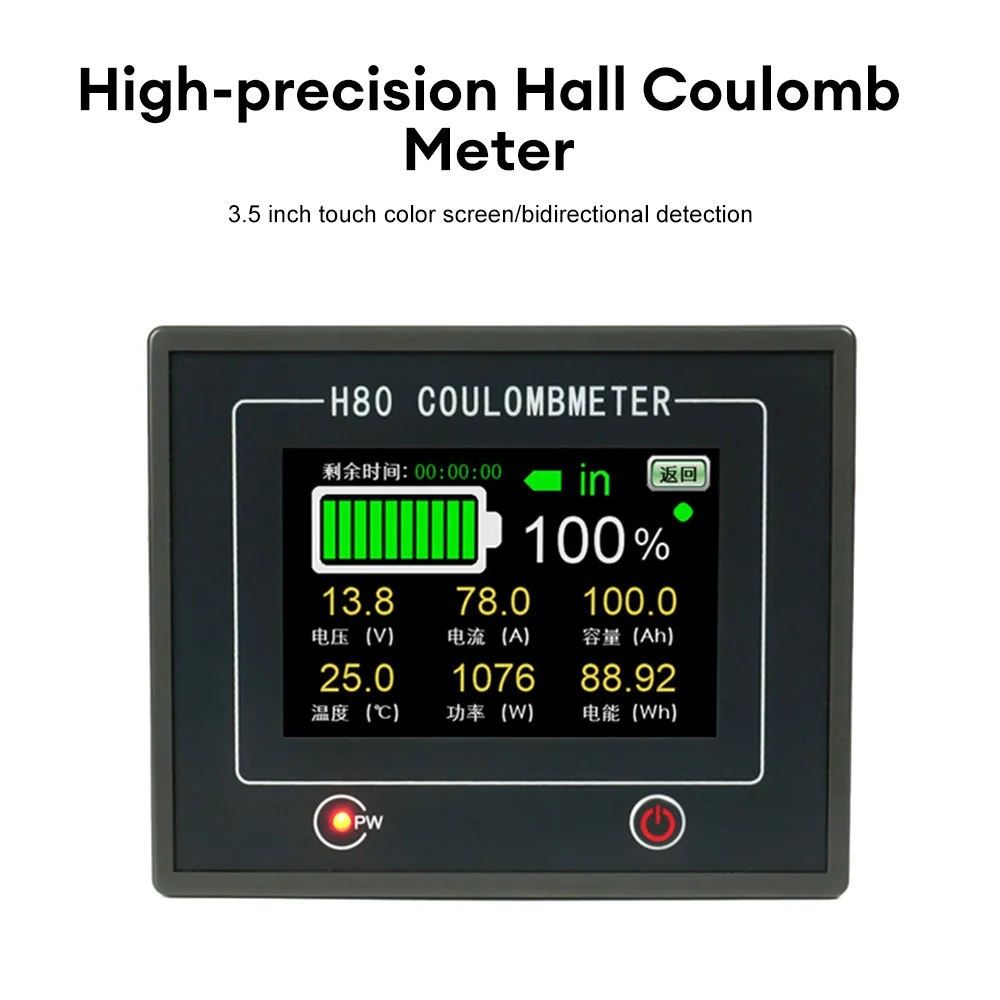

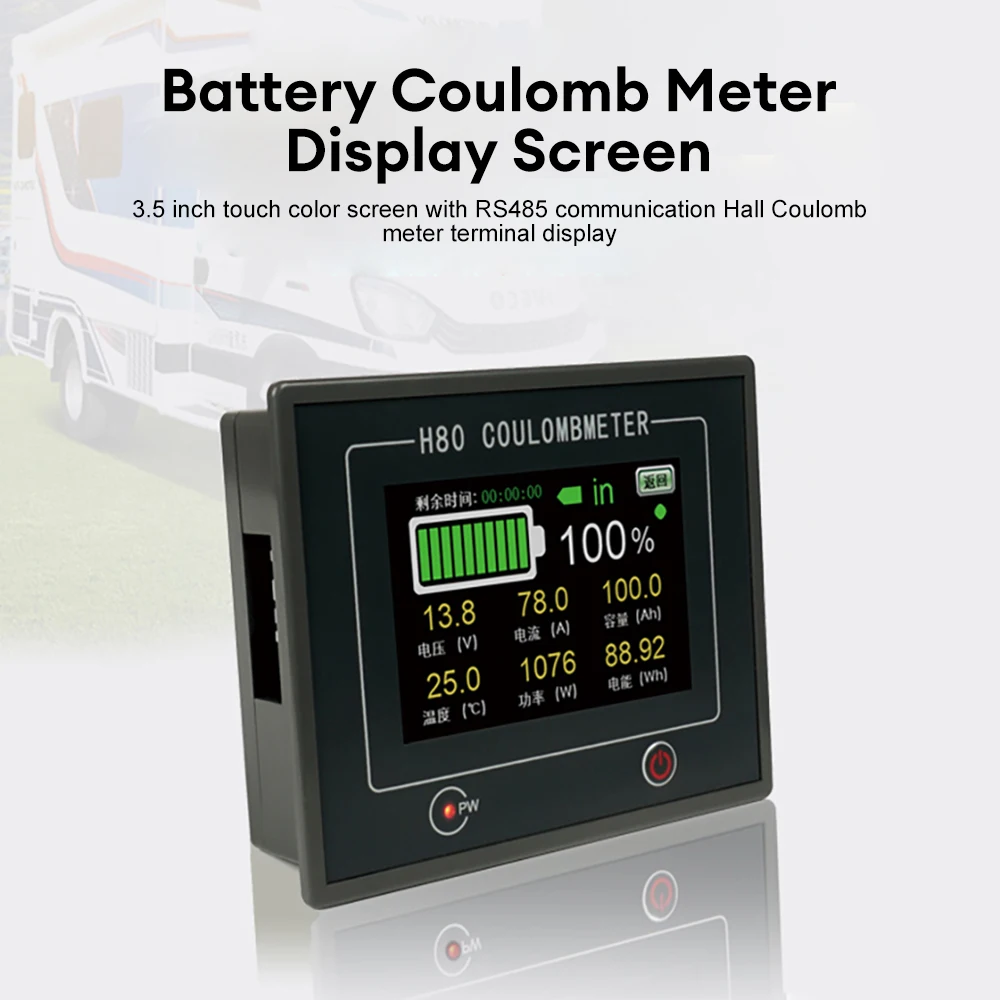

1. The display adopts 3.5-inch true color touch screen display, easy to operate and easy to observe.

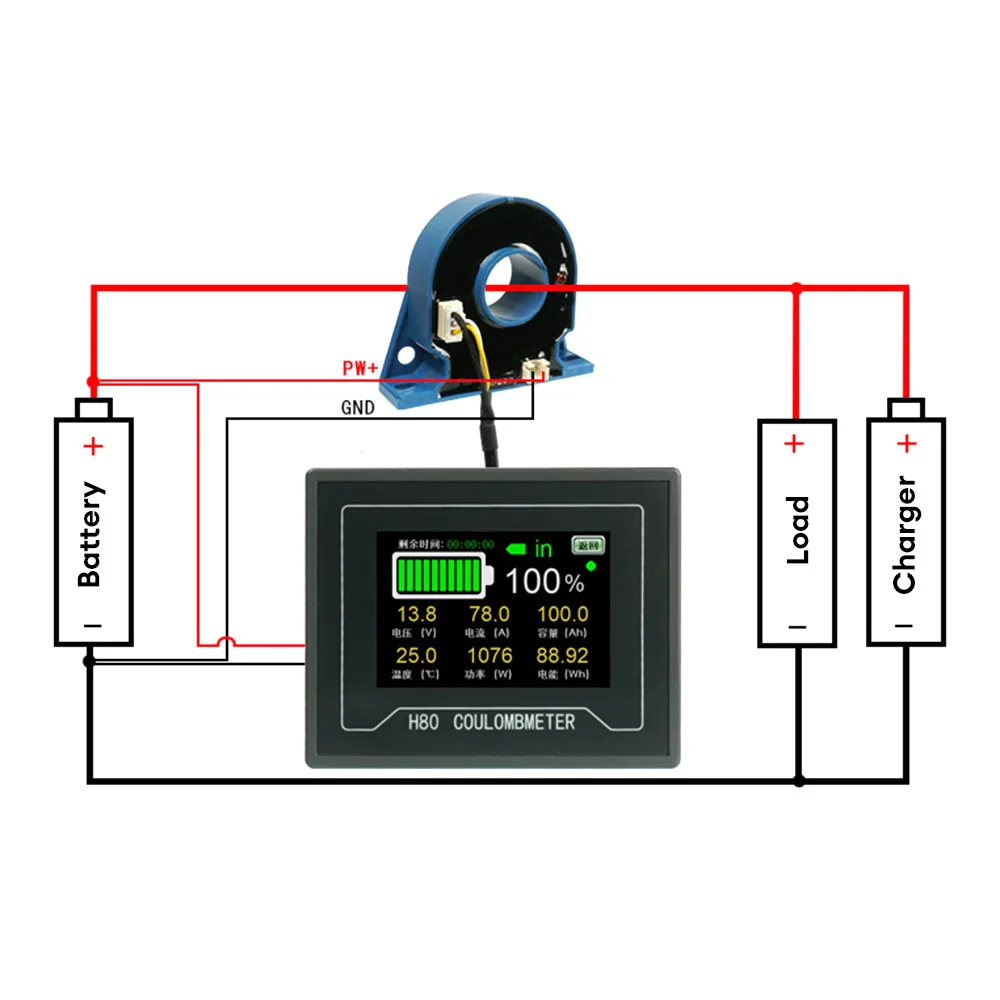

2. The Hall sensor is used to collect current without the need to disconnect the wire, and the connection is convenient and safe.
3. With flashing alarm function: can achieve over voltage, over current, under voltage, over temperature flashing alarm function.

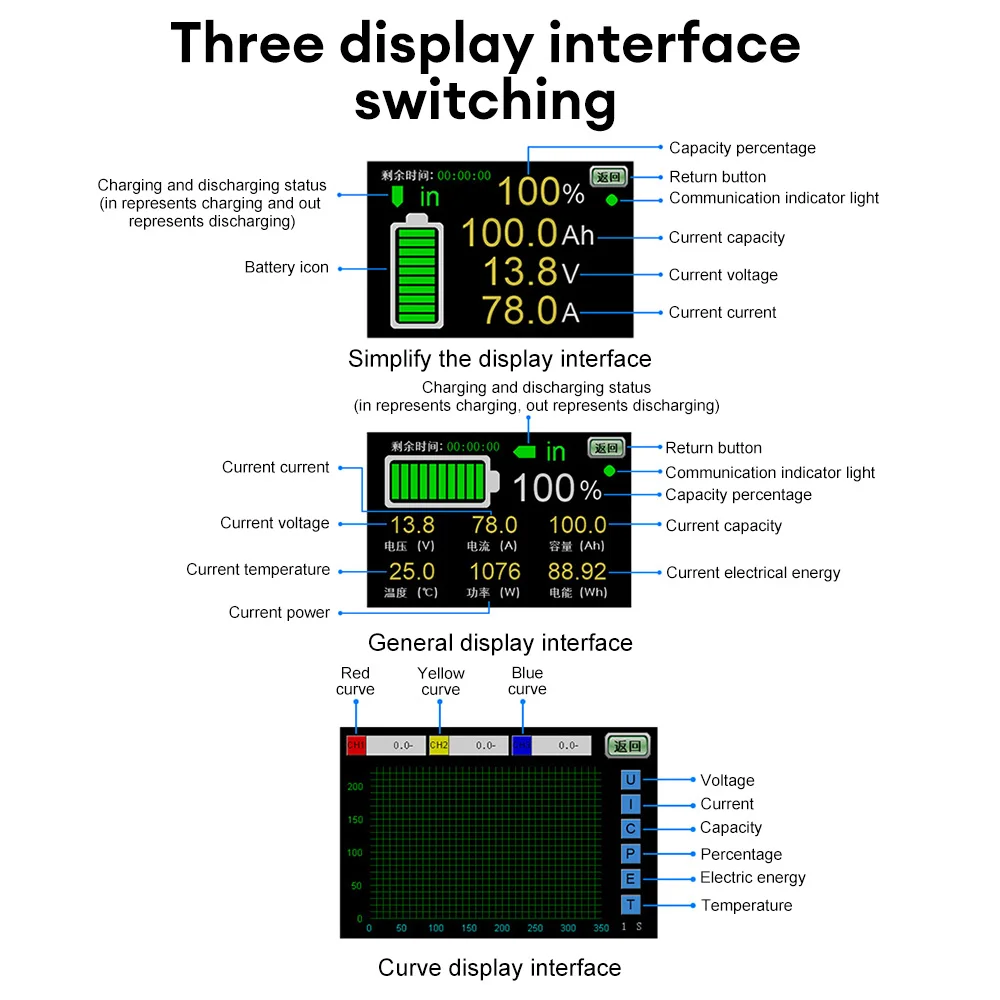

5. Can display voltage, current, power, capacity, capacity percentage, electric energy, temperature and other physical parameters in real time, display data is comprehensive.

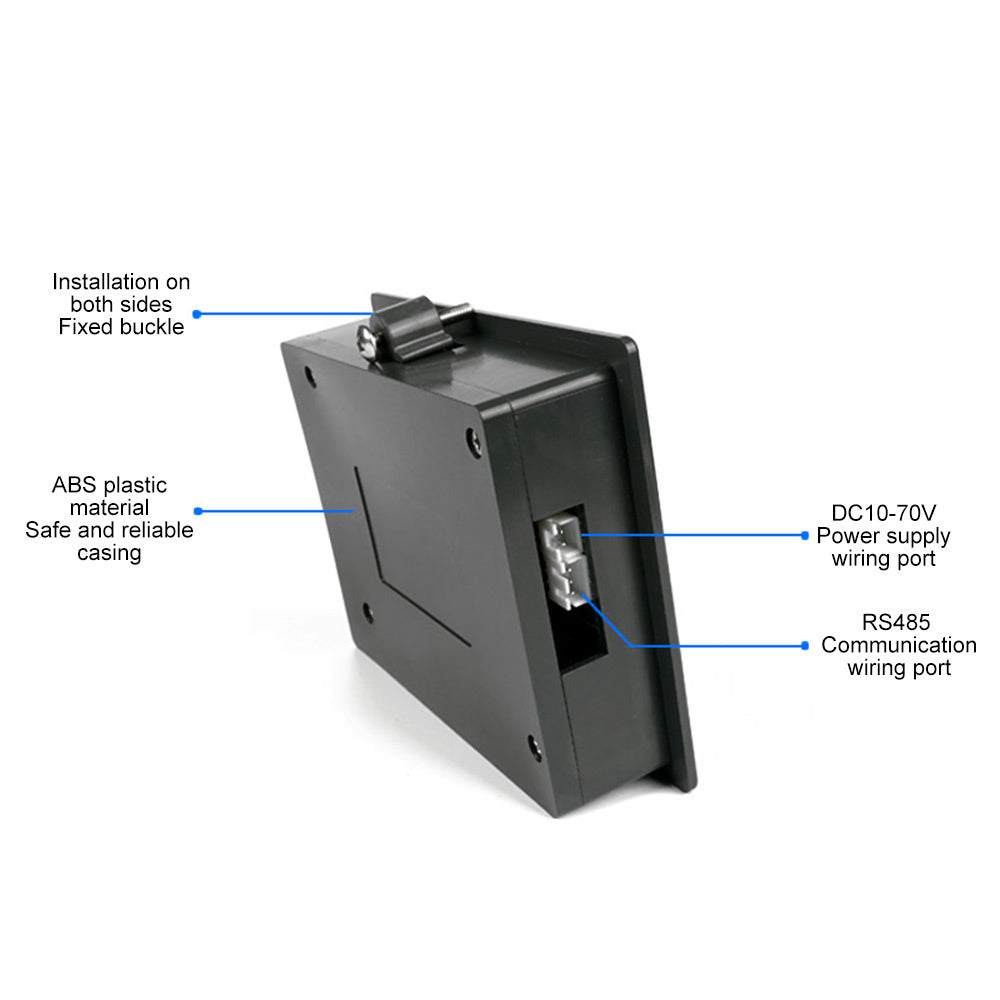

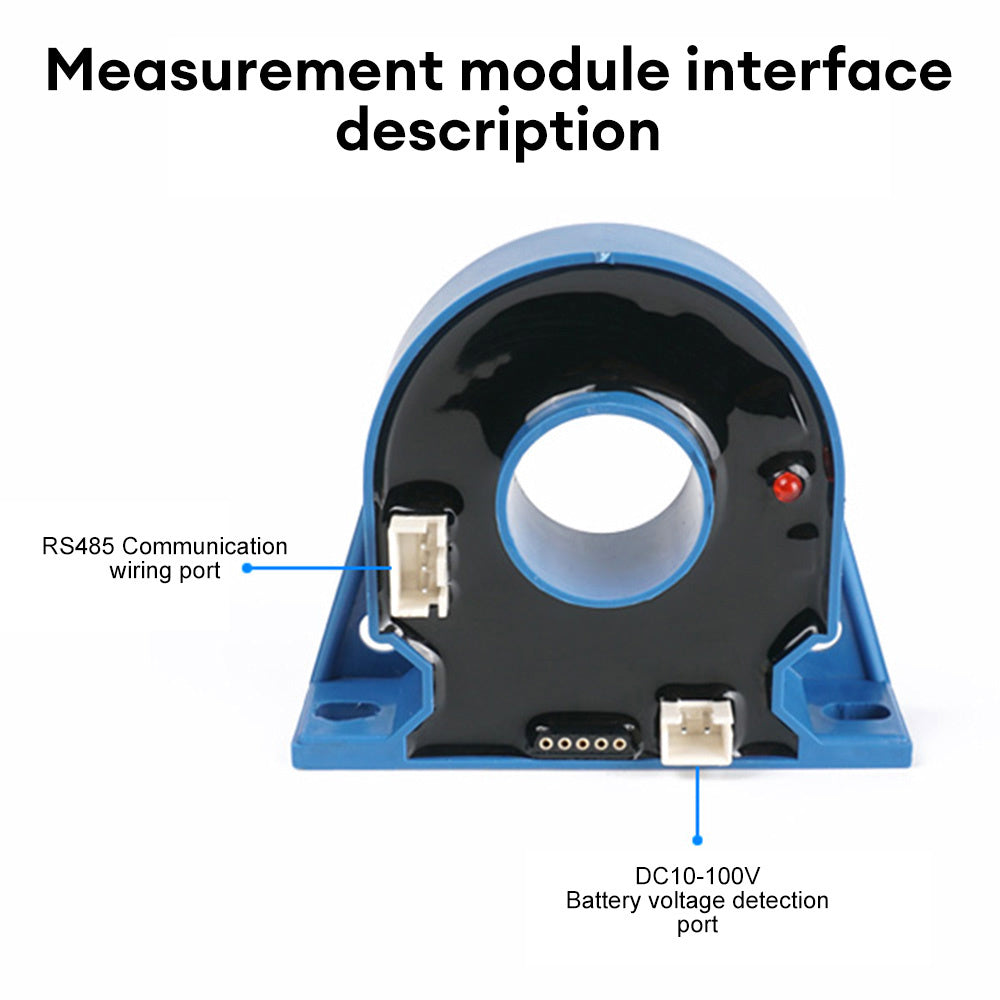

6. The product display and the measurement module communicate through RS485, the positive and negative power supply of the display can be disconnected at any time, without affecting the data collection, and the data is sent by the measurement module.
Specifications:
Voltage measurement range: 10-100V
Voltage resolution: 0.1V
Current measurement range: 0.2~50A, 0.3~100A, 0.6~200A, 0.9~300A, 1.2~400A (optional)
Current resolution: 0.1A
Temperature measurement range: -40~120℃
Capacity range: 0 to 100%
Power measurement range: 1~100KW
Power resolution: 0.1W
Ampere-hour measurement range: 0~999KAH (thousands will display 1KAH, automatic conversion)
Capacity resolution: 0.1AH
Watt-hour measurement range: 0~99.9KWH (1000 will display 1KWH, automatic conversion)
Watt hour resolution: 0.1WH
Voltage accuracy: ± (1%+2) words
Current accuracy: ± (1%+5) words
Measurement module power consumption: 10mA 0.5mA standby
Display power consumption: 110mA 0.5mA standby
Standby time: 0-30s (adjustable)

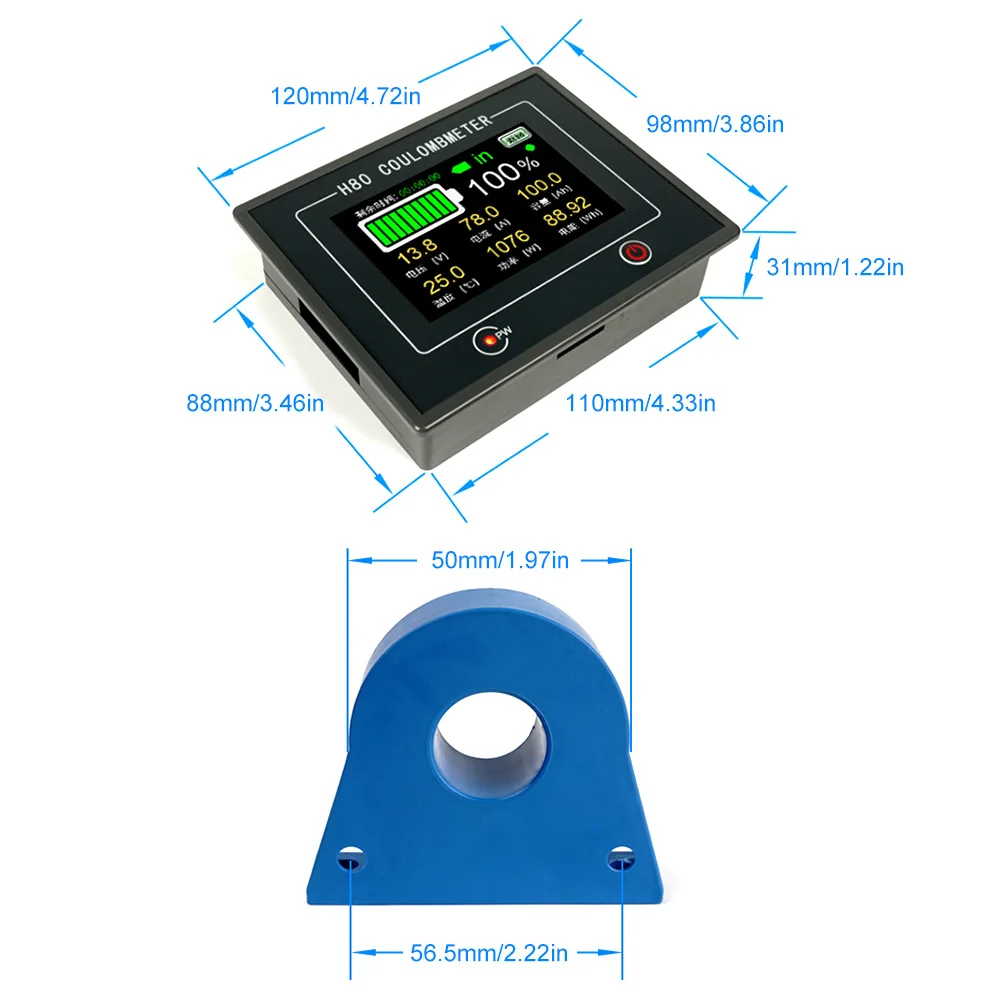

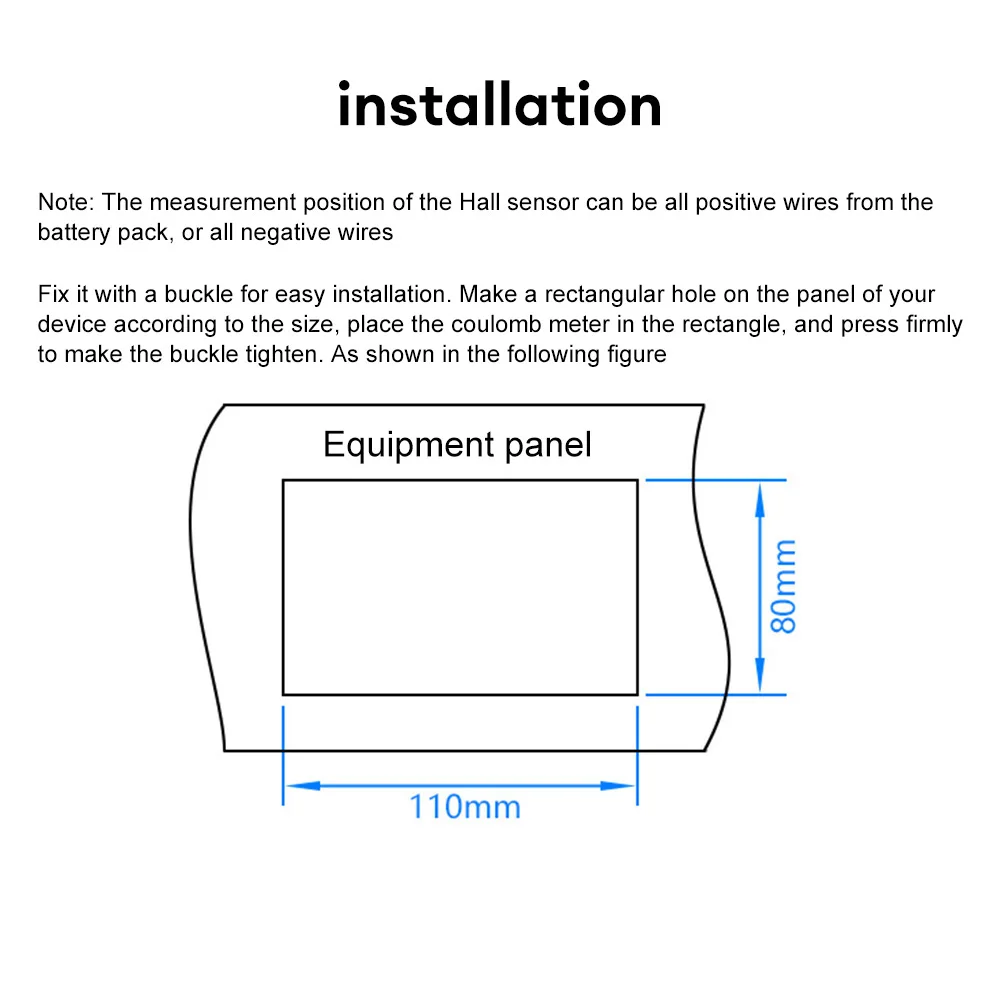

Dimensions: 120*98*31mm

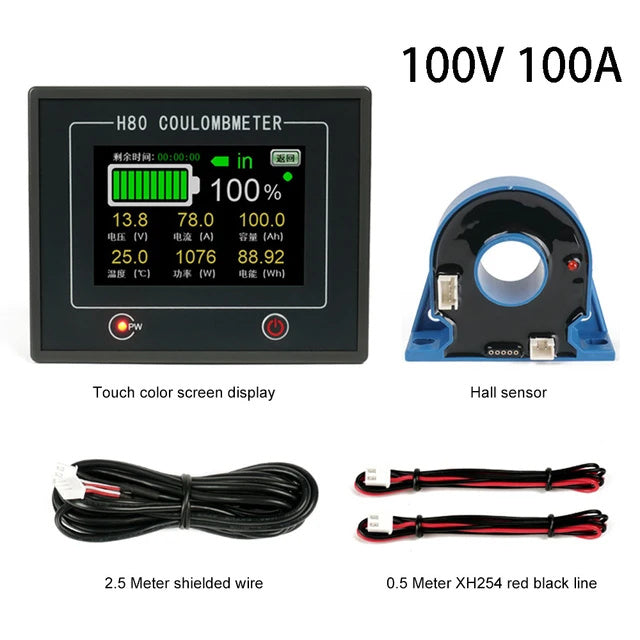

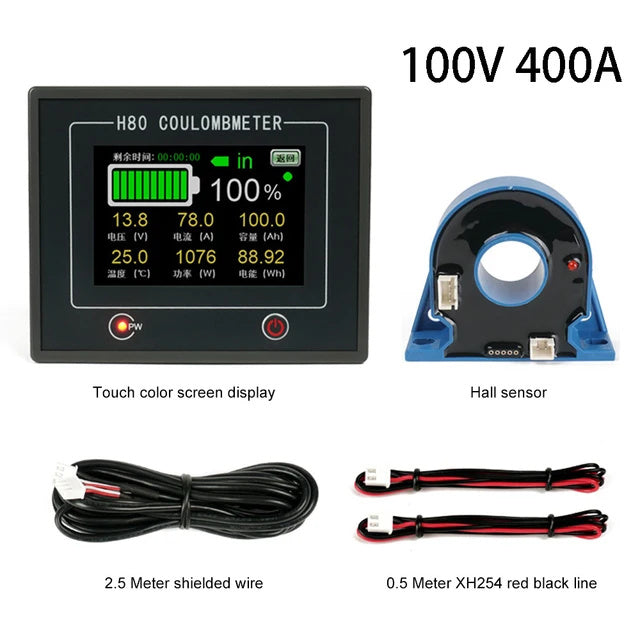

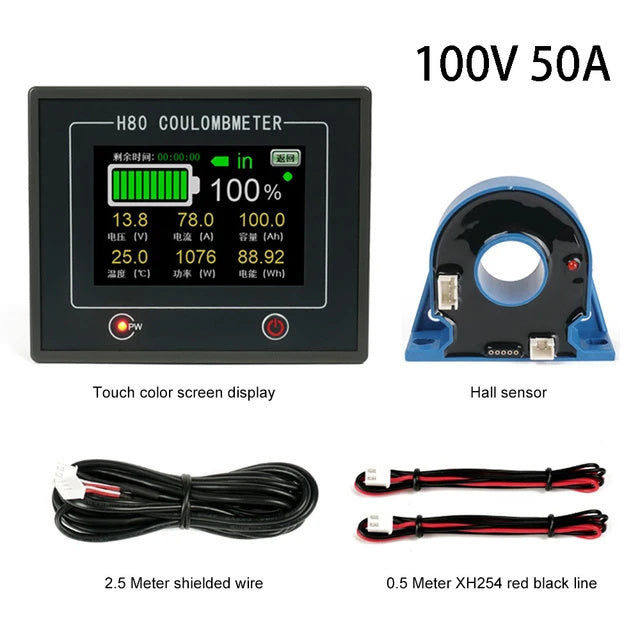

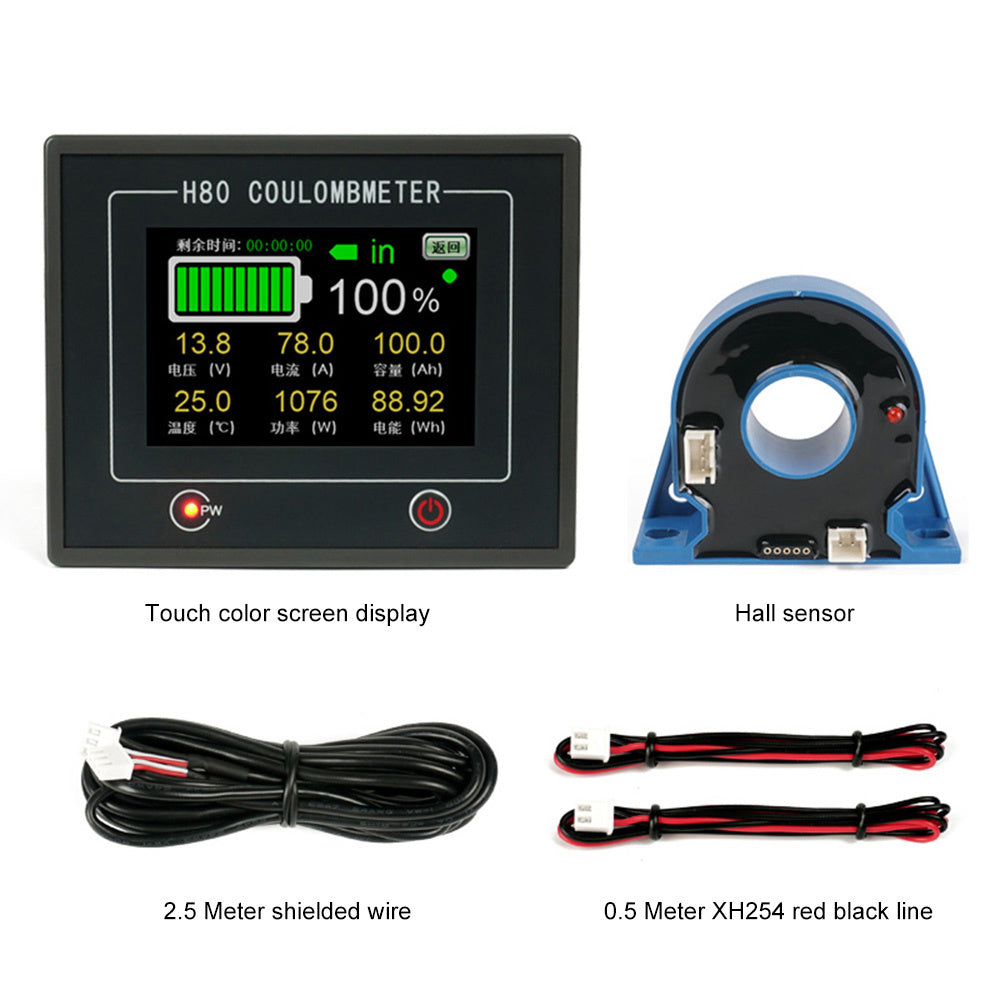

Packing list:
Sensor *1
Power indicator *1
2.5 m shielded wire *1
