Specifications:
Over Voltage Protection
Under Voltage Protection
Over Current Protection
Under Current Protection
Delay Protection
Timer Switch
Bidirectional Energy Monitor8.Voltage lmbalance Protection(Can only be set on App)
Current lmbalance Protection(Can only be set on App)
Shortage Phase Protection(Can only be set on App)
Phase Sequence Protection(Can only be set on App)
High Temperature Protection(Can only be set on App)
Current Leakage Protection(This function must be usedwith out or built-in current transformer)
Each parameter can be set with action thresholdand On/Off
Installation and Usage Conditions
Working Temperature: -30°C-70°C
Working Humidity: ≤85%
Working Altitude: Not Exceeding 2000m
Pollution Level: Level 3
Modular design appearance and din rail installation
Wiring Capacity: Insulated copper wire uner 35mm
Notice:

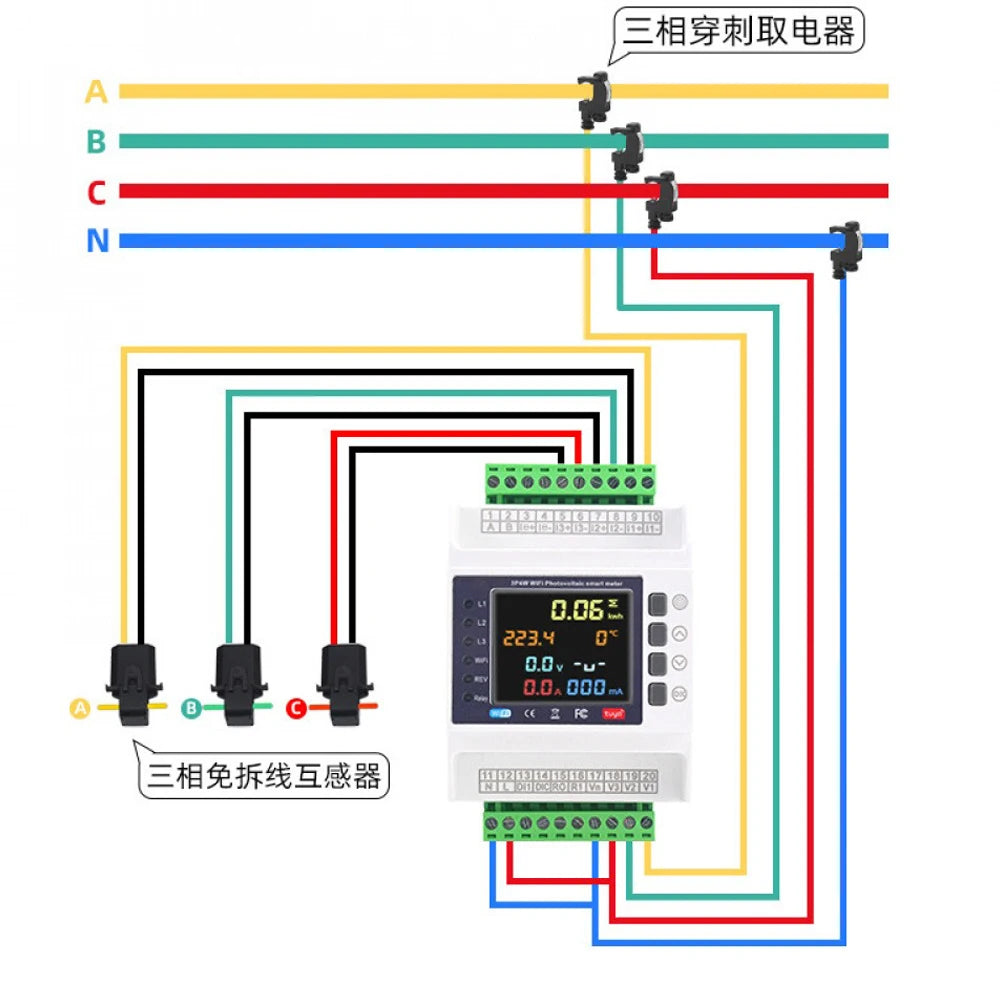

This product has no isolation function. Please turn off thepower before repairing.2. The zero line ( Neutral N line ) of this product is directlyconnected without any disconnection function.3. The device must be wired according to the markings andmust be installed correctly.4. Although this device has protection function, but it cannotreplace normal circuit breaker, so please install circuitbreaker before this device as always.5.Please tighten the clamp screws hard to avoid the devicebeing damaged caught by poor contact.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package Included:

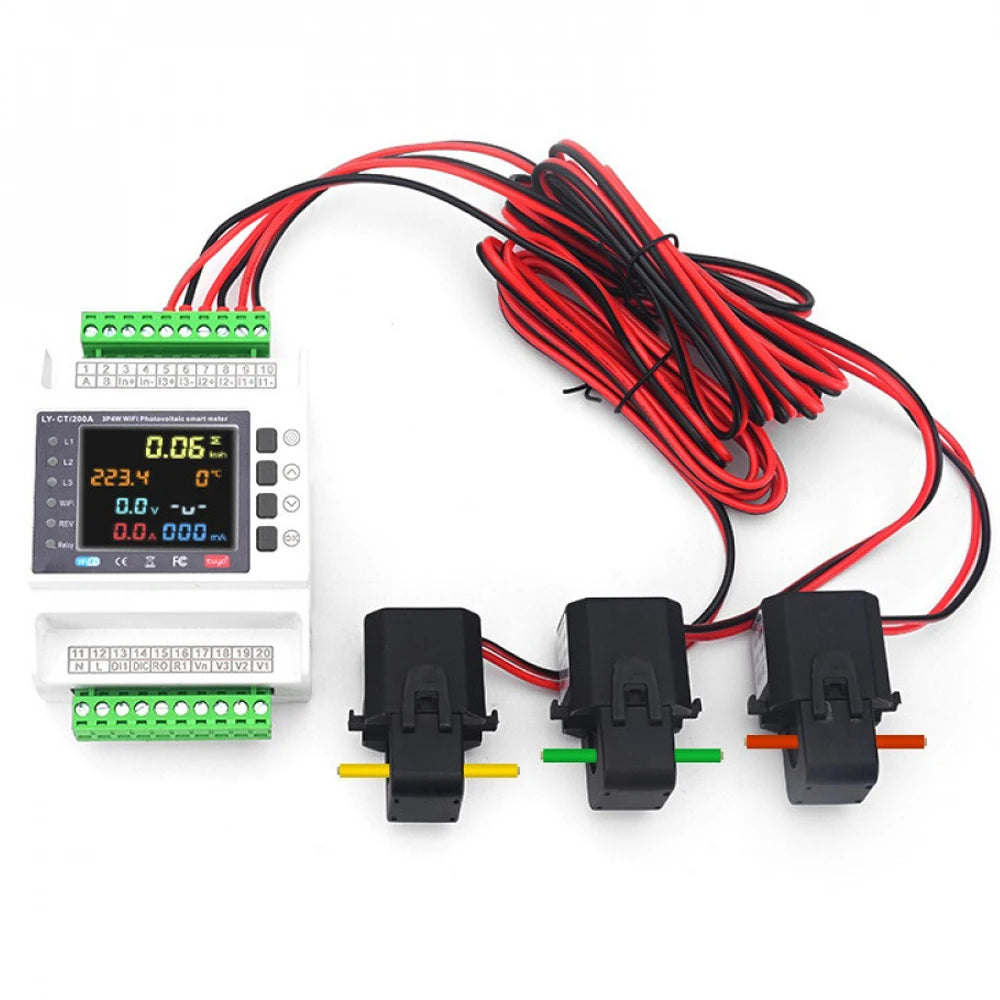

1x Energy Meter
3x Transformer
