CPU: MSTAR-MSD7805 (128 pin) MIPS 34Kf@600MHz
Memory: 32X16Mbit DDR2: Frequency1066
Flash: 32M bytes
Demodulator Type: ISDB SOC Chip Set
TUNER: Rafael R836

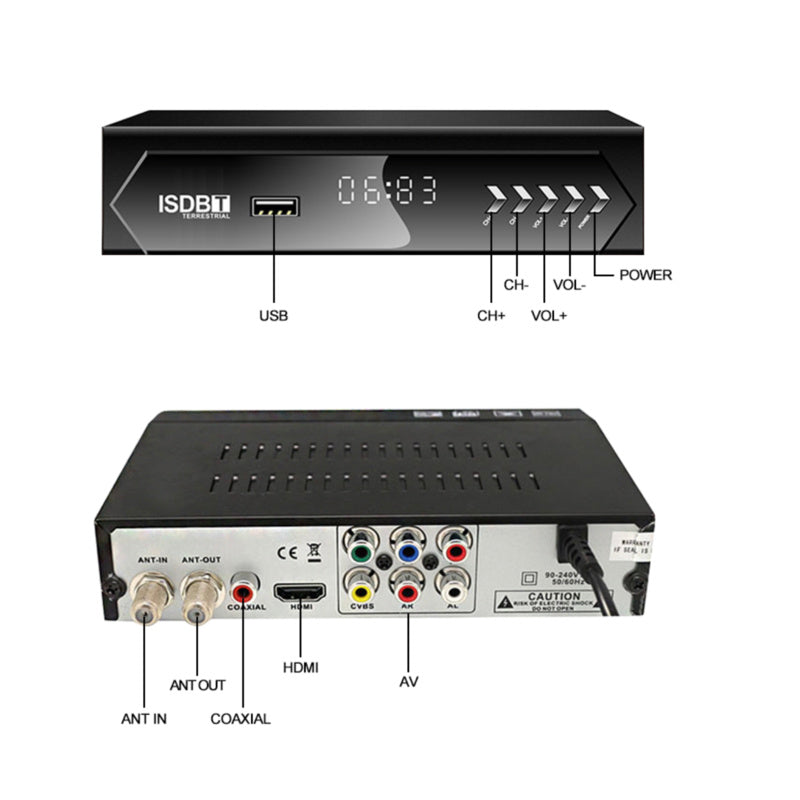

Front Panel: USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby, green LED Lock
Panel KEY, POWER, CH+ , CH-
Rear Panel: Tuner RF input connector EC-type IEC169-2 Female
Tuner RF Loop through connector IEC-type IEC169-24 Male
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
Demodulation:
Terrisal Receiver Standard: ISDB-T broadcast (1, 3, 13 segment)
Input RF Frequency: VHF: 177.143~213.143 MHz: UHF 473.143~803.143MHz.
Bandwidth: 6MHz
Demodulatio: QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval : 1/41/81/161/32
FFT Mode: 2K/ 8K/32K
Input level: -83 - -5dBm
Software Features:
•used for any ISDB-T countries like Brazil, Peru, Argentina, Chile, Venezuela, Philippines Ecuador
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface
•Supported 7-Day EPG function, VBI Teletext
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Scr
•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Video Decoder:
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@ LEVEL3 (10Mbps)
MPEG-2 Main Profile# Main Level (15Mbps)
H.264 MP#L3 (10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channel decoding
Powerful Multimedia Features
Media Codec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec: WMA, MP3, AAC (.wma,.mp3,m4a)
Photo Codec: JPEG, BMP, PNG
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
