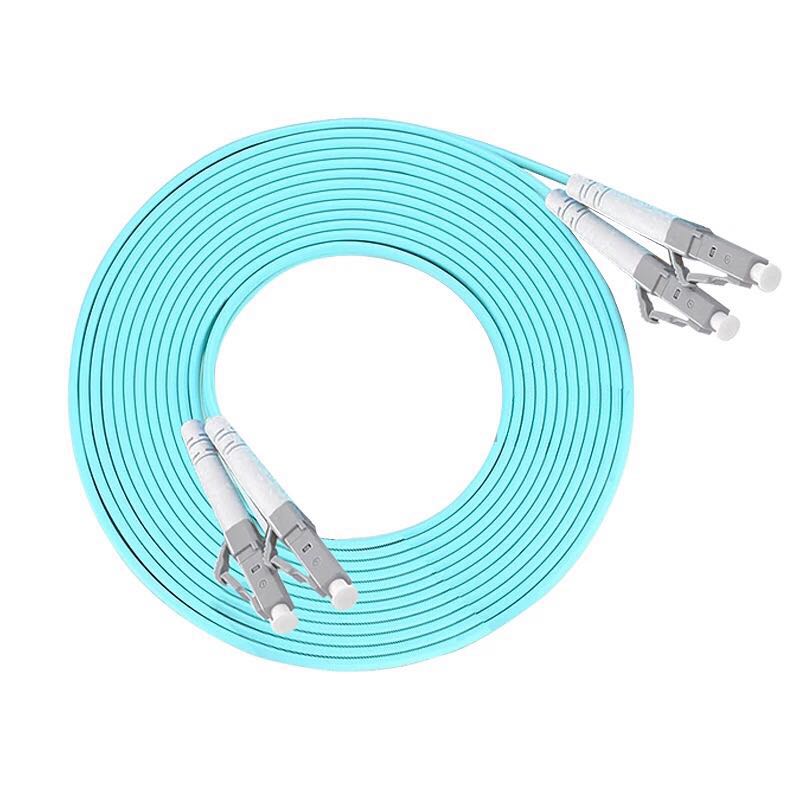

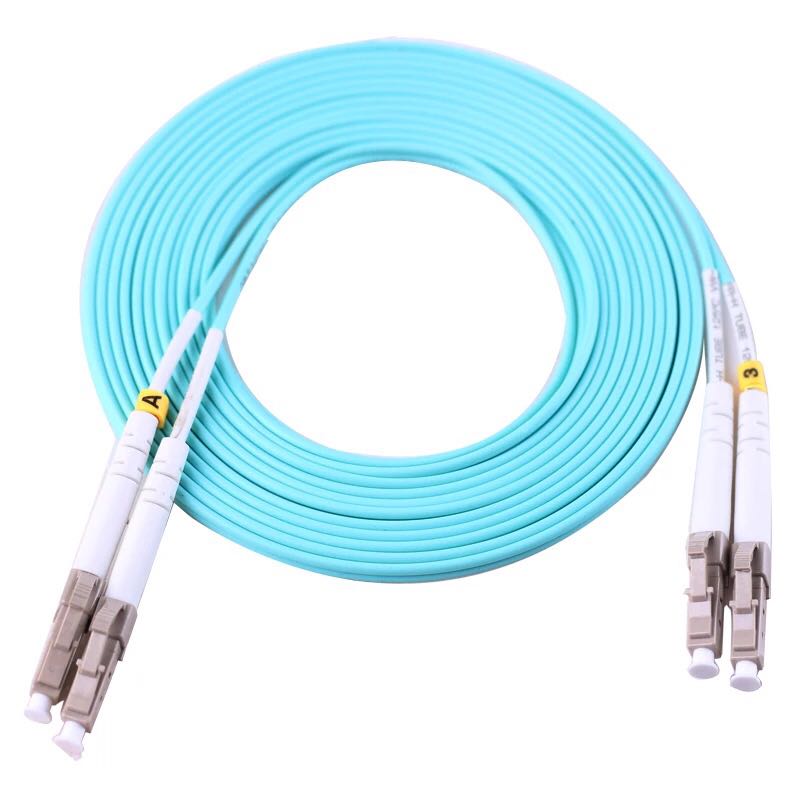

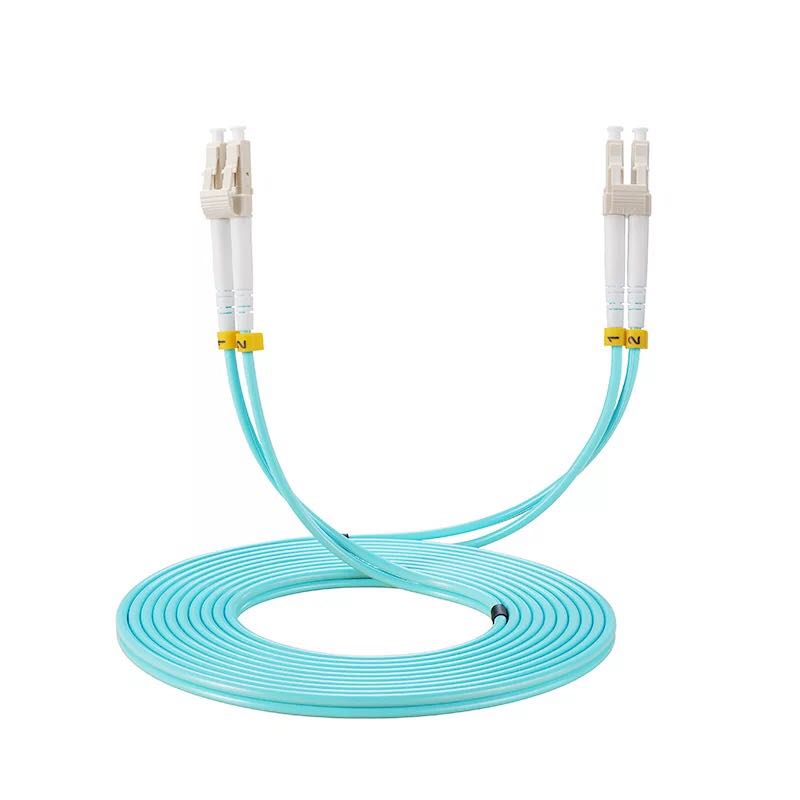

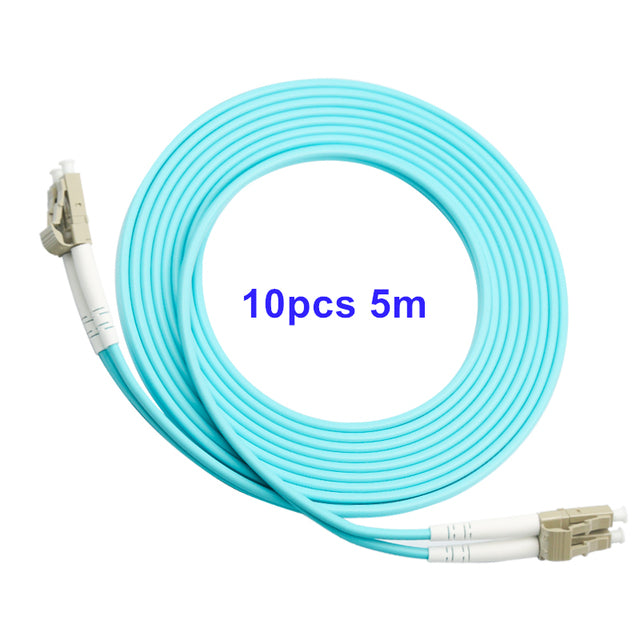

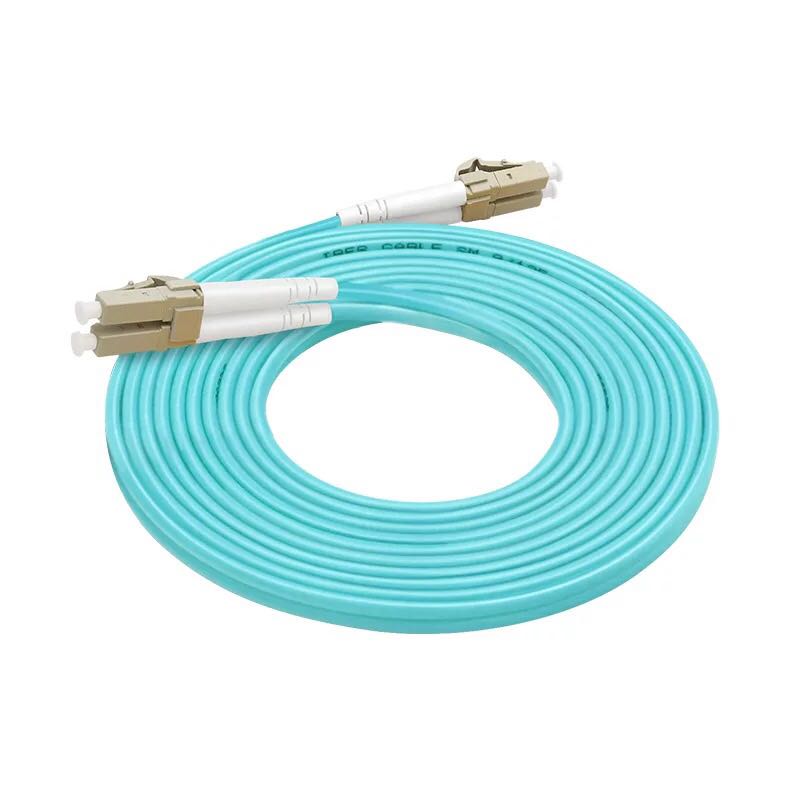

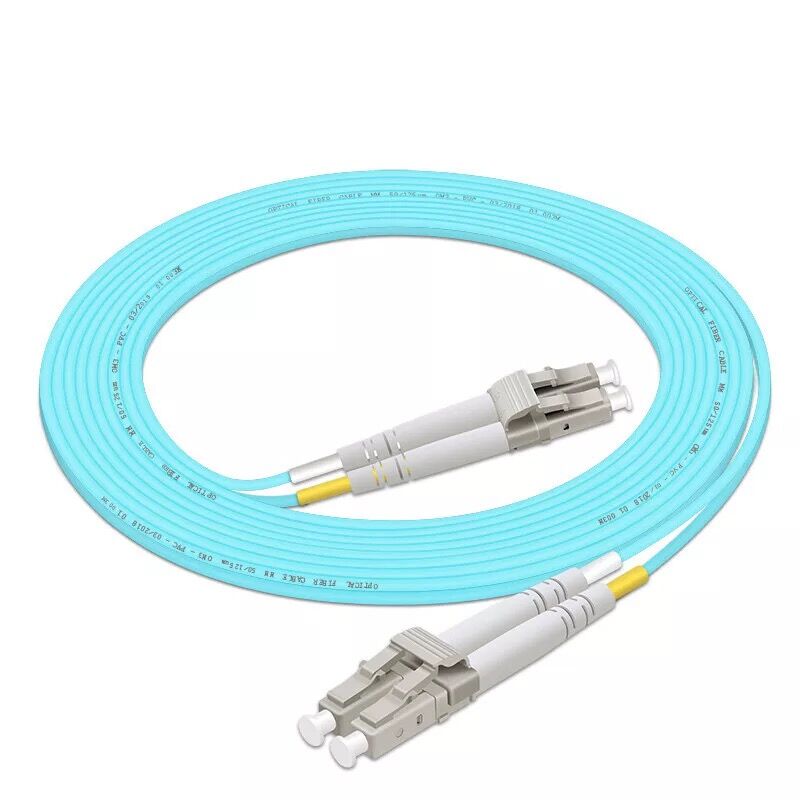

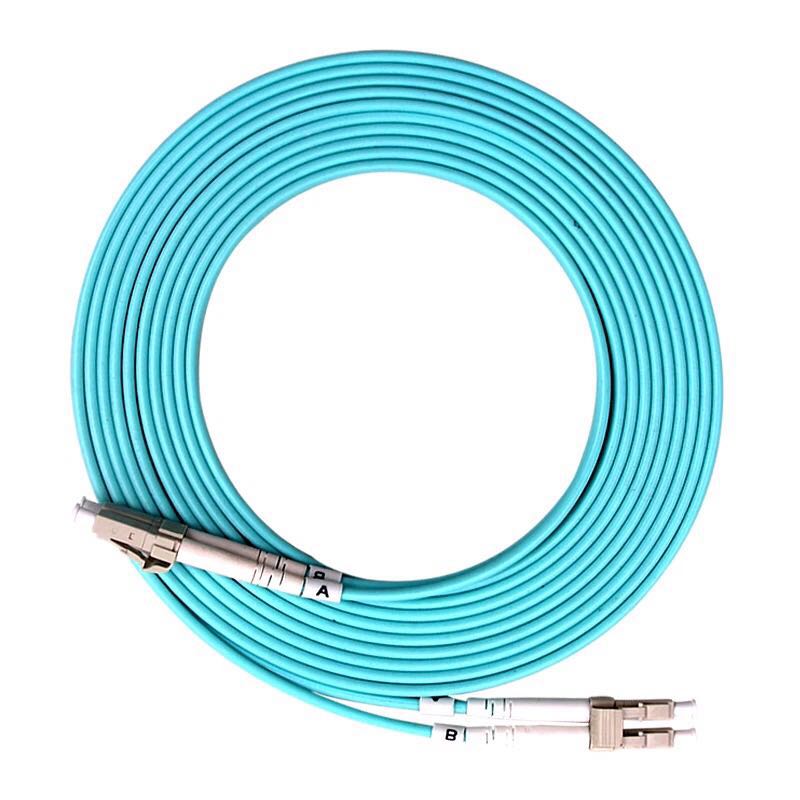

OM3 LC-LC UPC 5M Multimode Duplex 2.0mm or 3.0MM Fiber Optic Patch Cord LC-LC fiber optic patch cable Fiber
Features
1.Price Competitive
2.Low Insertion Loss
3.Factory terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3
5.Connector Options: FC/SC/LC/ST
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
8.Cable: Tight buffer, easy stripping tight buffer, loose tube
Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx
Specifications
Parameters
Standard Fiber Cable Assemblies
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3)
Jacket Materials
LSZH/PVC
Connector Type
SC/LC/ST/FC
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag
OM3 MMF-50/125μm Cable Drawing
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
Designation
Fiber Dia.(μm)
Type
Fast Ethernet 100BASE-FX
1 Gigabit Ethernet 1000BASE-SX
1 Gigabit Ethernet 1000BASE-LX
10Gbps Ethernet 10GBASE
40Gbps Ethernet 40GBASE SR4
100Gbps Ethernet 100GBASE SR4
OM1
62.5/125
Multimode
2000M
275M
550M
33M
Not supported
Not supported
OM2
50/125
Multimode
2000M
550M
550M
82M
Not supported
Not supported
OM3(Laser Optimized)
50/125
Multimode
2000M
550M
550M
300M
100M(SR4)
100M(SR4)
OM4(Laser Optimized)
50/125
Multimode
2000M
550M
550M
400M
150M(SR4)
150M(SR4)
Singlemode
9/125
Singlemode
2000M
5km at 1310nm
5km at 1310nm
10km at 1310nm
N/A
N/A
