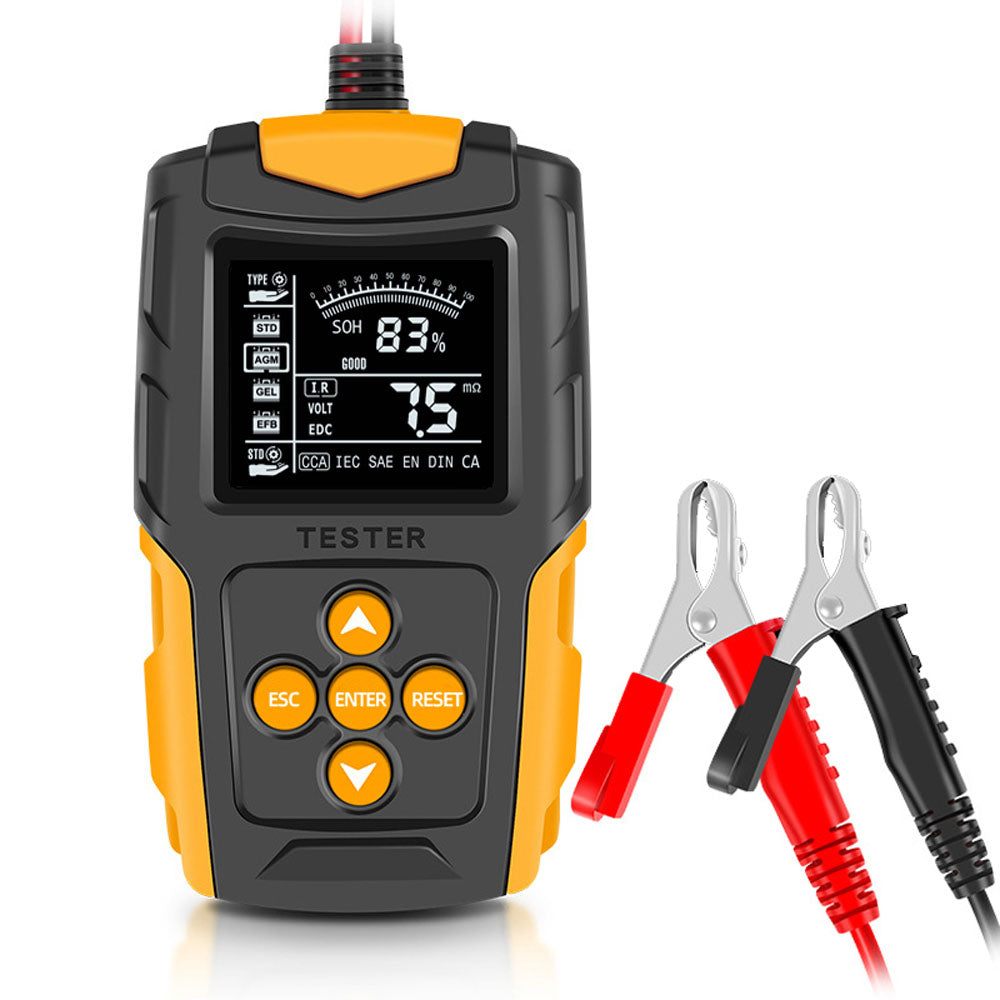

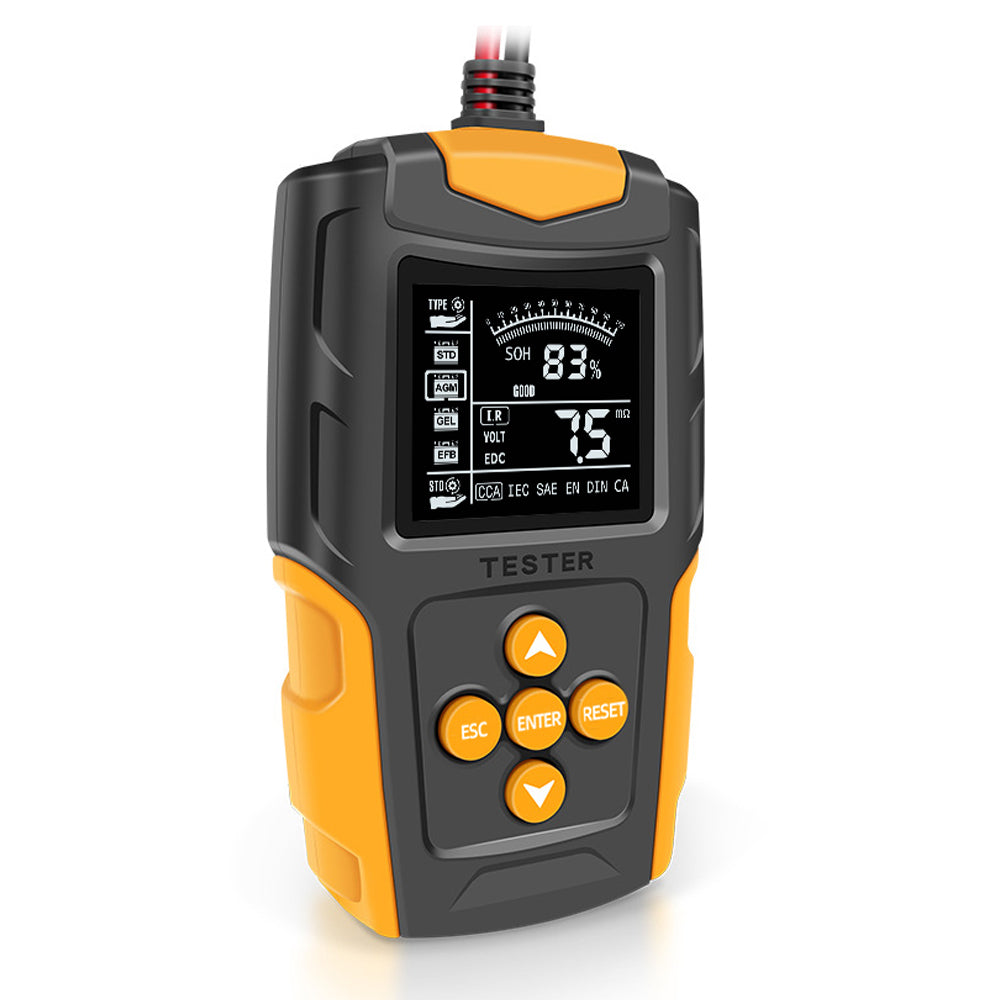

12V/24V Car Battery Tester LCD Digital Battery Analyzer Car Charge Diagnostic Tool SOH SOC CCA IR Measurement for Car Motorcycle

2 sold in last 8 hours
mickcara
00378-1
In stock
$39.00
Size Guide
Color *
A
B
C
D
$39.00
customers are viewing this product
Tags:







 A



 Features:

With multiple protections, input overvoltage protection, reverse connection protection, poor contact of the test clip detection prompt, safer to use.

Quickly and accurately detect the battery status and prevent the car from breaking down midway.

It can be directly connected to the battery of the car for testing, no need to remove the battery, more convenient.

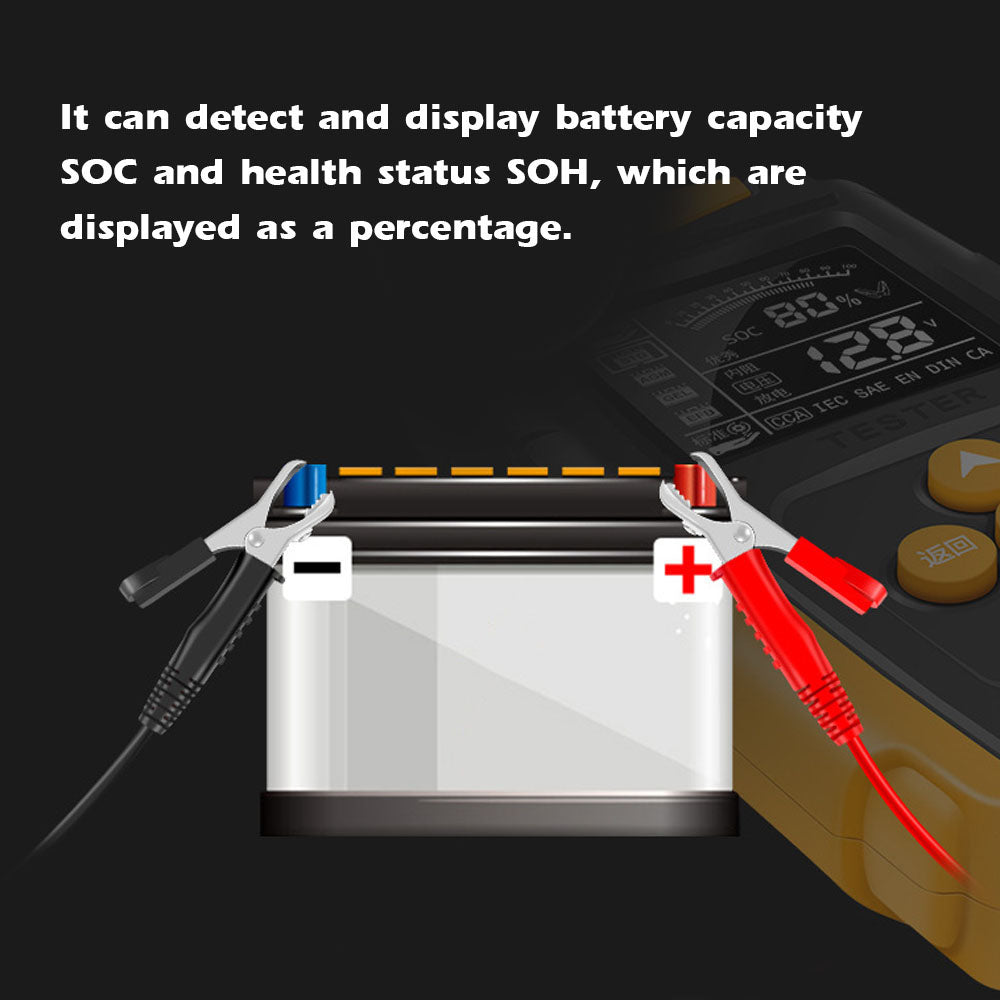

It can detect and display battery capacity SOC and health status SOH, which are displayed as a percentage.

Through the low frequency signal injection test, there is no need to connect a large load discharge test, and it will not cause damage to the battery.

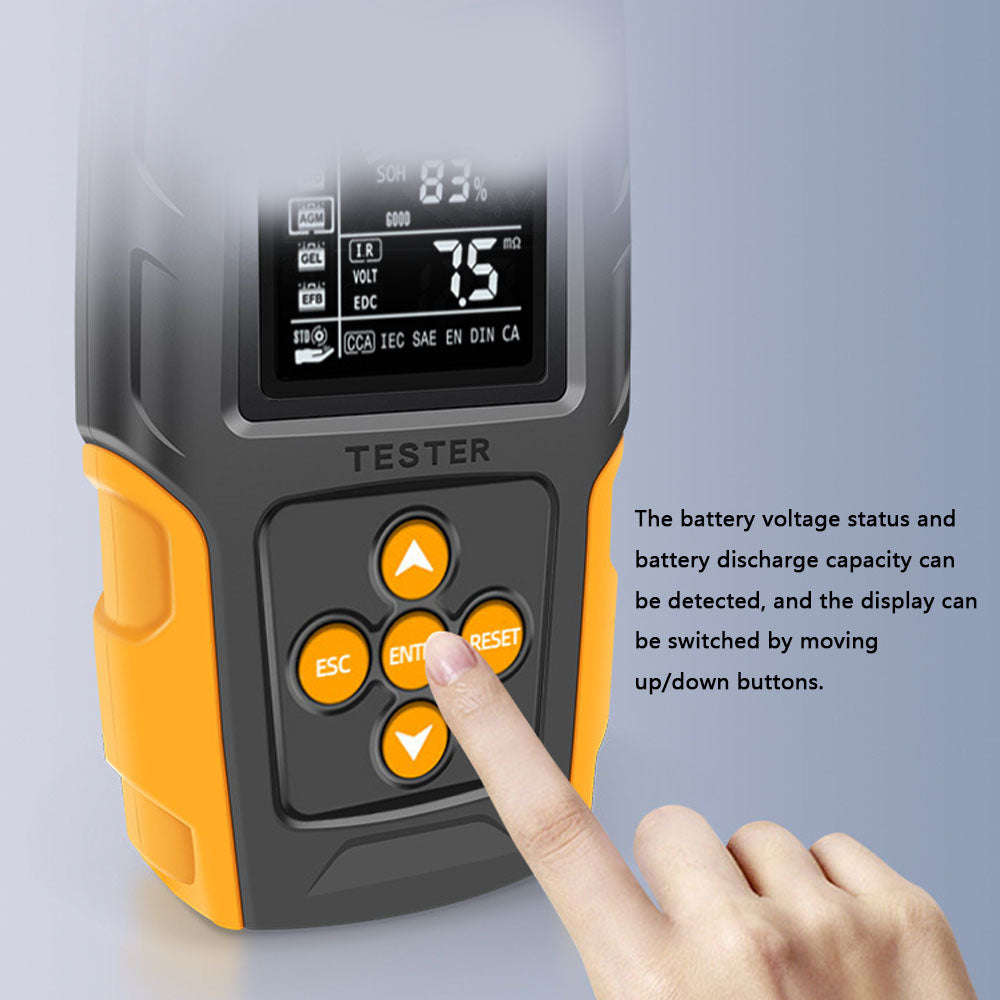

The battery voltage status and battery discharge capacity can be detected, and the display can be switched by moving up/down buttons.

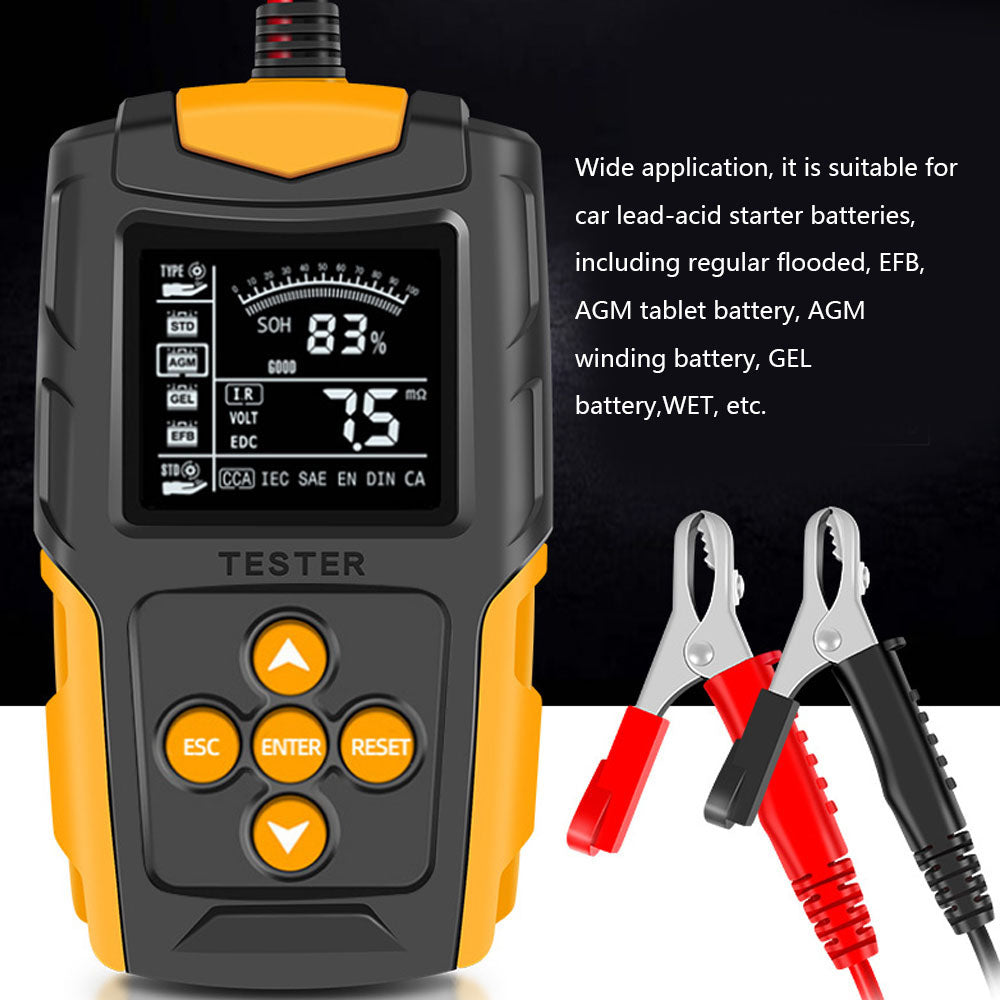

Wide application, it is suitable for car lead-acid starter batteries, including regular flooded, EFB, AGM tablet battery, AGM winding battery, GEL battery,WET, etc.


Specifications:

Material: ABS

Applicable Battery Voltage: 12V/24V

Voltage Measure Range: 8-30V

Test Range: 3AH-200AH

Test result: SOH, SOC, CCA Value, IR,  etc.

Test standards: CCA, SAE,DIN, IEC, EN, CA

Working Temperature: -40-60℃

Item Size: 150 * 90 * 35mm/ 5.9 * 3.5 * 1.4in

Item Weight: 325g/ 11.5oz

Package Size: 165 * 110 * 55mm/ 6.5 * 4.3 * 2.2in

Package Weight: 400g/ 14.1oz


Packing List:

1 * Car Battery Tester

1 * Manual















   B

 Features:

High efficiency (>82%).

The 3-stage microprocessor controlled charging process provides the best possible application and enables efficient battery charging.

Charging voltage adapts to temperature to prevent over or under battery charging.

Capable of recharging severely discharged or heavily sulfated battery.

Reverse polarity protection, short circuit protection, sparks free contact.

LCD display, voltage, current, temperature and so on.

Ease of use, clear charging status display.


Specification:

Plug: EU Plug

Type: Smart & Automatic

AC Input: 100-240V 50/60Hz

Output Voltage: 12V/24V Auto

Output Current: 12V 8A & 24V 4A

Output Volt No Load: 13.8V

Minimum Start Volt: >2.0V

Input Power With Load: Max.130W

Input Power No Load: 3.2W

Cooling: Fan

Item Size: 17 * 9.8 * 5.8cm / 6.69 * 3.86 * 2.28in

Item Weight: 560g / 19.75oz

Package Size: 23.2 * 13 * 6.6cm / 9.13 * 5.12 * 2.60in

Package Weight: 648.3g / 22.87oz


Package List:

1 * Battery Charger

1 * User Manual





   C

   Features:

   battery charger with several safe protections to ensure safe using, it has over voltage protection, over temperature protection, overcharge protection, short circuit protection, reverse connection protection, overcurrent protection, and low current protection.

   constant current charging, constant voltage charging, and float charging, which are suitable for most battery types including calcium, gel and AGM, wet batteries.

   With summer and winter mode, and able to detect the temperature, and it will switch to the appropriate voltage automatically.

   Low Noise & Heat Dissipation: silent designed cooling fan works with aluminum radiator, which greatly prolonged the life of the charger.

   Equipped with silent cooling fans and aluminum radiator, can extending the service life of this charger.

   LCD digital display voltage, current, temperature, battery capacity in real time, convenient to read.

   Pure copper transformer, stable output, high conversion rate, energy saving, large capacity, etc.

   Types of batteries: Most types of lead-acid batterie.









   Specifications:

   Plug Type: EU

   Material: ABS+copper+aluminum

   Input Voltage: AC100-220V, 50/60Hz, Max.75W

   Output Voltage: DC13.8-15.5V, Max.5A

   Battery Range: 4-100Ah

   Item Size: 150 * 90 * 65mm / 5.91 * 3.54 * 2.56in

   Item Weight: 412g / 14.53oz

   Package Weight: 455g / 16.05oz

   Package Size: 22 * 12 * 7cm / 8.66 * 4.72 * 2.76in









   Package List:

   1 * Pulse Repair Charger









   Note:

   Can not be used to charge the lithium battery.

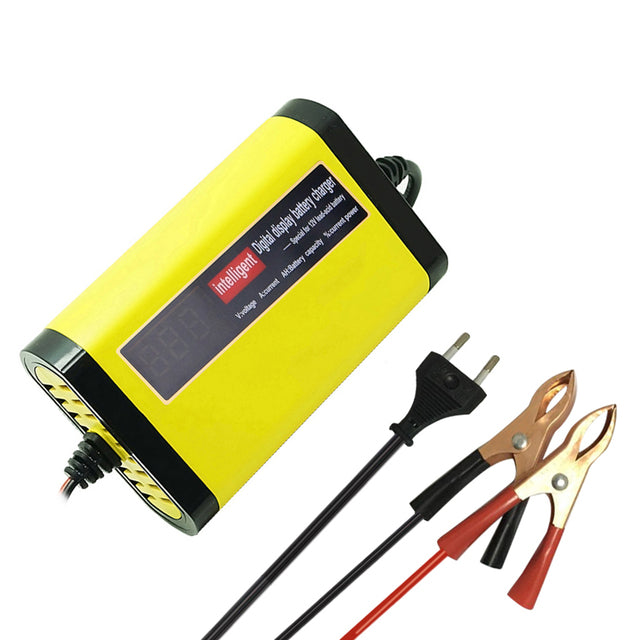

   D

 Features:

LCD digital display voltage, current, temperature, battery capacity in real time, convenient to read.

Intelligent adjustment of current and voltage, automatically stop input current  after full charged.

3 Stages charging: constant current charging, constant voltage charging, float charging.

Pure copper transformer, stable output, high conversion rate, energy saving, large capacity, etc.

Overcharge protection, short circuit protection, reverse connection protection.

The shell is made of ABS flame retardant material, insulation, flame retardant, high temperature.

Suitable for 12V, 4AH to 20AH , Lead-Acid or AGM or GEL battery.

Universal for most type of car and motorcycle batteries, lead acid, agm, gel, vrla.


Specifications:

Material: ABS & Copper

Color: Yellow

Electric Plug: EU, US, AU, UK (Optional)

Rated Voltage: AC 100-240V 50Hz

Output Voltage: DC 13.8V

Rated Power: 30W

Output Current: DC2A

Power Cord Length: 120cm / 47.24"

Product Size: 12.5*8*4cm / 4.92*3.15*1.57in

Package Size: 14*8*4cm / 5.51*3.15*1.57in

Package Weight: 240g / 8.46oz


Package List:

1 * Battery Charger

1 * Alligator Clamp Cable

1 * Power Cable
