Feature:
1. Characteristic: Our diaphragm pump is self priming with a pressure of 60PSI, 4.2 BAR and a flow rate of 18.9LPM, 5.0GPM, allowing for short dry runs, reliable performance, and low current.
2. High Flow Rate: This 5 chamber construction design eliminates the need for a pressure tank and can be installed to provide a high flow rate with up to five 13 mm (1/2 in) outlets.
3. Wide Applications: Diaphragm pump is suitable for water systems connected to tanks and are commonly used in yachts, RVs and mobile passenger cabins. The flow rate can reach 19L per minute.
4. Automatic Switch: Automatic start technology, with both pressure switch and return switch control, the pump starts automatically when the tap is opened and stops automatically when the tap is closed.
5. Noise Reduction and Anti Vibration: Rubber soft pads are installed at the corners of the base, which can largely reduce vibration even on a hard exterior, and the 5 chamber body reduces the number of pump operations, reduces noise and runs quietly.
Specification:
Item Type: Self Priming Pump
Material: Engineering Plastic + Metal
Working Voltage: 12V
Operating Current: 6A
Pressure: 60PSI, 4.2BAR
Flow Rate: 18.9LPM, 5.0GPM
Maximum Peak Current: 15A
Drive Mode: Electric
Control Method: Pressure Switch
Operating Mode: Continuous Operation
Function:
With self priming function
Can run dry for a short time
Main Uses: Yacht water supply system pressurization, caravan water supply system pressurization, dynamic car water supply system pressurization, large electric sprayer, vehicle mounted sprayer, washing machine, heater, drinking fountain, medical equipment and other supporting equipment to be pressurized

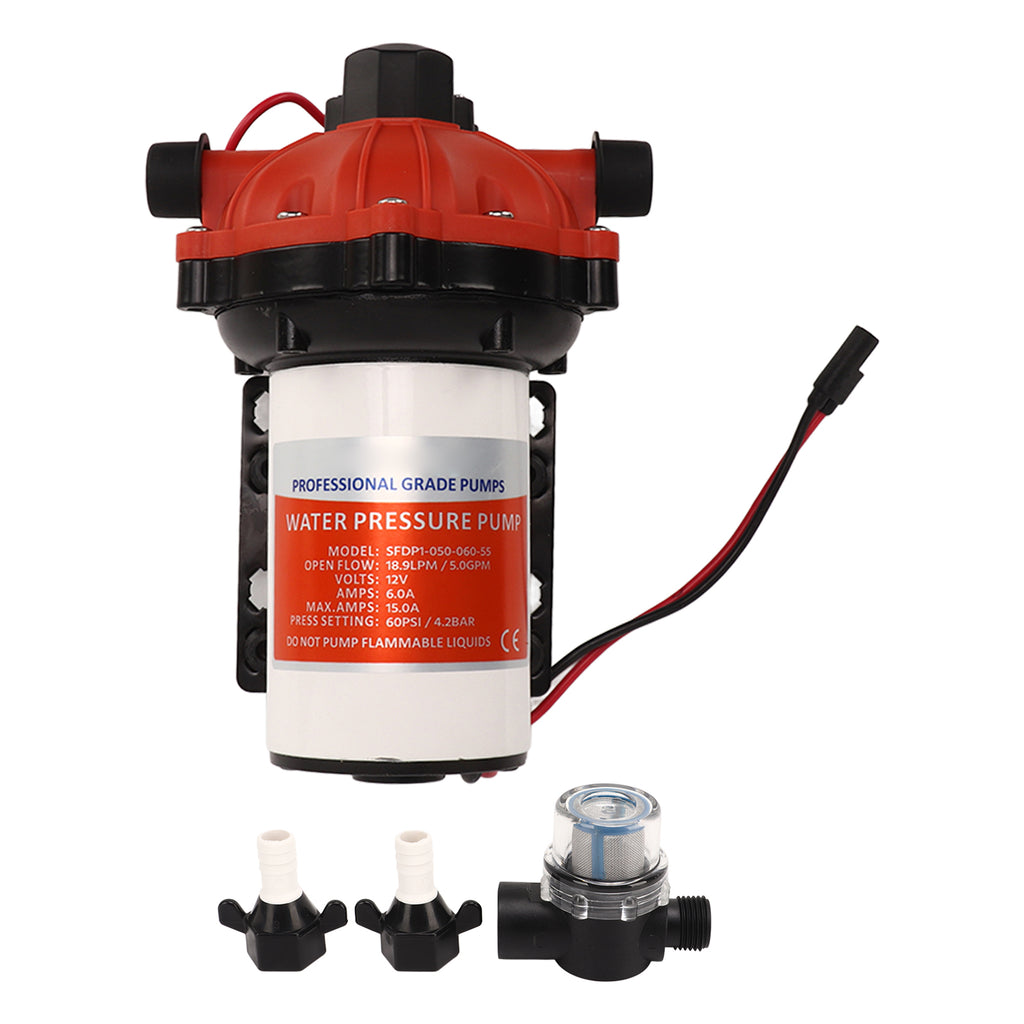

Package List:
1 x Diaphragm Pump
1 x Instruction Manual
1 x Package of Accessories (3PCS)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
