12V Mini Vacuum Pump 8L/min High Pressure Suction Diaphragm Pumps with Holder

12V Mini Vacuum Pump 8L/min High Pressure Suction Diaphragm Pumps with Holder

Name: 12V Mini Vacuum Pump 8L/min High Pressure Suction Diaphragm Pumps with Holder
Brand: mickcara
SKU: 00514-1
Price: 44.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 00514-1

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$44.00

Quantity:

Subtotal: $44.00

283 customers are viewing this product

Tags:

Description

Description:

-Micro-pump is powered miniature DC motor drive, drive internal mechanical eccentric motion, driven by an eccentric movement inside the diaphragm reciprocates.

-Whereby the pump chamber fixed volume of air compression (compression suction port is closed, the exhaust port is formed to open slightly positive pressure), stretching (compressed exhaust port is closed, a negative pressure sucking mouth open), the pumping air intakes with the outside atmospheric pressure difference, at a pressure difference, the gas pressure (suction) into the pump chamber, and discharged from the exhaust port.

-Micro-pump is mainly used for medicine, gas analysis sampling, instrumentation and other fields.

-Completely maintenance-free, and no oil pump, do not pollute the transmission medium.

-Small, stable and reliable, hand-held instrument for pump-priming, low noise, low power consumption. Especially suitable for high negative environmental requirements.

Specification:

Brand new

Type: DC12V Mini Vacuum Pump

Operating voltage: DC9V ~ 14V

Rated voltage: DC 12V

Positive pressure: 8000mmHG

Negative pressure:-500mmHG

Rated Current: 350mA

Rated Power: 20W

Suction capacity: 8L / min

Inlet diameter:6mm

Outlet diameter: 6mm

Vacuum degree: 66kpa

Maximum pressure: 120kpa

Noise:<60db

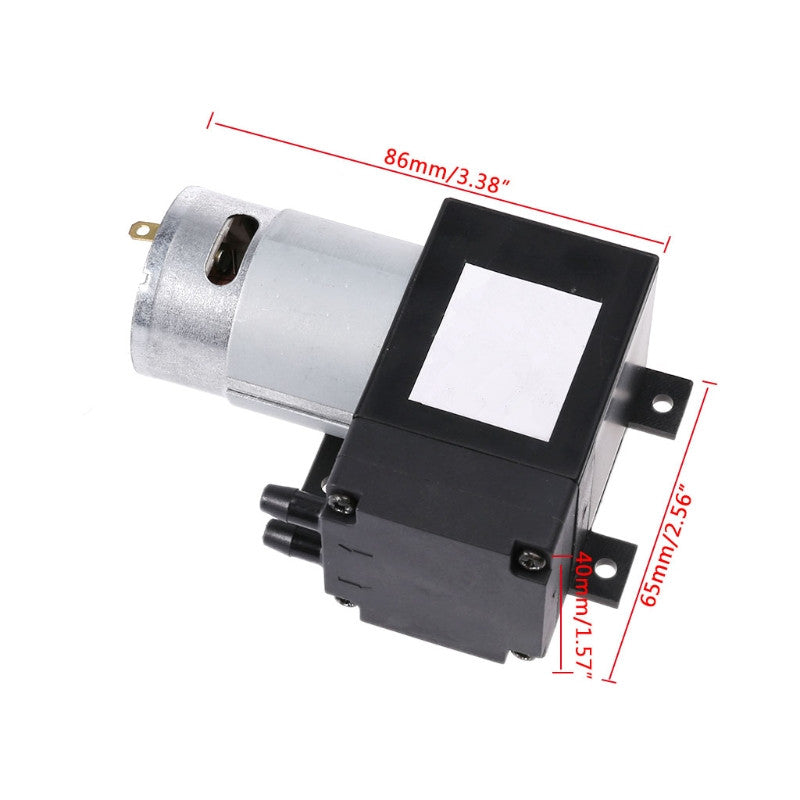

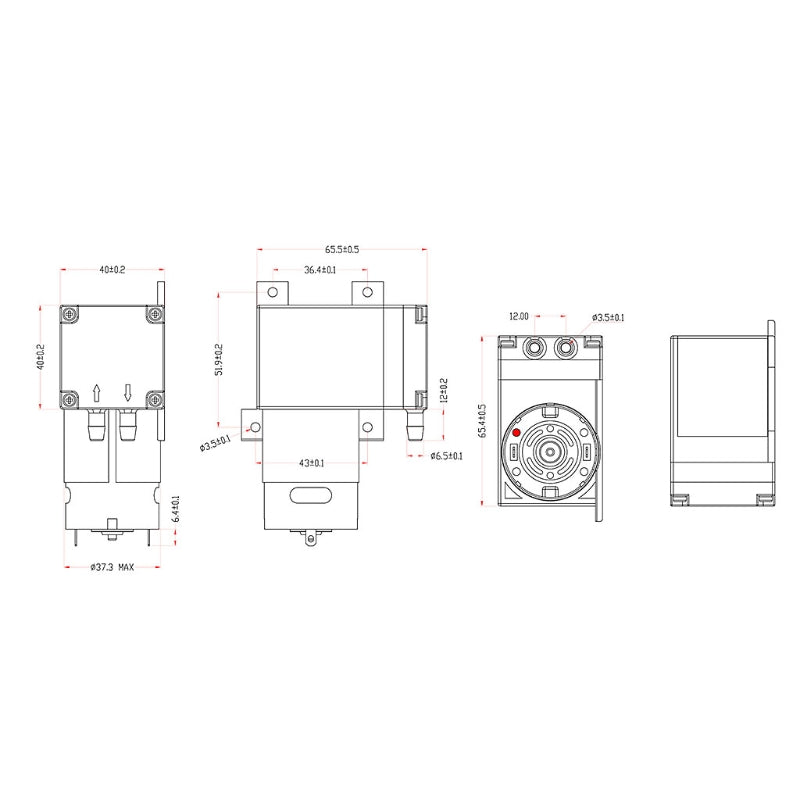

Size: as picture shows

Color: as picture shows

Package include:

1 x Micro Vacuum Pump
