Description:
Portable, stable and durable.
Can be welding 18650/26650/32650 battery, it is portable, stable and reliable.
According to different configurations, the thickness can be about 0.1MM-0.15mm.
This spot welder circuit board can be used for welding lithium batteries such as 18650/26650/32650.

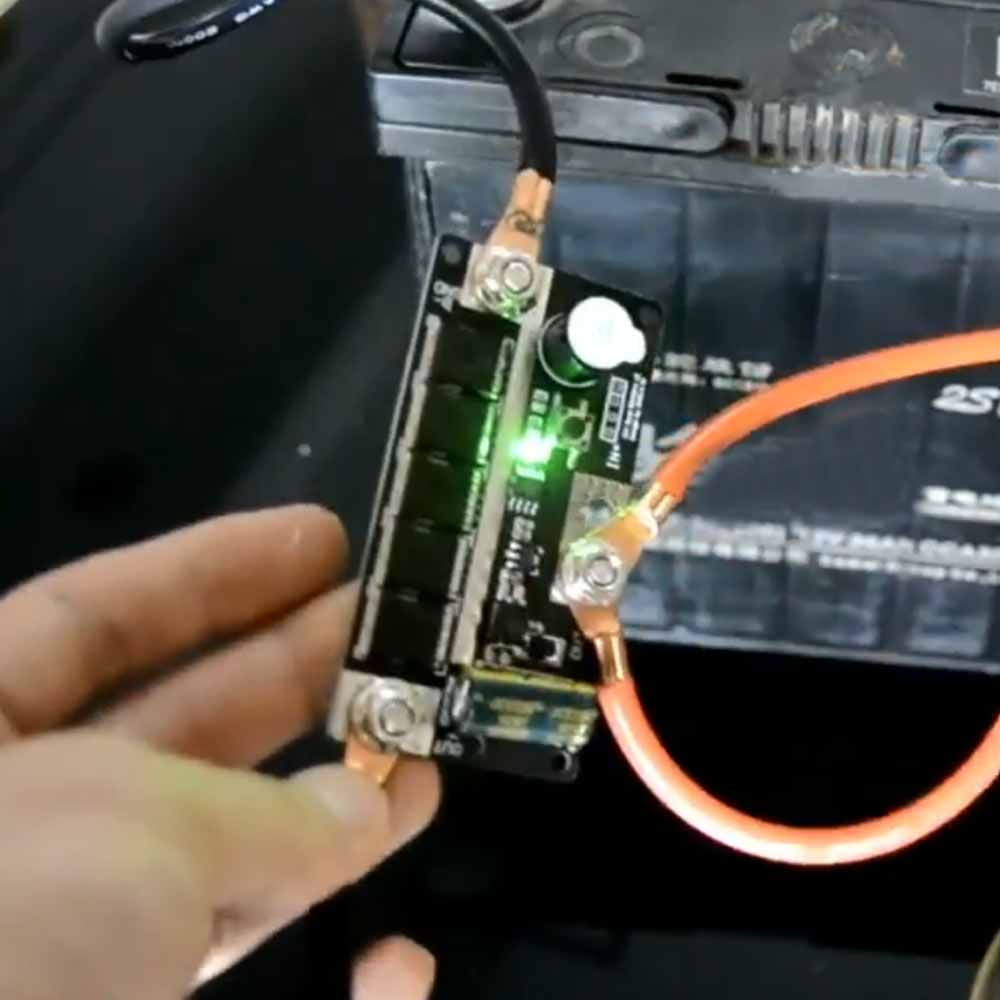

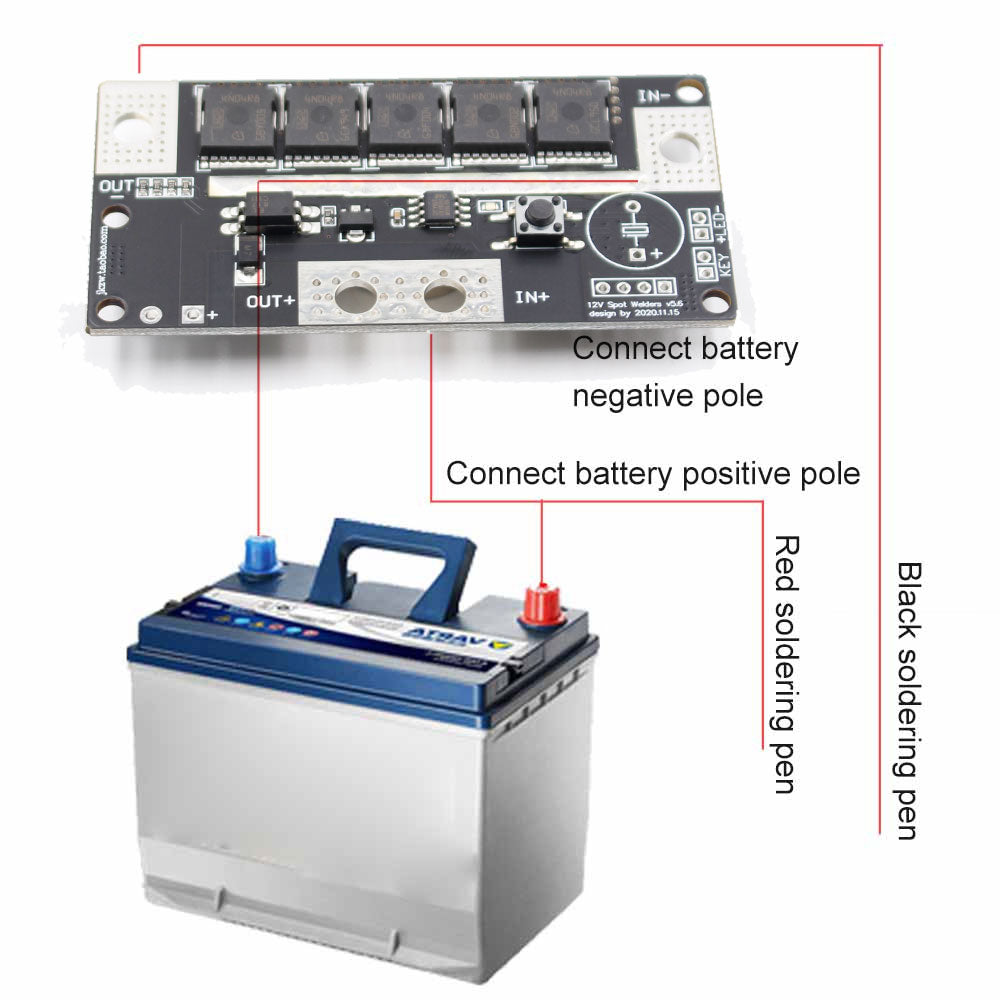

This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries.
Specifications:
Item name: Spot Welder
Color: Black
Quantity: 1 set
Power supply voltage: 11.5V-14.8V
Working current: 100-200A(Best current :150A discharge less than 100A, will not work).
Battery with large discharge current will directly affect the welding effect. The following batteries are recommended:
Lead acid batteries with good performance and low internal resistance (internal resistance less than 10 milliohms, discharge current greater than 100A), such as new car starting battery!
4000mAh 35C-8000mAh 30C 3S model lithium battery pack.
30-35Ah capacity model 18650 battery pack.
Note:
-Users need to provide their own 12V battery power supply, welding current about 100A~200A, for the common 0.1mm~0.15mm nickel plating sheet welding ease.Please make sure your battery can have more than 100A current, otherwise it will not be able to solder!
- There might be little error of size for manual measurement.
- The colors deviation might differ due to different monitor settings, please kindly understand.

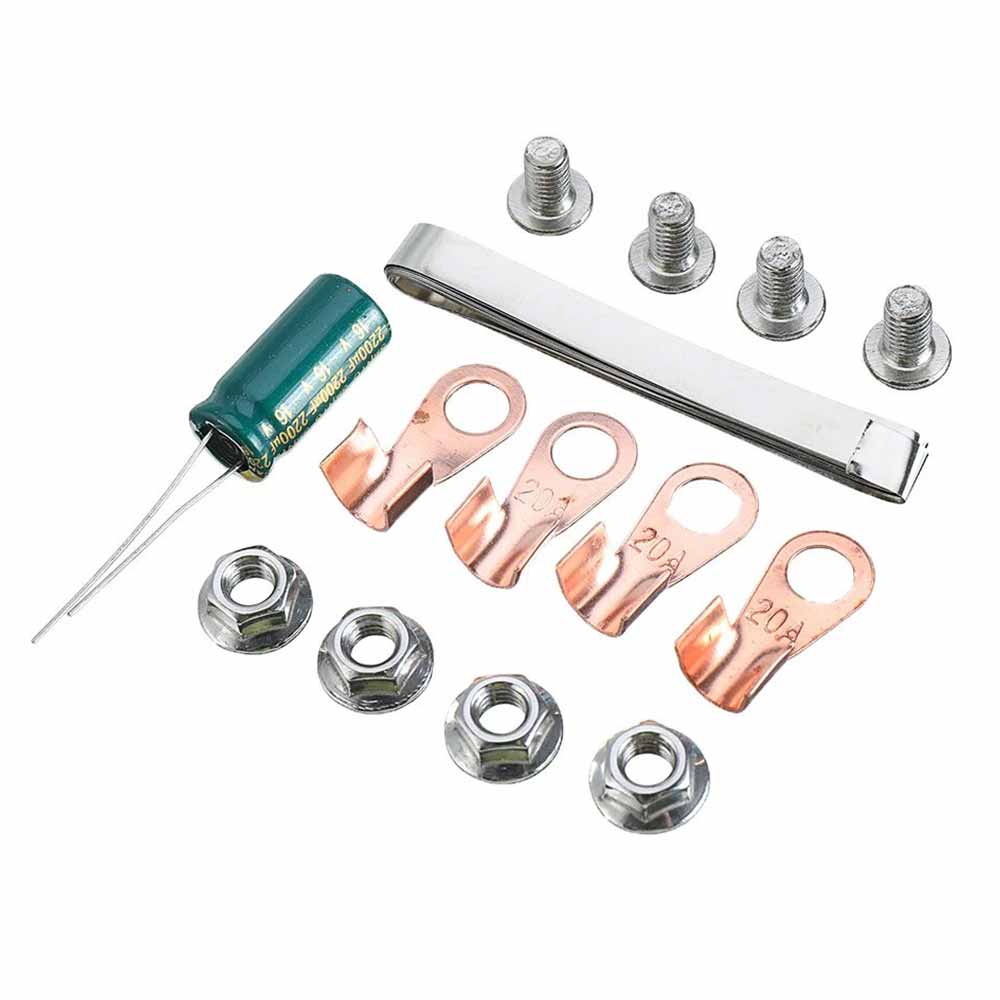

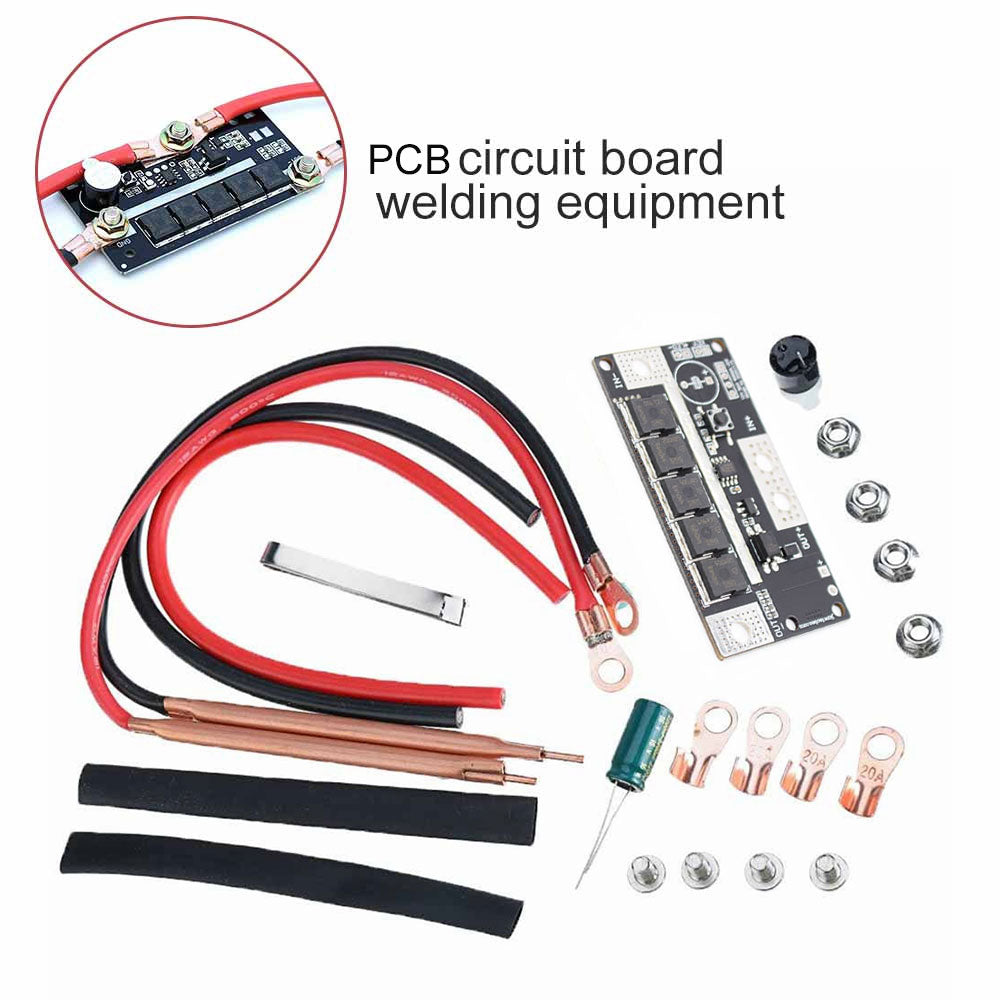

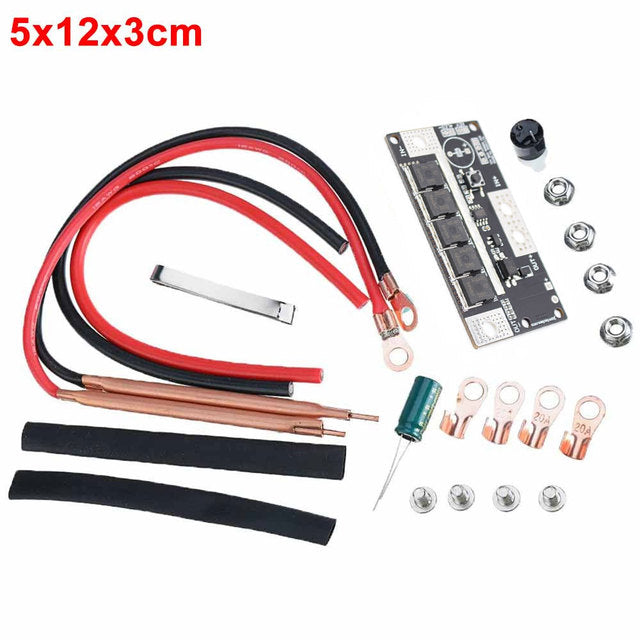

Packing list Package including:
1 x Circuit board
4 x Bronze noses.
4 x Screws.
1 x Buzzer.
1 x 1 meter nickel sheets.
1 x Capacitor.
2 x Welding pens.
2 x Input wires.
2 x Heat shrinkable tubes
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
