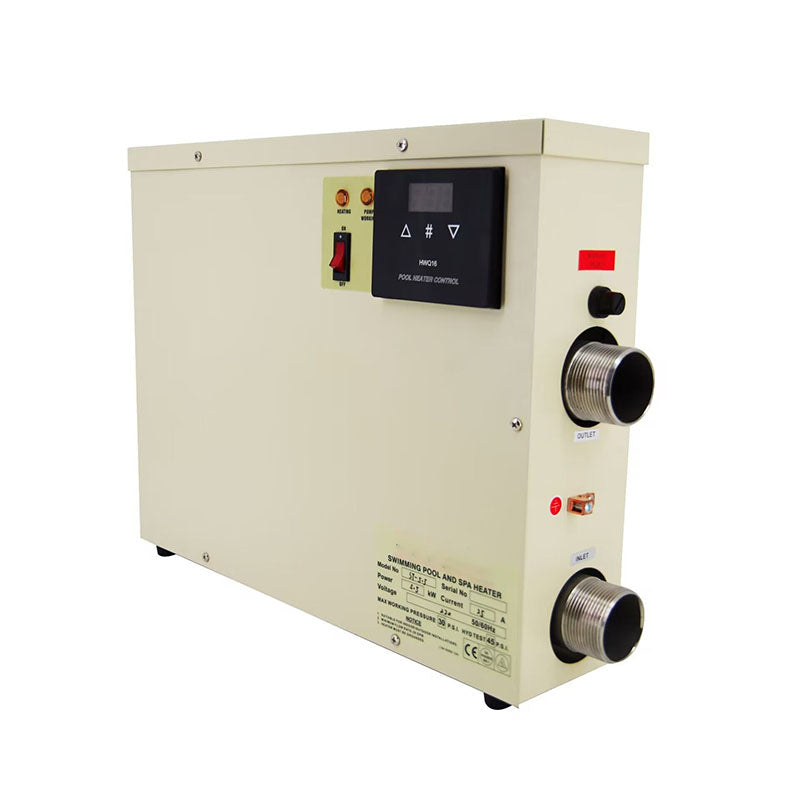

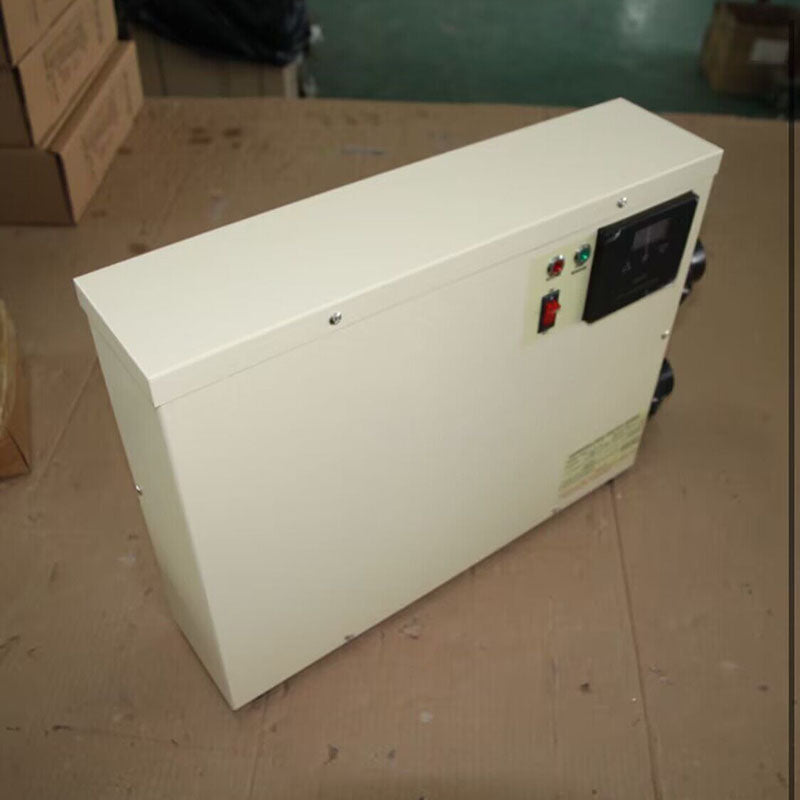

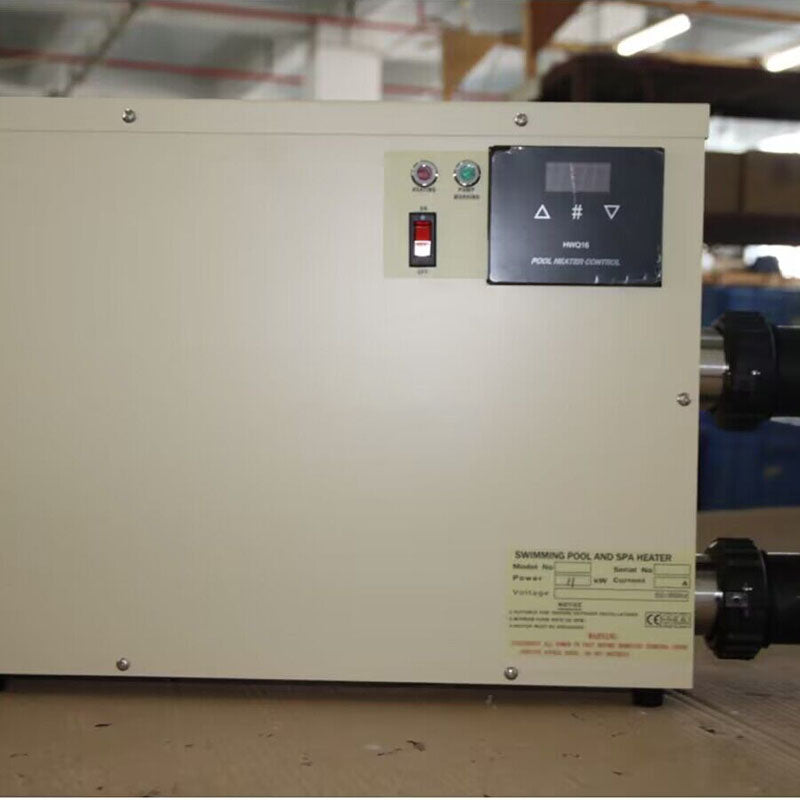

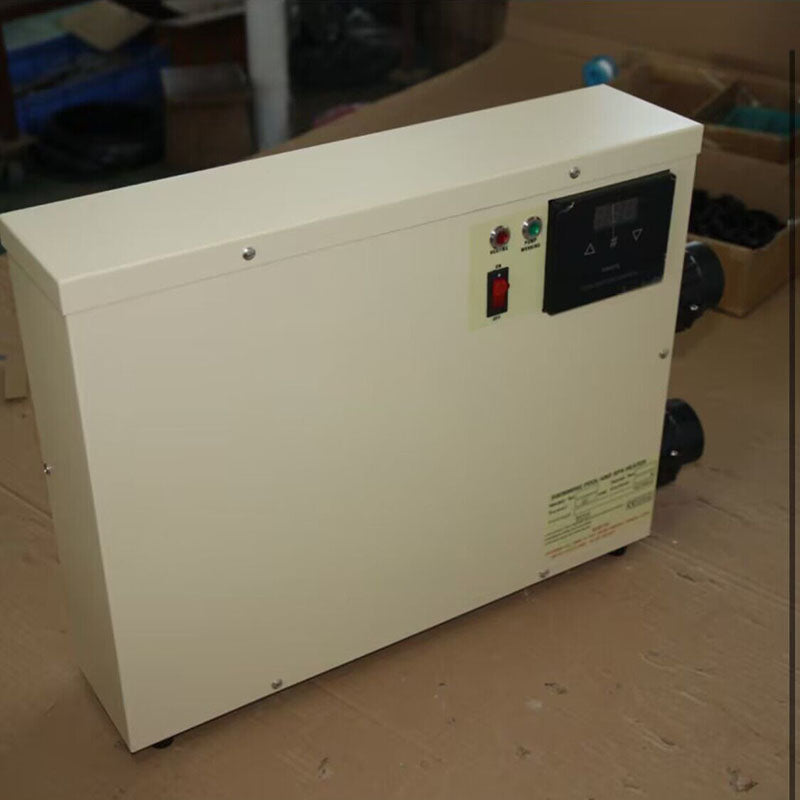

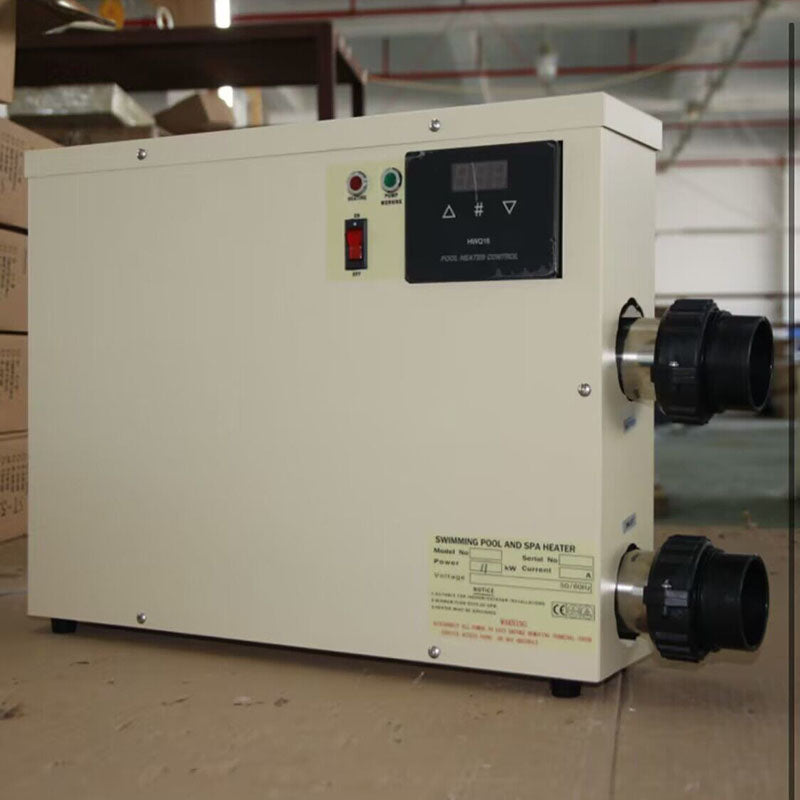

15KW Water Heater Swimming Pool bathtube Thermostat 220v/380v Brand Extremely fast heating High temperature safety protection

  Recommendations for this heater:

1 Under normal circumstances: 2KW for 1 cubic meter of water, and 3KW for 1 cubic meter of water in cold climates, please select the model accordingly.

2 The thermostat adopts circulation heating and needs circulation pump.

3 This item does not include a pump, please prepare a pump.

Power: 15KW

Available in three voltage models:

1 220V single phase

2 dual-phase 240v American wiring (110v country only)

3 three-phase 380v

Current: 68A/25A

Phase: 1/3

Pipe diameter (inches): 1.5

Wire (m,㎡): 3*16 /5*6

This product has passed CE certification, with advanced design, excellent material selection and reliable performance. It has a digital temperature display and high quality heating elements that are resistant to scale and chlorine corrosion. It adopts sensitive flow switch, silent contactor, delayed start, power over-current protection and over-temperature safety. Widely used in hot water baths, jacuzzi, swimming pools and other circulation systems for temperature maintenance.

Based on years of manufacturing and developing heaters, we have recently invented a new heater controller. Use temperature sensors to replace traditional mechanical and electric flow switches;

feature:

1. Flow-TEMP sensor technology

 1. The sensor accurately monitors the temperature change of the whole system, and cooperates with

Together with the control unit to ensure the proper working environment of the heating element and the correct customer set temperature.

 2. No mechanical switch is used, which avoids the problems caused by mechanical failure.

 3. Avoid any accumulation of particles on the sensor.

 4. Greatly reduce unnecessary cycles, prolong the service life of the circulating pump and reduce energy consumption.

2. Self-diagnosis function

 1. Respond quickly to all possible events and display the working status on the control panel, which is convenient for customers to check the working status of the system and avoid the possibility of burning the system due to insufficient heating water

 2. If any failure occurs, stop the system immediately and display relevant prompt information. It is more convenient for customers to detect and solve faults according to the prompt information, providing customers with the highest security guarantee.

Package Included:

1* Heater

2* Accessories

1* English user manual
