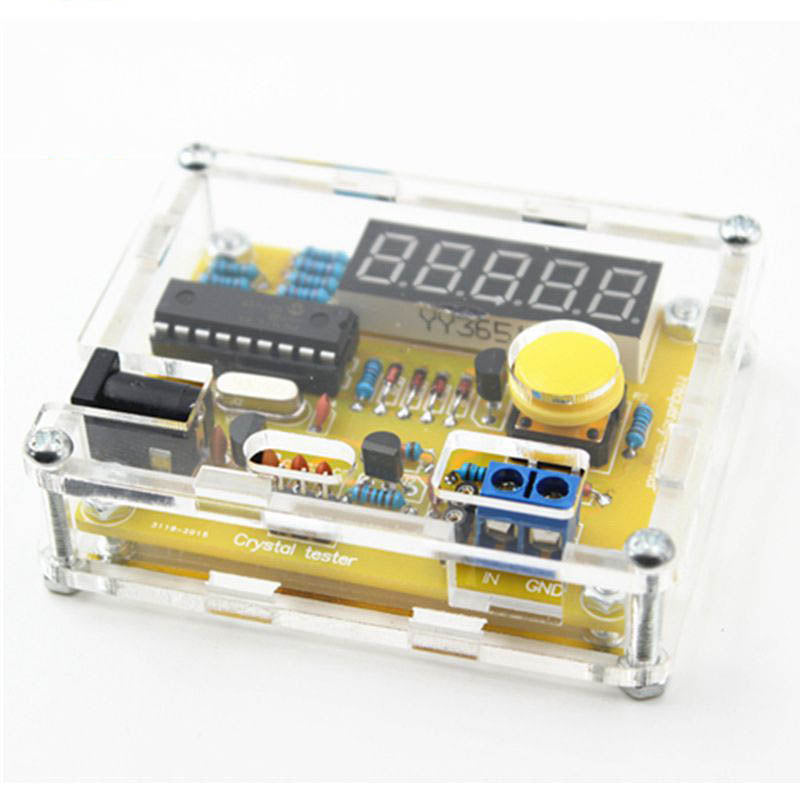

1Hz-50MHz Crystal Oscillator Tester Frequency Counter Meter DIY Kits with Case
Features:
- This document describes the construction of small frequency counter with a cheap PIC microcontroller and a few seven-segment LED digits.
- Frequency range 1 Hz ... 50 MHz
- Five digits resolution (display for example x.xxxx kHz, x.xxxx MHz,
or xx.xxx MHz)
- Measuring signal amplitude can be up to 30 v
- 4-40 m passive crystals can measure
- Automatic range switching with different gate times
- Optional addition or subtraction of a frequency offset (programmable)
- Very low component count: a PIC 16F628, 5 7-segment LED displays, a 20MHz crystal and a few resistors
- Optional (configurable) power-saving mode which automatically turns
- The display off if the frequency didn't change significantly within 15seconds
- USB 5V or DC5-12V power supply can be used
Package included:
1x DIY Kits
1x USB cable
