1pcs New 6-band HF SSB Shortwave Radio Transceiver Module DIY Kits
Features:
1. This is a DIY kit, you need to have some electronics knowledge and ability
2. Need a lot of welding, have enough patience

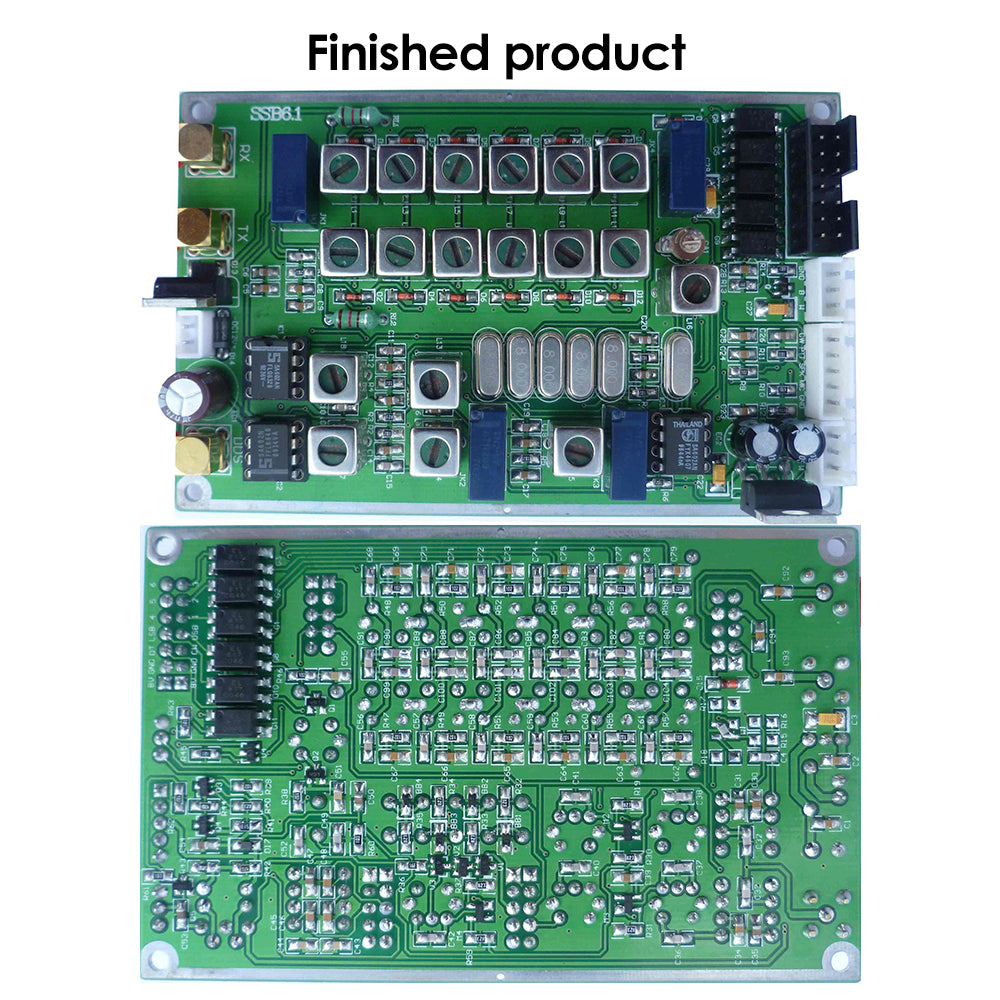

3. Welded finished boards are for reference only
4. Wide application
5. Small size and high cost performance
Product parameters:
3.5MHZ 7MHZ 10MHZ 14MHZ 21MHZ 29MHZ
6-band shortwave
Schematic diagram of SSB6.1
SSB6.1 front SMD drawing of the adjustment lever.
SMD diagram opposite to SSB6.1 adjustment lever

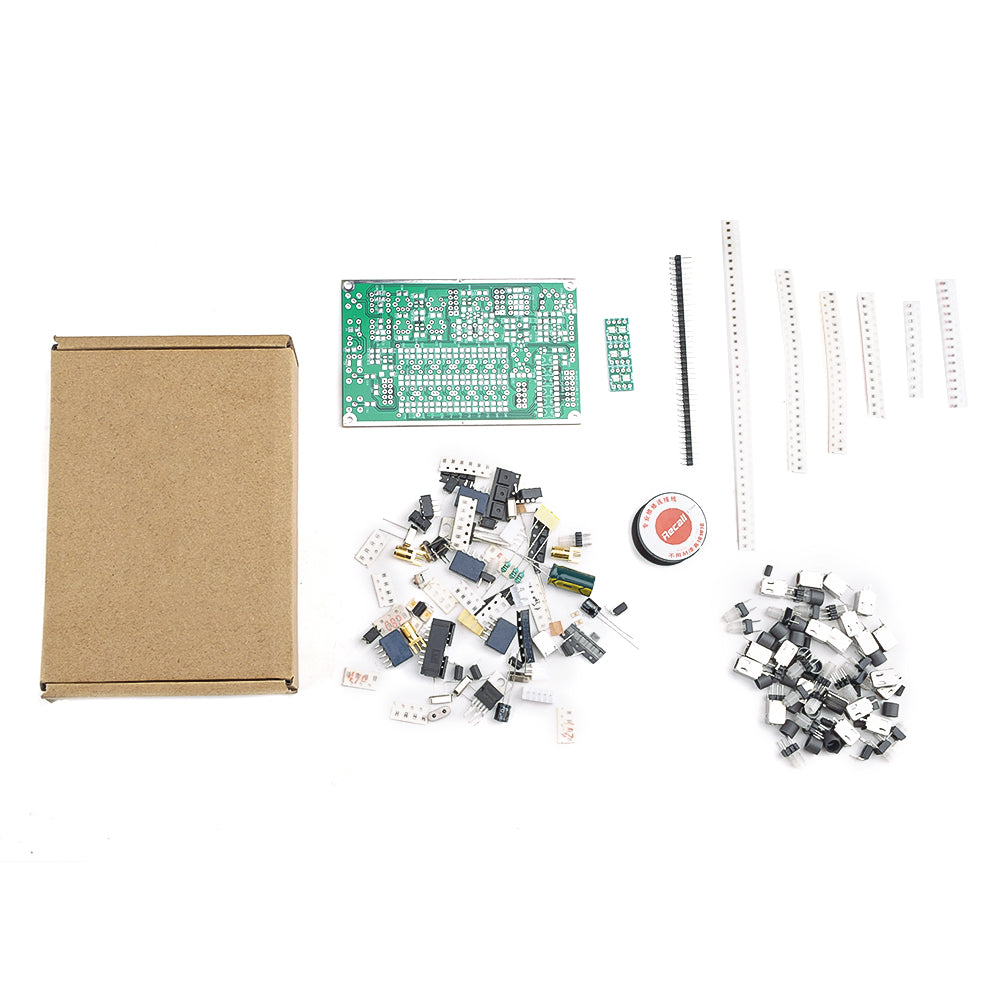

Packing list:
6 Band HF SSB Shortwave Radio Shortwave Radio Transceiver Board DIY Kit*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
