Specifications:

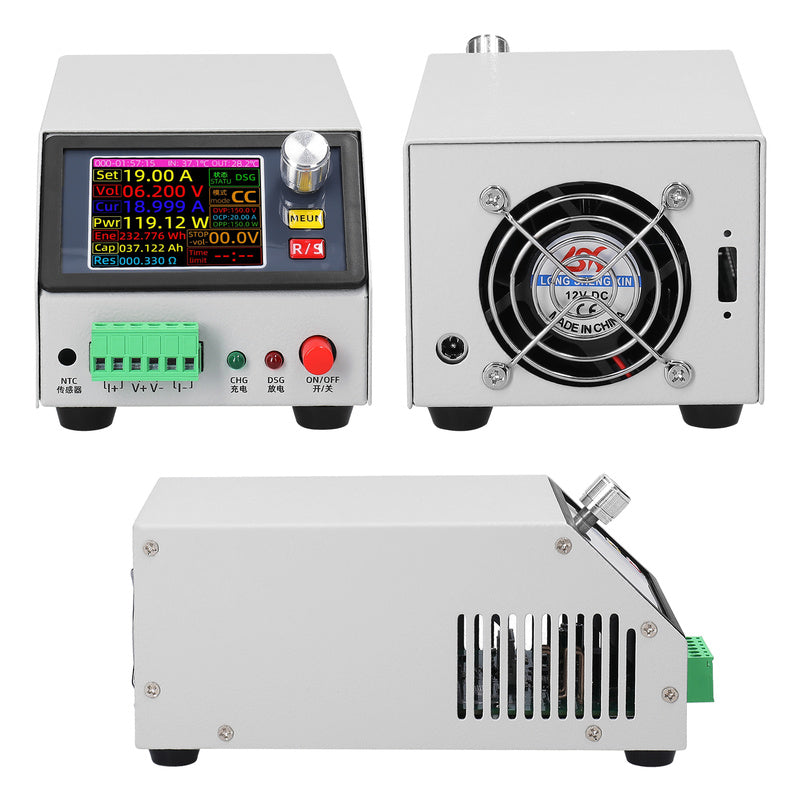

Name: Electronic Load
Material: metal
Working voltage: 12VDC
Load voltage (U): 0-150VDC
Load current (I): 0-20A
Load power (P): 0-150W (maximum load capacity of 60W above 120 V)
P=U × I ≤ 150W
Wiring method: A+V+V - A - four wire system, downward compatible with two wire system
Upper limit of electricity metering: 99999.9Wh
Capacity measurement upper limit: 99999.9Ah
Accumulated timing ranges: ddd: hh: mm: ss (day: hour: minute: second)

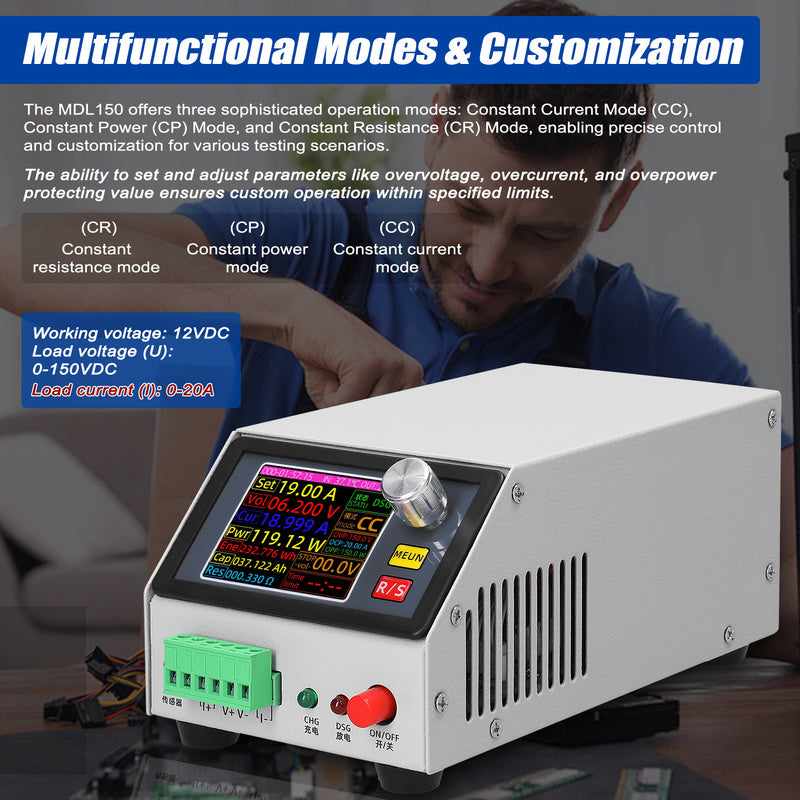

Working mode: Constant Current Mode, Constant Power Mode, Constant Resistance Mode

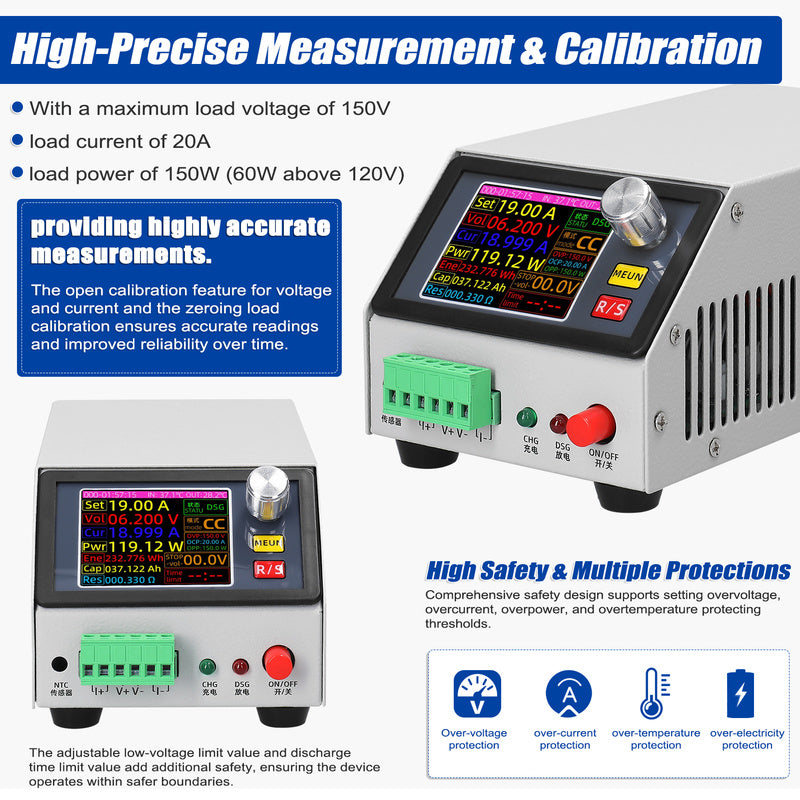

Overvoltage protections: Support
Overcurrent protections: Support
Overpower protections: Support
Over temperature protections: When the internal temperature exceeds 75 ℃, over temperature protecting is triggered
Voltage limited discharge: also known as low-voltage protecting, supports, defaults to no voltage limited discharge, and can be set according to needs
Limited time discharge: supports maximum 99 hours and 59 minutes of limited time discharge

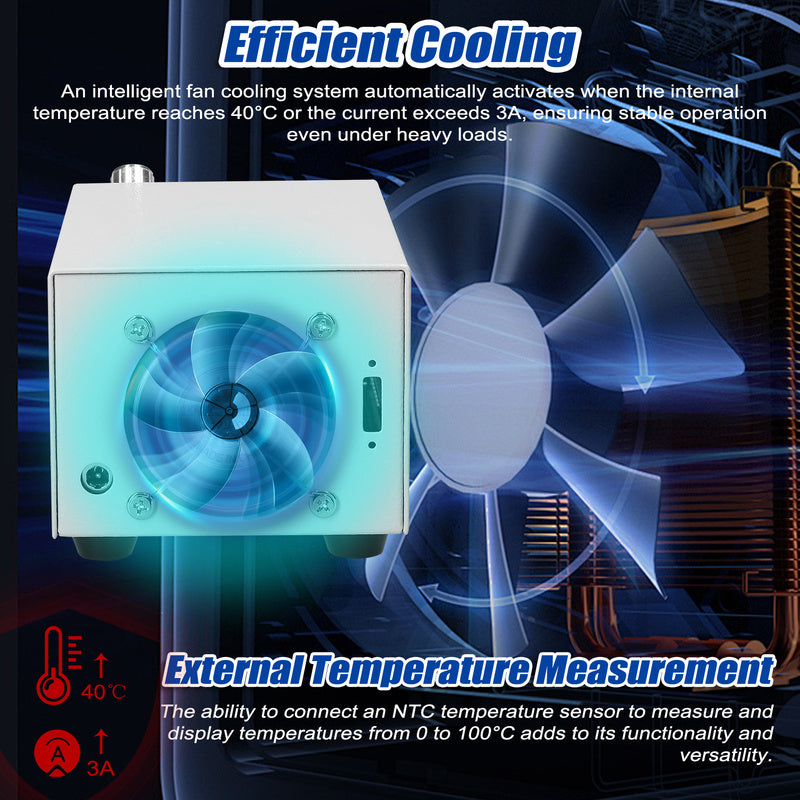

External temperature measurement: Connect the NTC 3950 10K 1% temperature sensor to measure and display the temperature between 0 and 100 ℃
Chinese English interface switching: support
Accumulated data reset: support
Voltage and current no-load zeroing: support
Voltage open calibration: support
Current open calibration: support
Screen sleep and standby settings: support
Restore factory settings: support
Item size: 198 * 103 * 85mm / 7.80 * 4.06 * 3.35in
Item weight: 933g / 2.06lb
Package size: 216 * 110 * 145mm / 8.50 * 4.33 * 5.71in
Package weight: 1010g / 2.23lb

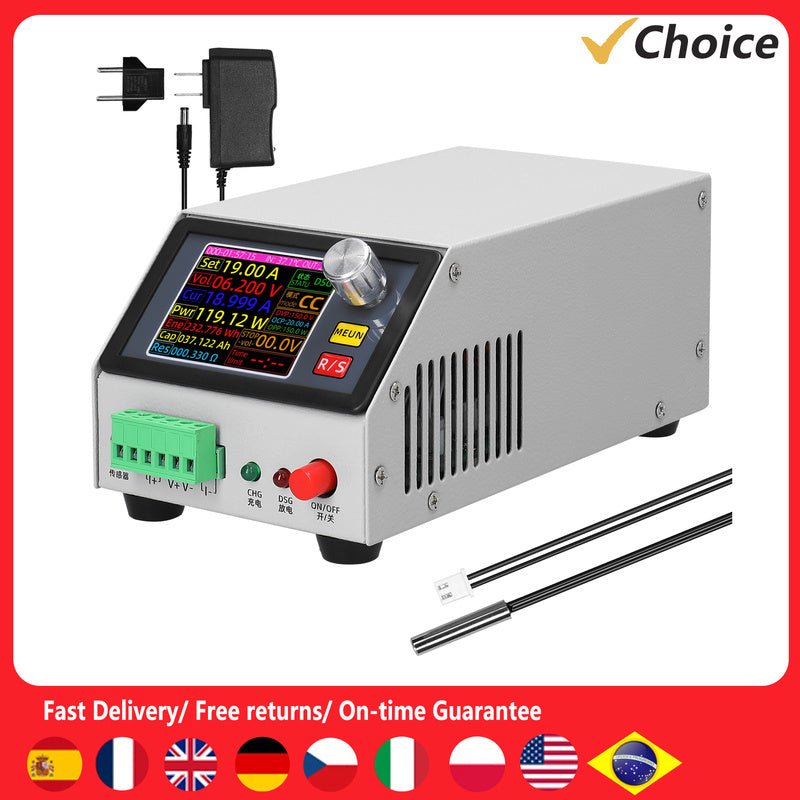

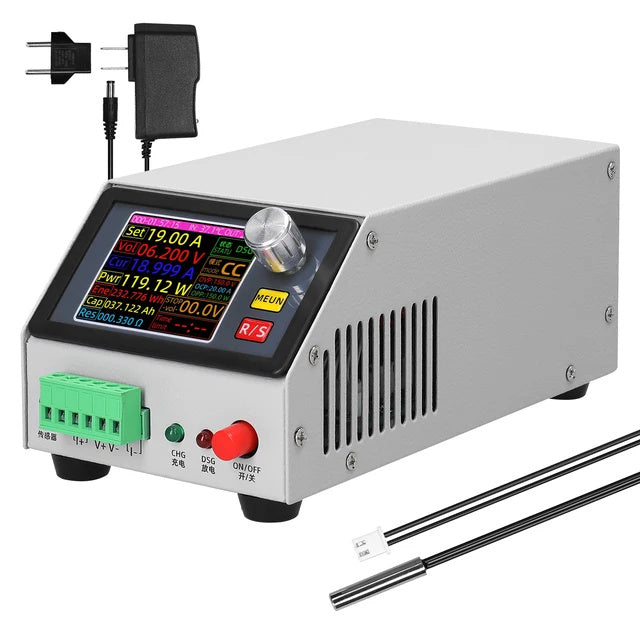

Packing List:
1 * Electronic Load
1 * Temperature Test Wire
1 * Adapter
