Description:

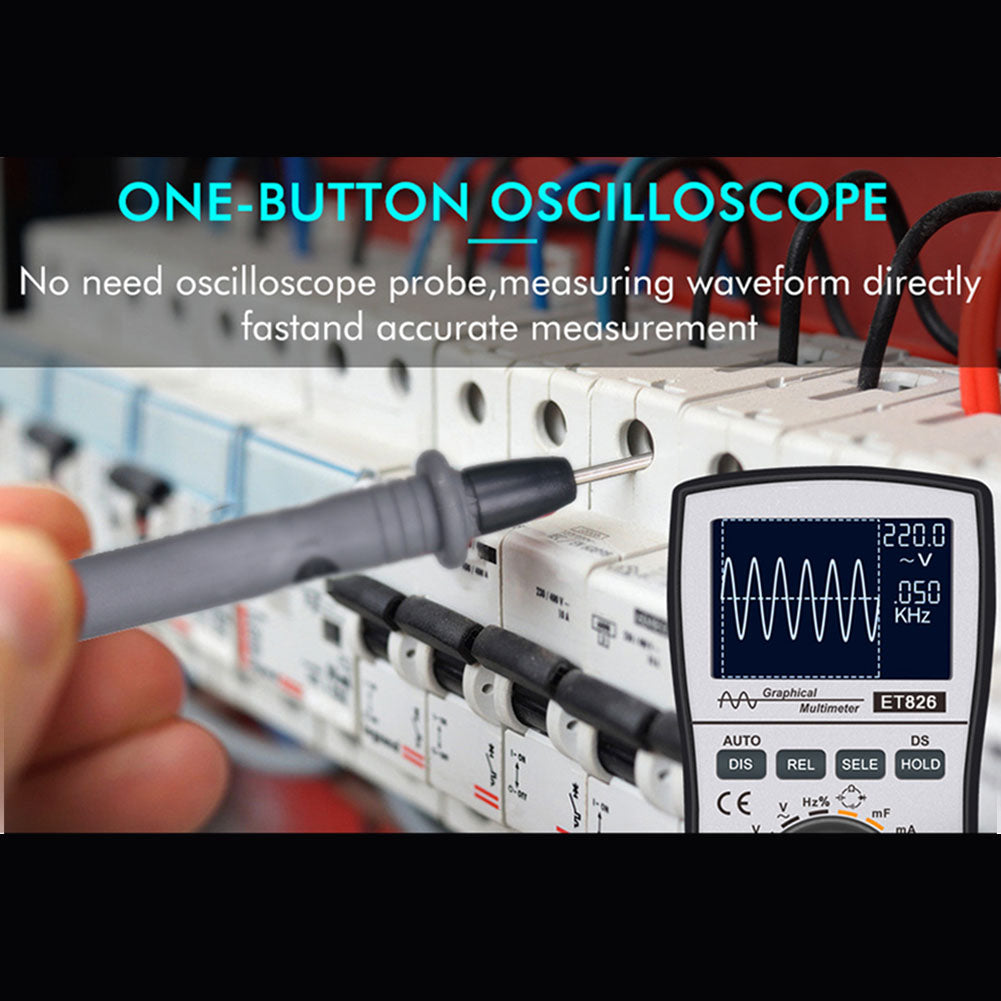

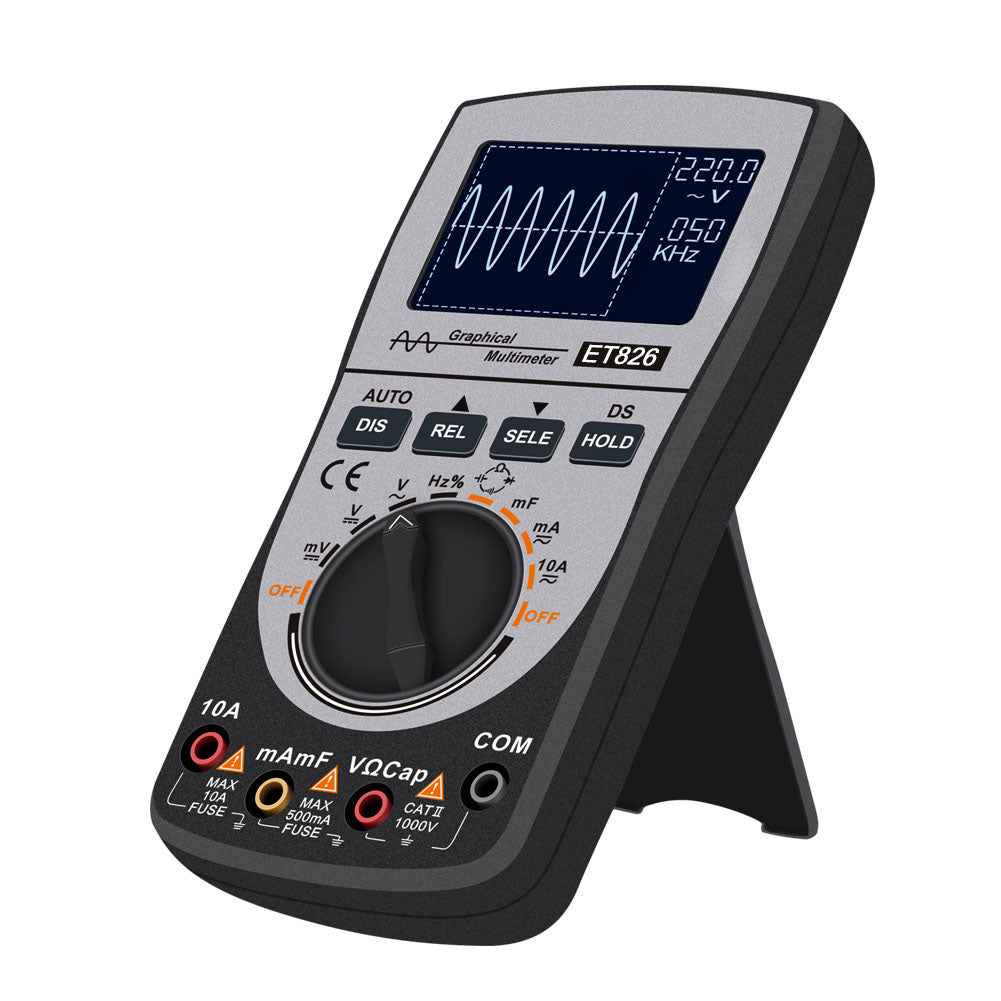

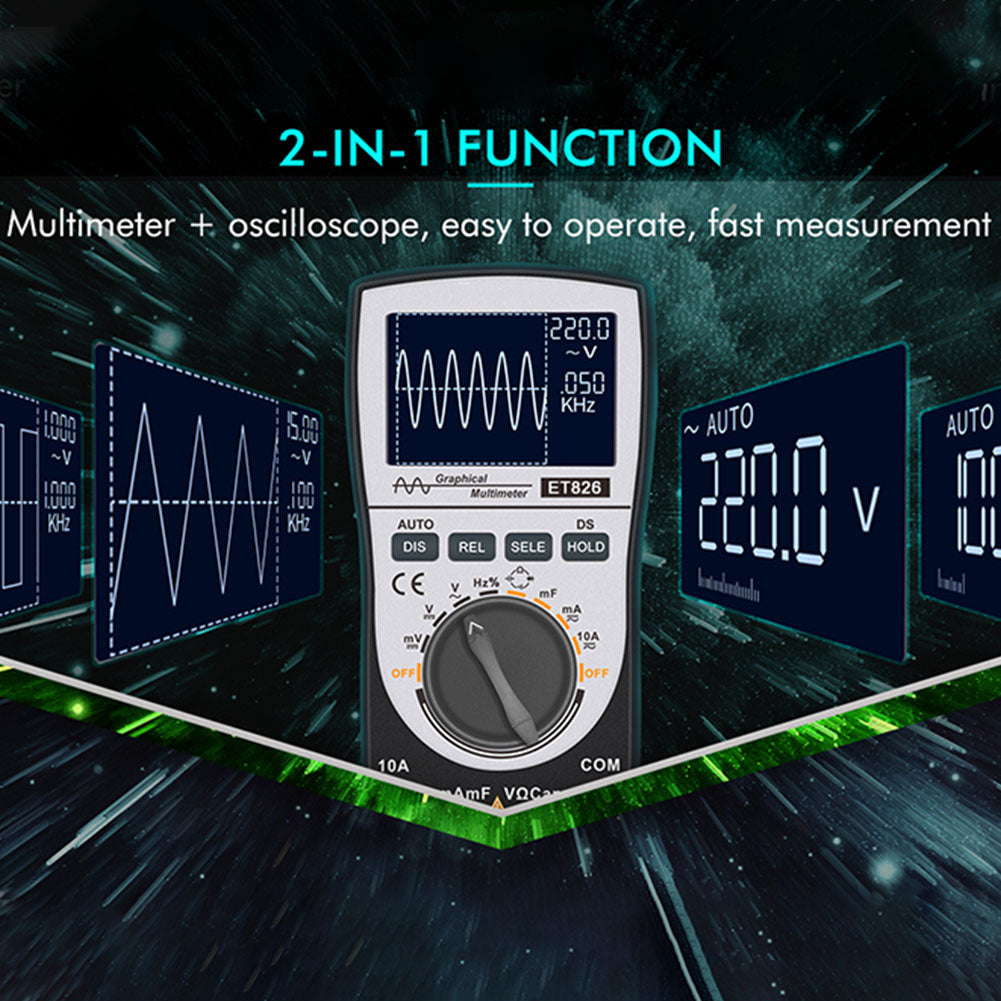

 2 IN 1 FUNCTION: This product is a combination of oscilloscope and auto range multimeter that combines all the functions of the existing DMM with the digital oscilloscope function.

 Small portable handheld oscilloscope is used for field fault detection.

 FASTER SAMPLING SPEED: Digital multimeter with 200K high-speed A/D sampling, 4000 counts auto-range, one-button switch of graphical waveform display during measurement.

 High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer.

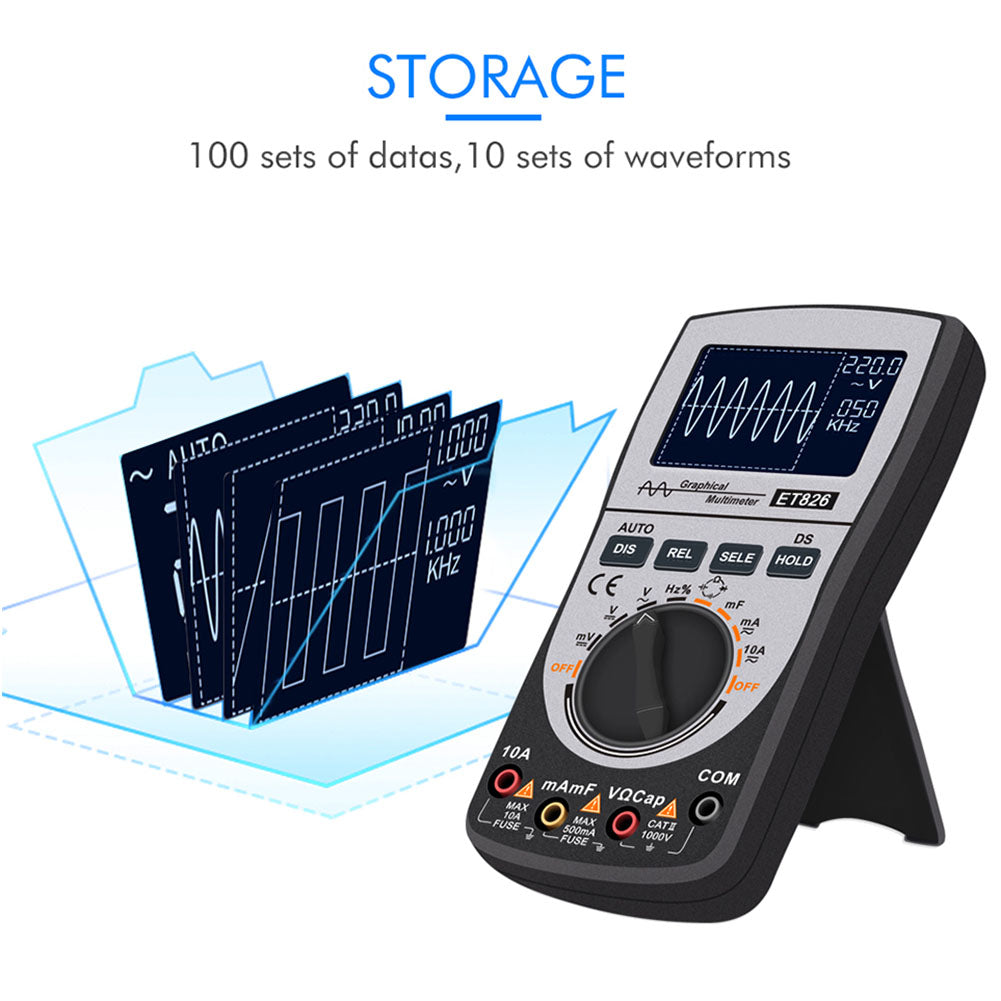

 MORE ACCURACY: Storing 100 sets of data and 10 waveforms independently. Capable of holding waveform and data during measurement, easy to view and analyze.

 Displaying historical data and real-time measurement on the same screen with particular reading mode for easy comparison.

 MORE POWERFUL DETECTION RANGE: DC voltage, AC voltage, DC/AC Current, Resistance, Capacitance, Frequency, Diode Test, etc.

 Bandwidth up to 20KHz. Extending battery life with automatic shutdown function.

 MULTI-FUNCTION: 128x64 high contrast LCD with backlighting, easy to read. Suitable for working at night.

 Built-in explosion proof fuse for safety.

 REL effectively eliminates the influence of lead resistance and distributed capacitance.

 Specification:

 Material: ABS

 Color: Black+Grey

 Total Size(LxWxH): About 160x83x32mm/6.3x3.27x1.26inch

 LCD Size(LxW): About 60x40mm/2.4x1.6inch

 Model: ET826

 Storage capacity: 100 groups data, 10 groups waveform

 Display: LCD display, 128x64 dot-matrix, 4000 counts

 Backlight: Yes

 Power: 3pcs x AA battery (not included)

 Inpedance: 10MΩ

 Auto sleep: No operation for 15 minutes

 DC voltage Range: 400mV, 4V/40V/400V/1000V

 AC voltage Range: 400mV/4V/40V/400V/750V

 Resistance Range: 400Ω-40MΩ

 Capacitance Range: 0.1nF-100μf, 10000μf

 Frequency Range: 5Hz-5MHz

 Duty cycle: 0.1%-99.9%

 Fuse: 500mA/250V, 10A/250V

 On-off test: measurement resistance: about 100Ω

 Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA

 Oscilloscope: bandwidth: ACV/DCV/ACA/ DCA 20Khz, Maximum sampling: 200ksps

 Other functions: REL, auto range, backlight, automatic shutdown, data saving, scale display waveform function, same screen display

 Working Temperature: 0-40℃

 Package includes:

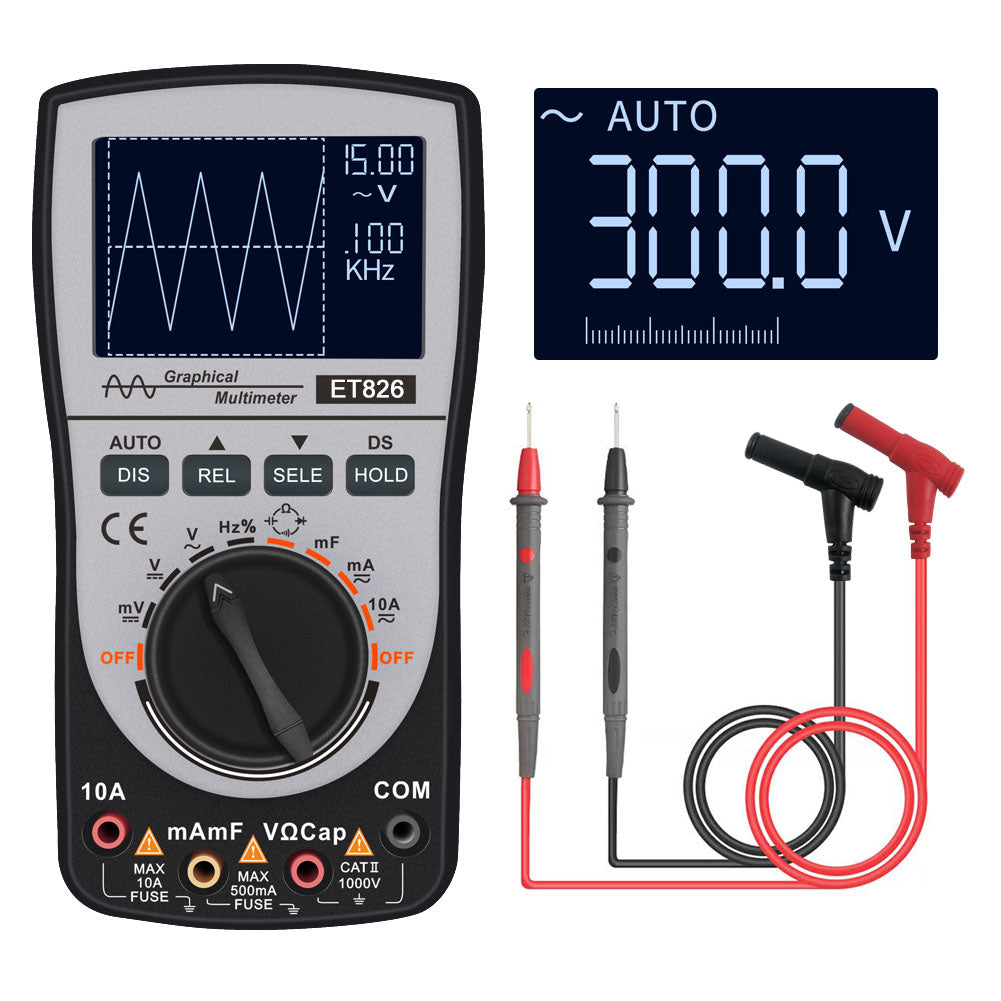

 1pc x 2 in 1 Oscilloscope Multimeter

 2pcs x Test Pens

 1pc x User Manual
