item
|
value
|
|
Products Status
|
Stock
|
|
Application
|
Desktop
|
|
Type
|
Wired
|
|
Kind
|
Internal
|
|
Transmission Rate
|
150Mbps
|
|
Interface Type
|
PCI EXPRESS
|
|
Certification
|
FCC
|
|
Brand Name
|
IOCREST
|
|
Model Number
|
IO-PCE8125E-2GLAN
|
|
Place of Origin
|
China
|
|
Chipset
|
Realtek 8125B
|
|
Color
|
Black
|
|
Interface
|
PCI-E 1X
|
|
Port
|
2-port Network Card
|
|
Chip
|
RTL8125B
|
|
Product name
|

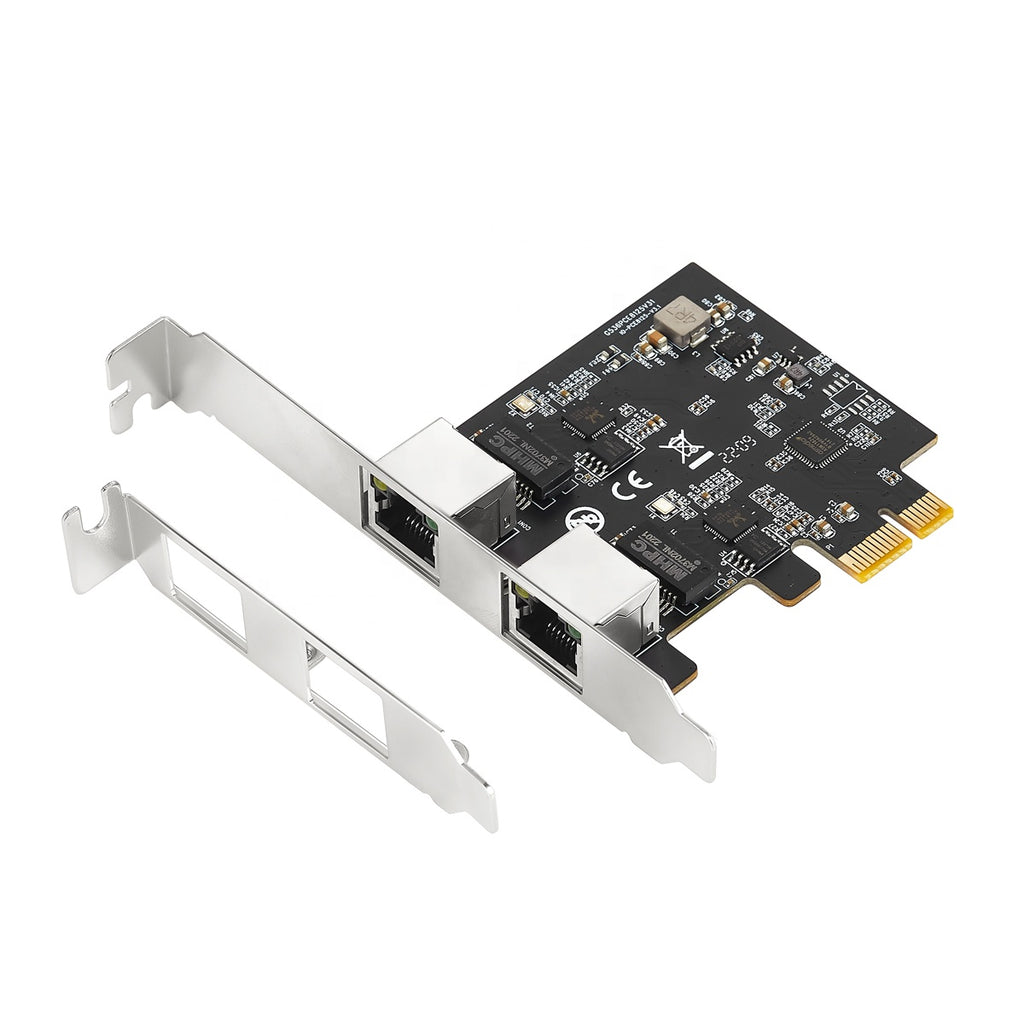

PCIe to 2 ports 2.5g etherent lan card
|
Features
• PCI-Express 1-Lane(x1) interface
• Supports PCI Express 2.1

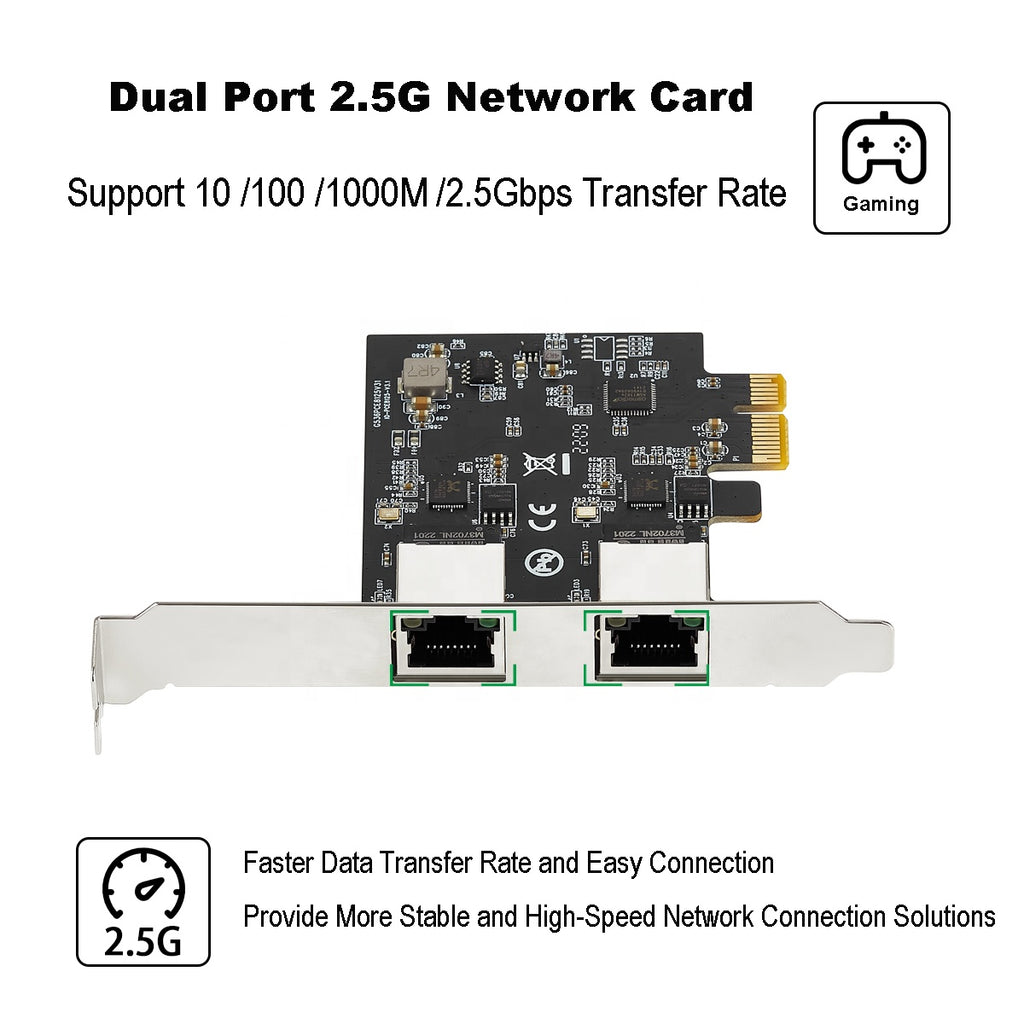

• Supports 2 high performance 2.5-Gigabit LAN ports
• Auto-Negotiation with Extended Next Page capability (XNP)
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports LTR (Latency Tolerance Reporting)
• Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports Microsoft WPI (Wake Packet Indication)
• Supports PCIe L1 substate L1.1and L1.2
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBase-T)
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 16K byte

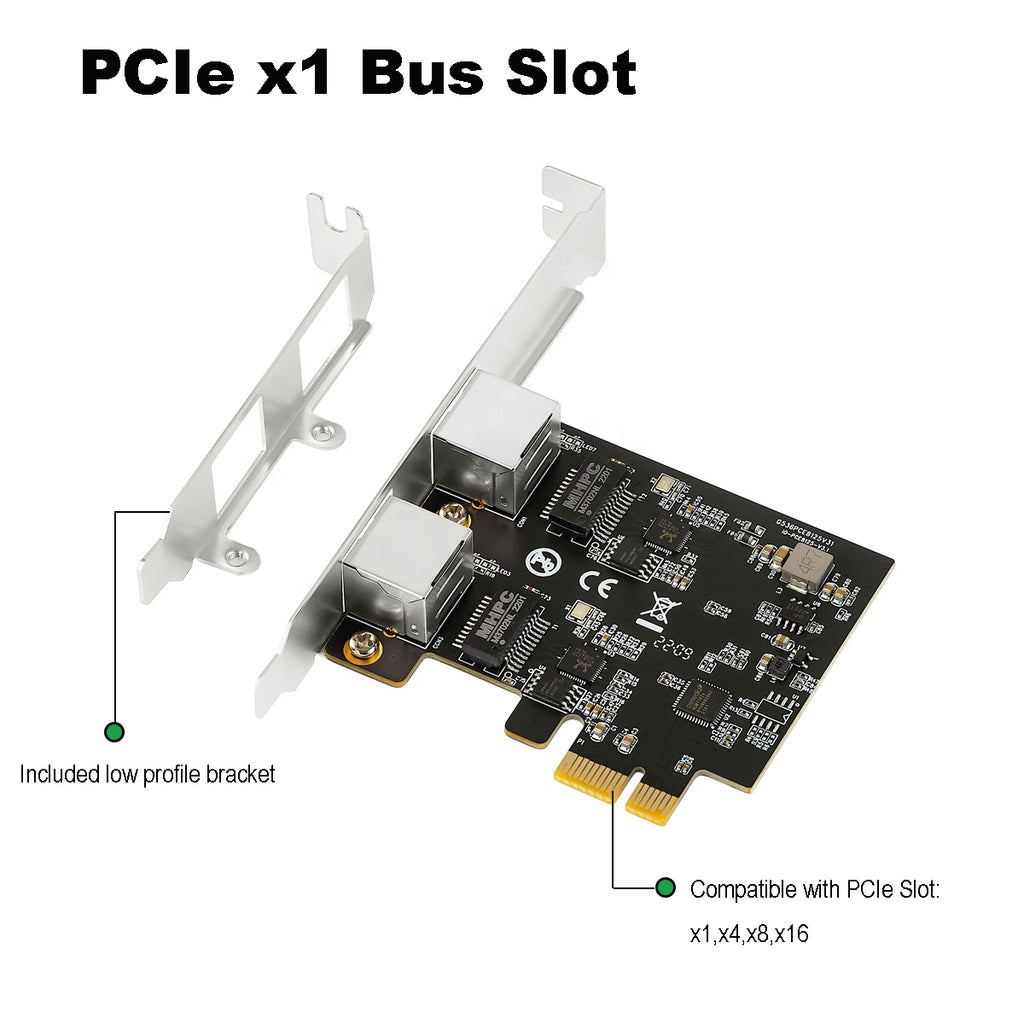

• Supports standard and low profile chassis
System Requirements
• PCI Express-enabled system with an available PCI Express slot

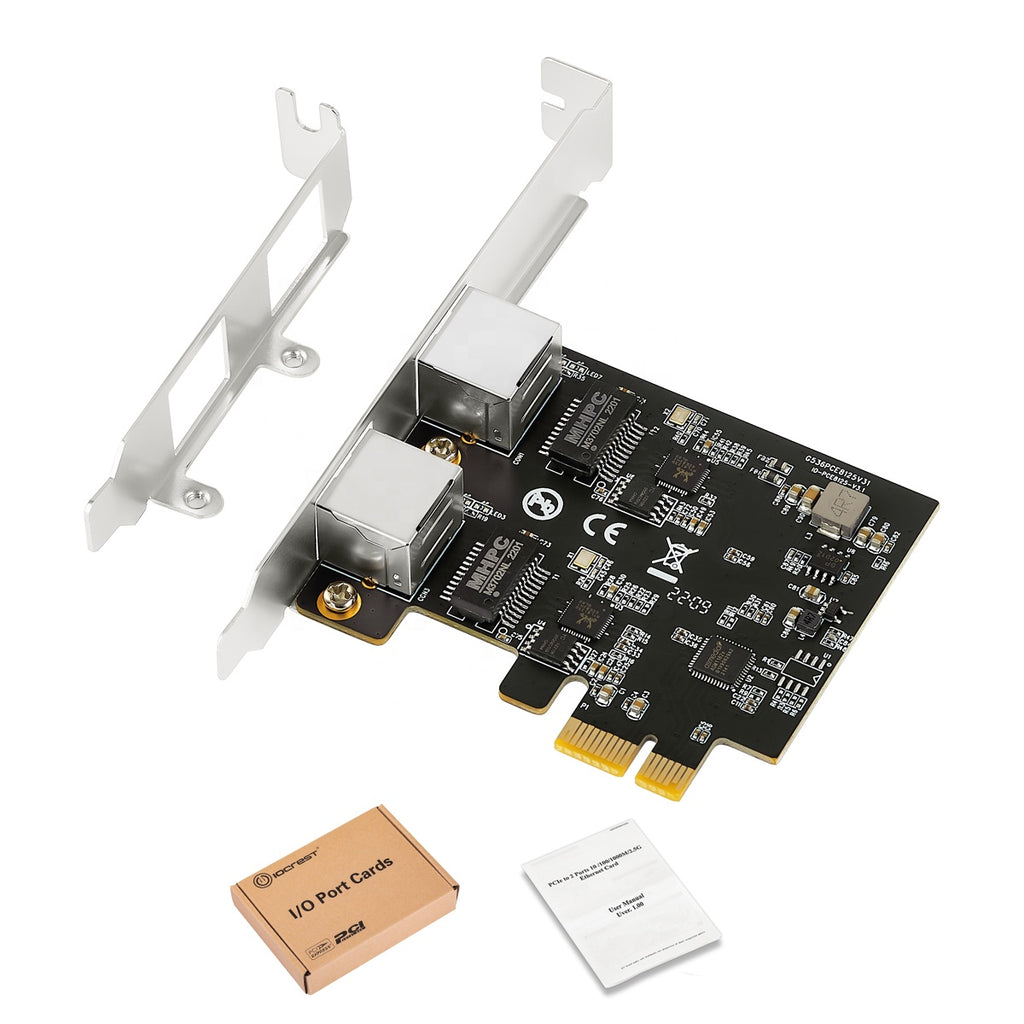

Package Contents
• 1 x User Manual
• 1 x Driver CD
• 1 x Low-profile bracket
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
