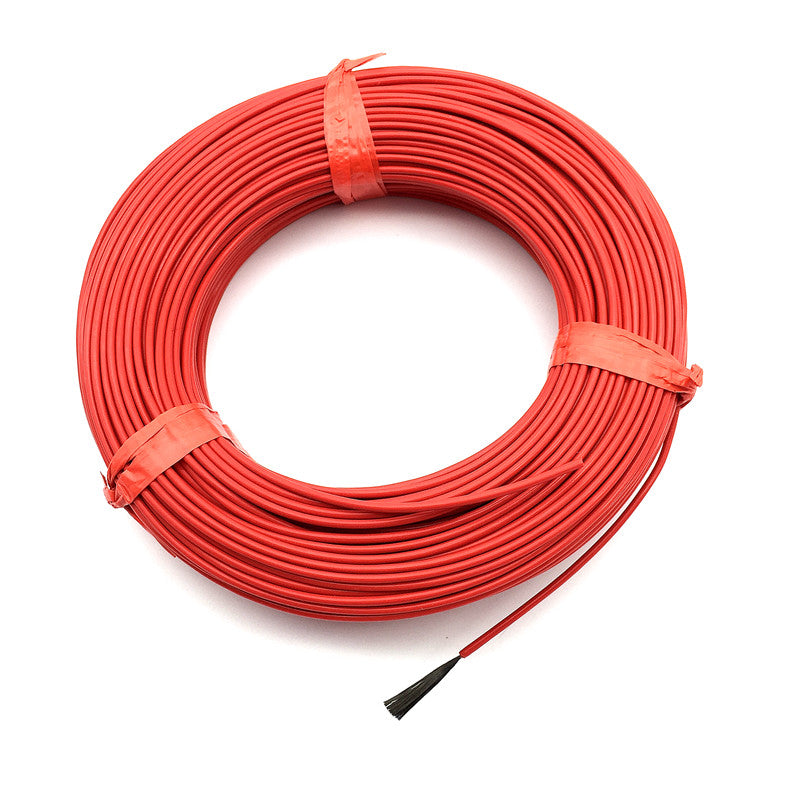

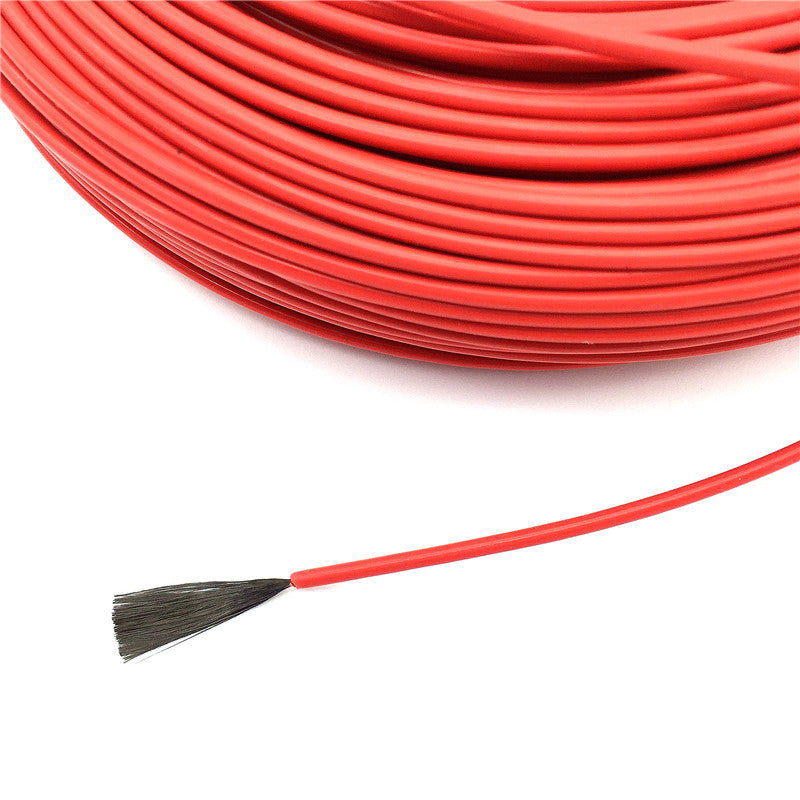

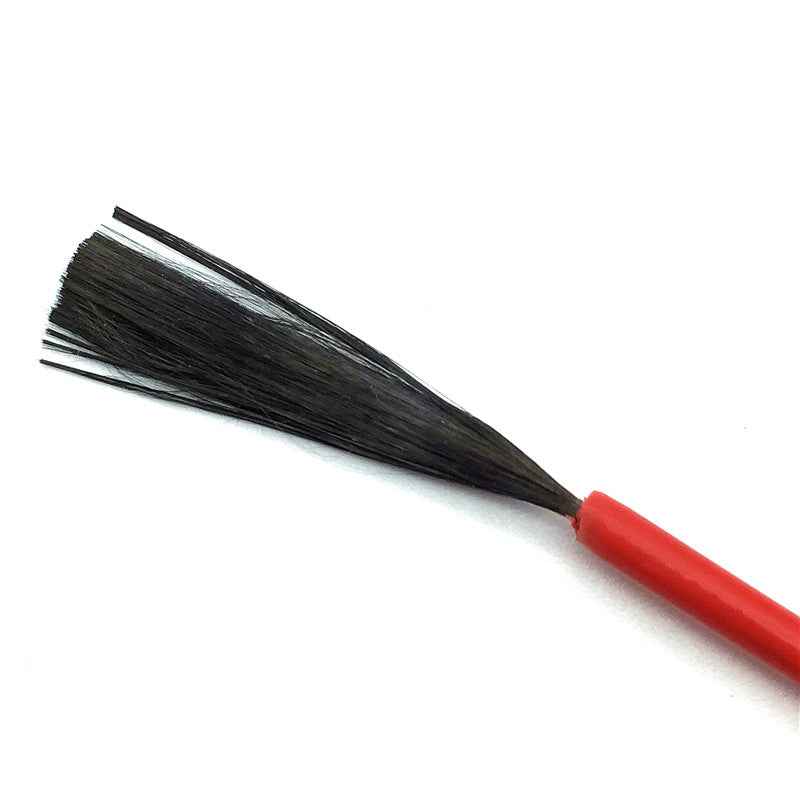

20M 12K 33Ohm Infrared Heating Floor Heating Cable System 2.0mm Carbon Fiber Wire Electric Floor Hotline Thickening

         Packaging:20 meters

         Buy heating wire 20 meters

         Free: Wiring Accessories(4 pcs + 4 pcs)

         This product is widely used, you can manually make heating equipment, electric blankets, car seat heater, heating appliances, animal heating system, heating system, etc. (for power supply 7 V - 380 V)

         Product Name:  carbon fiber wire

         Insulating materials: (Polytetrafluoroethylene) ;

         Temperature: 200 oC limit

         Heating conductor: 12K

         High voltage test: 3000V

         Leakage current: 0.05mA/m

         The product can withstand the power of power: 25W/M

         Rated voltage: 300V

         Complete the outer diameter: 2.0 mm

         Optional colors: Red

         Diameter tolerance: 0.2 mm

         Infrared wavelength: 8UM-18UM

         Conductor resistance: 33  / M

         Length: (custom, recommendation of not less than 10 meters))

         Product power calculation:

         Voltage * voltage / resistance = power

         For example 1: 12K carbon fiber length of 10 meters

         220V  220V / (10 m x 33 Ohm) =150 watts

         For example 2: 12K carbon fiber length of 15 meters

         220V  220V / (15 m x 33 Ohm) =100 watts

         For example 3: 12K carbon fiber length of 20 meters

         220V  220V / (20 m x 33 Ohm) =75 watts

         Power data can be seen using a heating line is long and the smaller the hotline

         Product features:

         With excellent heat resistance, at 160  oC can be used for a long time and almost no change in performance, sustainable use of 200  oC for 100000 hours.

         Excellent insulation, insulation resistance is greater than 500M, the resistance is stable over temperature and a wide frequency range, excellent resistance to high voltage corona discharge and arc discharge.

         Flame retardant and Zixi, because the contains no halide, heating not smoke or release, applicable to all kinds of fire strict situation.

         Having good cold resistance and excellent medical rationalizatio
