Specification:
Model: MJ-X4

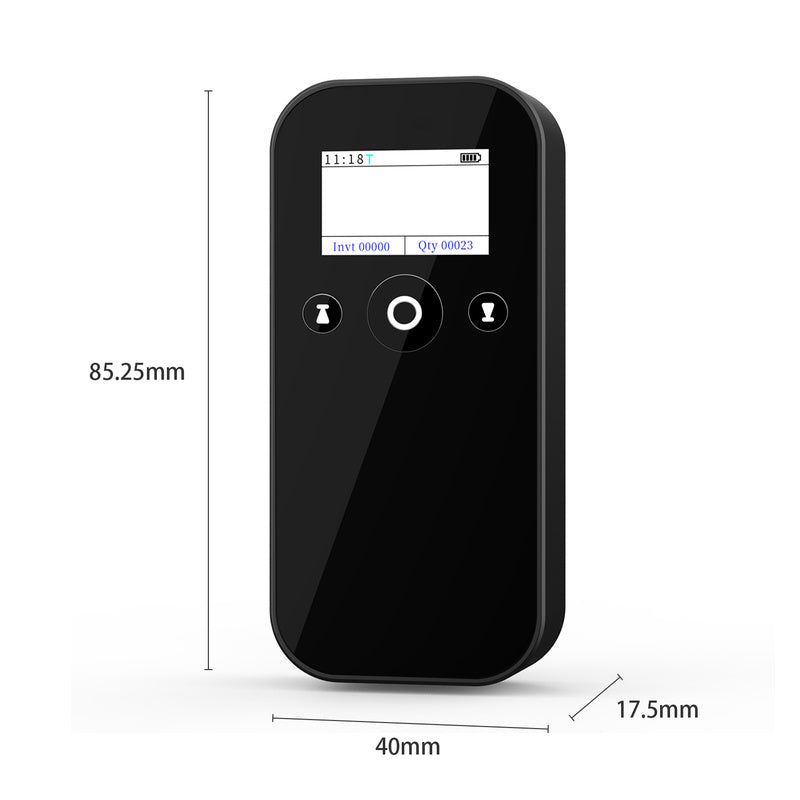

Size: 85.25mm (length) x 40mm (width) x 17.5mm (thickness)
Weight: 42.1g (excluding wire)
Input voltage: 5V 1A

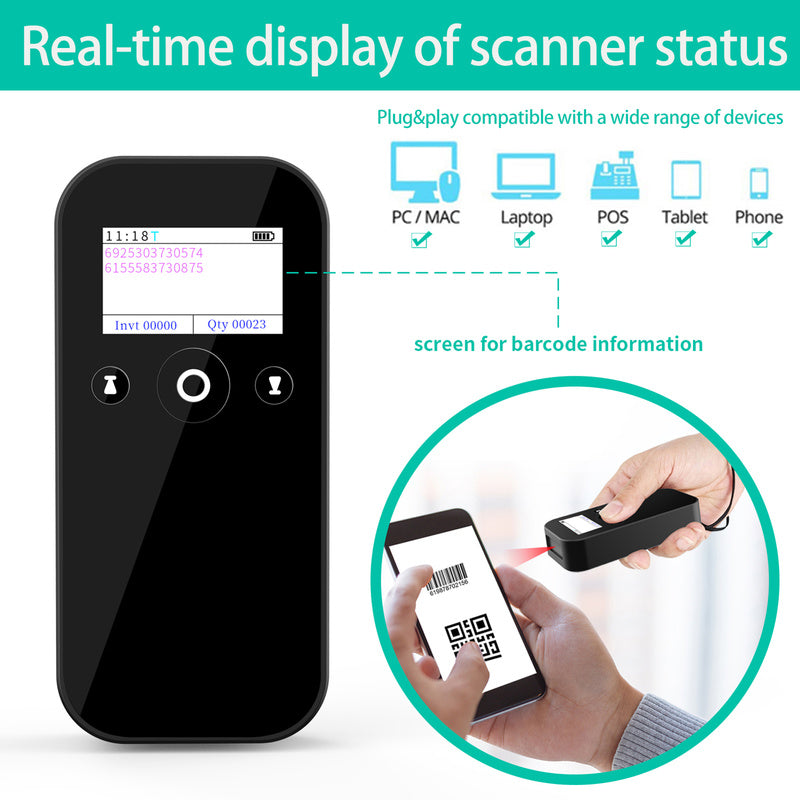

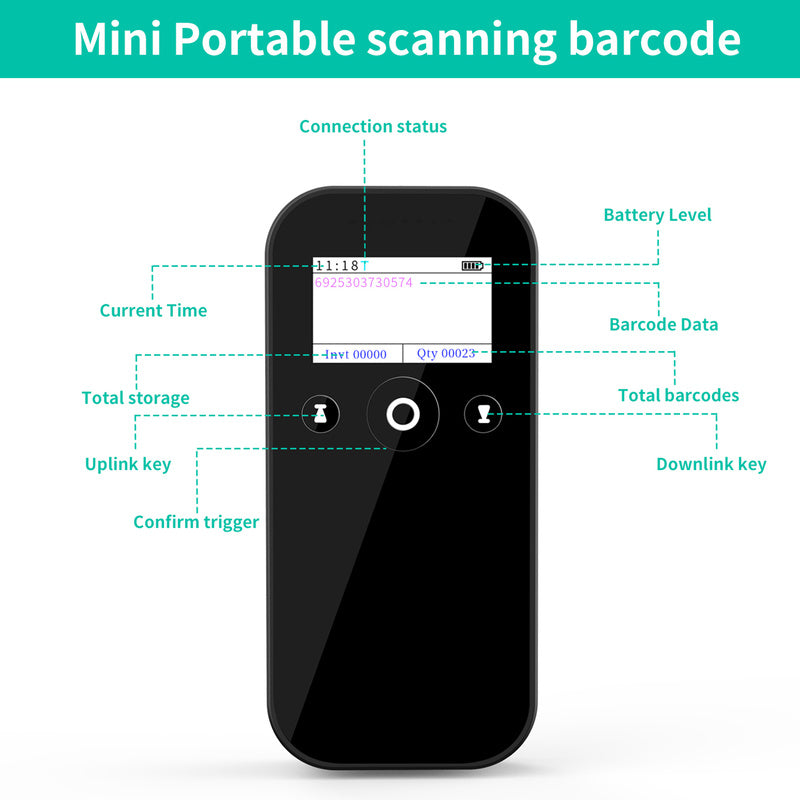

Display: 2.4-inch TFT screen display
Color: black
Material: ABS
Working current: 170mA±5%
Reading mode: button trigger, induction trigger

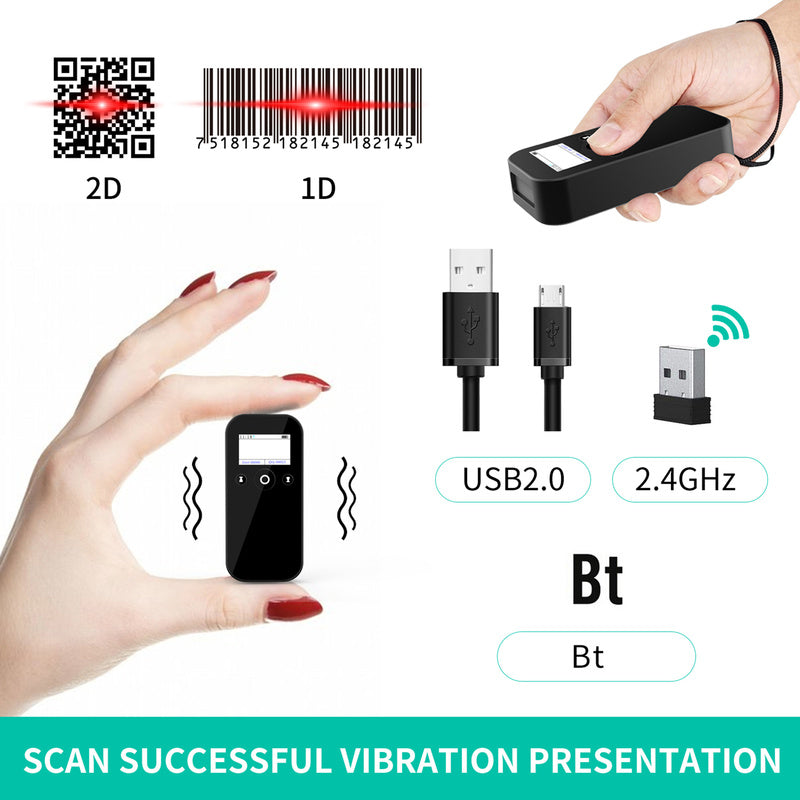

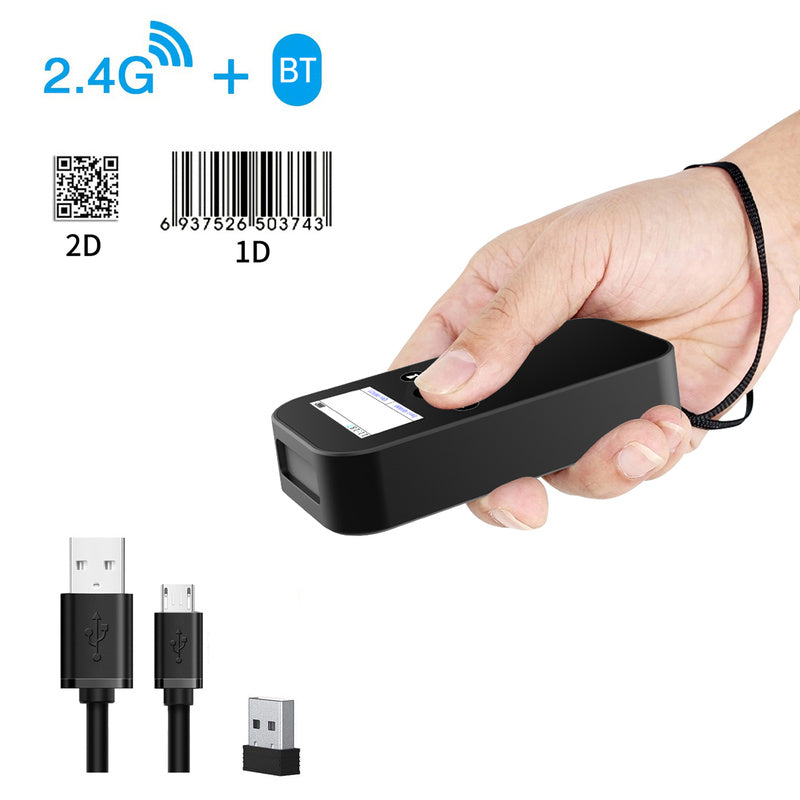

Interface support: USB+2.4G+BT
Standby current: 20mA
Scanning angle: 360° rotation, ± 55° elevation, ± 55° deflection
Ambient lighting: normal office and factory lighting or direct exposure to sunlight will not affect it
Resolution: 640×480CMOS
Motion tolerance: 30CM/second
Processor: 32-bit ARM MCU
Reading accuracy: 1D: ≥5mil / 2D: ≥10mil
Prompt method: buzzer, LED indicator, vibration (wireless)
Bit error rate: 1/5 million
Output: DC5 V, 1A
Input: AC100~240V, 50~60Hz
Ambient light intensity: 0-100000Lux Max
Reading depth of field:
EAN-13 40mm-260mm (13mil)
Code39 40mm-100mm (5mil 10 bytes)
QR Code 25mm-300mm (20mil 16 bytes)
Data Marix 50mm-120mm (10mil 20 bytes)
PDF 417 30mm-150mm (6.67mil 7 bytes)
Code Reading
1D: EAN, UPC, Code39, Code93, Code128, UCC/EAN128, Codabar, Interleaved2of5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1Databar, GS1CompositeCode, Code11, Industrial25, Standard25, Plessey, Matrix2of5, etc.
2D: QRCode, DataMatrix, PDF417, Aztec, Maxicode, Chinese Xin Code

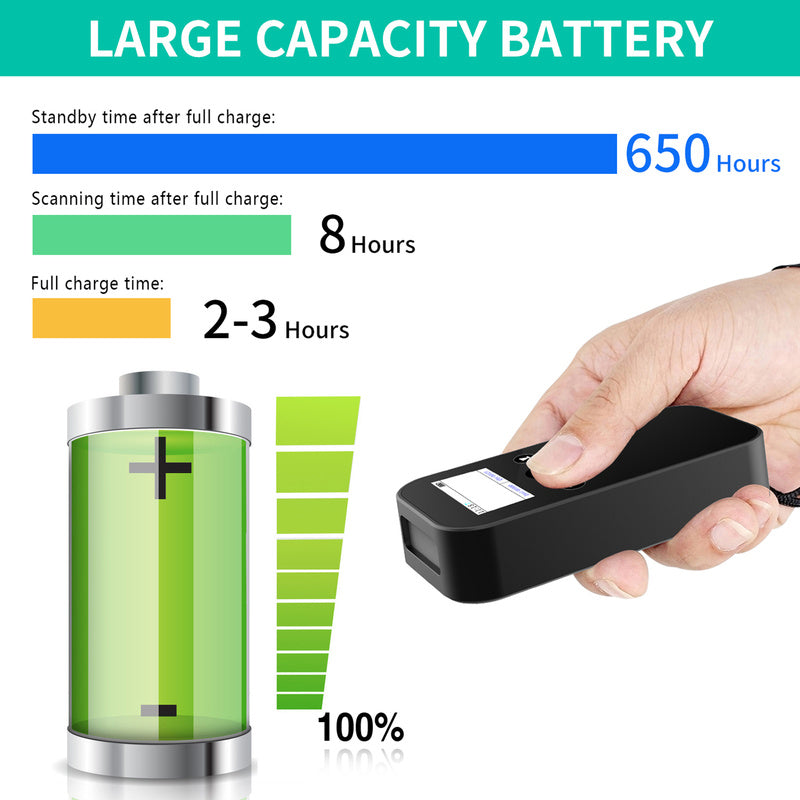

Battery capacity: 500 mAh
Charging time: less than 2.5 hours
Working current: standby less than 5 mAh, working: 170 mAh
Storage space: 16M (about 50,000 product barcodes) Wireless BT model
Usage time: more than 8 hours, times/5 seconds
BT version: BT dual-mode 5.1 (supports HID, SPP, BLE)
BT communication distance: greater than 10 meters visual distance
2.4G communication distance: greater than 100 meters visual distance
Packing List:
1 x Tag Scanner
1 x 2.4Gz Receiver
1 x Charging Cable
1 x Lanyard
1 x User Manual
