Feature:

 1. Widely used in the circulation system of hot springs and hot tubs with pressure to keep and heat the water temperature.

 2. Cold water can also be heated, mainly for heating and thermostatic functions, install heater in the position of the bottom level.

 3. This thermostat has the characteristics of excellent performance, complete functions, practicality and easy operation.

 4. The water heater will start to work after the bathtub is filled with water. It is specially designed for hot and cold bathtubs and suitable for bathtub SPA.

 5. Our water massage equipment heater does not require any special maintenance or programming and is easy to use.

        Specification:

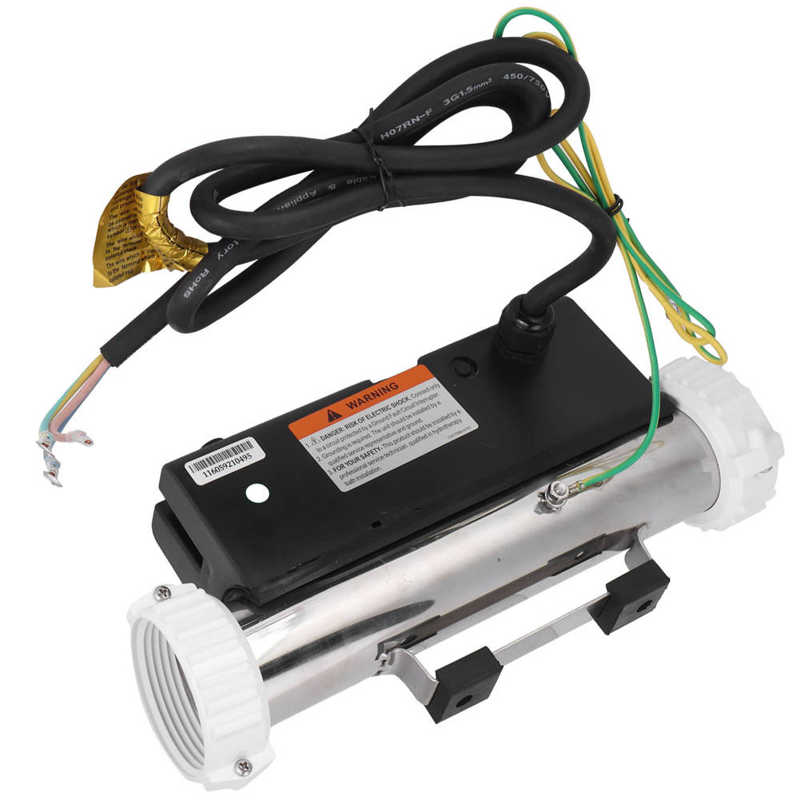

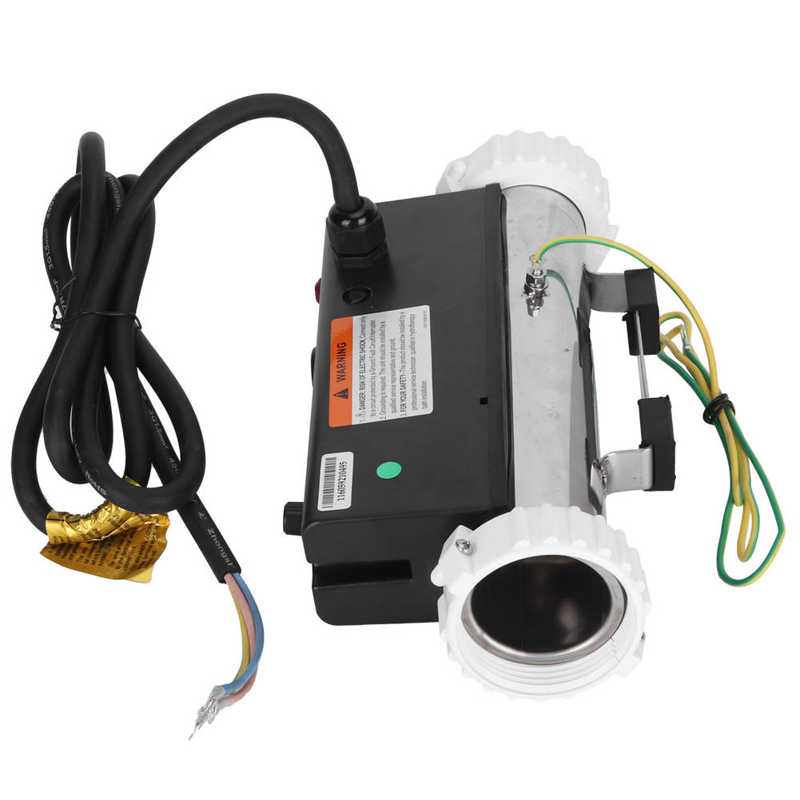

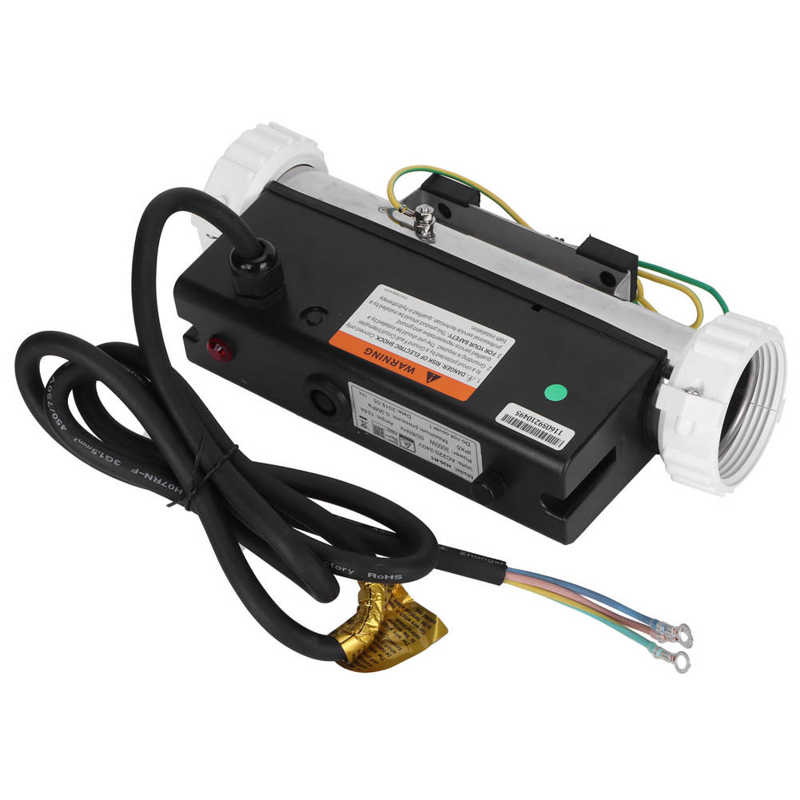

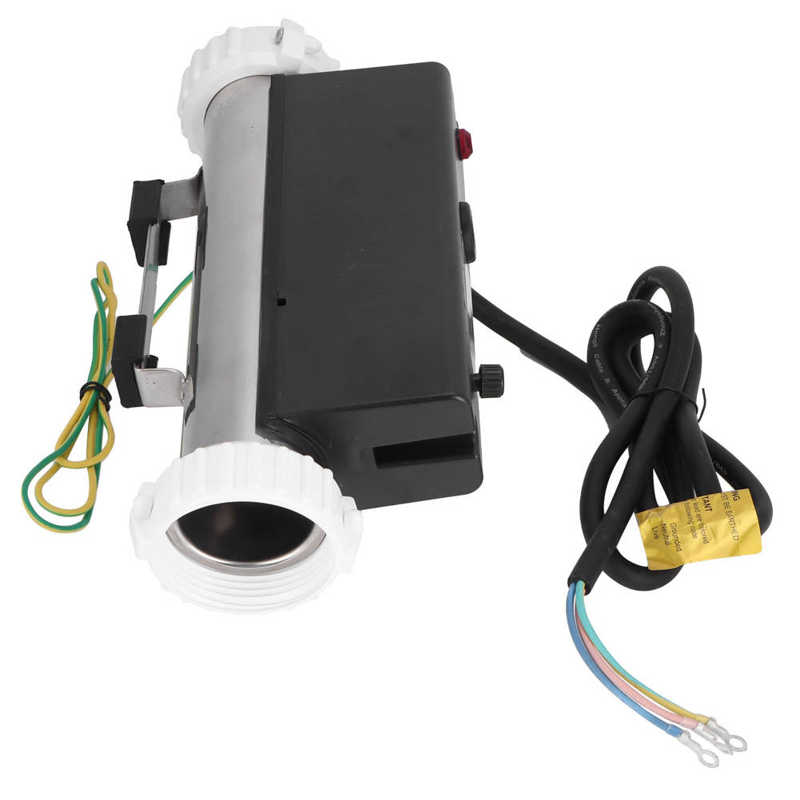

                Item Type: Bathtub Heater

 Material: Stainless Steel

 Color: As shown in the picture

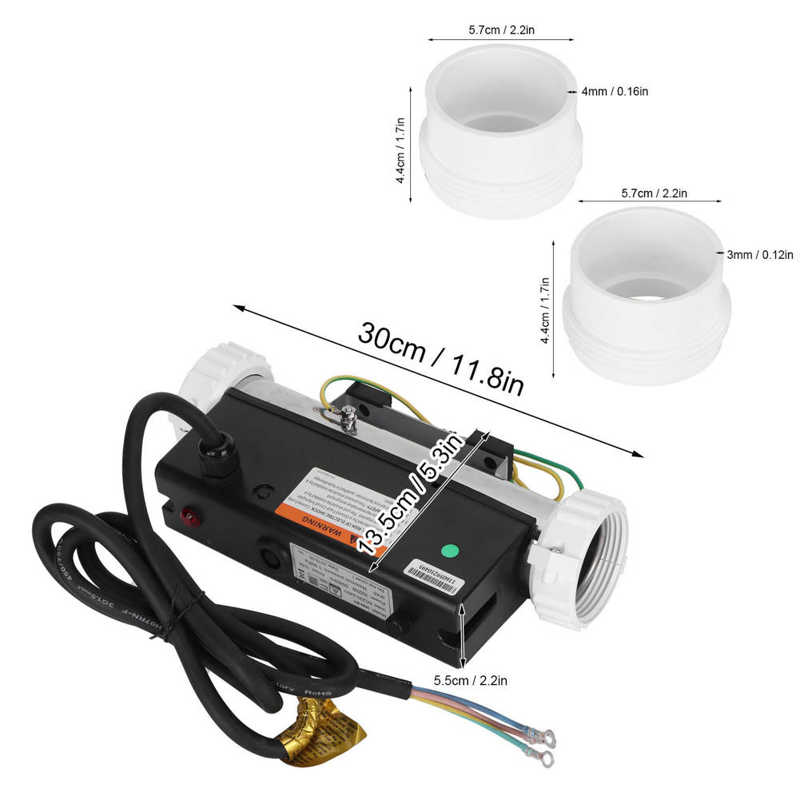

 Product Size: Approx. 30x13.5x5.5cm / 11.8x5.3x2.2in

 1# Pipe Connector Size:

 Thickness: Approx.4mm / 0.16in

 Height: Approx.4.4cm / 1.7in

 No Thread Outside Diameter: Approx.5.7cm / 2.2in

 2# Pipe Connector Size:

 Thickness: Approx.3mm / 0.12in

 Height: Approx.4.4cm / 1.7in

 No Thread Outside Diameter: Approx.5.7cm / 2.2in

 Weight: Approx.1550g/54.7oz

 Model: H30-R1

 Product Power: 3KW

 Working Voltage: AC220-240V

 Waterproof Rating: IPX5

 Current: 13.6A

 Applicable Bathtub Water Capacity: 1280L

 Model: H20 - R1

 Product Power: 2KW

 Working Voltage: AC220-240V, 50/60HZ

 Waterproof Rating: IPX5

 Current: 9A

 Applicable Bathtub Water Capacity: 750L

 Purpose: Constant temperature heating

 Heater Type: Water heater

 Applicable Places: Massage bathtub, bathtub SPA.

 Installation Method:

 1. The bathtub water heater should be connected to the tubing circulation system, and can also be connected to the inlet and outlet of the bathtub pump to ensure that the direction of water flow conforms to the instructions on the bathtub water heater.

 1. The heater must be installed horizontally.

 2. The heater can be installed with the inlet or outlet of the bathtub pump. (Note: Cannot be fixed by binding)

 3. PVC pipe: cut a specific length of polyethylene from the pump outlet and connect to the nozzle. (Note: The size of the pipe joint should be the same as that of the bathtub pipe)

 4. Pipe joints: clean the PVC pipe joints, and then use glue to connect the PVC pipe and joints together. (Note: installation distance between heater and pump)

 5. Heater installation: Separate the connecting nut and connect the PVC pipe to the heater (Note: O-ring). Make sure the connection is tight enough. (Note: The connecting nut is made of plastic material, too much force will cause damage).

 6. Connect the knob to the thermostat heater at the threaded diameter of the fitting, then apply glue to the inside of the fitting connector without thread, and then insert the pipe to be connected (in addition, the outer wall of the pipe is also coated with glue, so that it is more firm).

 7. After the bathtub heater is installed, it must be checked:

 ●If the pipe or connection is leaking: Pour water into the bathtub and run the pump for 30 minutes to ensure that the circulating water system does not leak.

 ●If the heater does not start, try to find the problem in the most common faults and possible solutions provided.

       Package List:

             1 x Bathtub Heater

             1 x English Manual

             2 x 1# Pipe Connector

             2 x 2# Pipe Connector

             2 x Gasket
