Name: 3-23Mhz AM Radio Shortwave Receiver Short Wave Broadcast Signal PLL Receive DIY KitS LED Digital Display Frequency
Brand: mickcara
SKU: 384c95-1-DIYKITS
Price: 66.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 384c95-1-DIYKITS

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$66.00

Quantity:

Subtotal: $66.00

283 customers are viewing this product

Tags:

Description

Overview

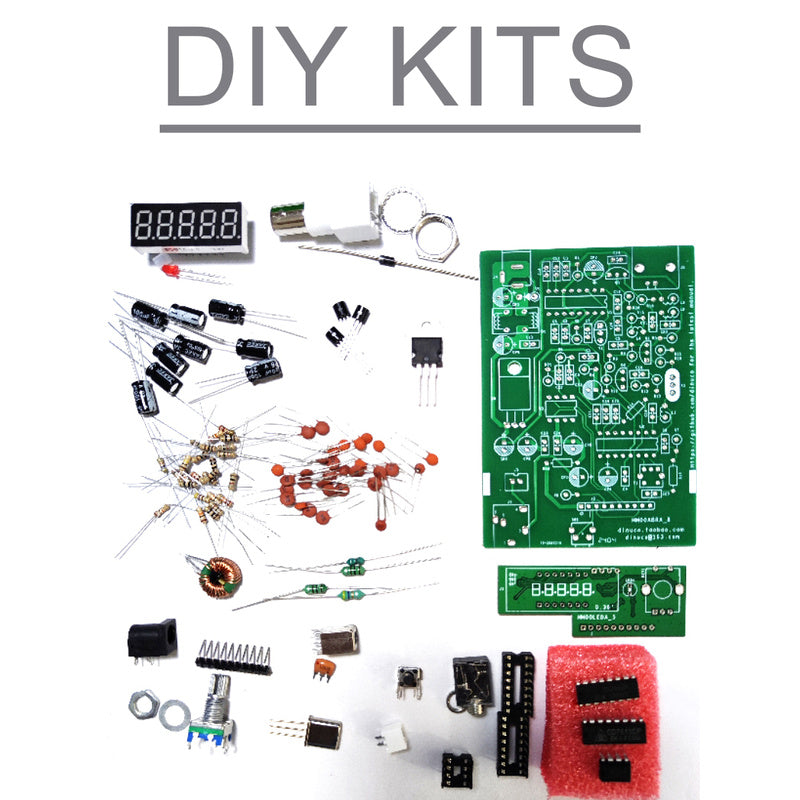

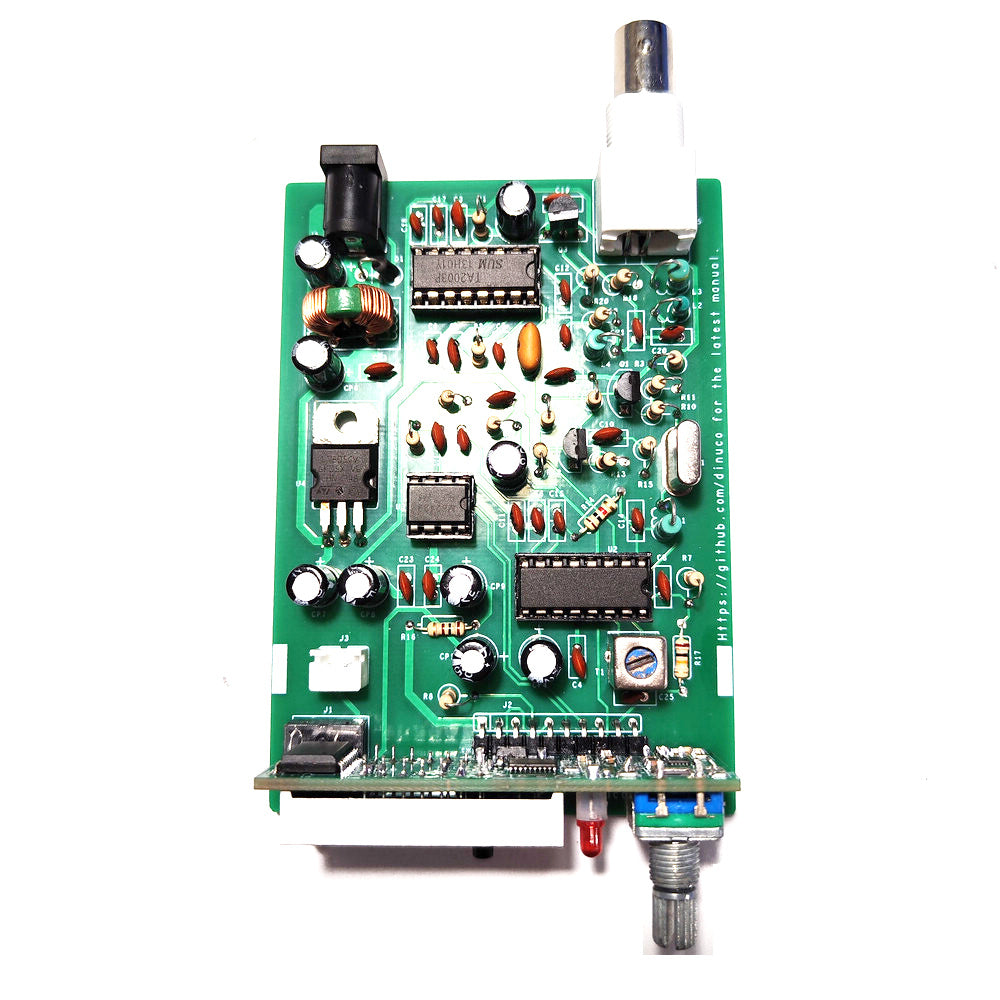

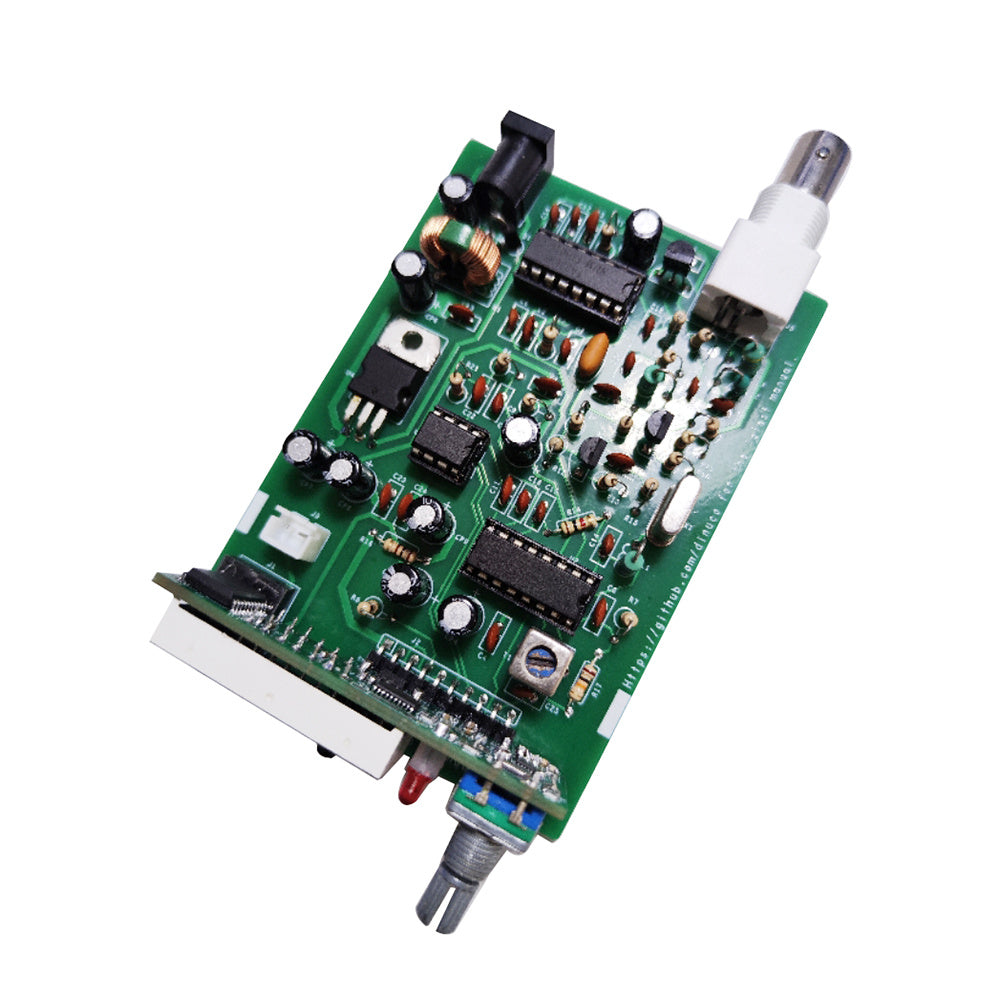

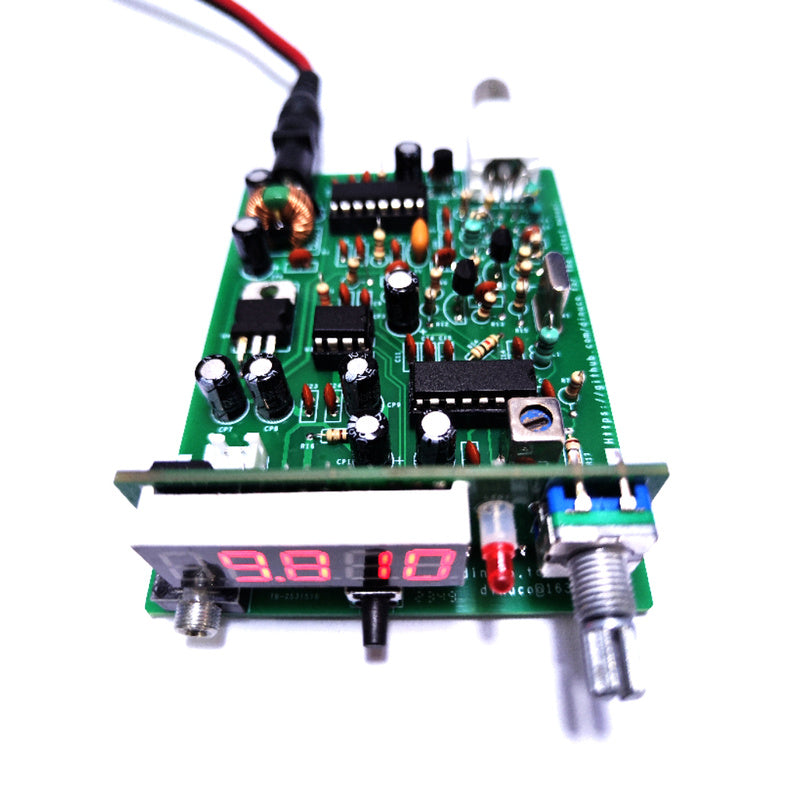

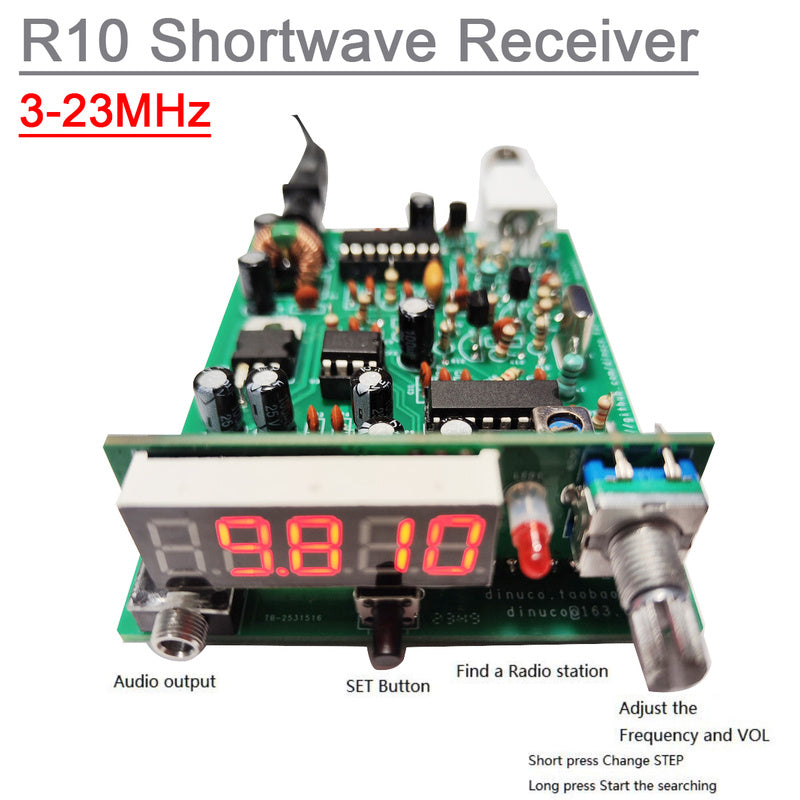

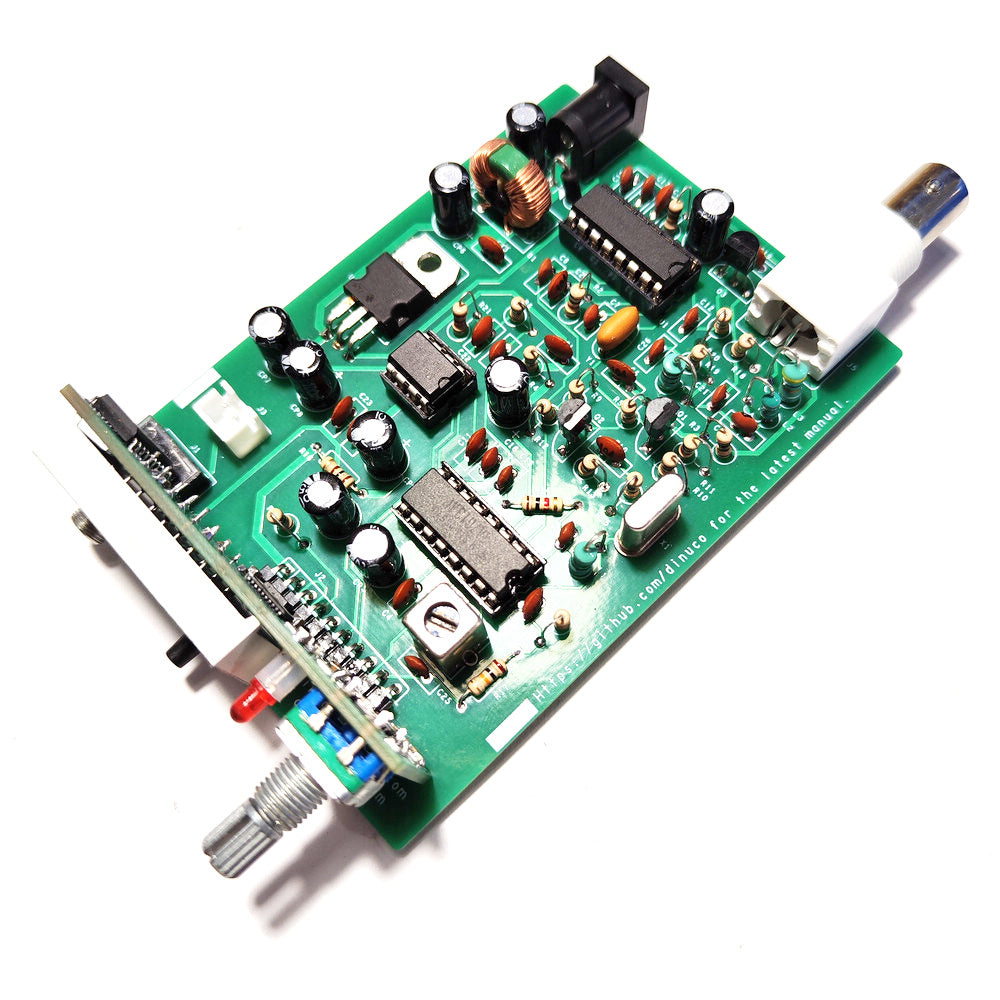

This kit is specially for receiving ordinary short-wave broadcast signals, combined with the actual use of the domestic situation, after many optimizations to form the current version. The hardware described in this article is V8.0 and the main PCB labelled “HM00ABRA_8”.

Specifications

Current: 110mA

Tuning Range : 3-23MHz

Mode : AM

Step:1KHz/10KHz/100KHz

Circuit Description

Refer to the circuit diagram shown on the last page of this document.

The signal received by the antenna first enters the filter network, and the function of the bandpass filter is to ensure that the 3-23MHz signal can enter the source pole following circuit composed of J310, and other signals are attenuated to the greatest extent. The signal is then fed into the TA2003 , and there is a mixer inside the TA2003 that mixes the received signal with the PLL local oscillator signal.

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
