PACKAGE CONTENT：( NOT include Raspberry Pi Pico.)
Pico-ESP8266 x1
1
Wiki English manual：www.waveshare.com/wiki/Pico-ESP8266

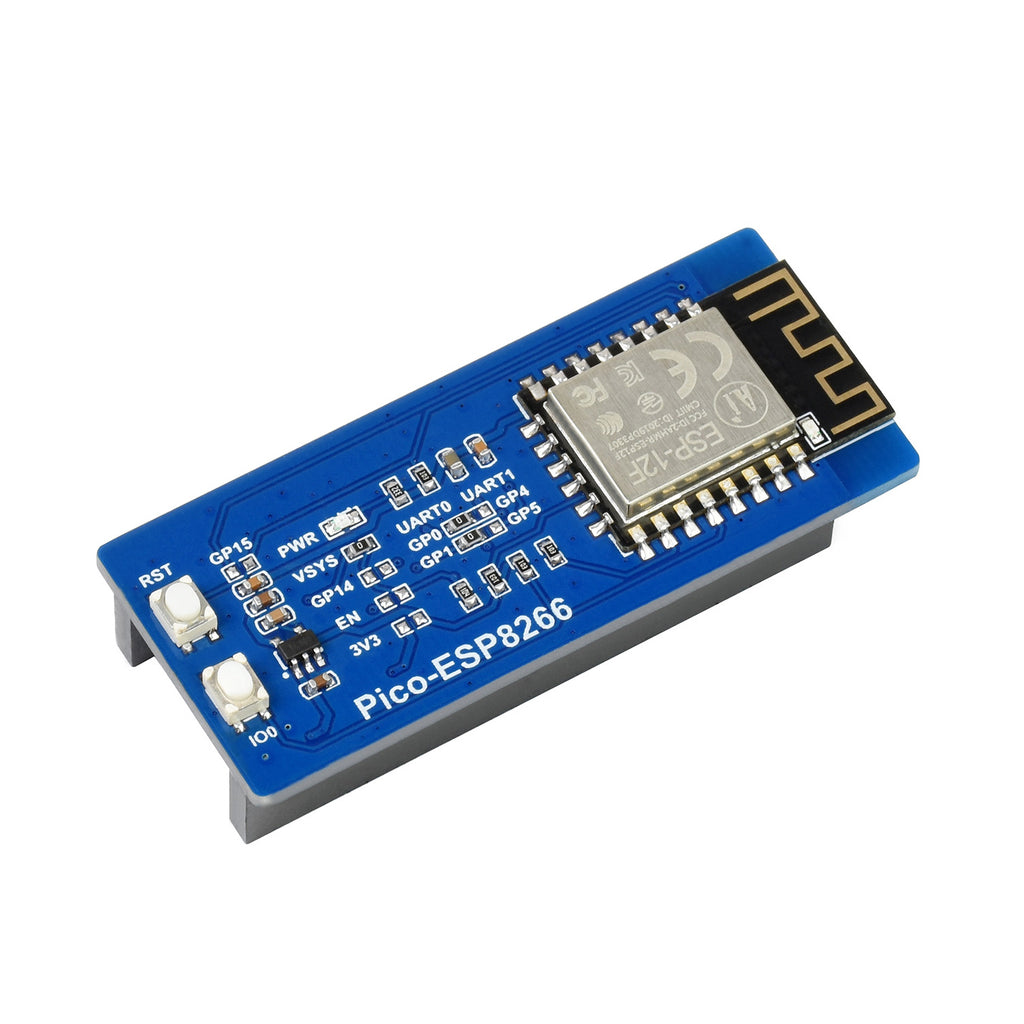

ESP8266 WiFi Module For Pico
WiFi Expansion Module Based On ESP8266, Supports TCP/UDP Protocol
Features At A Glance
ThePico-ESP8266is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects.
Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
UART communication, controlled via AT command, helps you get started quickly
Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication
Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection
2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico
Wiki English manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Wiki English manual：www.waveshare.com/wiki/Pico-ESP8266
Specifications
COMMUNICATION INTERFACE
UART
UART BAUDRATE
115200 bps
WIFI STANDARD
IEEE 802.11b/g/n
FREQUENCY RANGE
2400 ~ 2483.5 MHz
WIFI OPERATING MODE
WiFi STA, WiFi AP, WiFi STA+AP
ANTENNA
PCB antenna
OPERATING VOLTAGE
3.3 V
OPERATING TEMPERATURE
-40℃ ~ 85℃
DIMENSIONS
58 × 25 mm

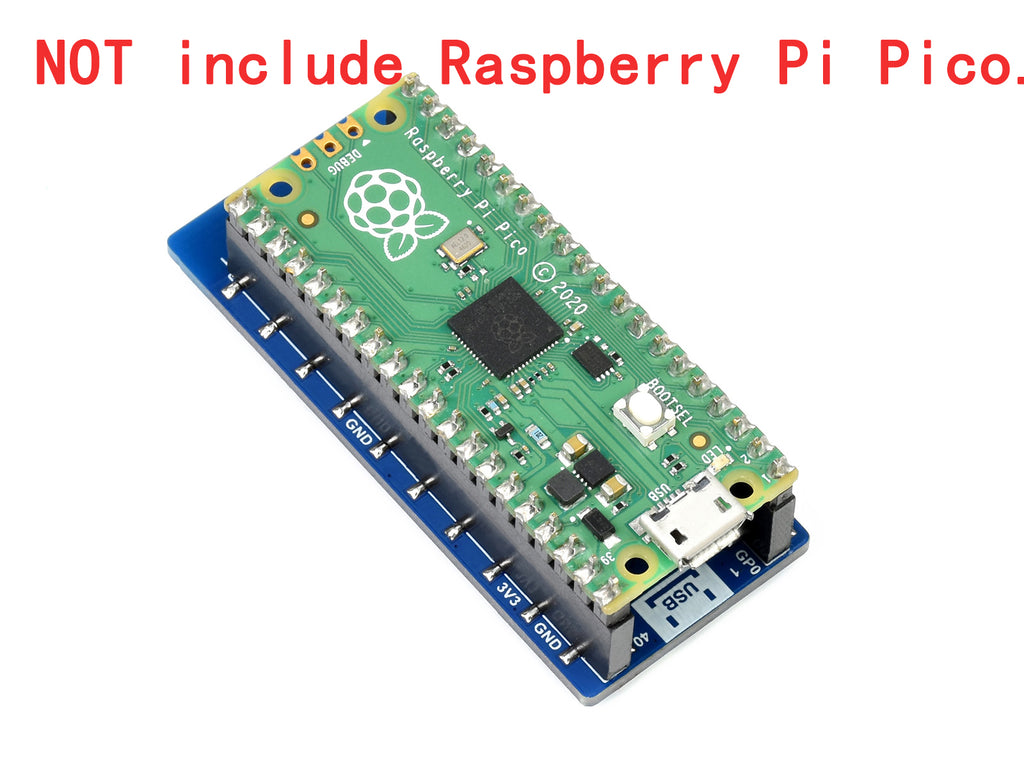

Raspberry Pi Pico Header Compatibility

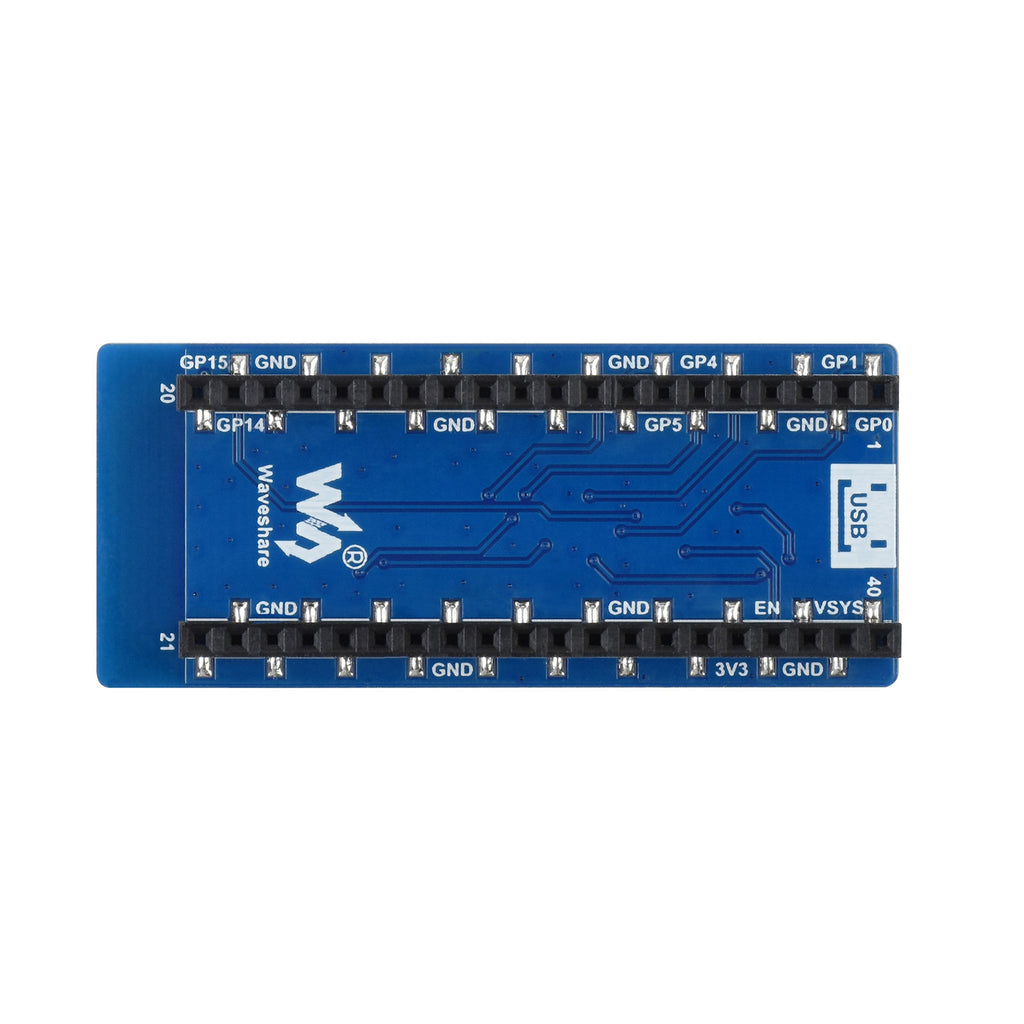

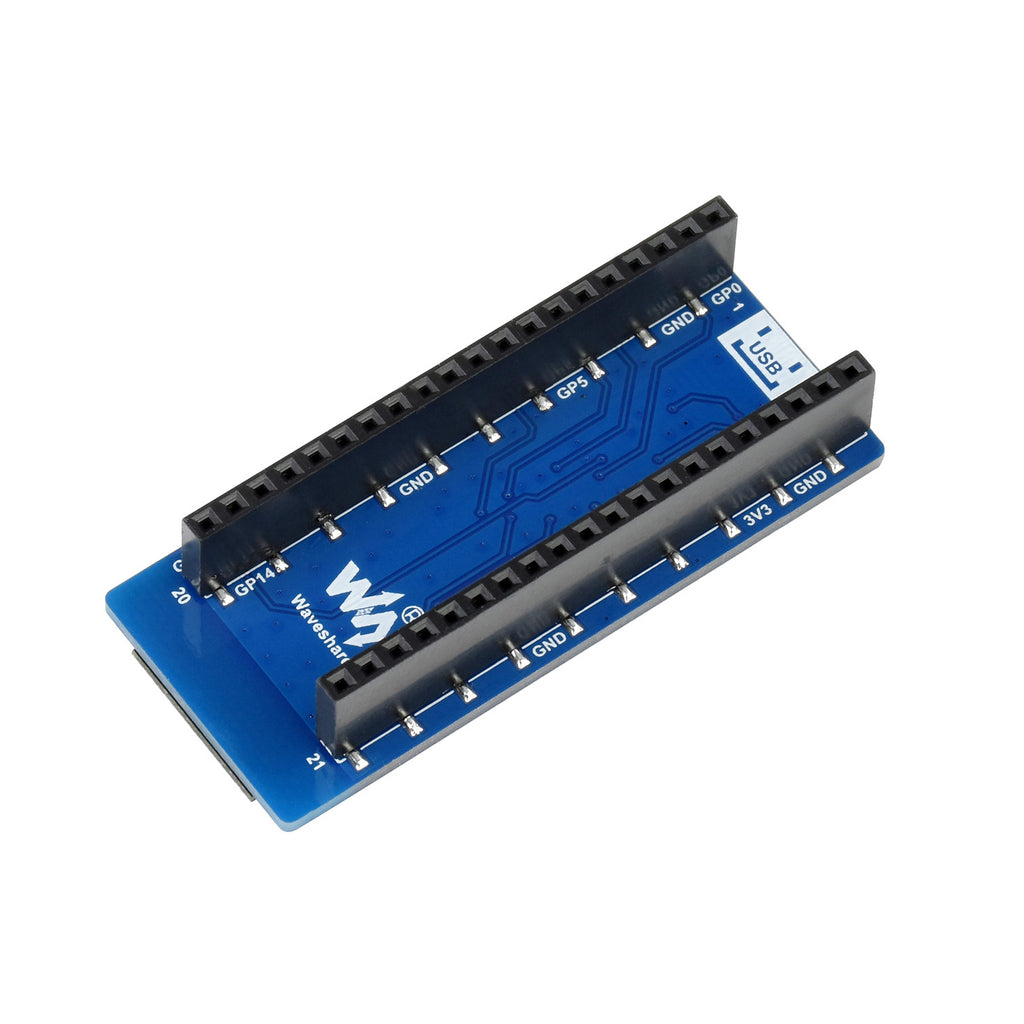

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Picois NOT included.

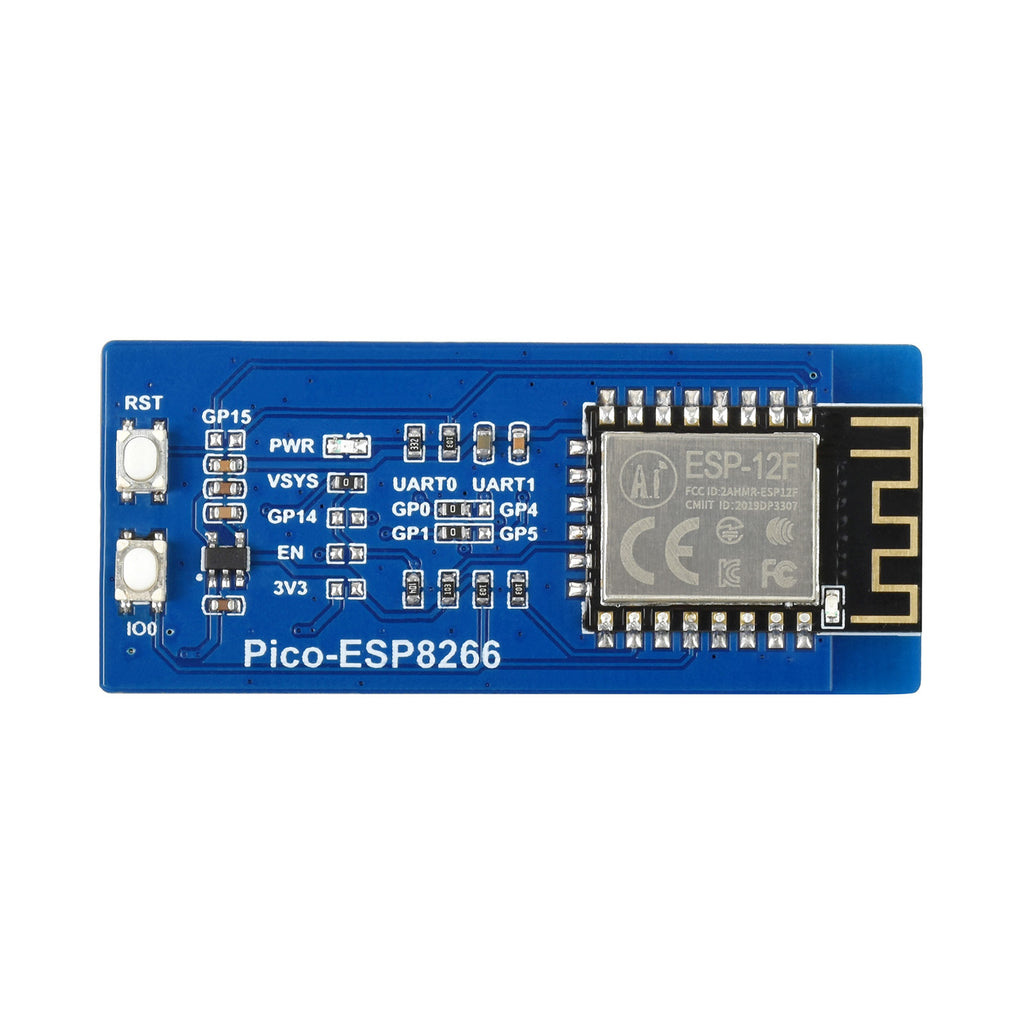

What's On Board
ESP8266 module
ESP8266 reset button
connects to ESP8266 reset pin
ESP8266 BOOT button
connects to ESP8266 GPIO 0, press to enter awaiting download mode while reseting
SPX3819M5
3.3V linear regulator
Pinout Definition
Outline Dimensions
