3 Pcs for Raspberry Pi Pico Microcontroller Development Board,Dual-Core ARM Cortex M0+ Processor,133 MHz
Support Dropshipping and Wholesaling.
100% Original and Good Quality with Free After-sale Warranty.

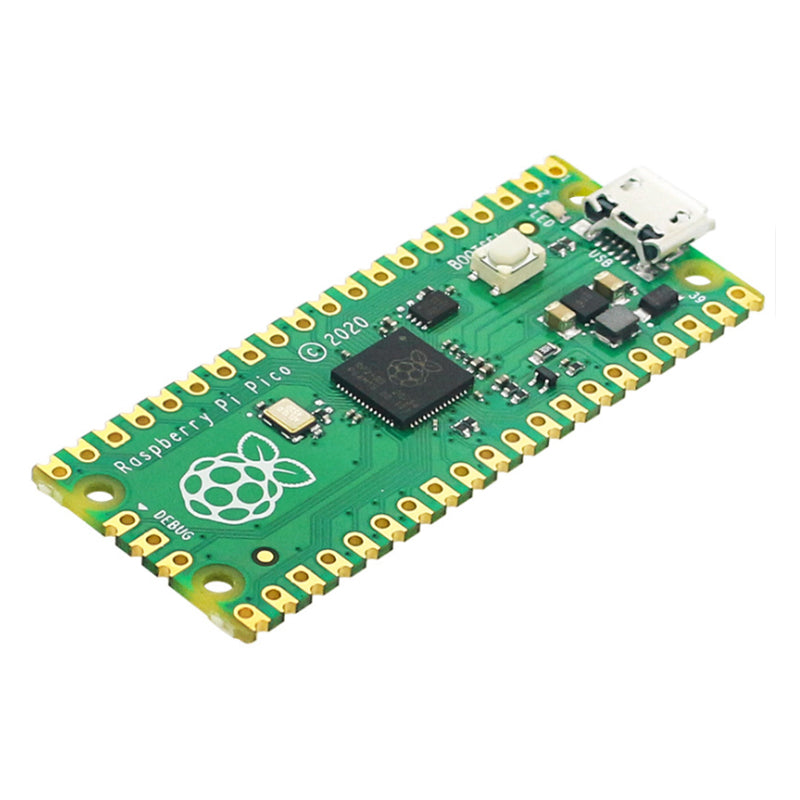

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.
In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK.
Pico has been designed to use either soldered 0.1inch pin-headers (it is one 0.1inch pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable'module', as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module.

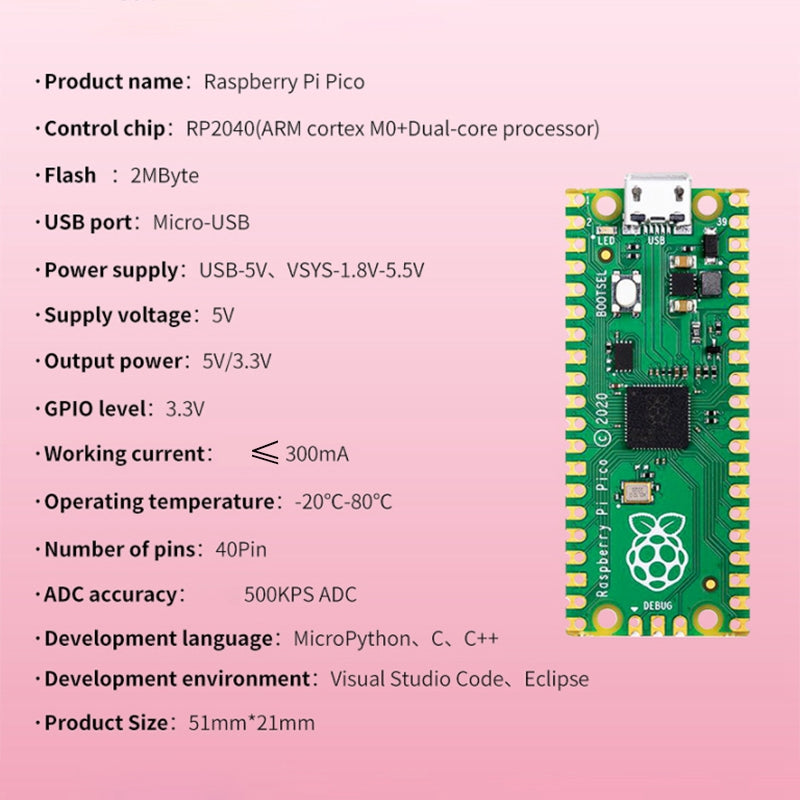

Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 Host and Device support
Low-power sleep and dormant modes
Comprehensive C/C++/Micropython SDK, software examples, and documentation
Drag & drop programming using mass storage over USB

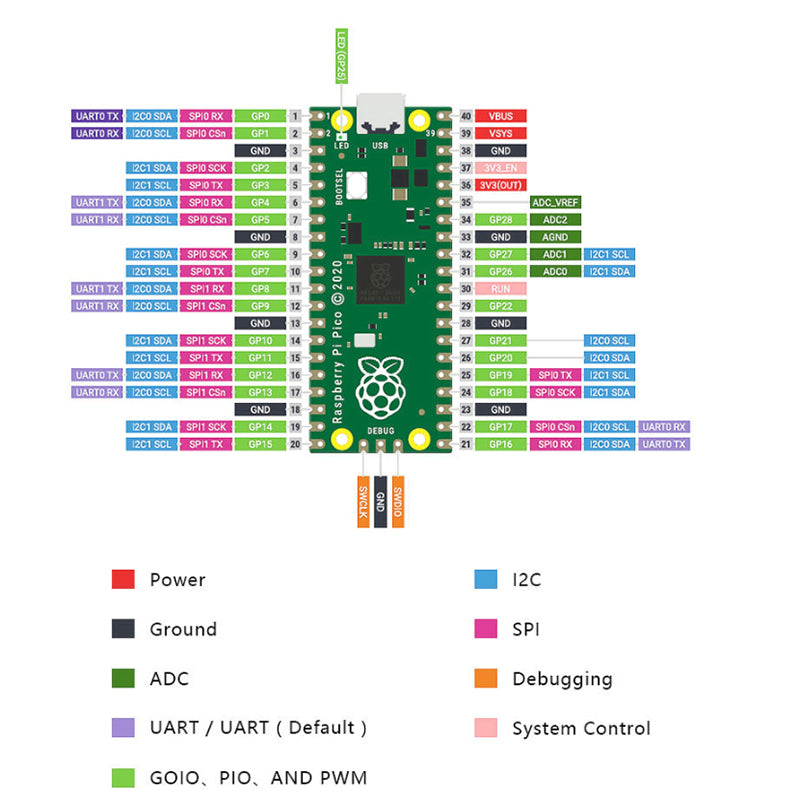

26 x multi-function GPIO pins
2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
Colour:green
Material:Metal + plastic

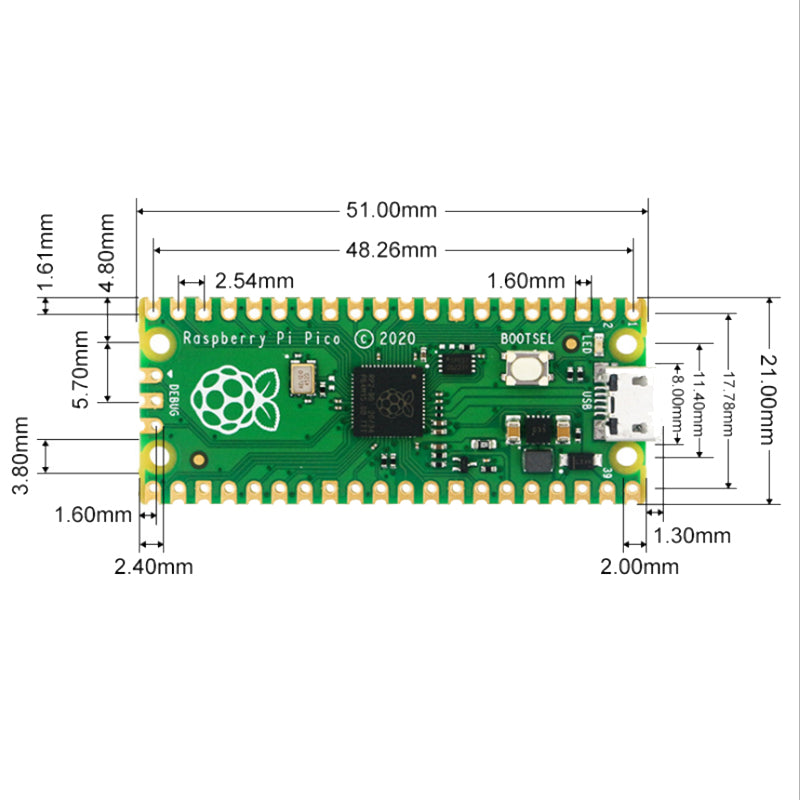

Size:5.1 x 2.1cm
Package Contents:
3 x Microcontroller Development Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
