36 Channel DMX512 Decoder RGB LED Strip Lights Controller Decoder Dimmer Driver DC9V-24V LED Strip controller
Products Performance:
"Input Power: DC9V～DC24V
Maximum load current: 2A/CH×36 "
Maximum power load: 864W (12V) 1728W (24V)
Output gray level: 256

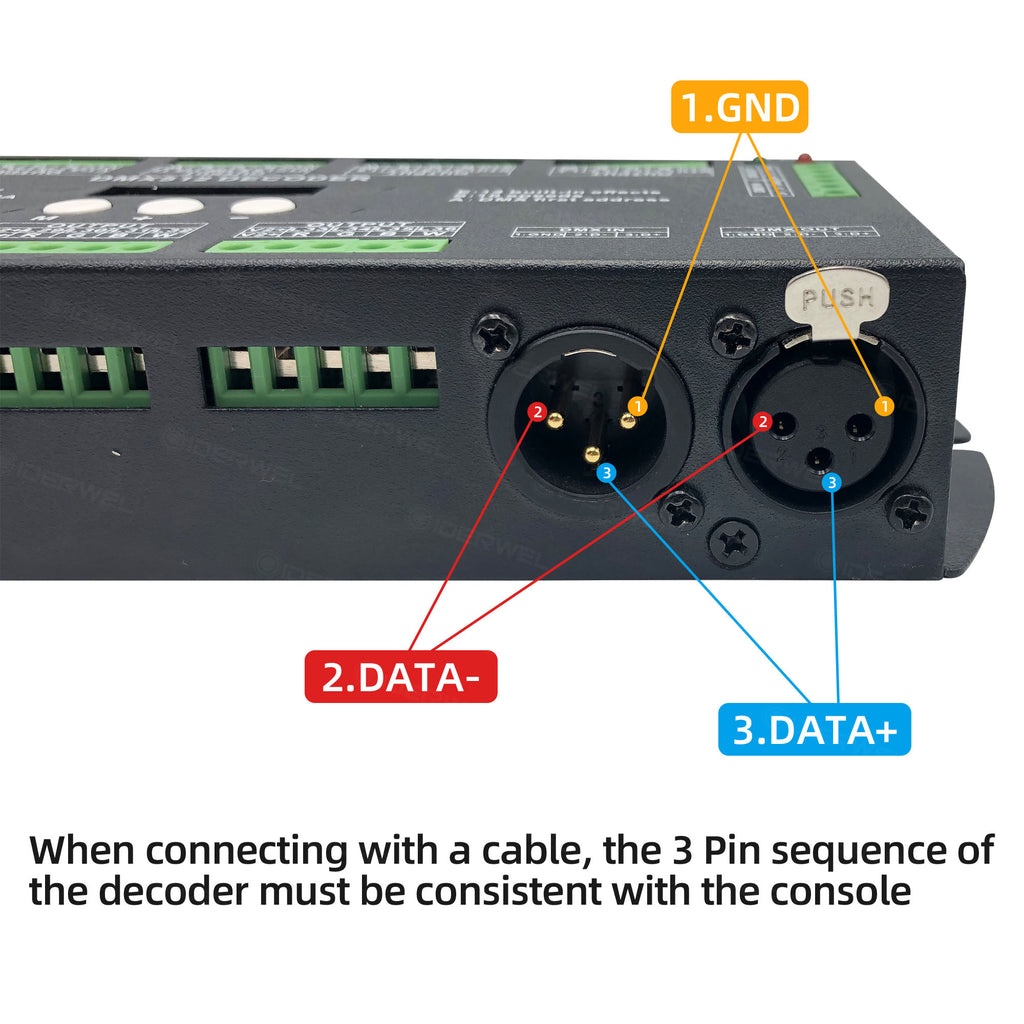

Input Signal: DMX512/1990
Output signal: 36 channels Constant PWM
Output DMX : 36 channels
Standard XLR-3 caron plug,terminal
Basic functions:

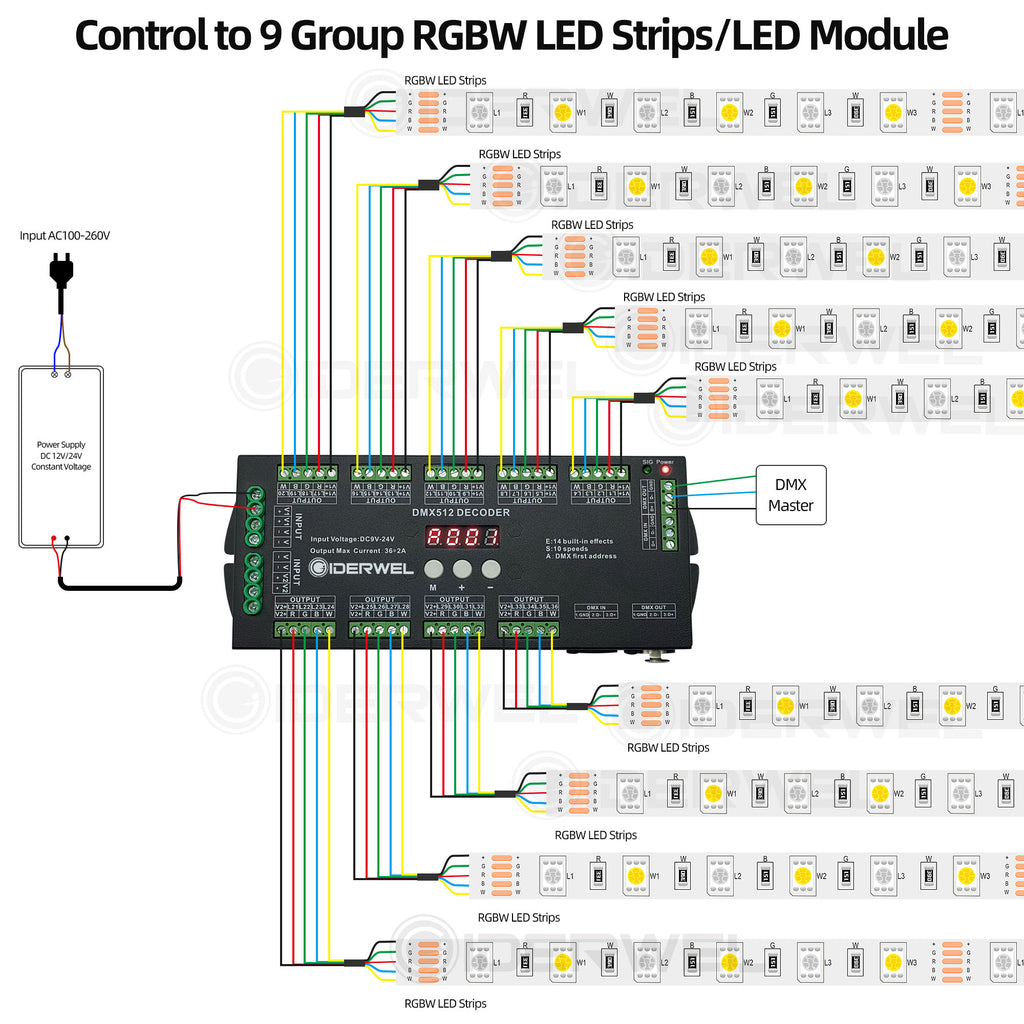

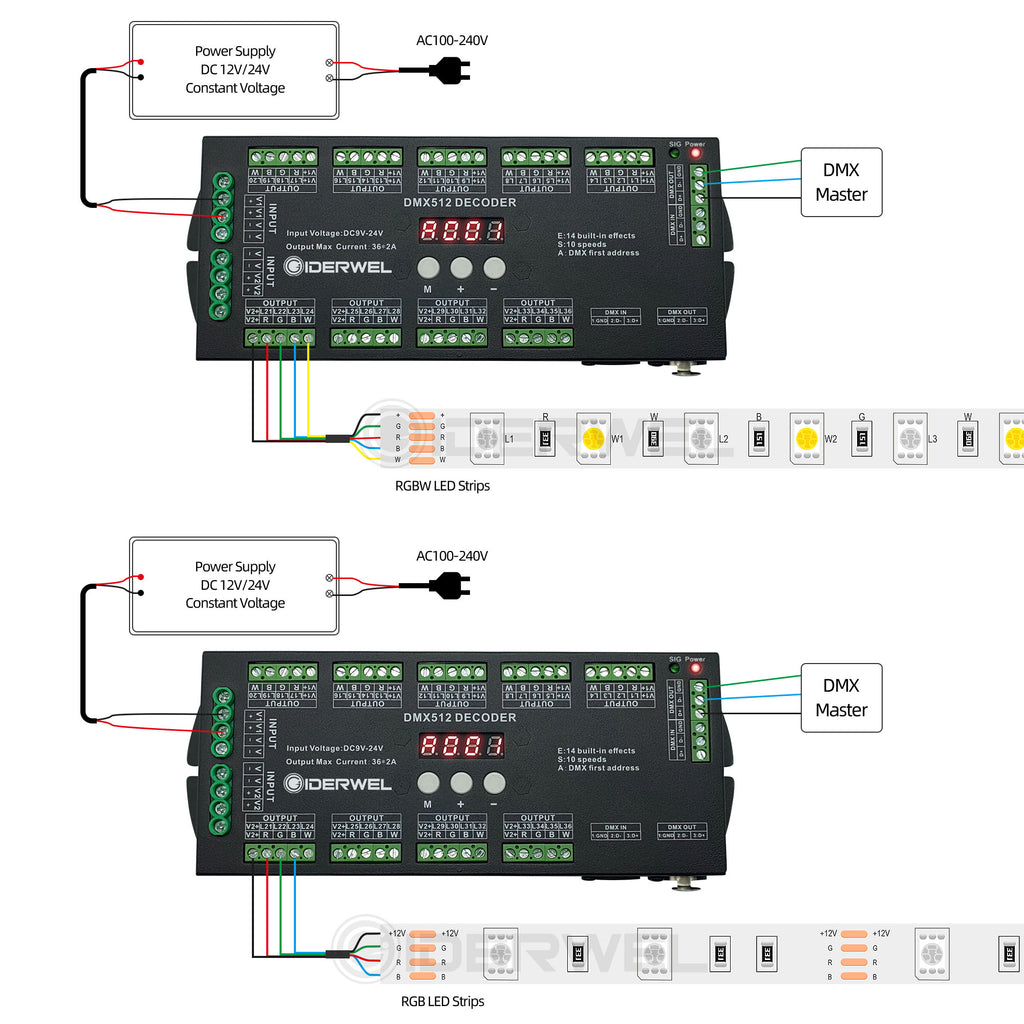

There are 36 output channels, can connect with single or RGB,RGBW lamp. 0-100% dimming output, each channel 256 gray levels International standard DMX512 input protocol, address code set by button. Wide voltage DC input DC9V ~ DC24V. Each occupied by 36 DMX address. The decoder comes with 14 kinds of test patterns, 10 levels for rate of change.
Decoder to use:

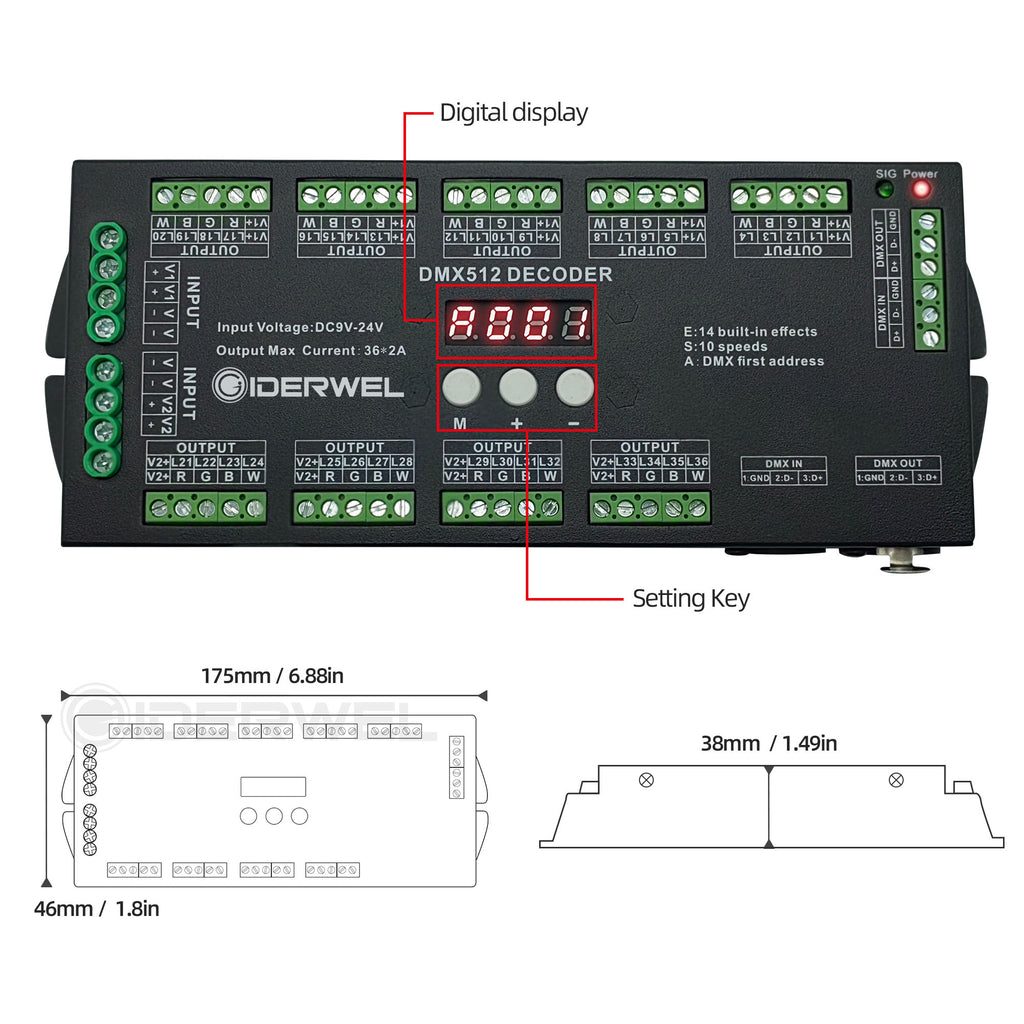

The first digital tube is the mode:
The first position of the digital tube is E, which is the built-in mode,14 built-in effects.
The first position of the digital tube is S, which is the built-in mode speed.10 speeds.
The first display of the digital tube shows that A is the DMX first address.

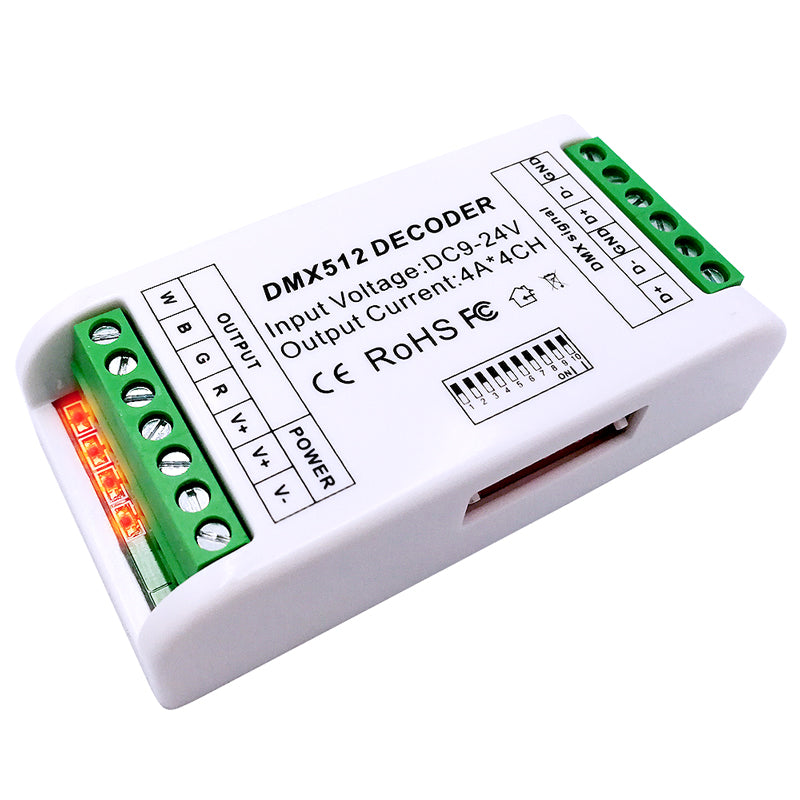

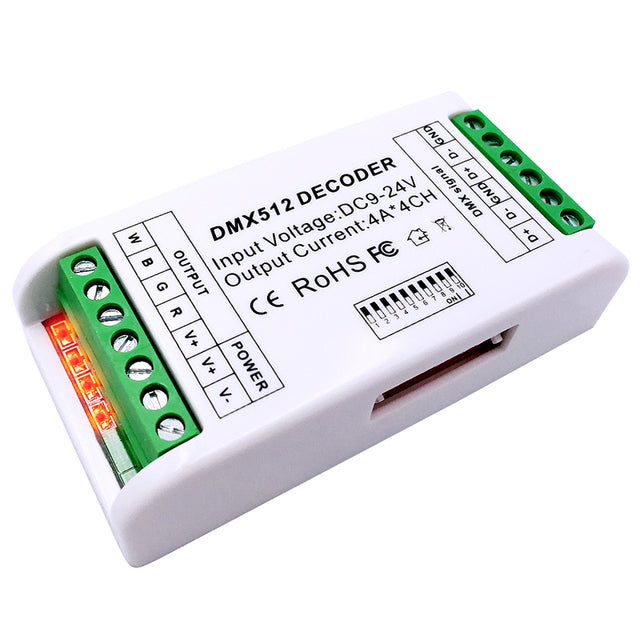

4 Channel DMX RGB decoder 4 Channel DMX512 Decoder DMX dimmer driver for led RGB strip Controller
4 Channel DMX RGBW decoder Product specification:
1. 4 channels output current:4CH*4A
2.Input power::DC12V-24V
3.Connecting mode: common anode
4.Output Power: 192W(12V),384W(24V)
5.10A terminals, safe and reliable
6.Cover Size:95*46*25mm
7. Packaging size:110*50*30mm
8.Weight:10 g
Basic functions:
There are 3 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC12V ~ DC24V;
Each occupied by 3 DMX address.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
