36V 350W 15A Motor Controller+Dashboard+Front/Rear Light Speed Controller for Xiaomi Scooter Electric Bicycle E-Bike
Ultra-quiet, motor torque ripple is minimized to achieve no noise, no vibration and comfortable
The controller has high conversion efficiency,which can effectively reduce controller temperature rise and extend battery life.
Fit For: Electric Motorcycle/E-bike/Scooter/Electric Bicycle/Balance Skateboard
Specification:

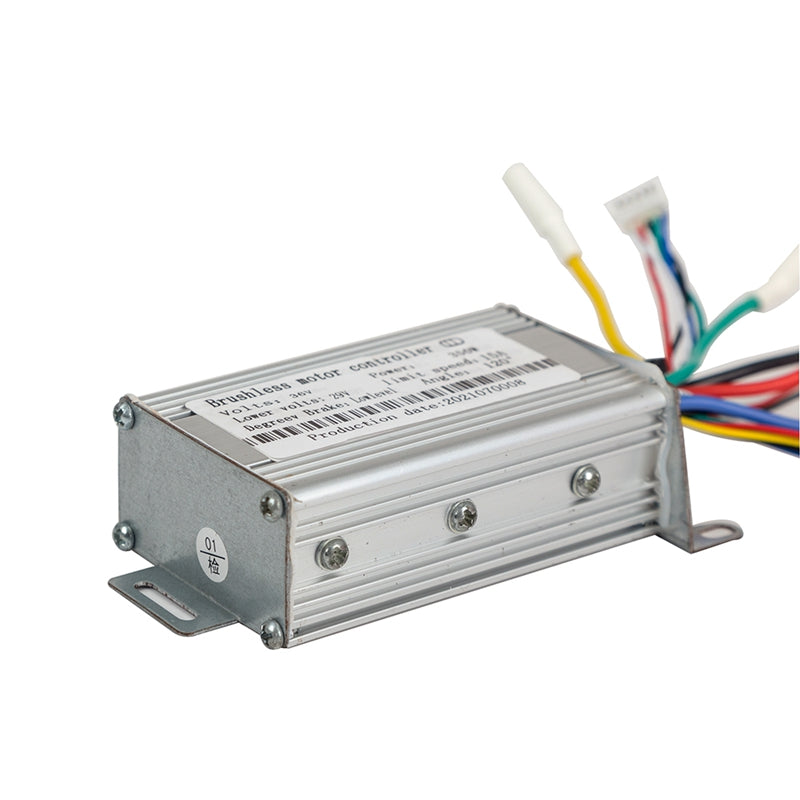

Type:DC Motor/Speed Controller
Voltage:DC 36V
Rated Power:350W
Undervoltage:30V
Current-Limiting:8.8A
Instruction:

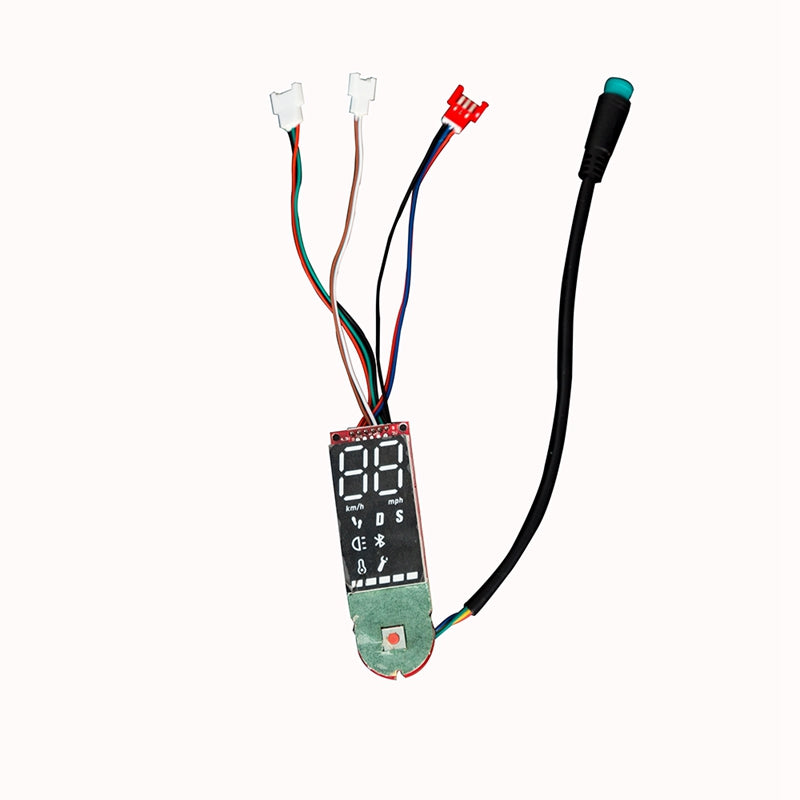

Battery display:
33v-36v The first light is long
36v-37v one or two lights long bright
37v-38.5v one or two lights long bright
38.5v or more, one, two, three, four lights
Low voltage alarm: The first light flashes when the battery is below 33V, and the buzzer sounds 6 times.
Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,the throttle must return to the initial position to release the low voltage and return to normal operation.
Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control after the cruise is fixed, the throttle can be released; press the brake or push the throttle again to release the cruise control and enter the manual mode.
Speed: The low speed is 15±2km/h; the high speed is 25km/h (maximum)
Note:Load has a certain effect on speed.
Automatic shutdown: Automatically shut down 10 minutes after no operation.
Colour:Black+silver
Material:Metal + plastic

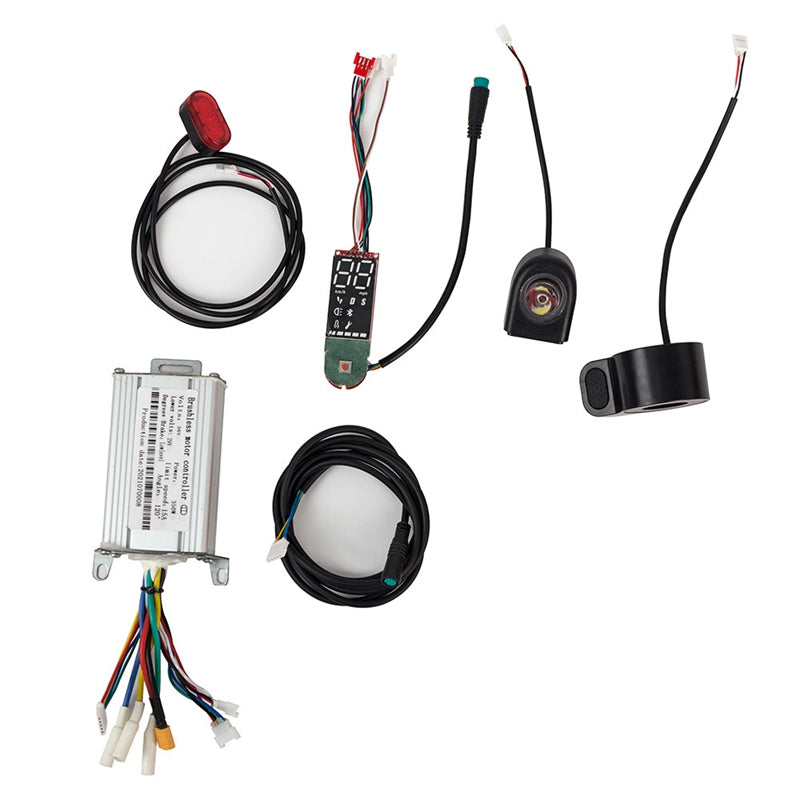

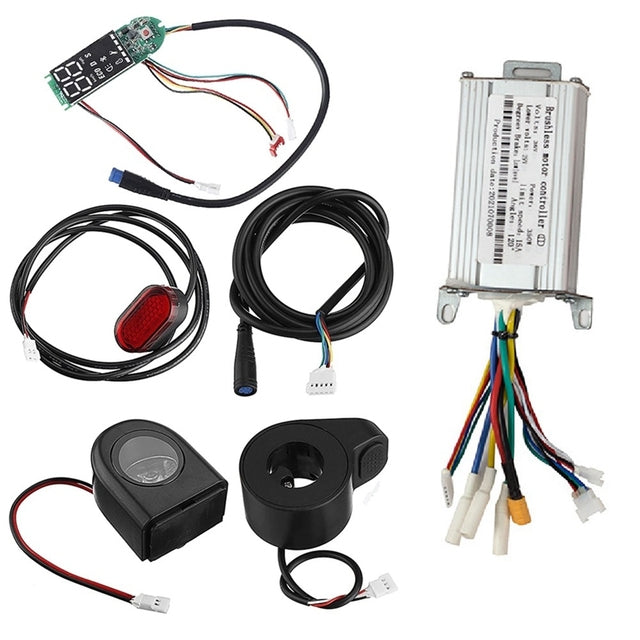

Package Contents:
1 * Controller
1 * Dashboard
1 * Accelerator
1 * Headlight
1 * Taillight
1 * connecting wire
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
