please note:

 Default with 3pcs 1310nm A side Fiber module and 3pcs 1550nmB side ,6pcs 1550nm B Side or 6pcs 1310nm A side can be provided as request.

  Other selection please leave us a message about your requirements.

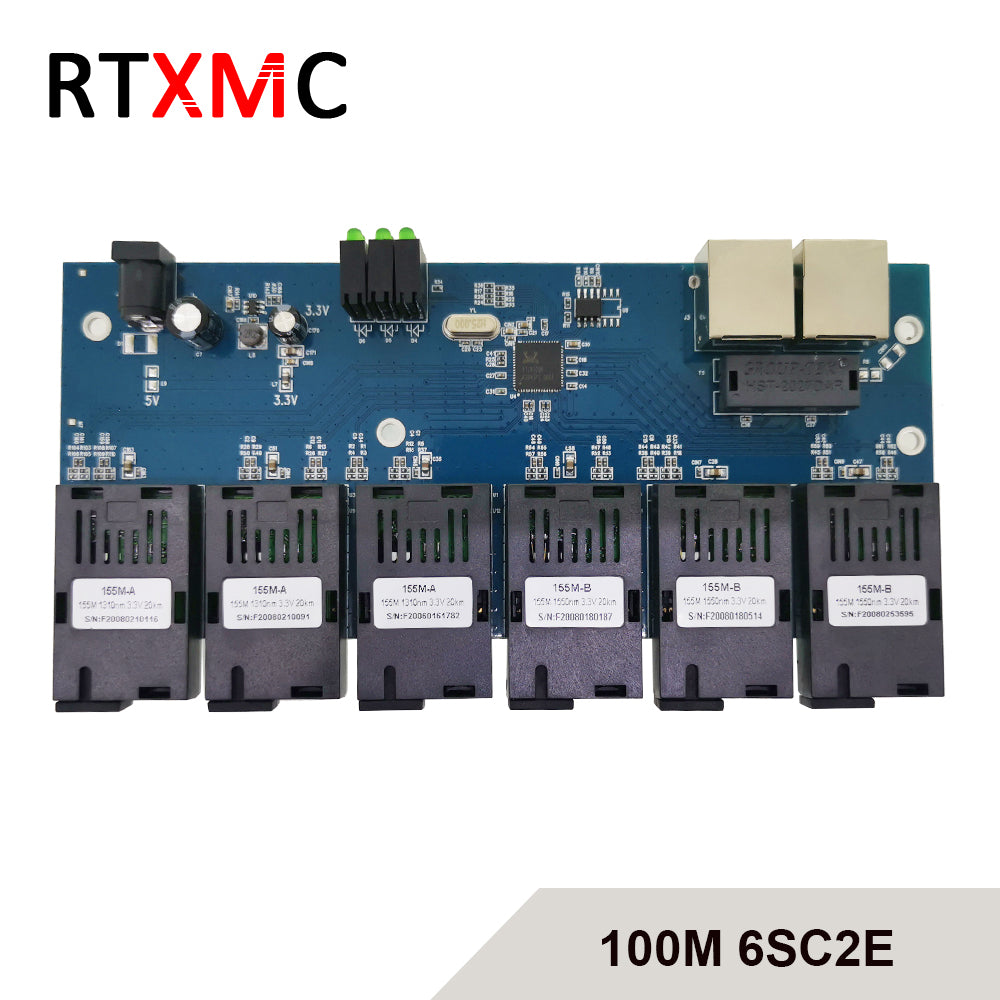

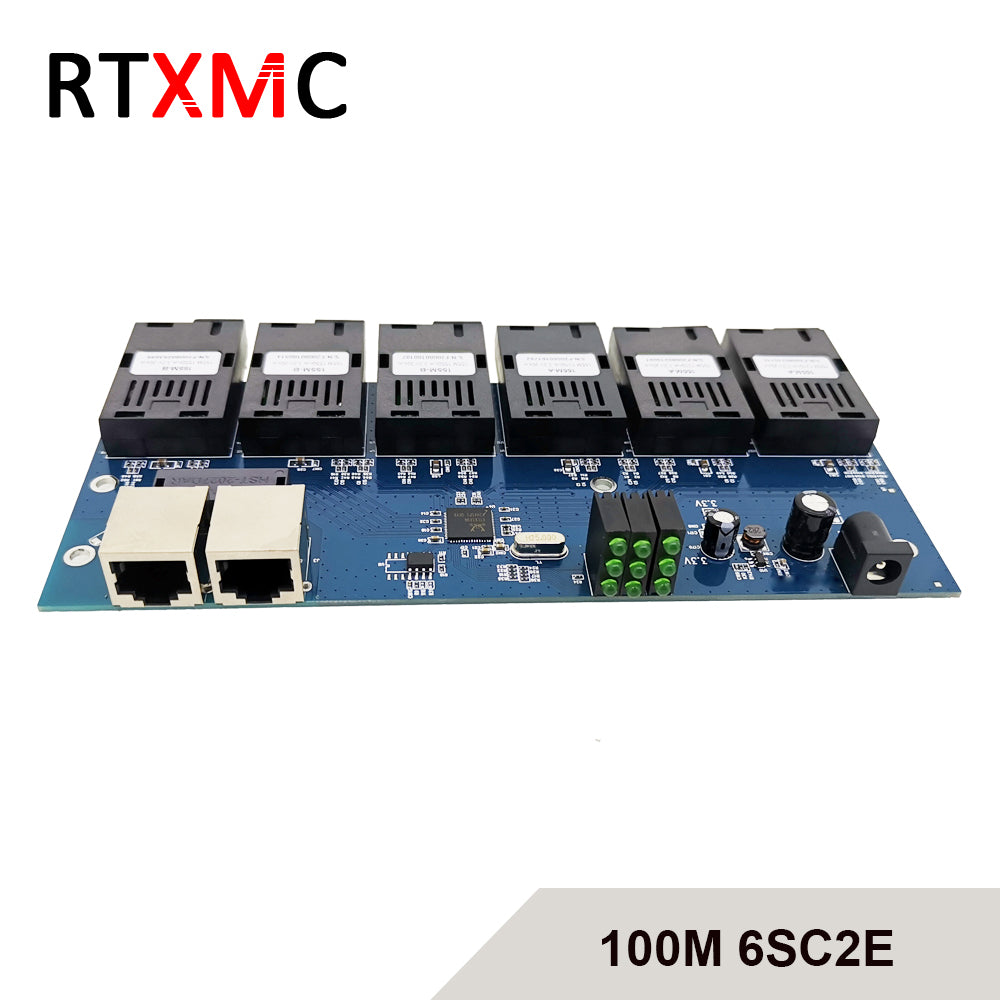

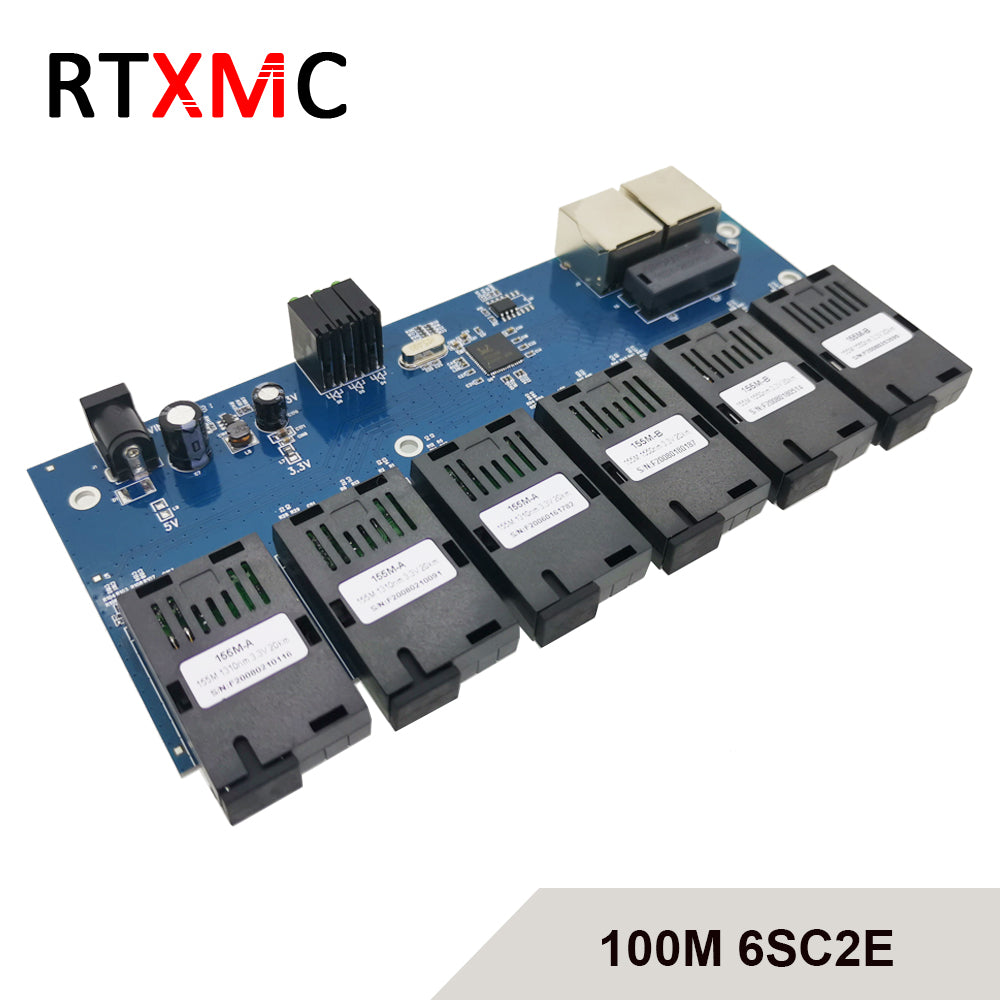

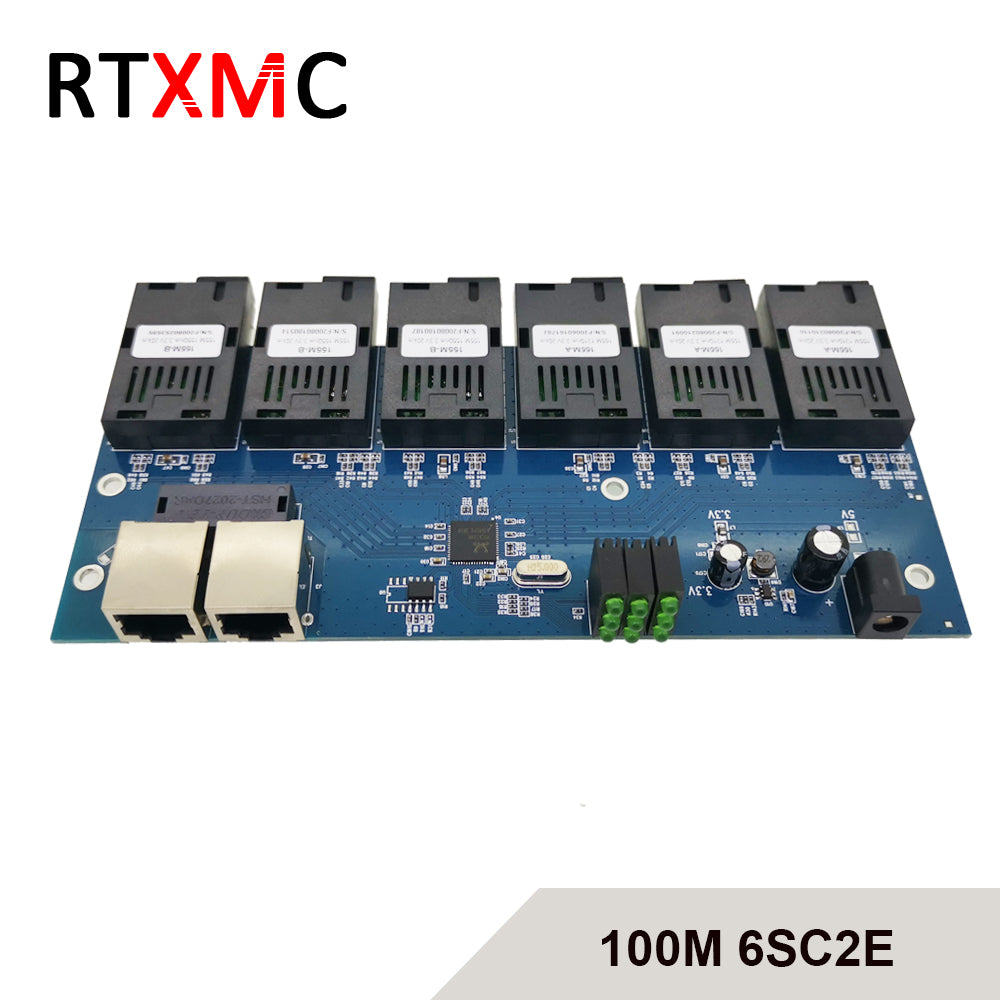

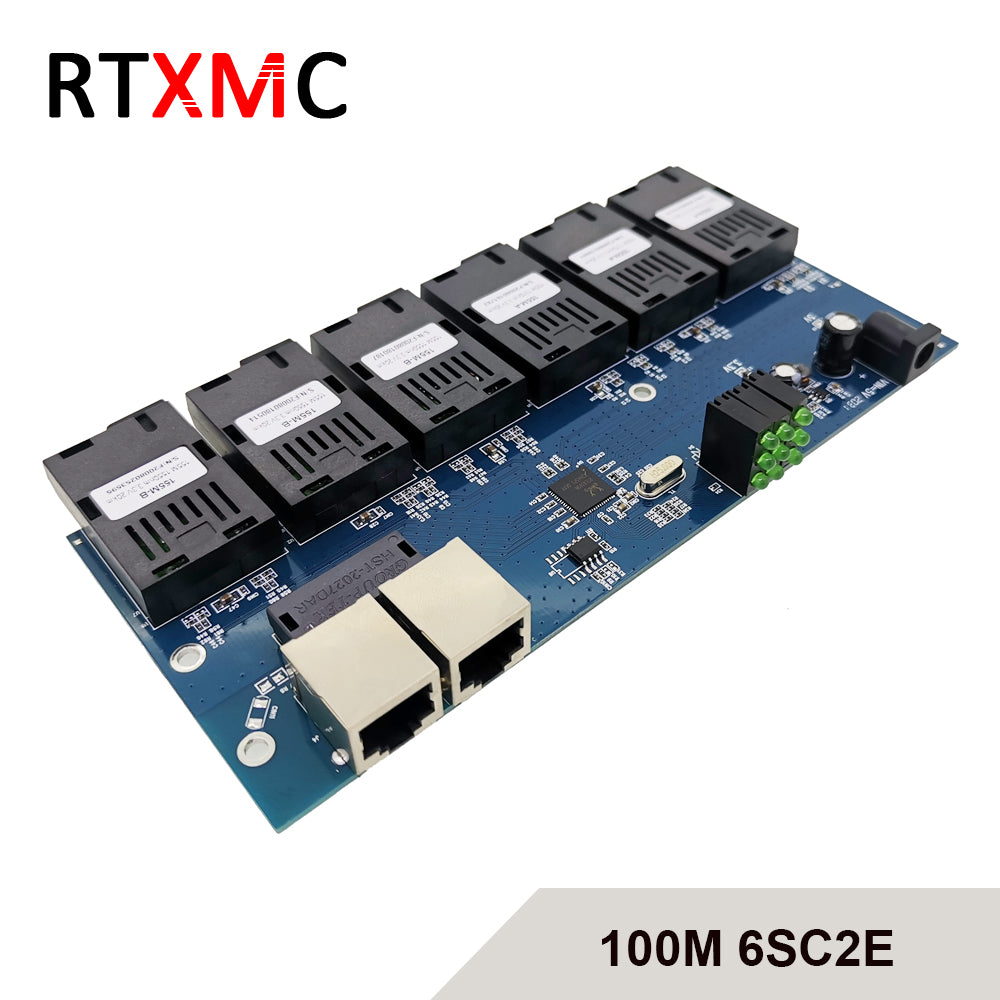

 Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch

 The Fast Ethernet Switch  is an Ethernet Fiber Switch which is specially designed for network monitoring. It

 has 2*10/100Mbps Ethernet ports and 6*155Mbps fiber ports. It adopts RTL8309N chips to ensure

 low power consumption and high stability. It extends the transmission distance of a network from

 100m to 120km via copper cables. It can extend the transmission distance; there are also many other

 advantages such as isolation protection, good data security, working stability and easy maintenance.

 Main Features:

 1.Support the switch between 10/100Base-TX and 100Base-FX

 2.6*155Mbps fullduplex fiber ports and 2*100M Ethernet ports with auto-negotiation function

 3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

 4.Each port has the complete LED Indicator light

 5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

 6.Support IEEE802.1d Spanning Tree

 7.Support high performance QoS function on each port

 8.Support 5V voltage input

 9.Support IEEE 802.3x flow control and back pressure control

 10.Require no configuration and will instantly operate as soon as you power it up

 11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

            Specifications

             Standards

       IEEE802.3 10Base-T

  IEEE802.3u 100Base-TX/FX

  IEEE802.3x Flow control

  IEEE802.1p QoS

  IEEE802.1d Spanning Tree

 Ethernet Port

       Connector: RJ45

  Data Rate: 10/100M

  Distance: 100m

  UTP Type: UTP-5E or higher level

             Fiber Port

         Connector: SC

    Data Rate: 155bps

    Optical Wavelength: 850nm/1310nm/1490nm/1550nm

    Distance: 25km

             Performance

       Processing Type: Store and Forward

  MAC Table Size: 8K

  Buffer Space: 1Mbit

  Jumbo Packet: 1518 bytes

  Back bandwidth: 5.6G

  Time Delay: ＜150μs

             Power

       Power type: external power supply

  Input Voltage: AC100V～240V 50/60Hz

  Connector: DC Socket

  Working Voltage: 5V

  Power Consumption: 1.5W～2.5W

             Transmissin Distance

         Twisted Pair: 100m (CAT5e, CAT6 cables)

     Single-mode: 40km

             MTBF

               100, 000 hours

             Warranty

               1 year

             Environment

       Storage Temperature: -40～70℃

  Operating Temperature: -10～55℃

  Relative Humidity: 5-90% ( no condensation)

             Mechanical Structures

       Dimension: 215×107×26mm

  Weight: 0.6KG

             OEM&ODM

       Supportive

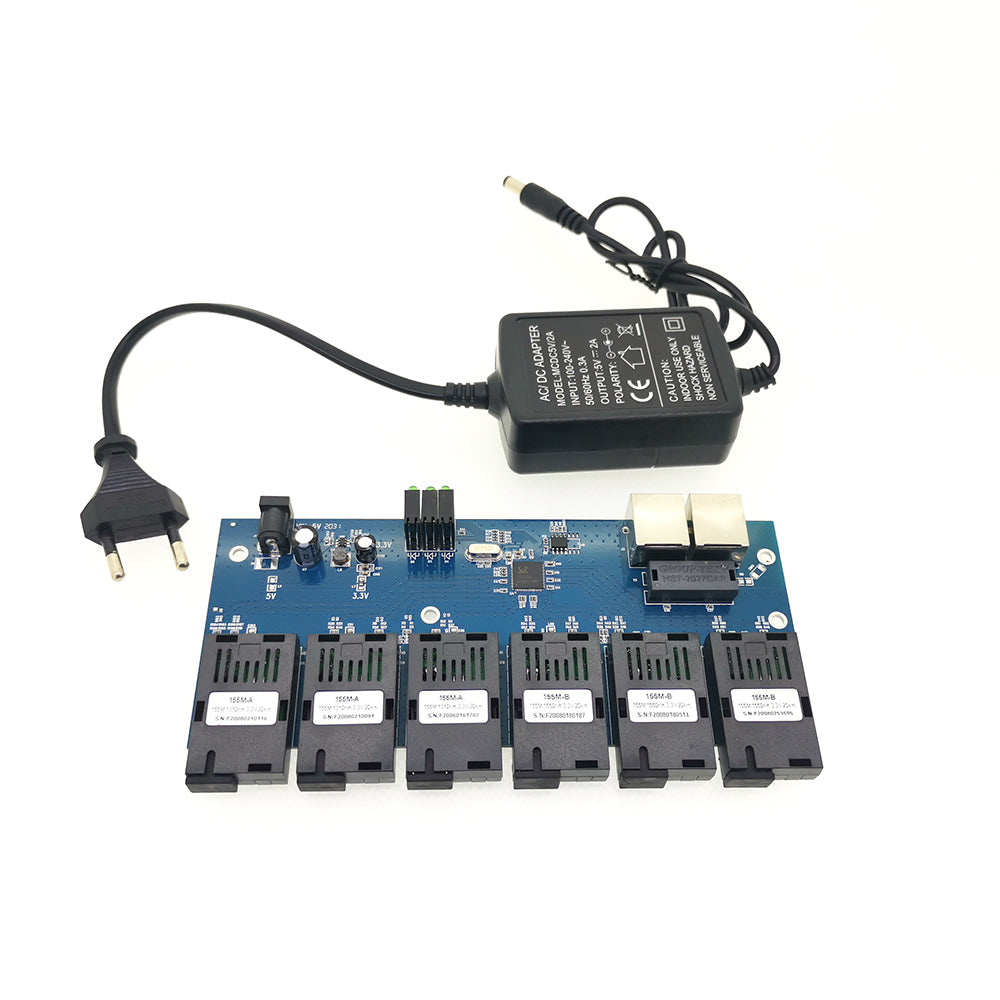

  Package includes:

  1.100M 6F2E PCBA *3PCS

  2.Power Adapter *3pcs (please tell us your power adapter,or we'll send default adapeter   )
