Features:

100% brand new and high quality.

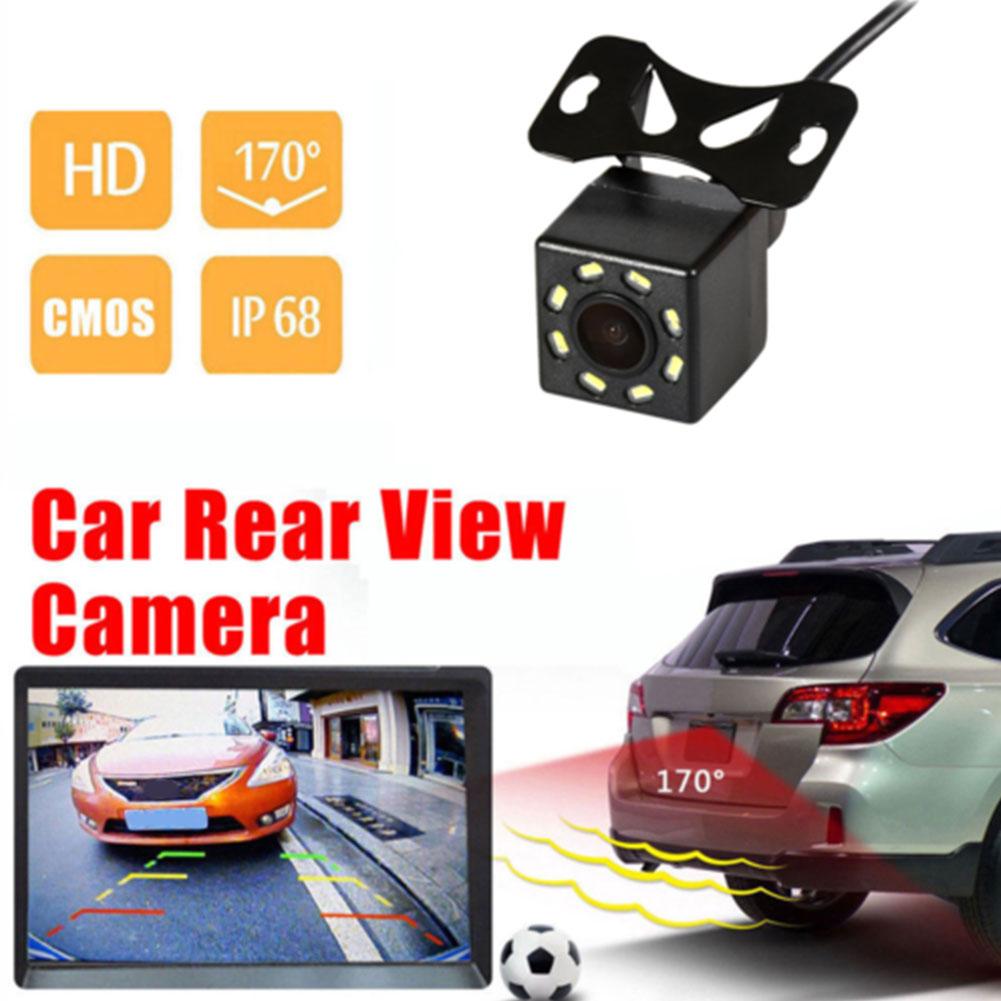

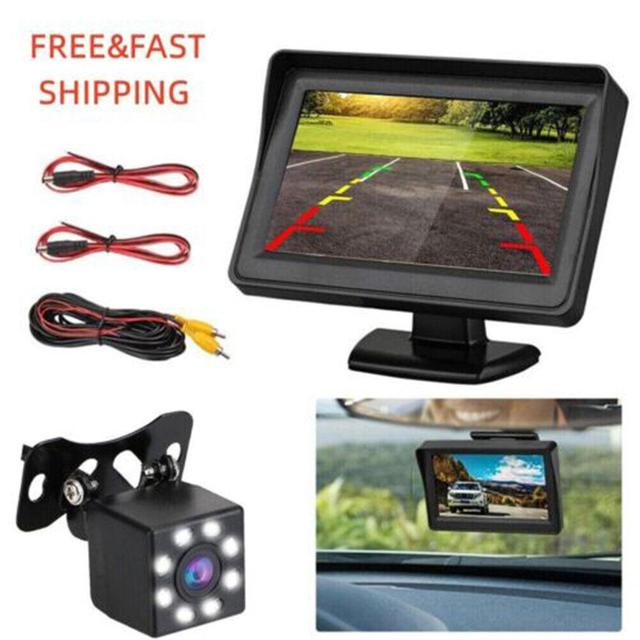

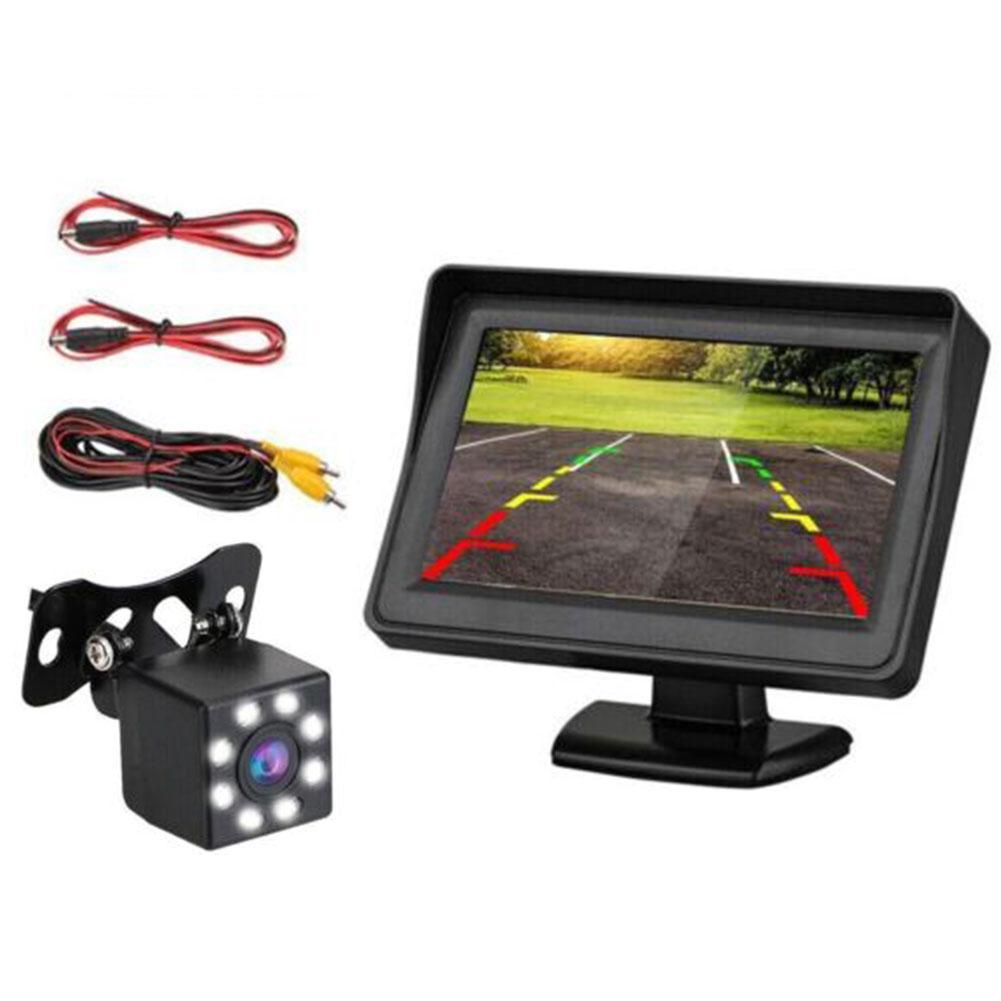

Backup Camera and Monitor Kit For Car, Universal Waterproof Rear-view 8 LED Night Vision Camera + 4.3 inch TFT LCD Bracket Rear View Monitor(12V only).

Adopts 4.3 inch 800x480 TFT-LCD display screen, PAL and NTSC system. This monitor is designed to defy glare brought about by the sun and city lights.

With night vision LED lights. Auto Backup System Vehicle Backup Cameras with AUTO-Lighting LED Lights Make Your Night Driving Much Safety.

Rear view Backup Parking Reverse Assist Camera: For Parking, Reversing, Depth Perception - Night Vision Illumination IR LED Lights for Illumination - Color Picture Output - Auto Image Adjustment.

PARKING ASSISTANCE: Hit the reverse gear and the monitor will automatically show what's behind you. It will also display virtual lines that help you estimate the distance from your bumper to another point. With this mirror, parking can only be quick and easy!

No Delay and No Interference Rear Image.

170 degree wide viewing angle.

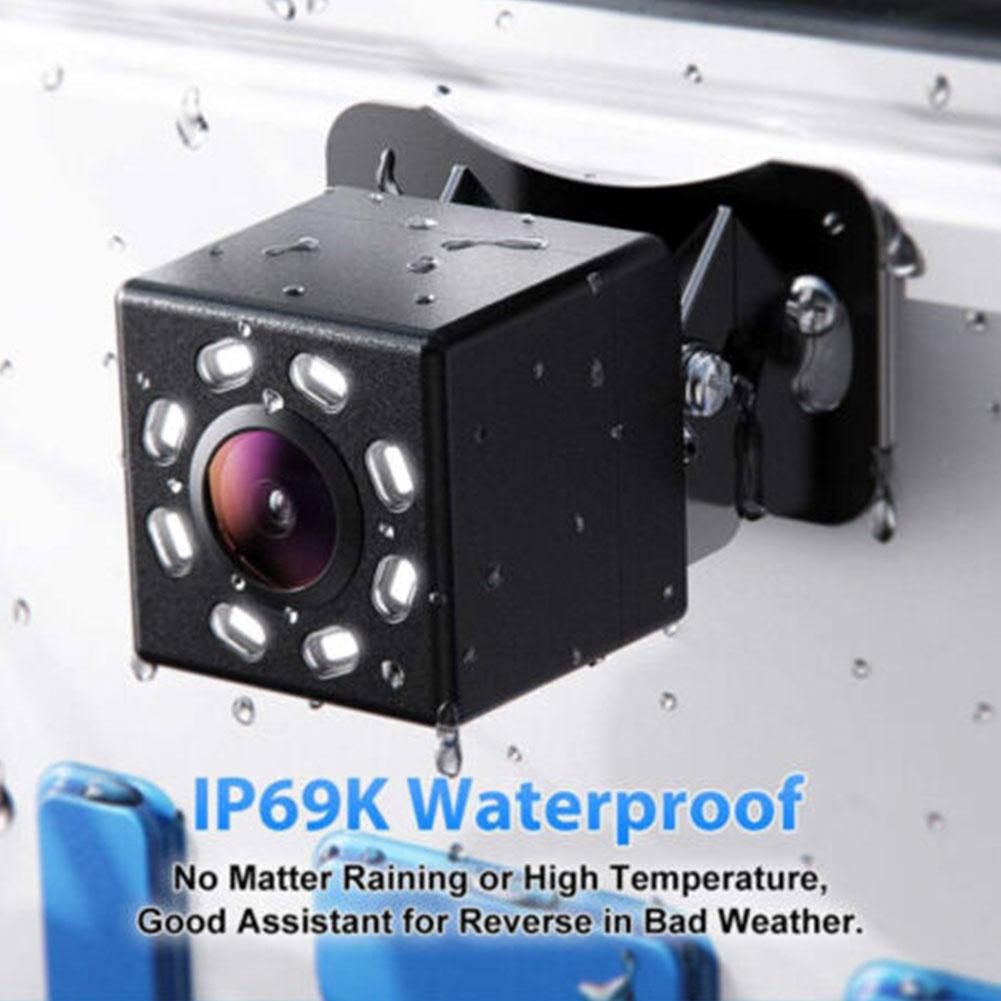

IP68 waterproof function, can used in outdoor environment.

 How to Use:

1. Attach camera to license plate.

2. Get power to camera: Connect Red wire of the camera power wire to reverse light(+) and black wire to any metal ground screw or reverse light(-).

3. Attach red wire of video cable to same power source(reverse light+) as in step 2.

4. Plug video cable into camera and route it to front of car and up onto dash.

5. Clip the monitor on the original mirror, plug video cable into white AV2 video connector(support reversing priority), plug power cable into it.

6. Get power to monitor: Attach red monitor power wire to red wire on video cable, attach black monitor power wire to ground.

7. Test system.

 Product Specification:

4.3" Mirror Monitor Technical Parameters:

Display Size: 4.3 inch

Resolution: 800x480

Screen Resolution: 800x480

Aspect ratio: 16:9

Video: AV1/ AV2

System: PAL/AUTO/NTSC

Power Consumption: 2W MAX

Backup Camera Technical Parameters:

Image Device: 1/3 Inch Color CMOS

Effective Pixels: 628 X 586 / 510 x 496

Video Output: RCA connector, 1.0vp-p,750hm

TV System: NTSC

Lens:170 Degree

Power Supply: DC 12V

Waterproof Grade: IP68

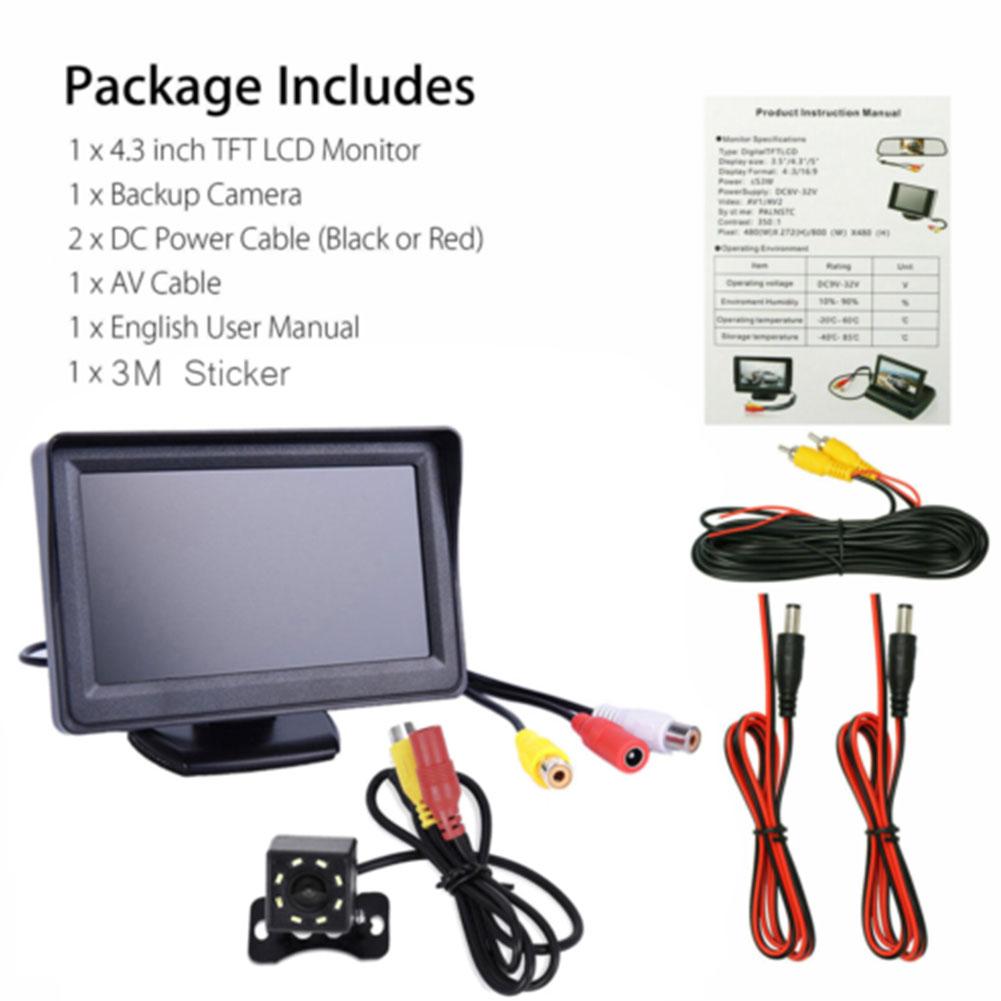

 Package Includes:

1 x 4.3 inch TFT LCD Monitor

1 x Backup Camera

2 x DC Power Cable (Black or Red)

1 x AV Cable

1 x English User Manual
