433MHz DC 3.6V-12V 1CH RF Lamp Controller Micro Receiver Mini Module Controller Wireless Remote Control Switch Power Transmitter 40%off
Application environment:
Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Features:
Wireless control LED lamp string, Christmas tree light string, light control switch
Long range working voltage
Ultra low power,High sensitive response.
Operating Voltage: DC 3.6V-12V
Encoding : EV1527 Learning code
Specification of receiver:
Working voltage: DC 3.6V-12V
Maximum current: </=1A
Standby current: 3.6mA-5 mA
Working frequency: 433MHz
RF working mode:superheterodyne
Reception sensitivity:97dBm

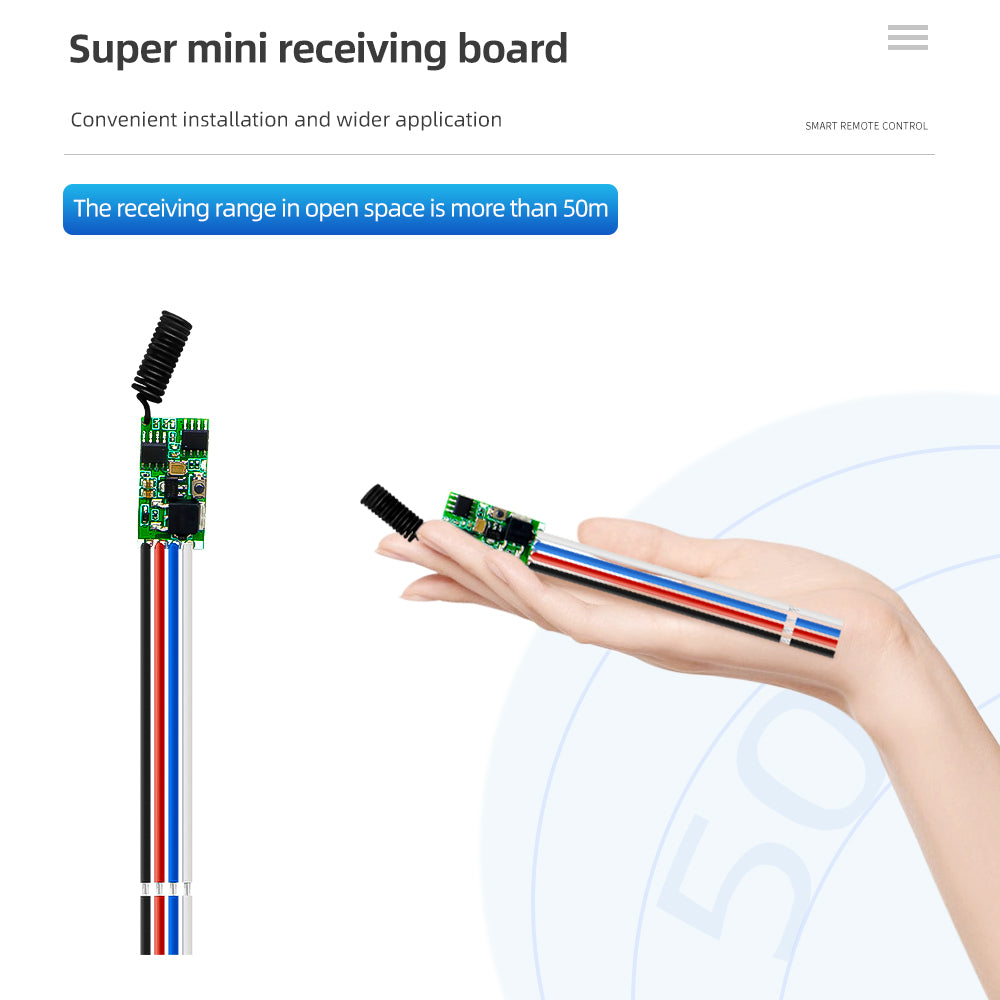

Transmitting distance :>50m(open space)

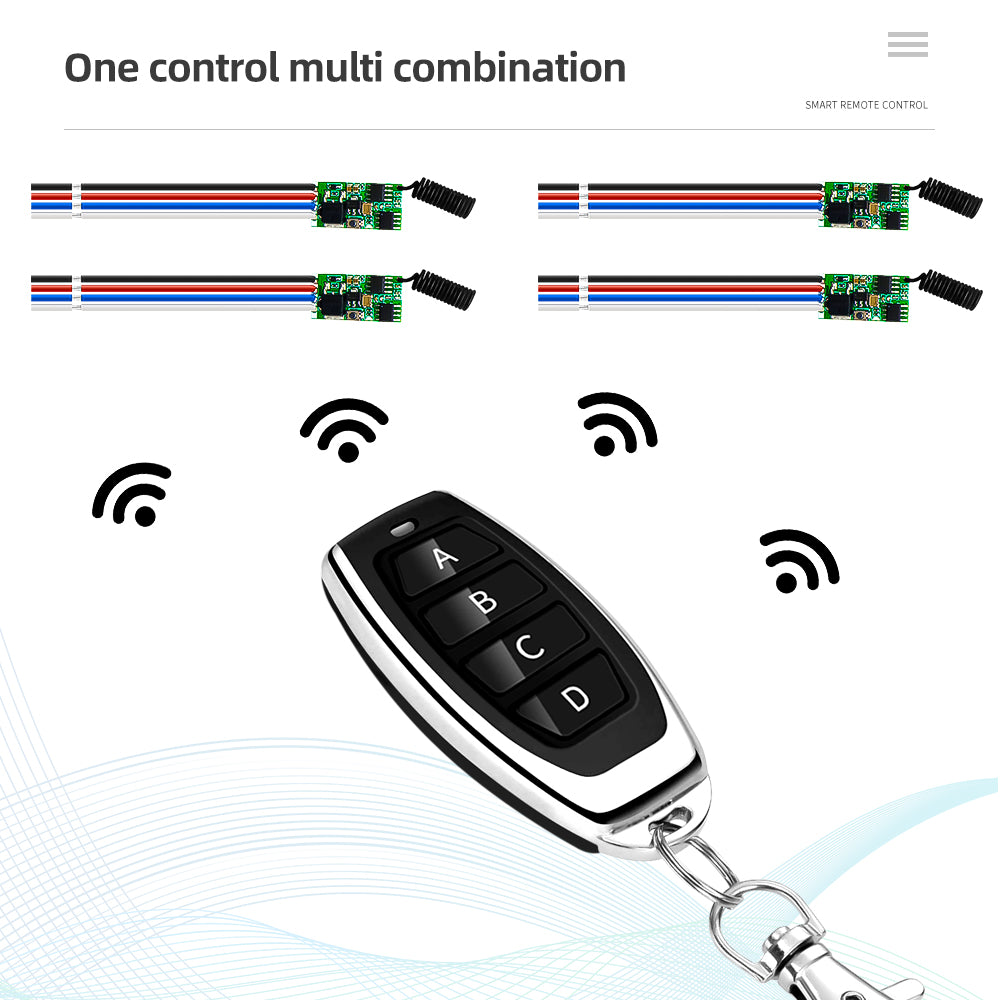

Remote storage:20 pcs
Support remote type:527 learning code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching ,Time delay (5s,10s,15s,20s),automatic energize when power on
Wiring type:fixed terminal

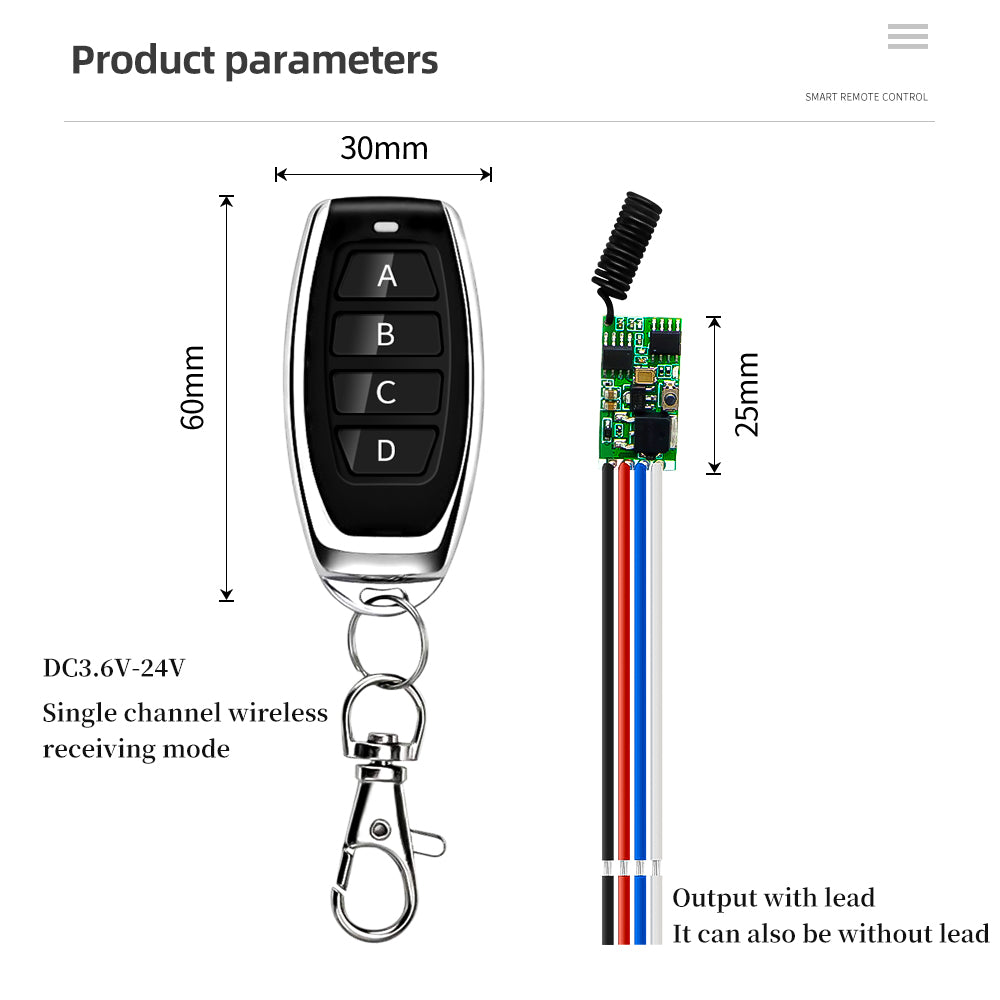

Size: 25.5 mm x 13mm x 5mm (length × width × high)
Learning style: Learning Button
Working temperature: -20 degrees 80 degrees.

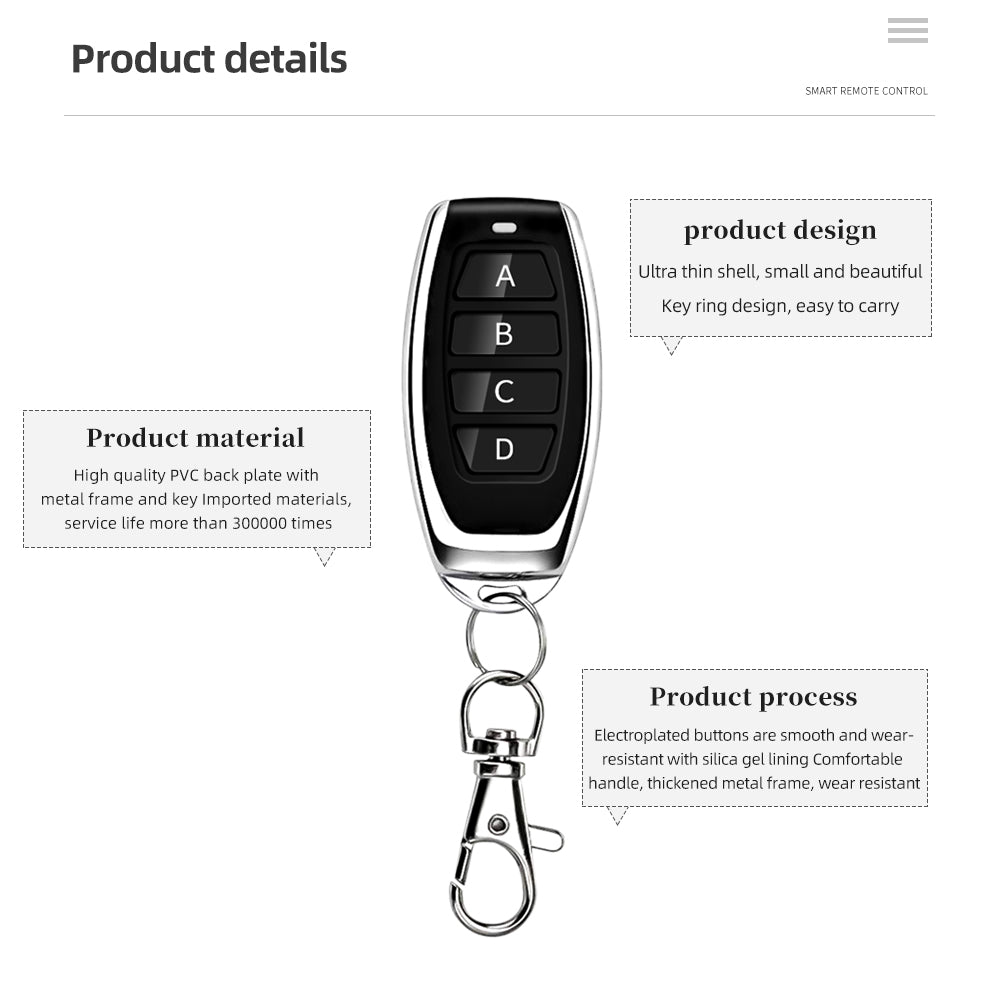

Specifications Of The Remote Control:
Operating frequency: 433.92MHz
Power by 3V Coin Cell Button Battery (not included ),
Material: PVC.
Button: 4 buttons
Size: 55mm x 30mm
Operating voltage: 3V
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
