4G Handheld PDA Android 9.0 POS Terminal Touch Screen 2D Barcode Scanner Wireless Wifi Bluetooth GPS Barcode Reader (RT810S)

  Note: This device is with NFC reader .If you need this function could place order by the link as below .In this way will help you .

  https://www.aliexpress.com/item/4001086456950.html?

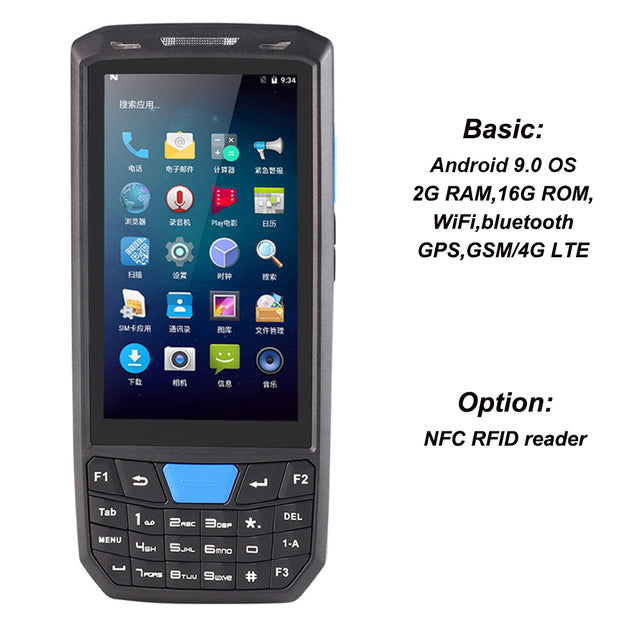

  Standard Configuration:

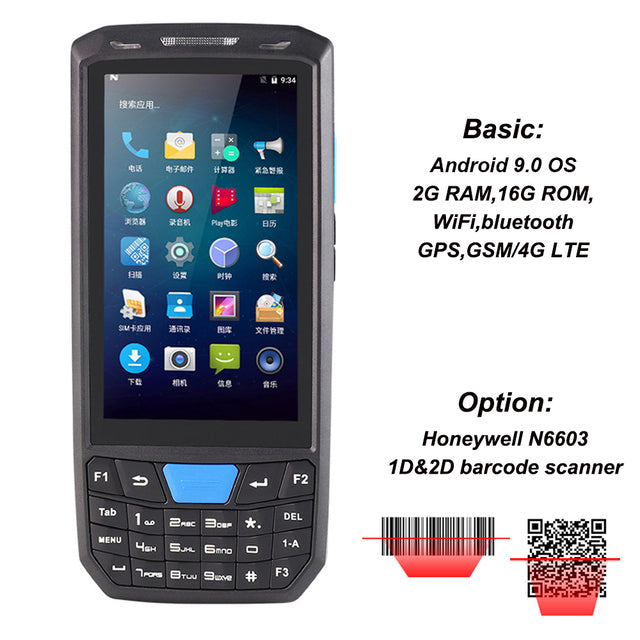

  Android 9.0+4.5'' Screen +2G RAM+16GROM+Wifi+Bluetooth4.0+GSM/4G LTE+GPS+Camera+Free SDK

  Option:Newland EM1300 1D CCD barcode scanner

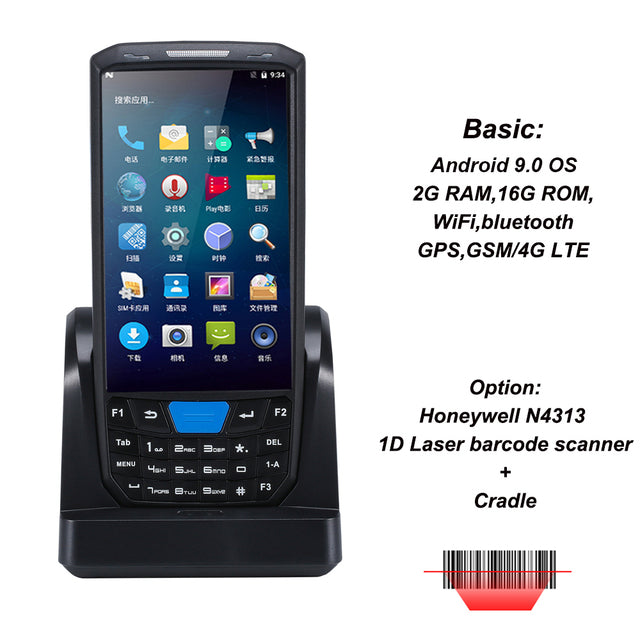

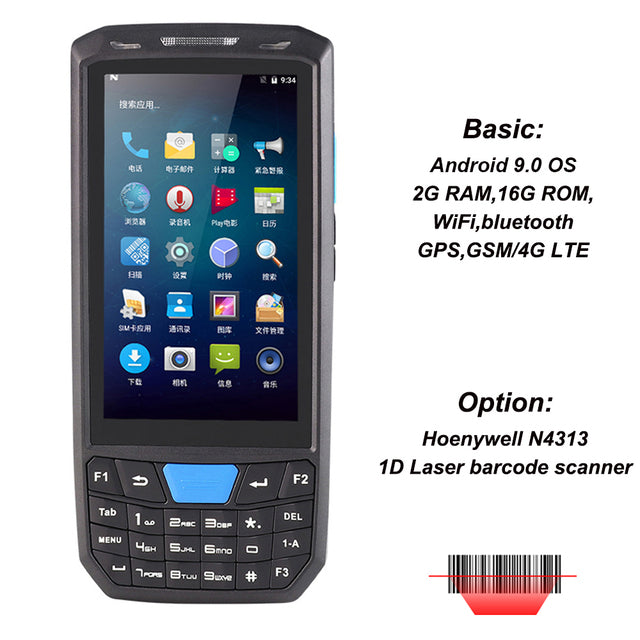

  Honeywell N4313 1D Laser barcode scanner

  Newland 1D&2D scanner

  Honeywell N6603 1D2D scannerIf you need the optional function please leave message or contact us.Skype: xcl.selinna and whatsapp:+86-13612990203)

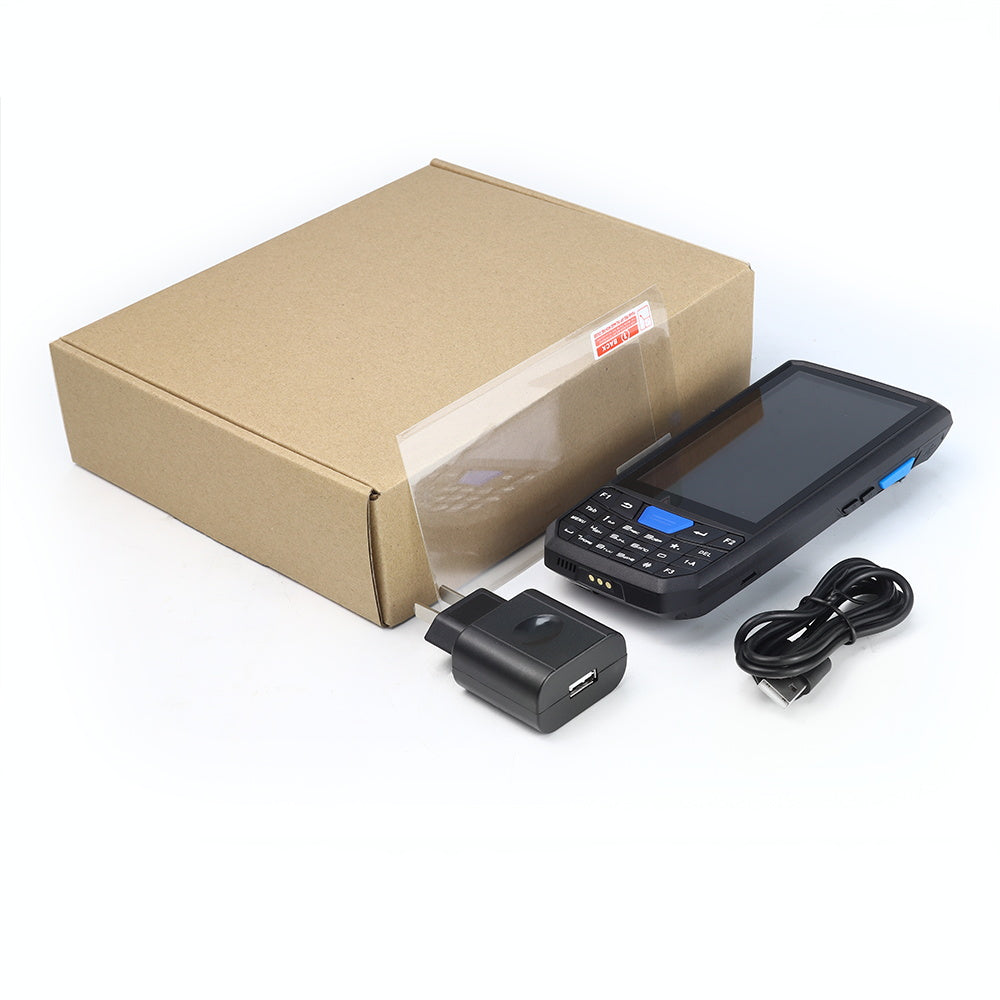

  Standard Accessories:Barcode reader-1pcs;usb data cable-1pcs:charger-1pcs;battery-1pcs;hand strap-1pcs; Protectivefilm-1pcs;User Manual English Version-1pcs

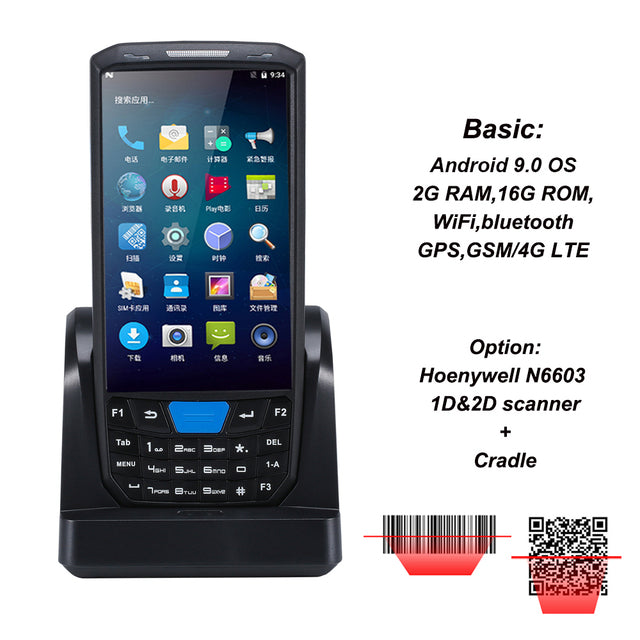

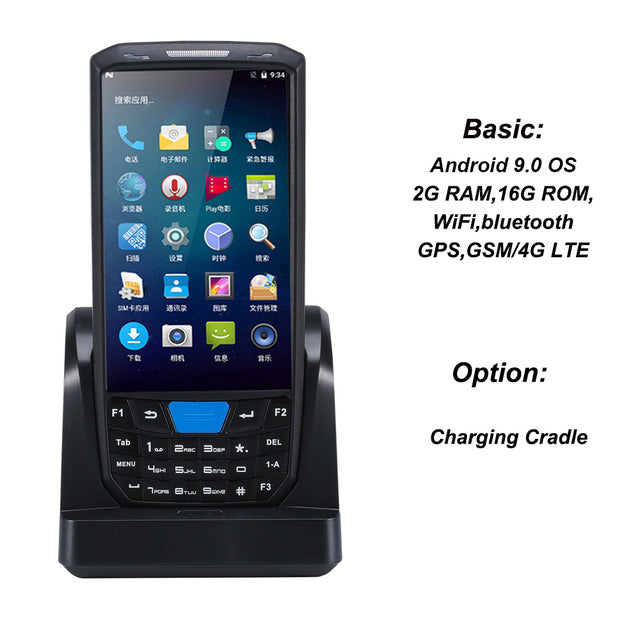

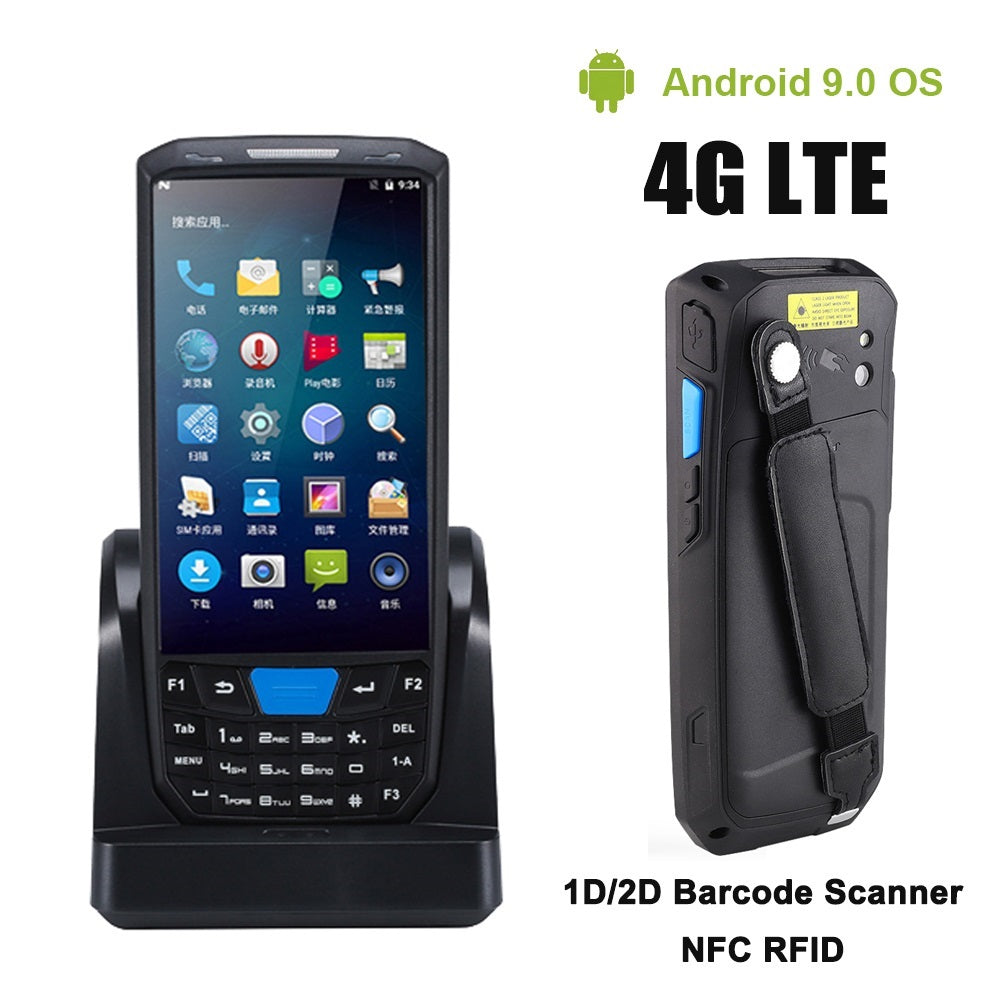

  Optional:Extra Charge Cradle, Carry Case

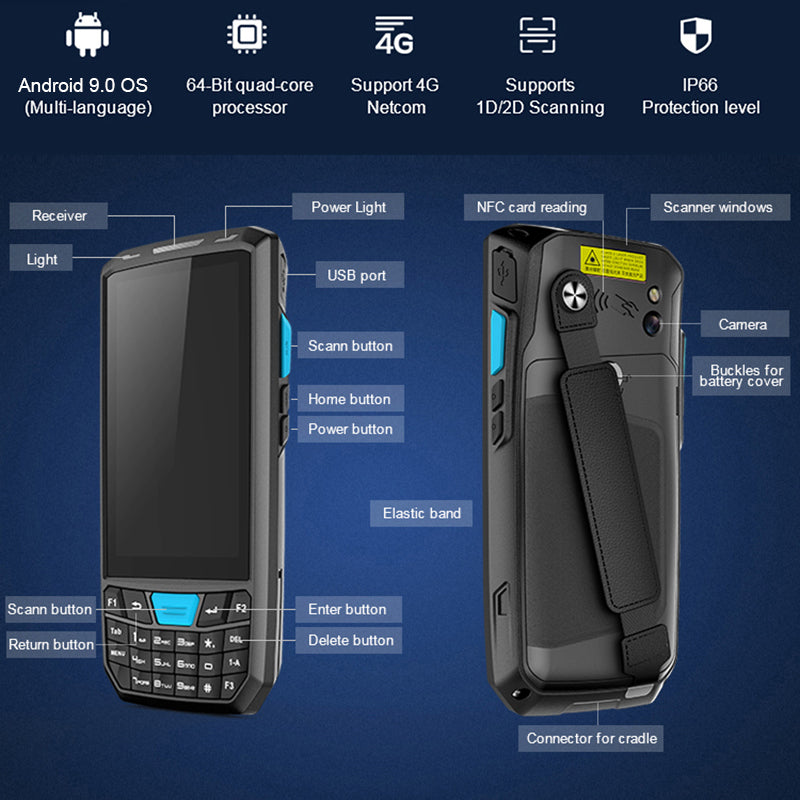

  Standard Features:

  Android 9.0 OS/ 4G FDD-LTE/WCDMA/GSM, WIFI/ Bluetooth/ GPS/ 8MP camera ,Google player store;

  2G RAM + 16 ROM

  Compact and Portable Ergonomic Design with wrist strap;

  Safedroid OS (Android 9.0) Highly optimized Android operating system;

  8.0M mega pixel camera;

  High capacity 4200mA large capacity battery for critical requirements;

  Pogo Pin interface for convenient charging with optional charge cradle;

  Industrial rugged design, water-proof and protection grade(IP66);

  Multiple languages

  Support Google Play Store

  Compact and Portable Ergonomic Design with wrist strap

  2D Scan Image:

  Main Parameters:

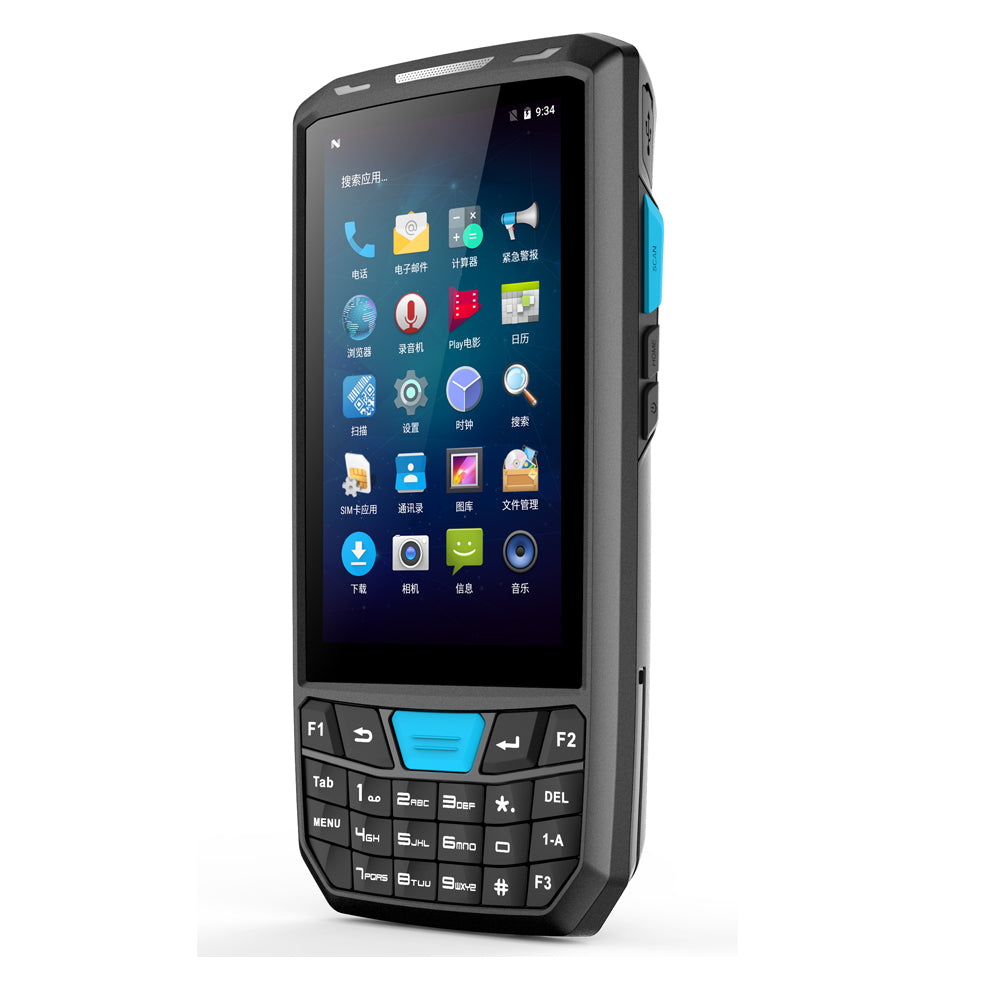

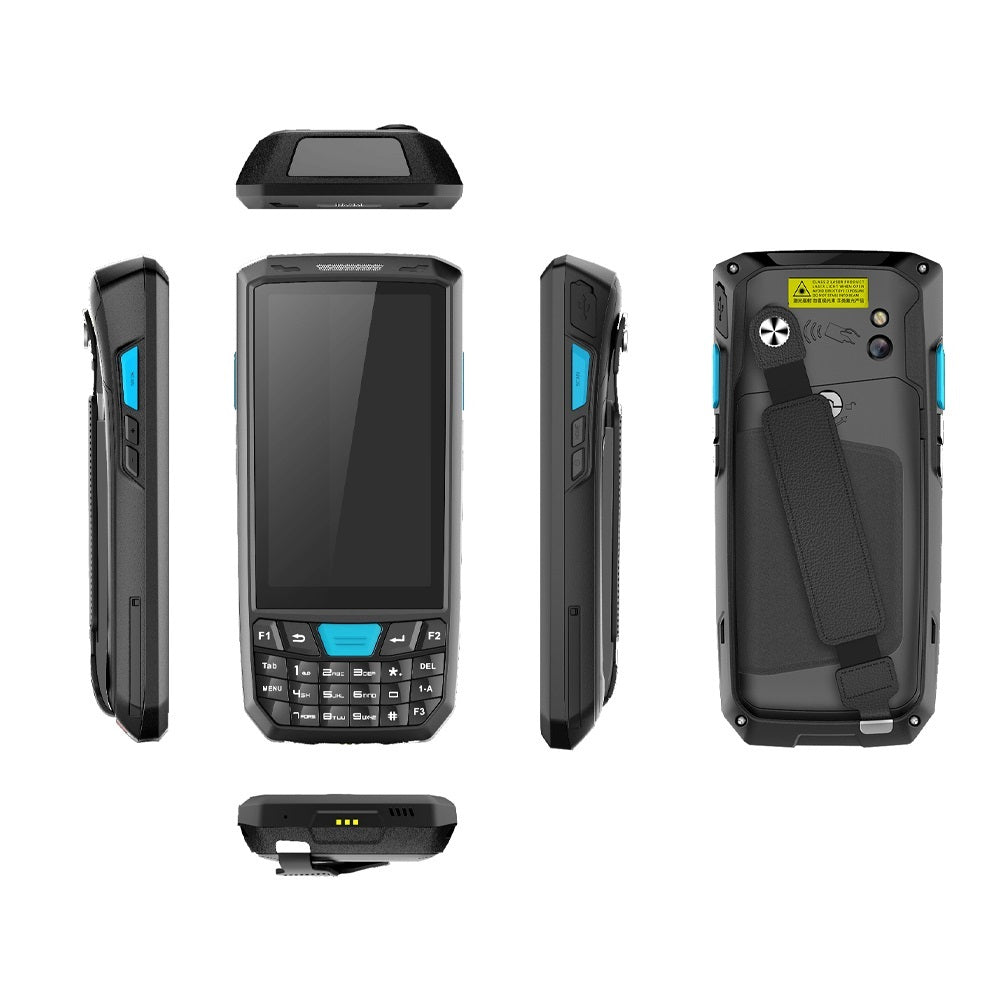

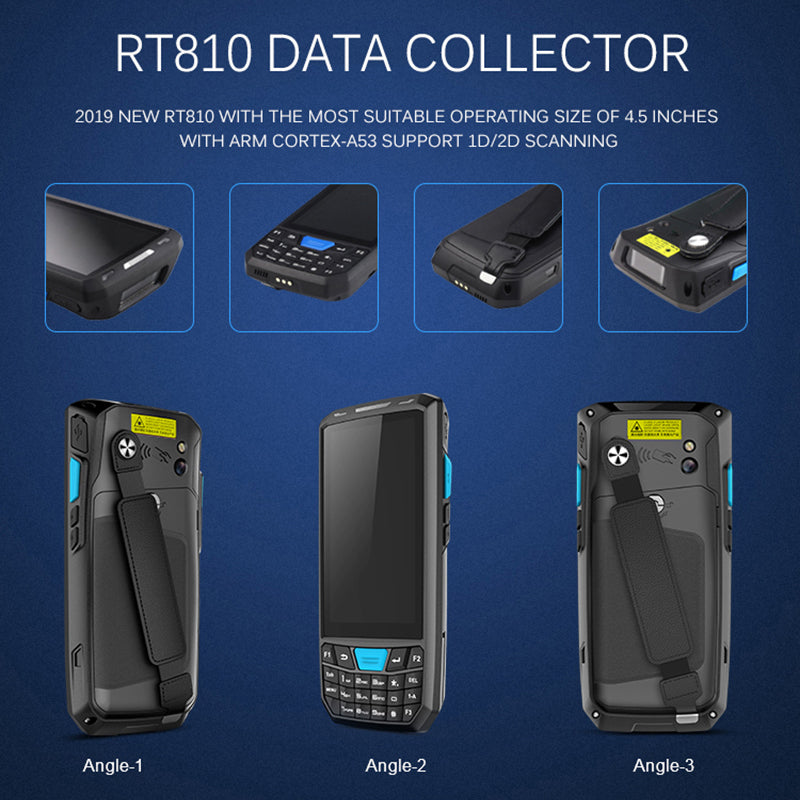

  PRODUCT REAL PICTURES SHOW

  Structural Parameter

  Dimensions

  166mm(L) X 77.5mm(W) X 22mm(D)

  Weight

  <;450g

  Display Screen

  4.5 inch IPS 480 * 854  px with Multi-point touch capactive screen

  Expand Port

  SIM card, Micro SD (TF) Card

  Communication Interface

  Type-C

  Input Mode

  Standard Stylus, Handwriting, touching input or keyboard input

  Battery Capacity

  Rechargeable Li-polymer Battery 3.7V 4200mAh

  Frequency

  8ohm 1W speaker

  Key

  29pcs soft silicon key

  Performance Parameter

  OS

  Android 9.0

  CPU

  ARM Cortex-A53 64bit Quad-Core 1.3G

  RAM

  2G RAM

  Flash ROM

  16G ROM

  Micro SD/TF port (Max up to 64G)

  Data Communication

  WI-FI

  Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN signal cover

  GSM 2G

  2G:GSM(850/900/1800/1900Mhz)

  WCDMA 3G

  3G:WCDMA(850/900/1900/2100Mhz)

  FDD/TDD-LTE 4G

  4G:FDD-LTE(B1/B2/B3/B5/B7/B8/B20)    TDD-LTE(B40)

  Bluetooth

  Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m

  Standard Modules

  Camera

  8MP autofocus camera with flash

  GPS

  Support A-GPS

  Operating Environment

  Operating

  -25°C to 55°C

  Storage Temperature

  -40°C to 70°C

  Environment Humidity

  5%RH-95%RH(no condensation)

  Drop Specifications

  6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

  Roll Specifications

  1000 times/0.5m, roll on 6 sides contact area

  Sealed Environment

  IP66

  1D Laser Scanner (OPTIONAL)

  1D Laser Scanner

  Newland EM1300 1D CCD scanner;Honeywell N4313 1D Laser scanner

  Resolution

  4Mil minimum width

  Ambient Light

  10000ft.candles(107640 lux)

  Scanning Speed

  104(±)12/sec (bothway)

  Scanning Angle

  47o±35o(Standard) / 35o±3o(narrow angle)

  Support Bar Code Type

  UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5,

  Codabar, MSI, RSS

  2D CMOS (OPTIONAL)

  CMOS Scanner

  Newland 3090,HONEYWELL N6603

  The Sensor Resolution

  752(level)×480(vertical)pels(gray level)

  Ambient Light

  All dark 9000ft.candles/96900 lux

  Focus element (VLD)

  655nm ± 10nm

  Support bar code type

  PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet,UK Postal,Australian Postal,

  JapanPostal Dutch Postal (KIX)3

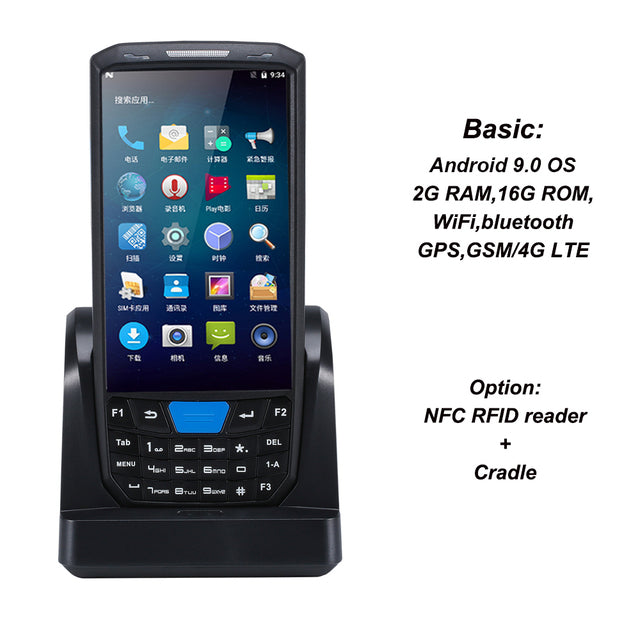

  NFC Reader (Optional)

  Frequency

  13.56MHz

  Protocol

  ISO/IEC 18092 (ECMA 340)

  Range

  2-5cm

  PSAM Interface(Optional)

  ISO 7816-compliant SAM slot,2 SAM slots

  Our Services

  Thank you for the interest about our products,we will handle the service after sale as following:

  1).We offer 15 months warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.

  2).If clients handle the service locally,we will free offer 2% LCD,Housing and keyboard.1% other spares.All the quality issue terminals should take picture and be reported,we will supply it if our spare parts is not enough.

  3).For the product assemble and repairment,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.

  4).We will provide technical assistance for the whole life.In case clients would like to extend 1 year warranty period in their market,we would suggest clients buy 2.5% terminals for replacement.And 2% LCD,Housing and  keyboard.1% other spares.

  FAQ

  1.How will you deliver my goods to me? How long do I need to wait before my goods arrive? You can select shipping options possible,such as DHL,UPS, FedEx, TNT,EMS to enable our customers get their goods rapidly at door. We also ship economic methord such as air cargo and sea cargo, Direct line,Air Mail according to clients' request.3-7 days for international express, 5-7 days for air cargo, 20-40 days by sea cargo.

  2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEMODM

  3 Payment Terms TTBank transfer Western Union Money Gram Paypal, Cash, L/C etc.

  4. MOQ: 1PC

  5. Delivery time: Sample will be ship in 3~5 days after receipt payment.For bulk order,based on different quantities.

  6. Warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).

  7.Can you print my brand name (logo) on these products?Yes! We can provide professional OEM services to make it your  brand even for your trial sample order, like display start up logo on screen, print/laser logo on  tablet back and front and Gift box Package

  8. Sample: sample for test is ok.

  9. Visit factory: yes, it is ok, before visiting, please contact us.

  10. About Discount: discount depends on your quantity, bulk order will in more cheap price.

  11: Can buyers decide the express company that wil be used?   Yes. Buyers can choose the express company they prefer or cooperated with.

  12: Can Buyers use their own couriers or shipping agents? Yes, buyers can use their own shipping agents.

  13: Do I need to pay taxes when receive the samples? It depends on invoice value and the customs policy of the destination country. Generally taxes will occur. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.

  14: How about your product quality? We provide unrivaled Quality - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control and Final Quality Control for every price. We follow at least 18 QC test procedure,and do 100%  FQC  to ensure your satisfaction.

  15.How much do I need to pay for your OEM service?  If your order is over 100 pcs, we can make your own brand display logo for free!  About other more details,it's according to your special requirement.

  Do you have any other question? Contact me now! We look forward to cooperating with you.
