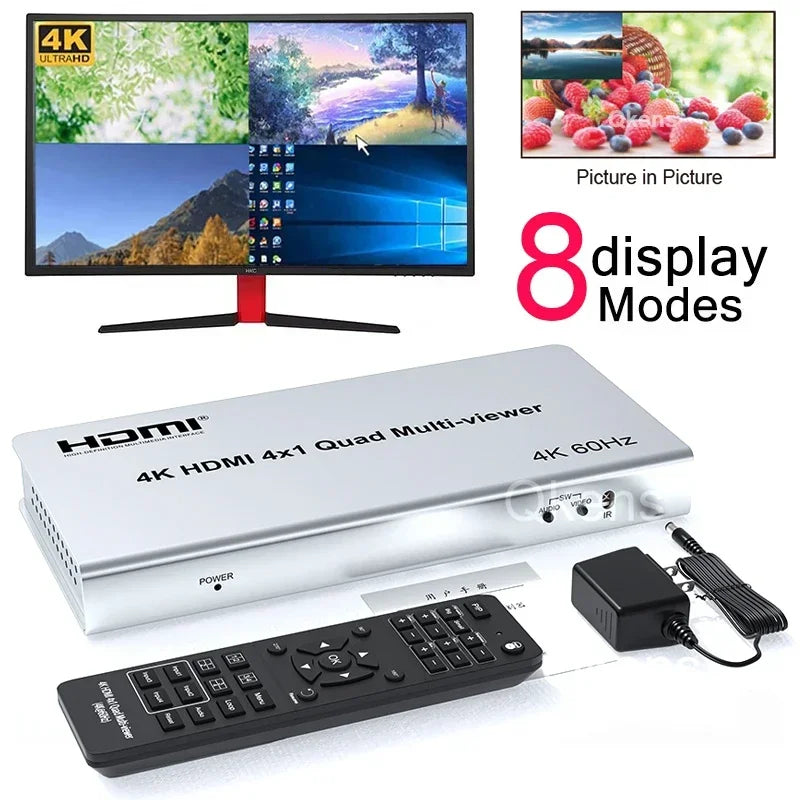

This 4K HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation
and multi switching modes. It can display 4HD digital video signal on the same screen,

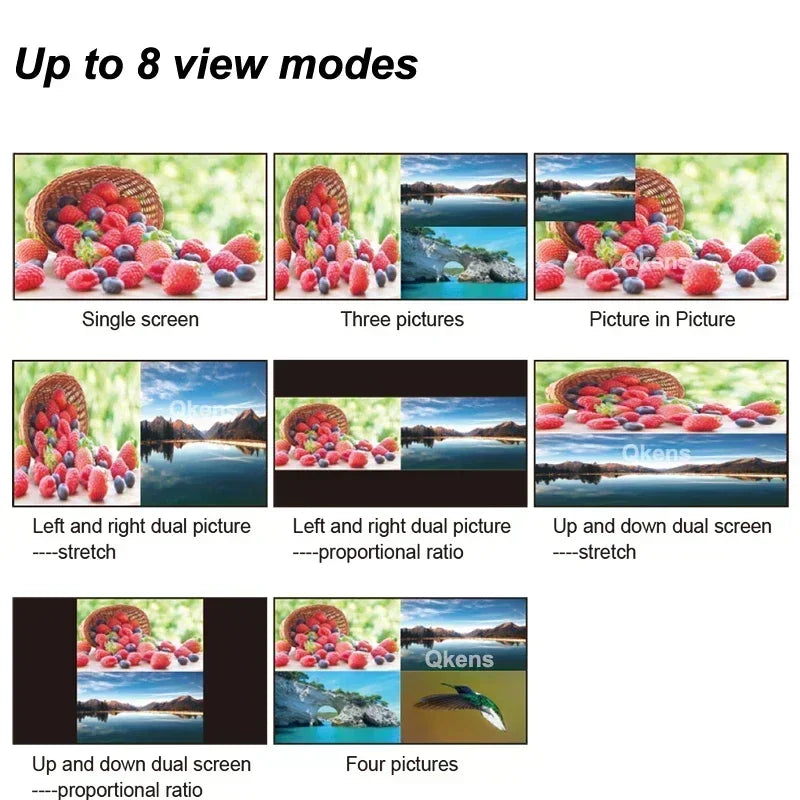

and has a variety of video segmentation modes switching 4 HD input signal synchronously.

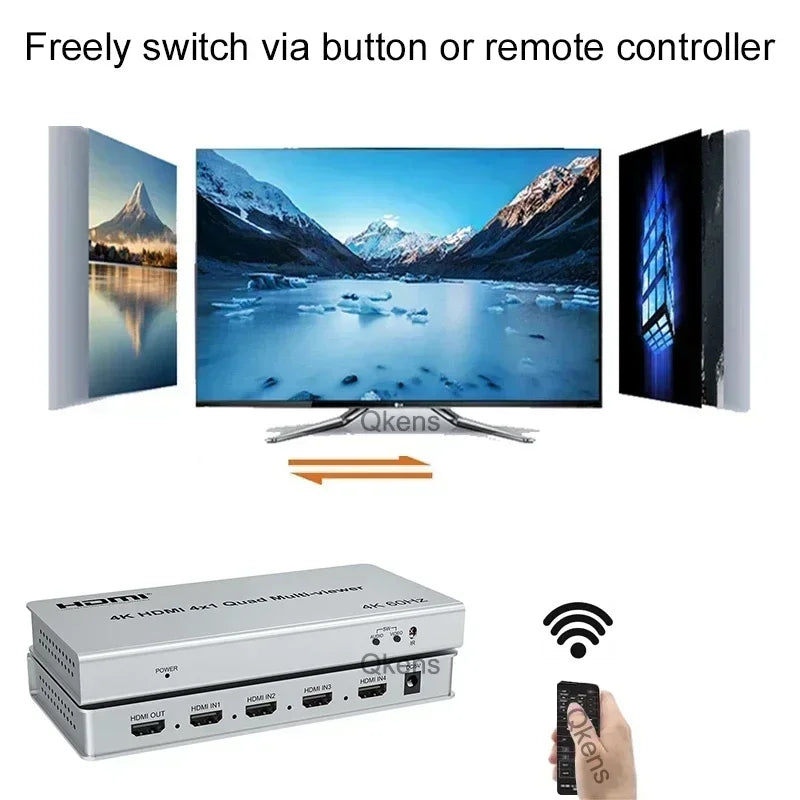

The control methods of the switch is flexible, it can be
switched via button or IR control. It's a very practical and stable switch and easy to install,
can be used in the major projects, meeting halls and other places.
Features

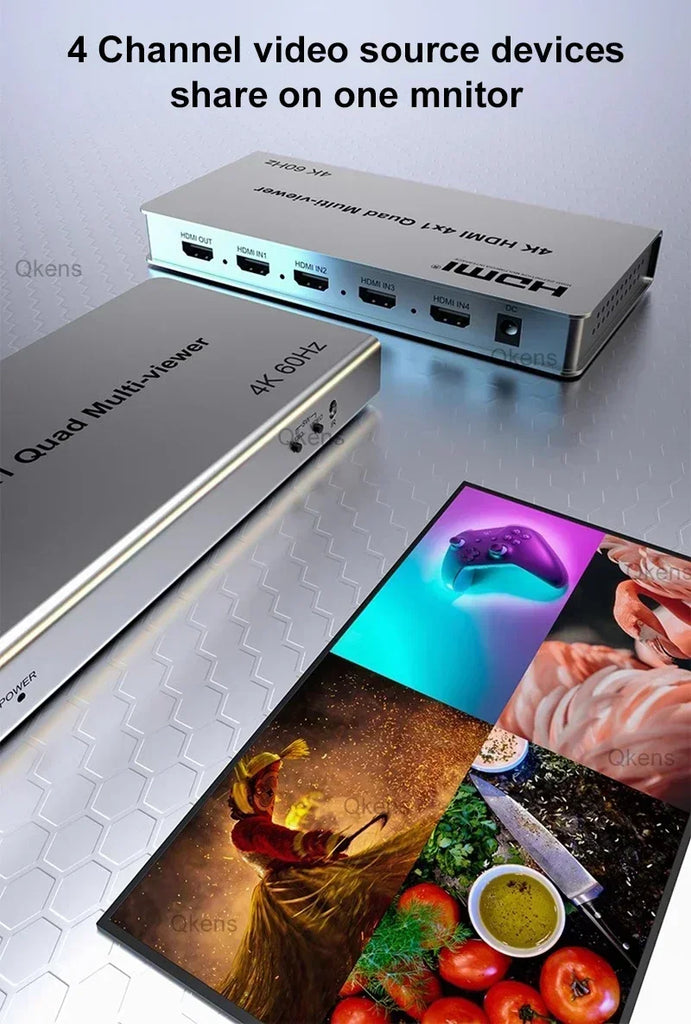

Support 4 HDMI inputs, 1 HDMI output ;
* Support 4 channels HDMI signal screen segmentation ;
* Support input highest resolution up to 4K/30Hz;
* Support Output resolution 4K@60Hz, 4K@30Hz, 2560x1600@60Hz,1080P@60Hz;
* Support IR control ;
* Support audio output format: PCM2.0 ;
* Support 24/30/36 bit deep color;
* Support cable distance 4K@30Hz/2560x1600@60Hz≤15M; 1080P≤20M;
4K@60Hz input ≤15M /output≤5M.
Specifications
Color format .................................................................... RGB 4:4:4; YUV 4:4:4; YUV 4:2:2
Audio format .............................................................................................................. Stereo
Output max bandwidth ............................................................................................ 600MHz
Output max baud rate ............................................................................................ 6x3Gbps
Maximum working current ............................................................................................ 1.5 A
Power adapter format ................. Input AC (50 hz, 60 hz) 100V to 240V; Output: DC5V/2A
Operating Temperature range ....................................................................... (10 ~ + 45 ℃)
Dimension .....................................................................................approx. 226x105x24(mm)

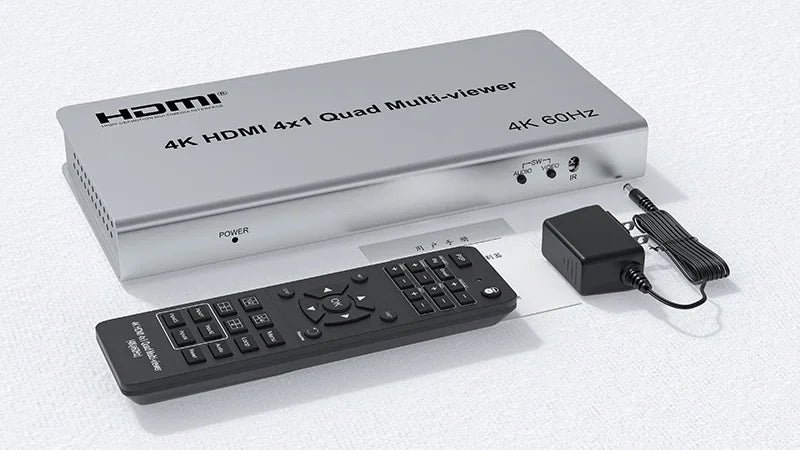

Package Includes:
4k60Hz HDMI 4x1 quad multi-viewer x1
5V/ 2A power adapter x1
Remote control(without battery) x1
User manual x1
Without retail box and other accessories,if any need,pls contact us before purchase !
