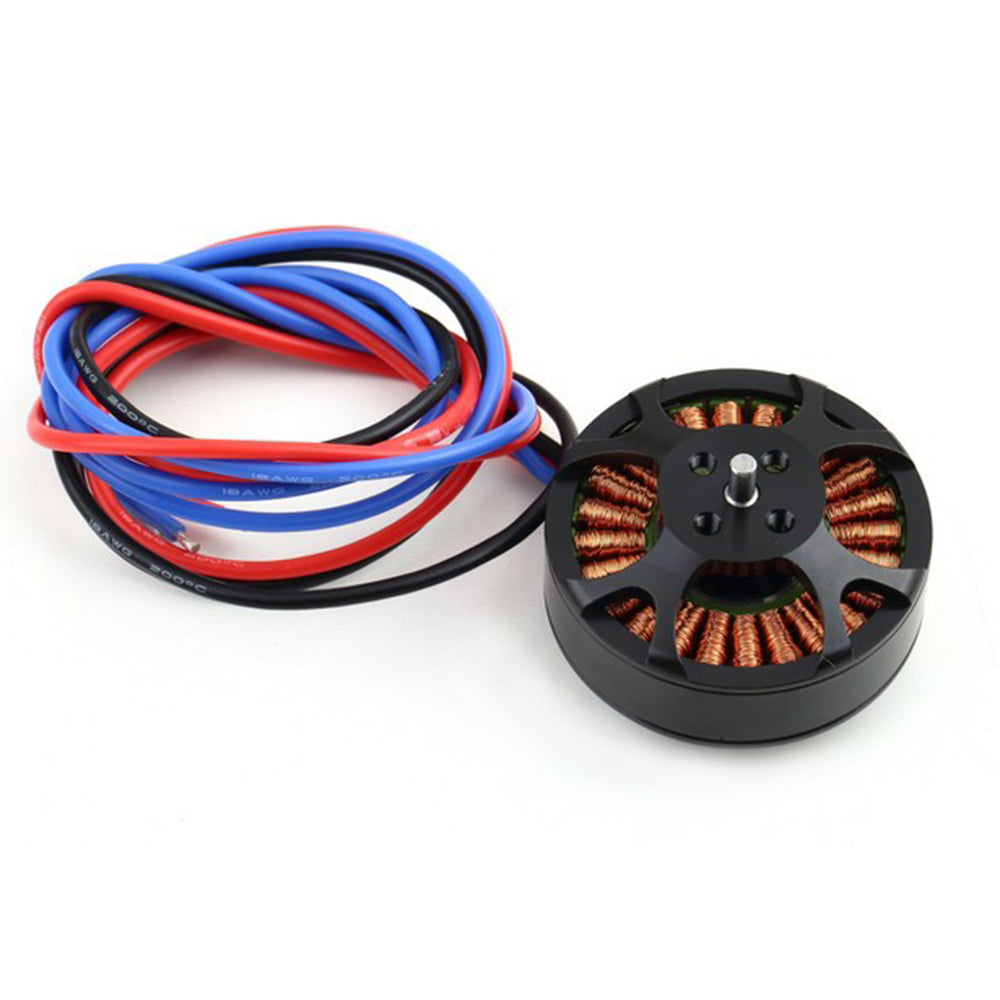

sunnysky X4108S 380KV 480KV 600KV Outrunner Brushless Motor

                                Long- SunnySky XS is a derivative version of the X series , designed for multi- rotor design, flat design, multi-slot pole brushless external rotor motor torque, high efficiency , the most important is to take the X series of cost-effective route , efficient and stable , affordable.

                                                                 With a long- drawn , according to the needs of the user wiring .

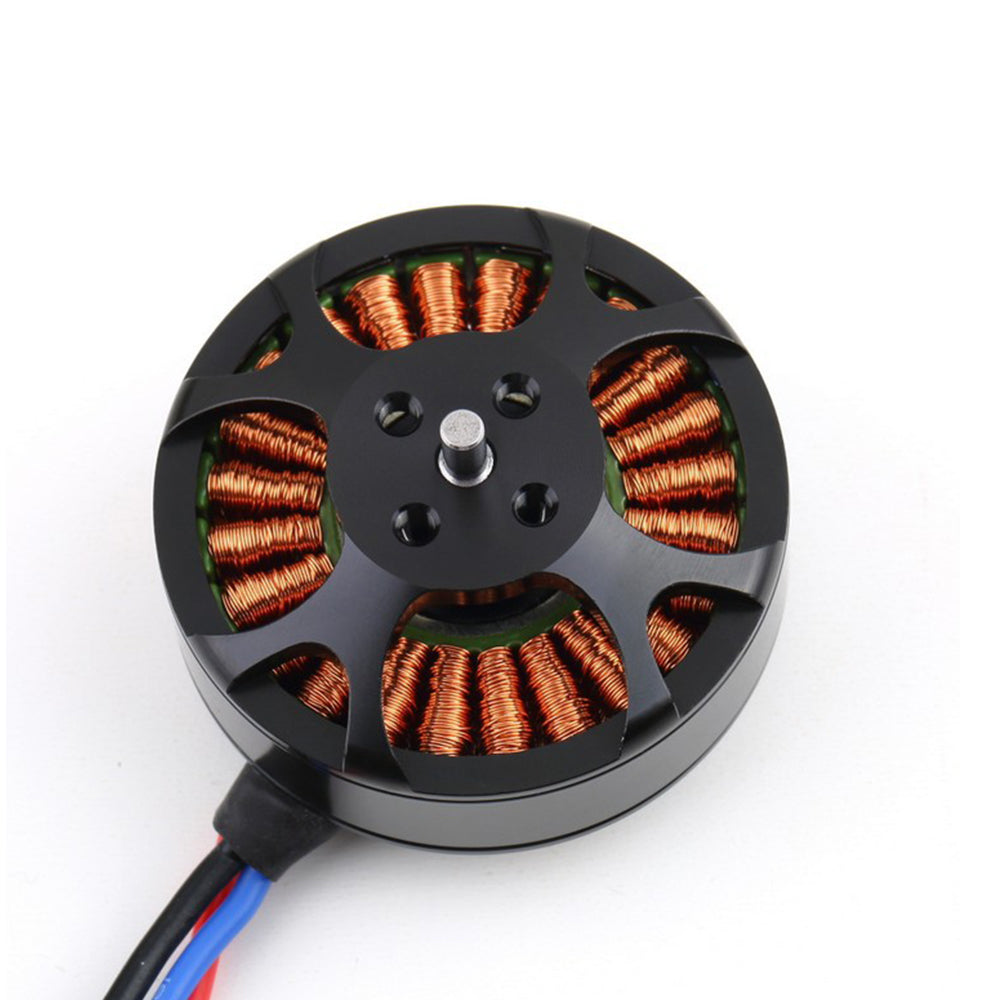

                                                                 Motor base for the multiple sets of mounting holes ( holes see Figure ) , compatible with mainstream rack mount on the market today , and retains the look and consistency of conventional motors , coil play a protective role , and the beautiful and clean appearance.

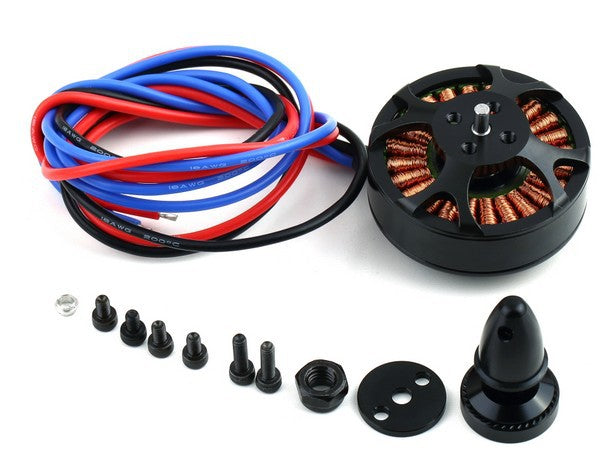

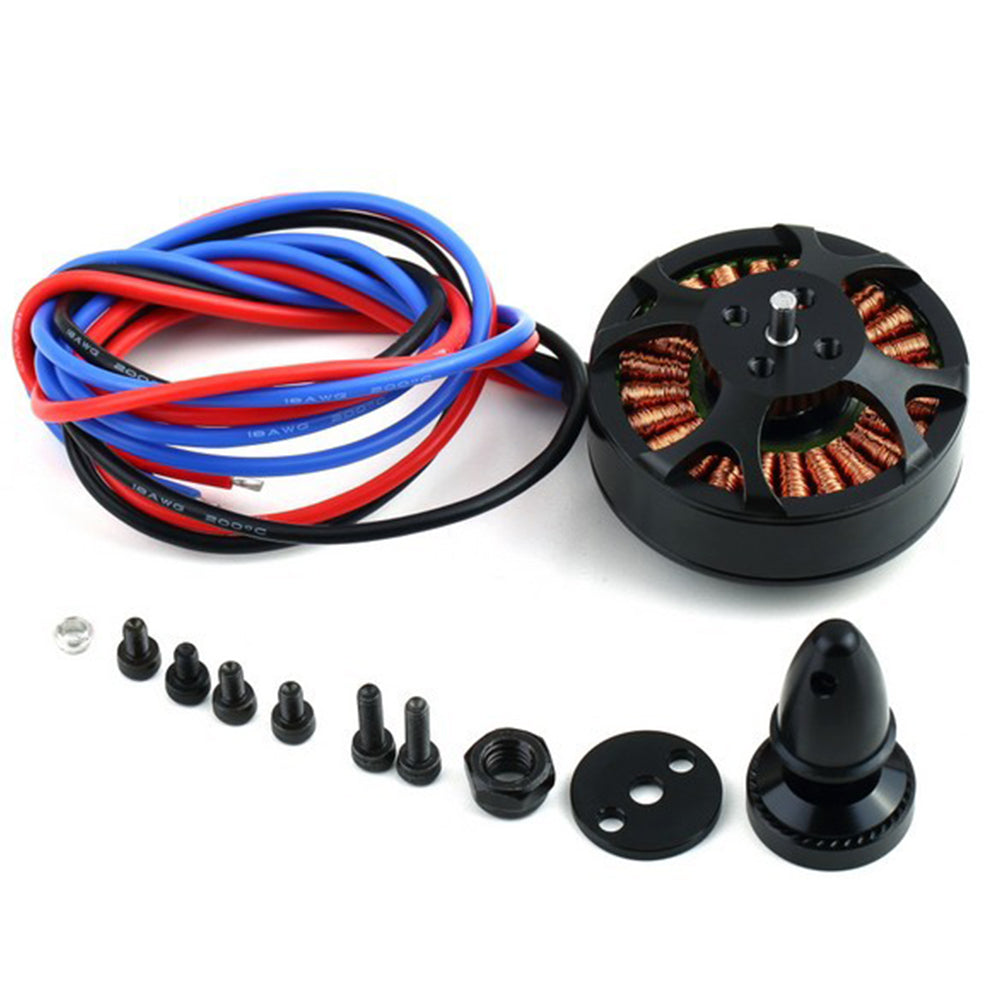

                                                                 The method uses a propeller installed seat installation and carbon paddle paddle paddle clips free installation , end knurled seat paddle , more stable , with carbon paddle , paddle with a lid , to better protect the propeller to prevent crushing distortion, and locking contact surface , flying more stable.

                                                                 For X4112S large load , X4116S, using a large -diameter bearings, low-speed operation is more stable, high-speed radial support when the moment is good .

                                                                 Balancing the whole system have been tested to ensure stability when the motor is running , low noise.

                                                                 Very detailed testing of the motor when the propeller output multiple static test match performance in a variety of throttle , have been documented and are 10-15 minutes long continuous testing at maximum throttle , full load temperature in 10 minutes 60 -70 Celsius , spot check of several motors, continuous operation 24 hours , depending on the power does not decay , nor the temperature continues to rise .

                                                                 Dynamic testing of the motor, through a number of professional workers using aerial photography , have been well received, not the highest efficiency products, but the consistency and stability of the heavier , more important is the position clear, the price close to the people .

                                                                 Long- XS Series multi-axis brushless motor , efficient, stable , affordable , professional choice , amateur choice!

                                Model: X4108S

                                KV (rpm/v):380/480/600KV

                                Weight: 113g

                                Diameter: 46mm

                                Length: 25.5mm (excluding motor shaft)

                                Wire length: 60cm

                                Prop adaptor output shaft diameter: 6mm
