Features:

    1, dual antenna at the same time, the signal is stable

2. Built-in DVR recording function, support 32G memory.

3, built-in 3.7V 2000 mw battery, each charge can support 3 hours of work.

4, USB interface fast charge.

5, USB data export.

6, small size, light weight.

7, support for multiple languages.

8, multi-function menu.

9, a key search frequency.

10, the surface process is a metallic light paint.

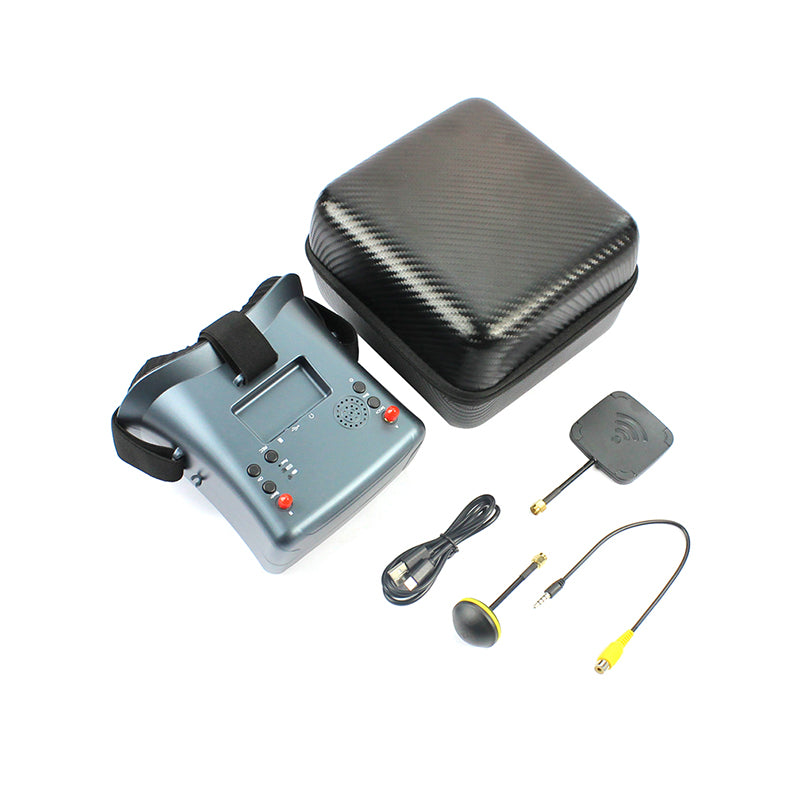

11, with a portable zipper bag.

    product features

    # Separable design ,4.3 inch screen canbe used as small monitor on radio controller or with tripod

    # High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane

    # Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.

    # Come with advanced auto-searching function ad show yout the working frequency on screen

    # Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time

    # Ergonomic design fit your faces

    # 92%transparent lens adopted ,no distort,no blur on the adage of screen;

    # Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game

    # 4.3 inch 800*480px HD high brightness LCD

    Product Specification:

    Body

    Dimension: 155x144x113mm

    Weight: 375g with 2hr 2000mAh battery

    Belt: three-Ways adjustable belt

    Screen

    screen size: 4.3 inch

    Screen resolution: 800*480(No blur after enlarge by the lens)

    Screen brightness; 300cd/m2 with special high brightness backlight LED for outdoor FPV

    View Angle: 12 O’CLOCK

    Lens

    2.8x boost of the video to acquire intense feel-in-there video

    92% transparent rate no distort of light

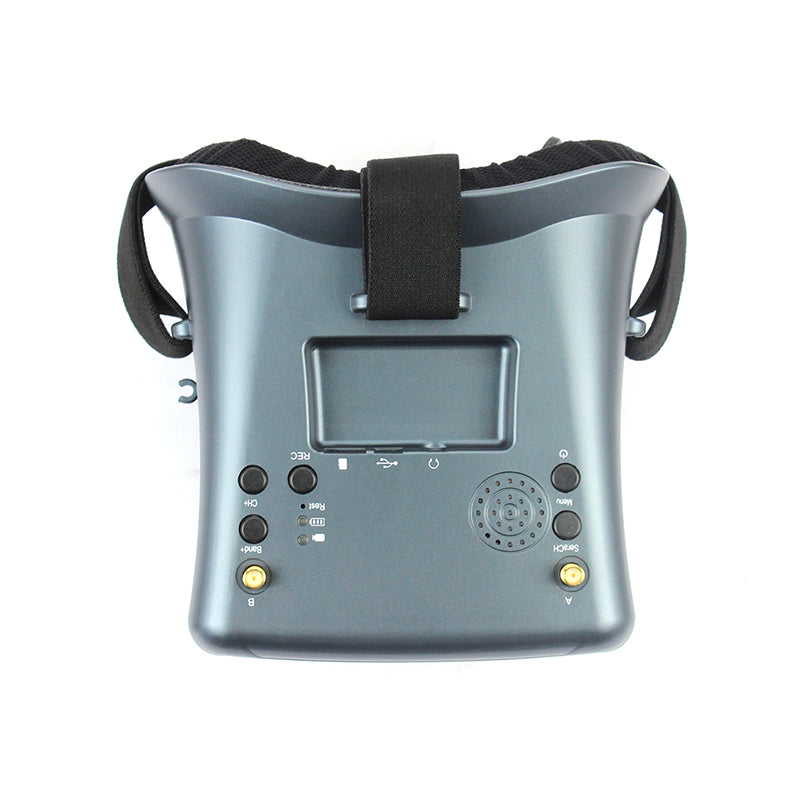

    JACK

    1.  Input CVBS

    2.  Headphone sound output

    3.  TF Card(C10) Max32G

    4.  USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge current of 750mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.

    Battery:

     Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.

    Band and Channel selection

                           CH

       CH 1

       CH 2

       CH 3

       CH 4

       CH 5

       CH 6

       CH 7

       CH 8

                   GROUP

                   A

       5865 MHZ

       5845 MHZ

       5825 MHZ

       5805 MHZ

       5785 MHZ

       5765 MHZ

       5745 MHZ

       5725 MHZ

                   B

       5733 MHZ

       5752 MHZ

       5771 MHZ

       5790 MHZ

       5809 MHZ

       5828 MHZ

       5847 MHZ

       5866 MHZ

                   D

       5705 MHZ

       5685 MHZ

       5665 MHZ

       5645 MHZ

       5885 MHZ

       5905 MHZ

       5925 MHZ

       5945 MHZ

                   E

       5740 MHZ

       5760 MHZ

       5780 MHZ

       5800 MHZ

       5820 MHZ

       5840 MHZ

       5860 MHZ

       5880 MHZ

                   R

       5658 MHZ

       5695 MHZ

       5732 MHZ

       5769 MHZ

       5806 MHZ

       5843 MHZ

       5880 MHZ

       5917 MHZ
