50A 100A 200A 400A STN LCD Hall Coulomb Meter Counter Voltage Current Capacity Power Indicator Display eBike Car Isolation
Feature:
1. Using high-quality materials, the quality is guaranteed
2. Simple installation, easy to use
3. The Hall measurement is an isolated measurement, which will not destroy the original original circuit, which is N times safer and more reliable than the general shunt coulomb counter.
4. Exquisite and beautiful appearance
5. Small stature, big use, wide range of applications
Specifications:
Current measurement range: 50A/100A/200A/400A
Current resolution: 0.1A
Supply voltage range: DC5~90V
Voltage measurement range: DC0~300V
Voltage Resolution: 0.1V
Capacity measurement range: 0~999AH
Power measurement range: 0~999KW
Refresh speed: 0.5S to refresh the display information once
Working current:
When the backlight is on: 10MA
When the backlight is off: 4MA
Frequently Asked Questions:
1. Is this watch clear under the sun?

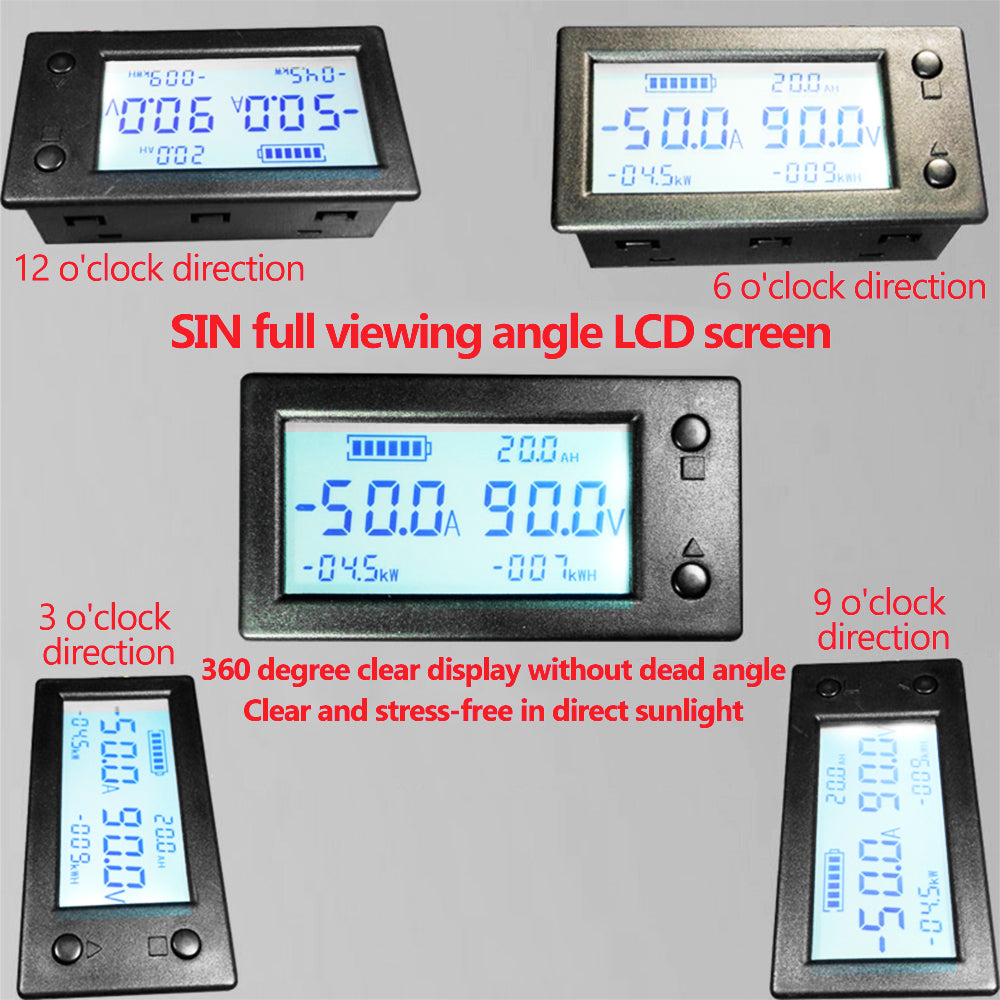

A: This watch is an STN LCD screen with backlight, which is clearly visible at night or under direct sunlight during the day.
2. Do you need an extension cord?
A: The standard sensor extension cable is 15CM in length
3. Does this table already contain sensors?

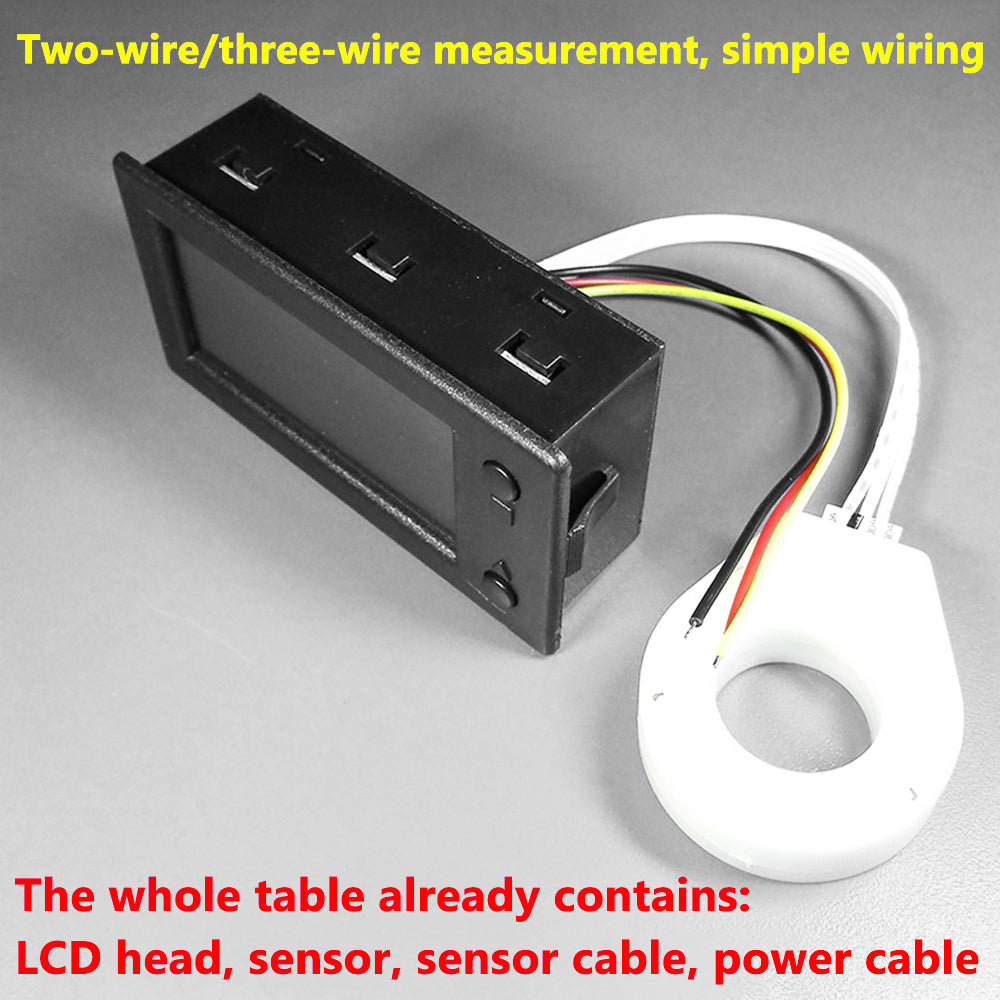

A: This is already included: STN LCD head + Hall sensor + 15CM sensor cable + 15CM power cable.
4. Does this meter use two-wire or three-wire wiring?
Answer: When the measured voltage of the meter is within DC5~90V, connect the red and yellow wires together as the positive lead to the positive pole of the power supply, and the black lead to the negative pole, which is a two-wire connection. When the measured voltage exceeds the range of DC5~90V, the three-wire wiring is used, so that the measurement voltage range is wider, and the ultra-wide voltage between DC0~300V can be measured.
Package Included:
STN LCD head*1
Hall sensor*1
15CM sensor cable*1
15CM power cord*1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
