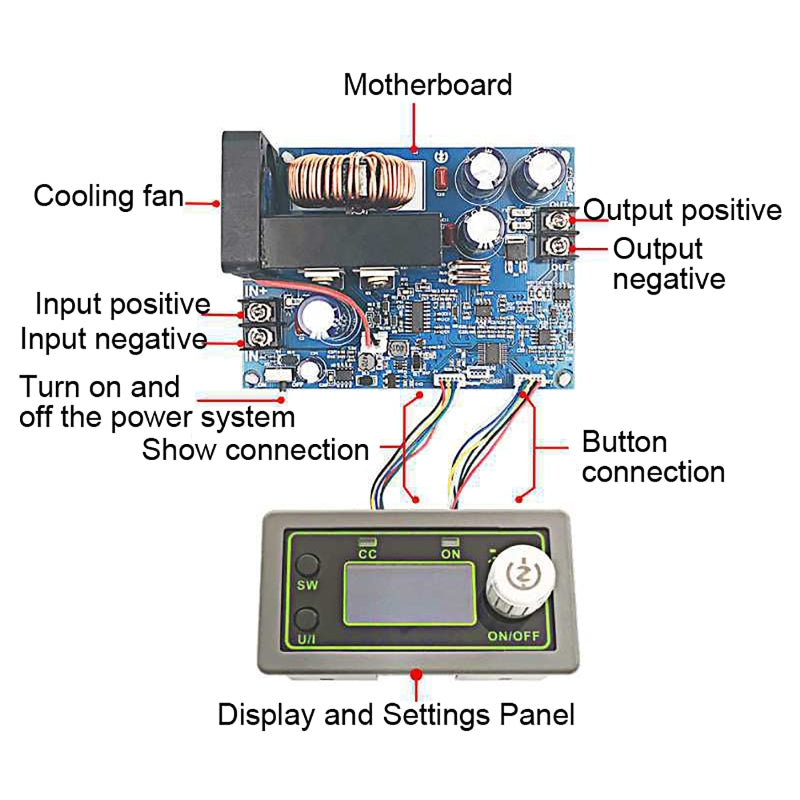

50V20A 1000W LCD display CNC step-down adjustable power supply module
Features:
1. LCD can display input/output voltage, output current/output power/output capacity/output time;
2. Numerical control adjustment, accurate and fast, step-down output, output voltage 0-50.00V can be adjusted freely, limit current can be adjusted freely from 0-20.00A;
3. The output port is poured and does not burn;
4. You can set the module to be turned on/off by default;
5. It has a variety of software protection mechanisms, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output is automatically turned off;
6. Using synchronous rectification technology, the conversion efficiency is high: the efficiency is more than 90%;
7. Enlarging the heat sink and installing a fan to enhance heat dissipation.
Specification:
Display: LCD display
Input voltage range: 6-55.00V
Input voltage resolution: 0.01V
Output voltage range: 0-50.00V
Output voltage resolution: 0.01V
Output current range: 0-20.00A
Output current resolution: 0.01A
Output power range: 0-1000W
Input voltage accuracy: ±(1%+5 characters)
Output voltage accuracy: ±(0.3%+5 characters)
Output current accuracy: ±(0.5%+5 digits)
Typical output ripple: 150mV peak-to-peak
Normal working temperature range: -10℃~40℃
Capacity measurement range: 0-999.9AH
Statistical error of capacity energy: ±2%
Statistical time range: 0-100 hours
Step-down working mode: differential pressure>0.05%+1V
Size: Panel 79X43X42mm
Motherboard 106x76x40mm
Packing included:
1 * CNC power module
Note:
1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.
2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
