Feature:

 1. High Efficiency: The micro inverter has built in high accuracy maximum power point tracking, which effectively tracks and locks the maximum output power of the solar panel, automatically locks the stable output of power, and enables the inverter to discharge to the grid with high efficiency.

 2. WiFi Module: The micro inverter has built in WiFi module, you can directly monitor the operation of the micro inverter on the mobile APP, such as voltage, current, power, power generation, etc., easy to use, save time and improve overall efficiency.

 3. Multiple Safe Protections: This inverter has islanding protection functions that there is grid failure or power failure, the inverter automatically stops output, and it also has overheating protection, short circuit protection, overload protection.

 4. Easy Control: The solar grid connected inverter can independently control each component in parallel, minimizing safety hazards.

 5. Aluminum Alloy Shell: The aluminum alloy shell has good heat dissipation performance that can better protect the work of the inverter; can be directly installed behind the module or on the bracket, easy to install and maintain; 5 meters power cord, easy to use.

     Specification:

     Item Type: Grid Tie Inverter

 Material: Aluminum alloy

 Gross Weight: 4403g/155.3oz

 Plug: European standard

 Recommended PV Modules: 2x375W

 Operating Voltage Range: 22-60V

 Start Voltage Range: 22-60V

 Short Circuit Current: 2x15A

 Maximum Working Current: 2x12A

 Communication Connection: Wifi

 Cooling Method: Natural cooling

 Power Transmission Mode: Reverse transmission, load priority use

 Monitoring System: APP

 Output Data: 120V 230V

 Output Power: 600W

 Rated Output Power: 580W

 Rated Output Current: 5A (120V); 2.6A (230V)

 AC Voltage Range: 85-160V (120V); 180-280V (230V)

 Rated Frequency Range: 48-51Hz/58-61Hz

 Number of Branch Connections: 6, single phase (120V); 12, single phase (230V)

 Static MPPT Efficiency: 99.5 percents

 Power Consumption at Night: ＜0.5W

 Total Current Harmonics: ＜5 percents

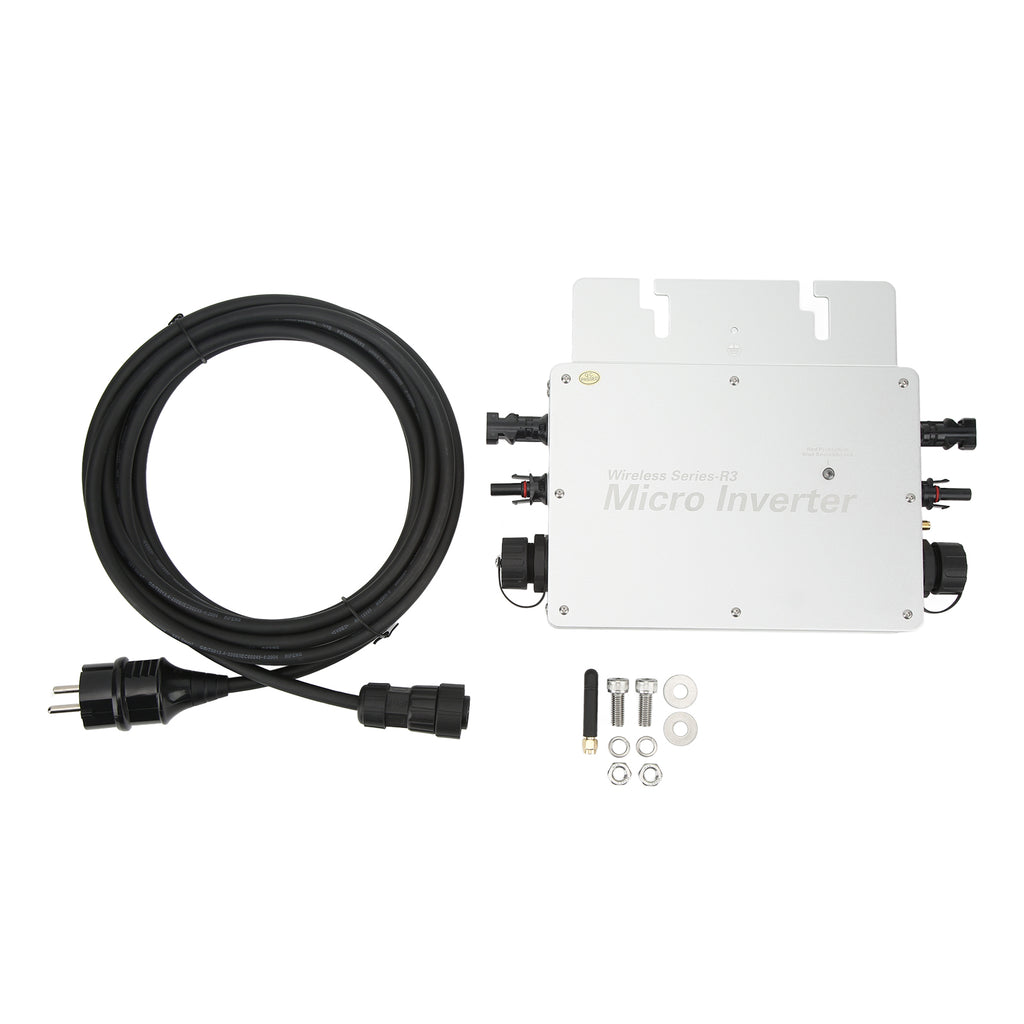

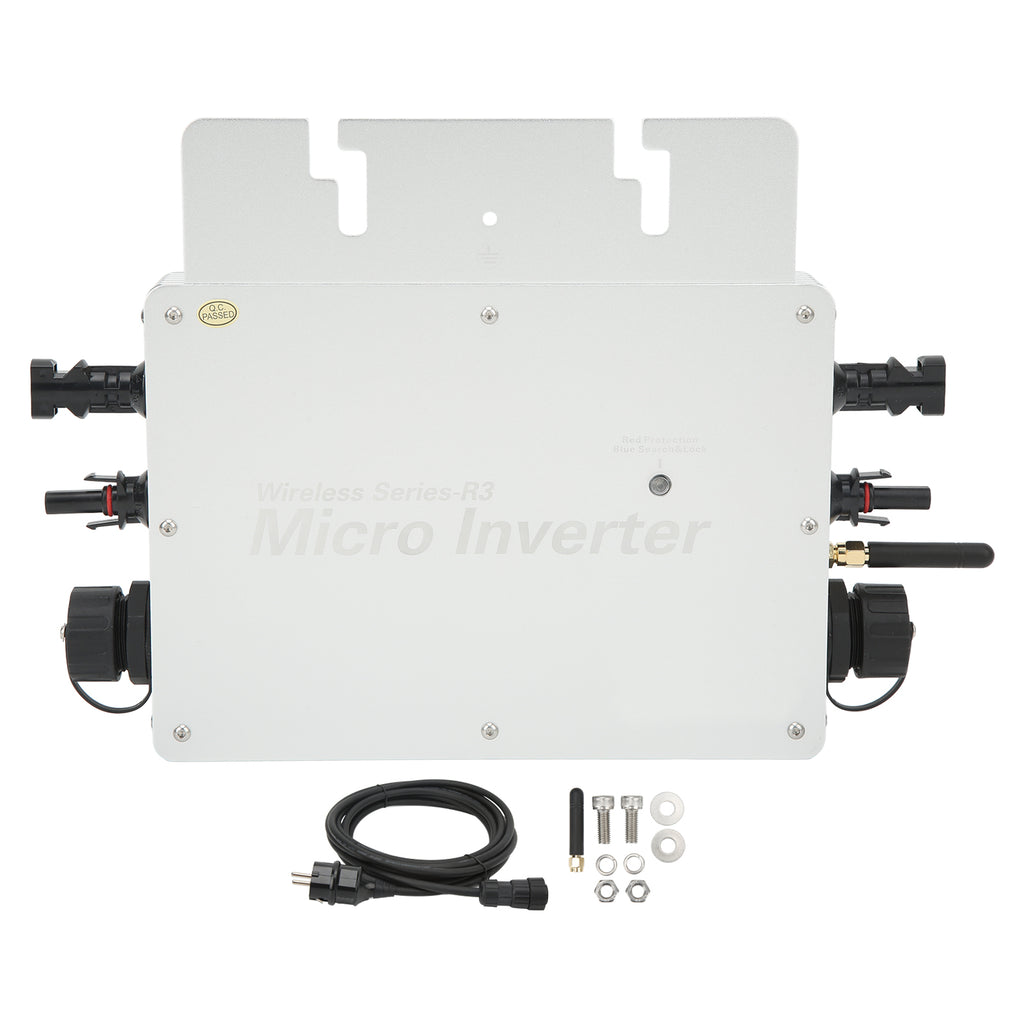

     Package List:

     1 x Inverter

     2 x Screw

     2 x Nut

     1 x Antenna

     4 x Accessories

     1 x Power cord

     1 x Manual
