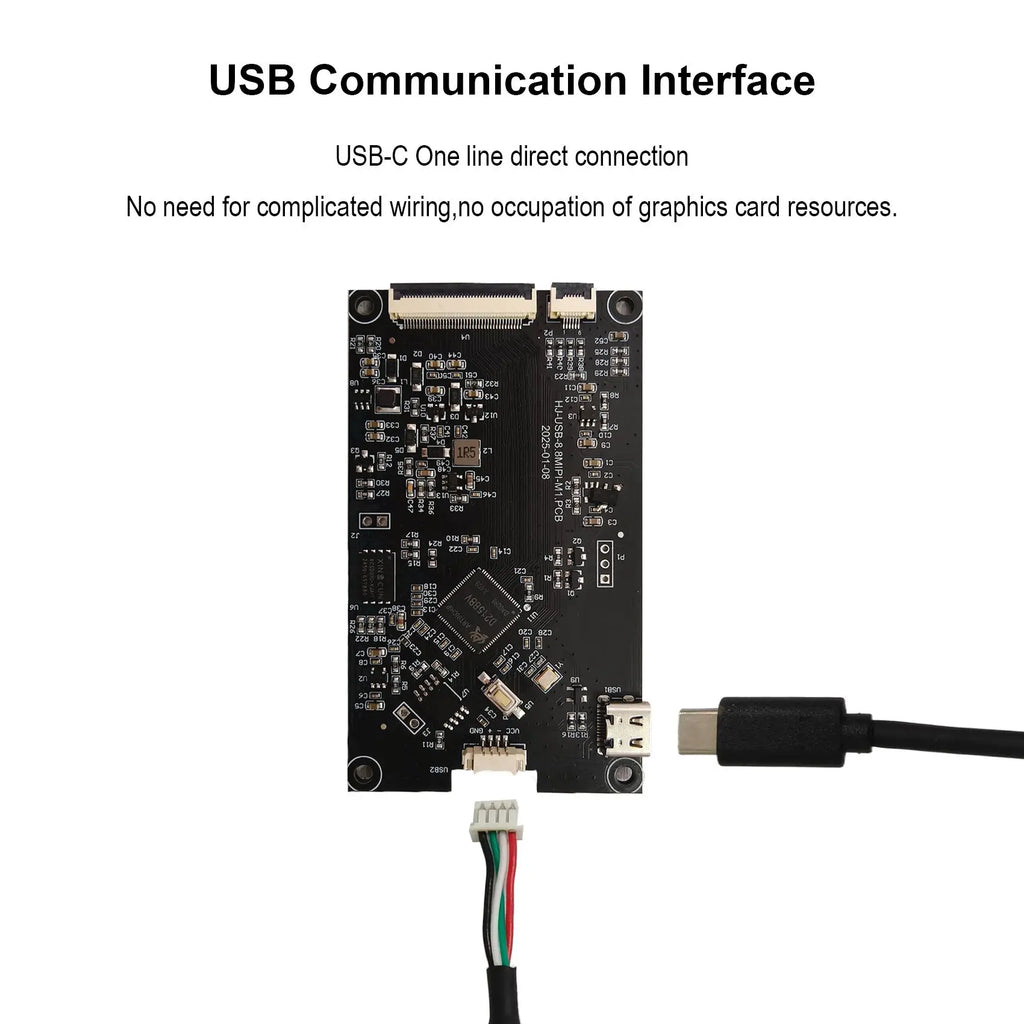

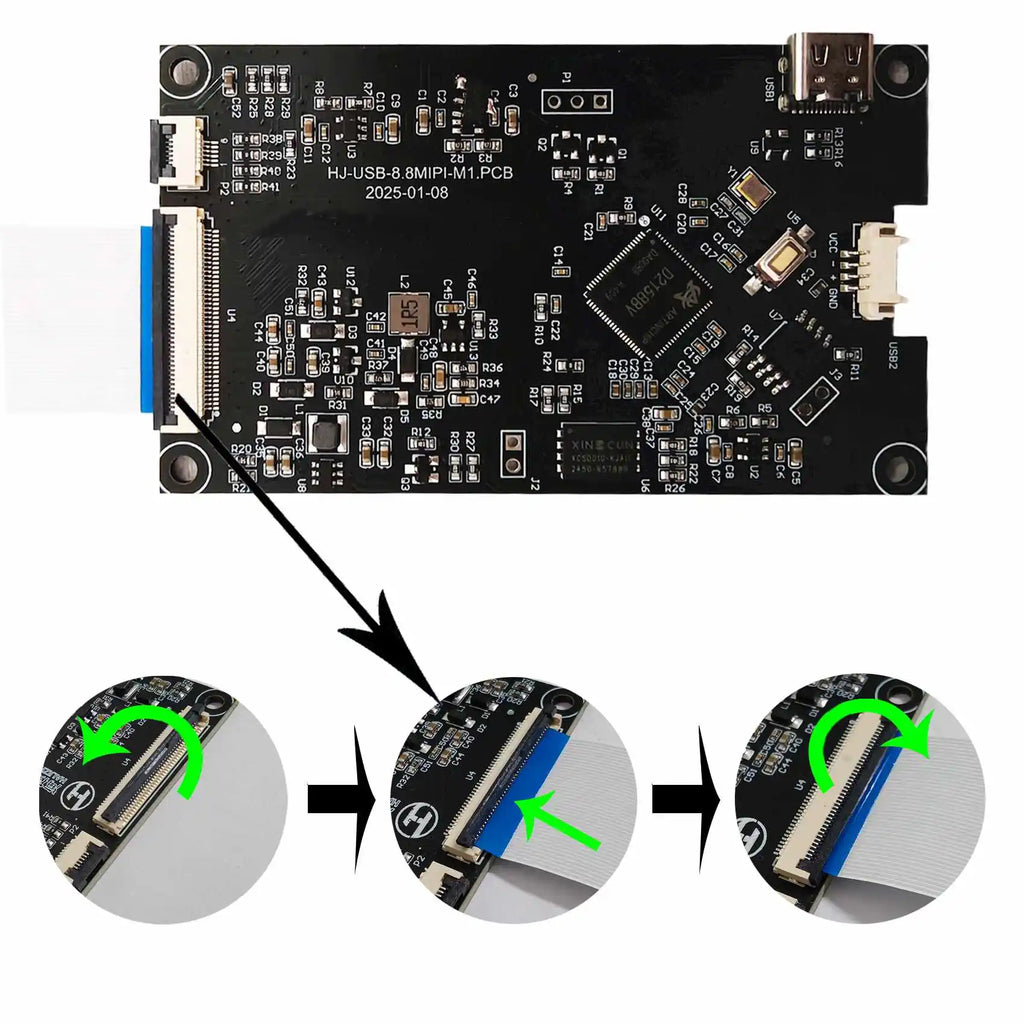

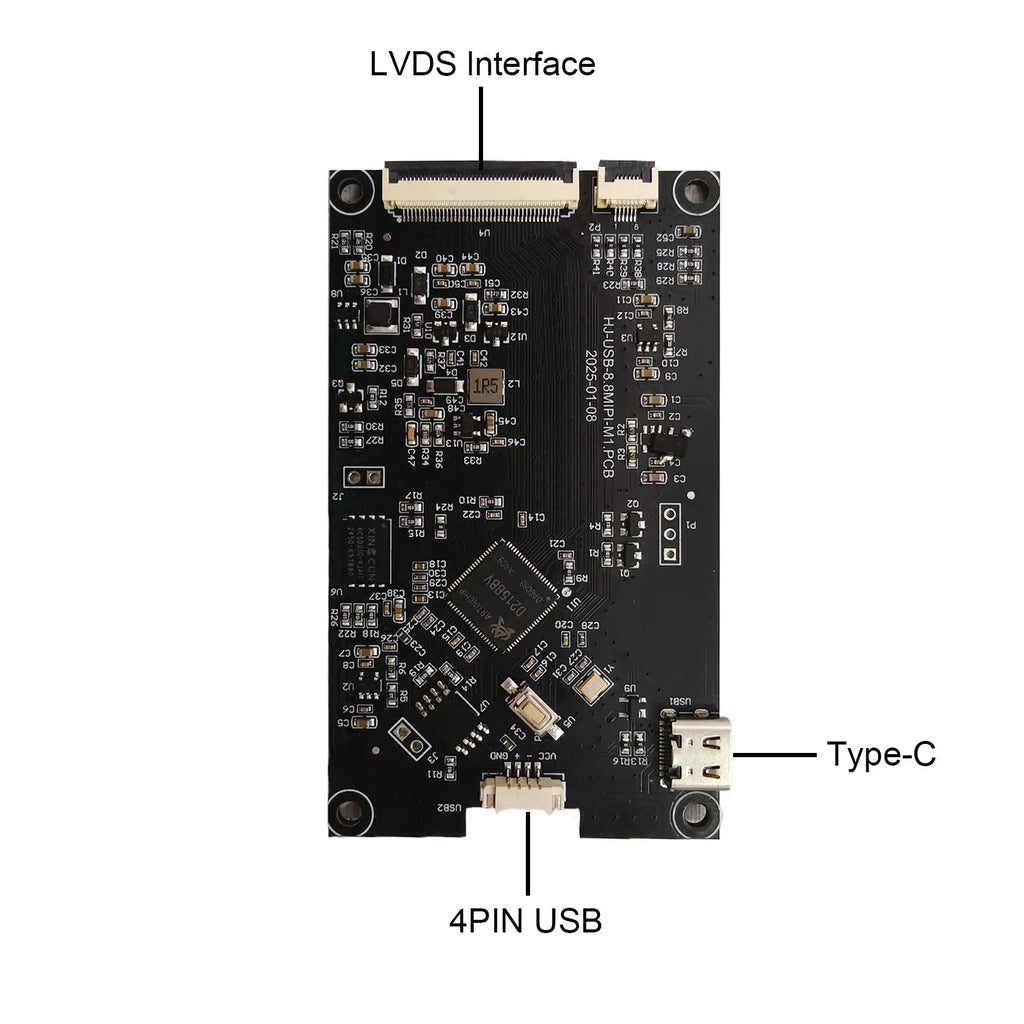

LCD Controller Board:
USB Input LCD Board Work for 8.8inch LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Power Input:USB
Video Input: USB3.0 Type-C
Board Size: 55mm x 45mm x 5mm

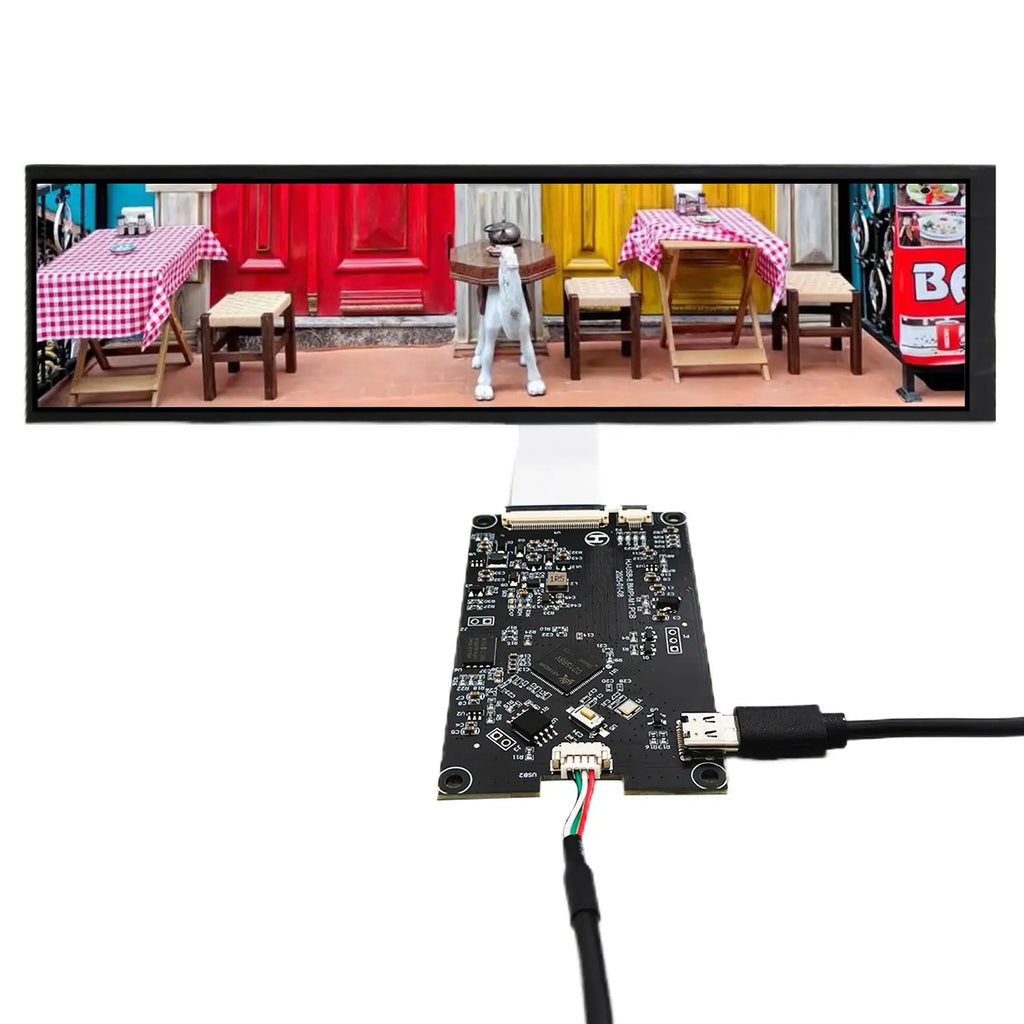

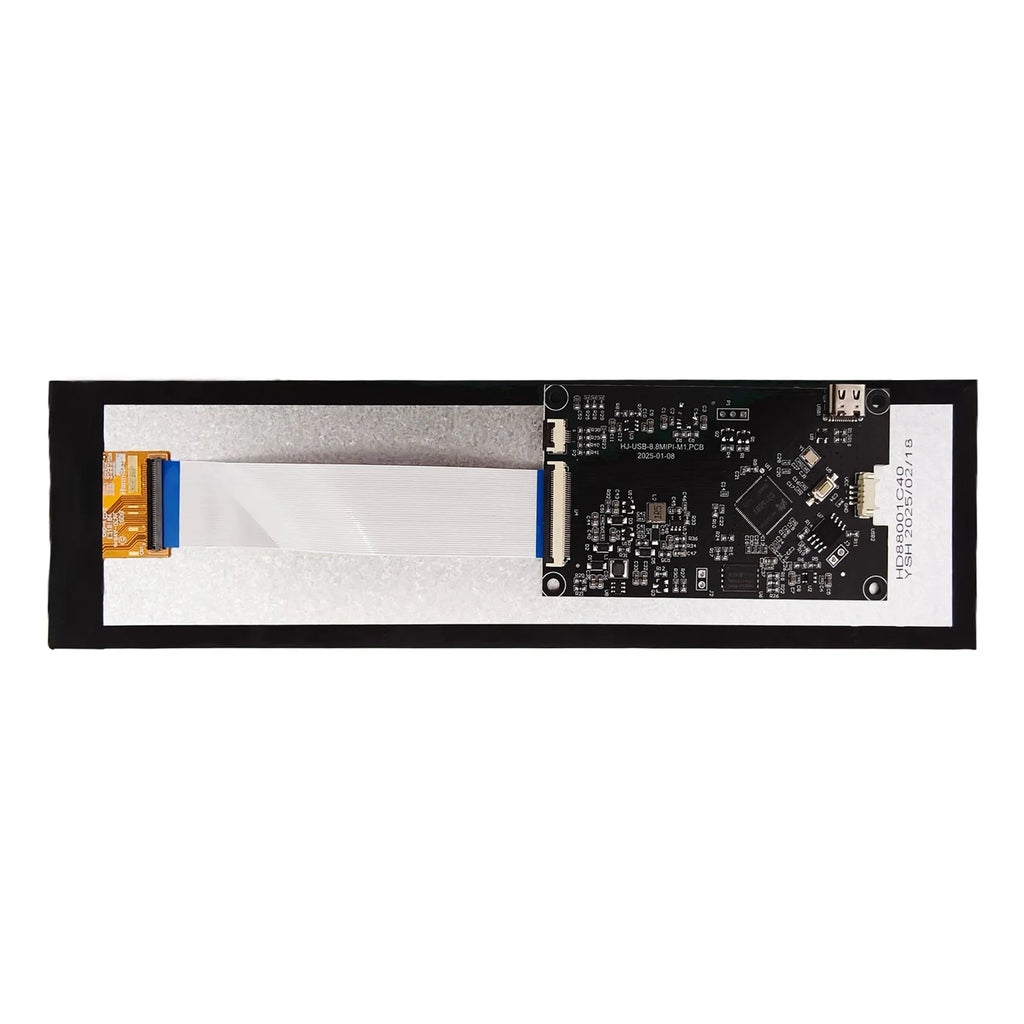

8.8" HSD088IPW1 1920X480 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1920(RGB)×480

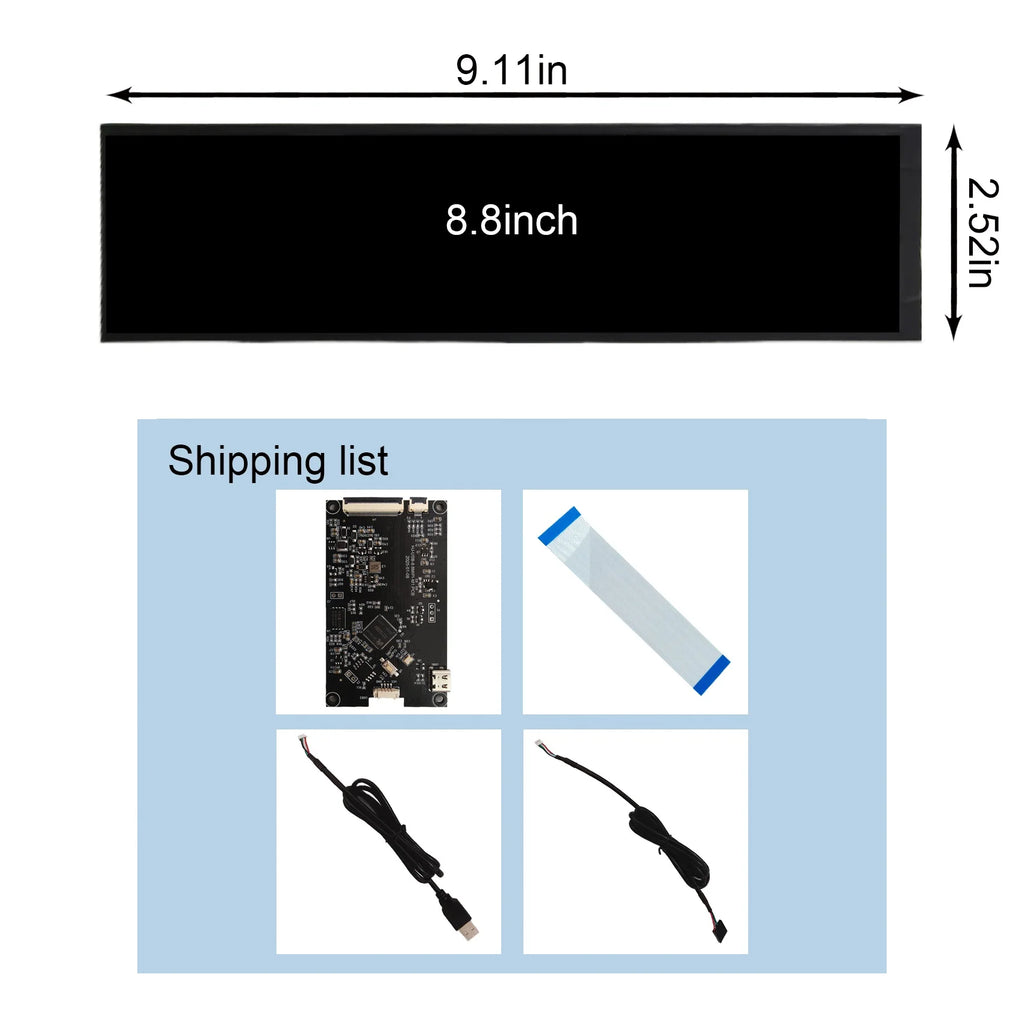

Outline Size 231.3×64.3×6.4(H×V×D)
Display Area 221.9× 57.7(H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI, 40 pins , Connector
Backlight WLED
Input Voltage 3.3/20.0/-10.0 V (Typ.)(IOVCC/VSP/VSN)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
