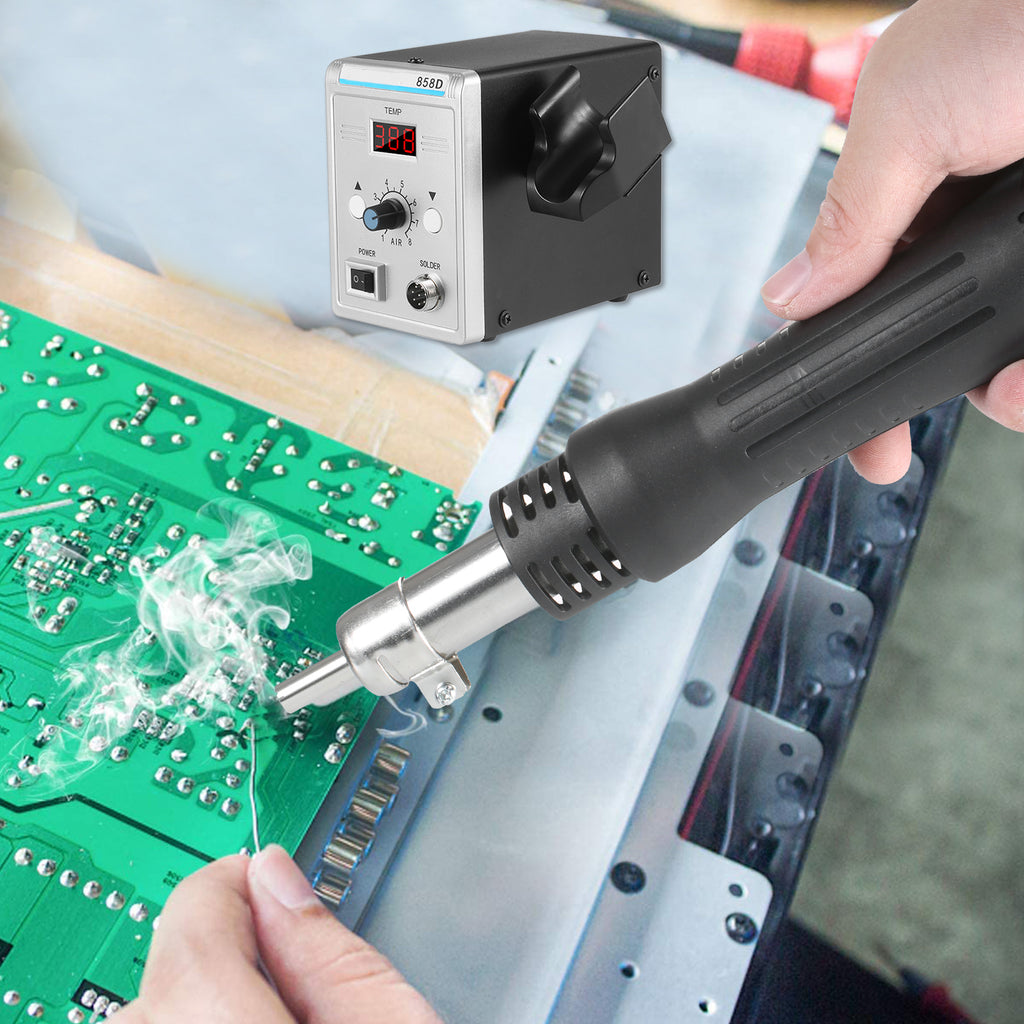

This high quality soldering station in small size is perfect for soldering, desoldering and phone maintenance. It's fast heating and it can start working in a minute.
Features:
Fast heating, it can start soldering in a minute.
Adjustable temperature with thermostat range of 100~500℃.
Adjustable air volume of hot air gun.
With strong temperature recovery function. Lower temperature is enough to weld and protect the temperature sensitive components.
Small size, brushless fan, separate design and more accurate with LED temperature display.
Solder iron in light weight, convenient to use.
Spare heating core for hot air gun's long working life.
Widely used for SOIC, CHIP, QFP, PLCC, BGA, SMD, SMT and DIP soldering work.

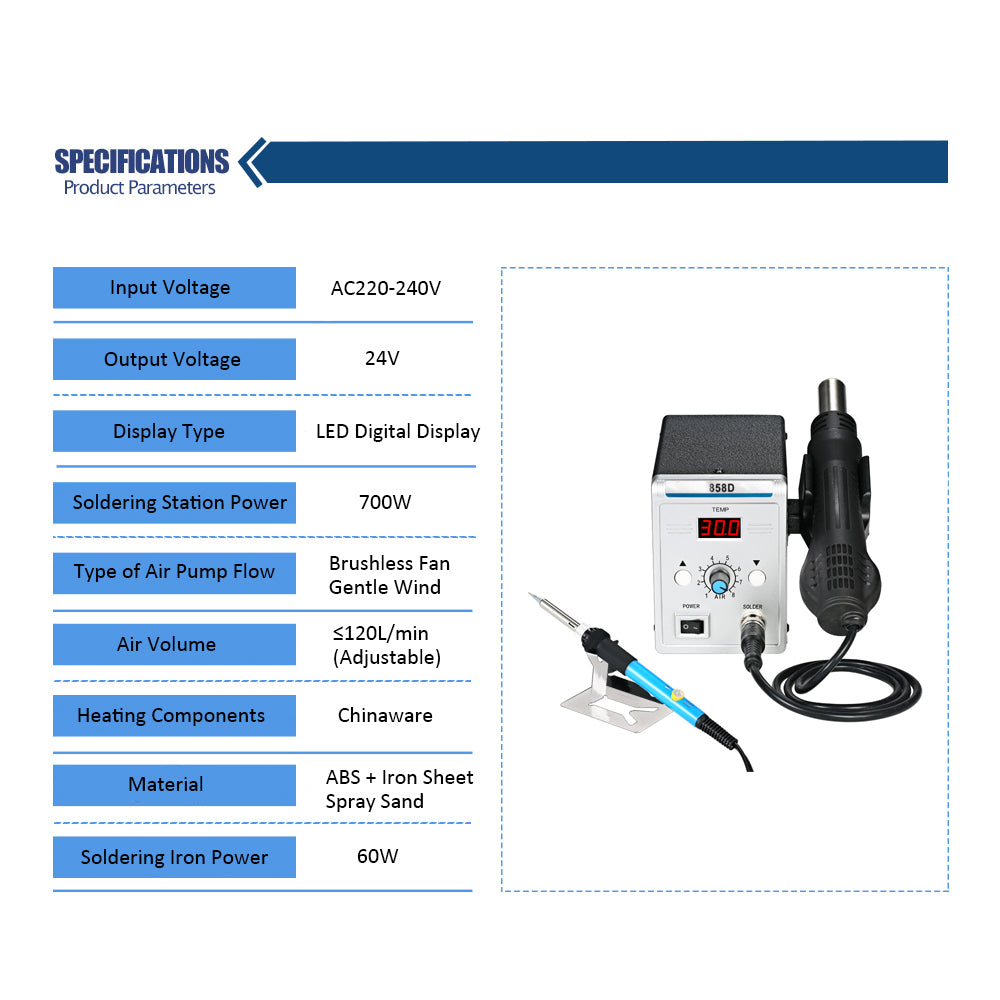

Specifications:
Model: 858D
Color: Silver + Black
Material: ABS + Iron Sheet Spray Sand
Plug type: EU / US (optional)
Input Voltage: AC220-240V
Output Voltage: 24V
Display Type: LED Digital Display
Soldering Station Power: 700W
Type of Air Pump Flow: Brushless Fan Gentle Wind
Air Volume: ≤120L/min (Adjustable)
Heating Components: Chinaware
Soldering Station Temperature Range: 100℃~500℃
Soldering Iron Power: 60W
Soldering Iron Temperature Range: 200℃~450℃
Handle Length: Approx.110cm
Hot Air Gun Size: 245 * 60 * 40mm / 9.65 * 2.36 * 1.57in
Soldering Iron Size: 220 * 22 * 22mm / 8.66 * 0.87 * 0.87in
Soldering Station Size: 93 * 155 * 138mm / 3.66 * 6.10 * 5.43in
Soldering Station Weight: 882g / 31.10oz
Package Size: 29.5 * 26 * 12.5cm / 11.61 * 10.24 * 4.92in
Package Weight: 1870g / 65.96oz

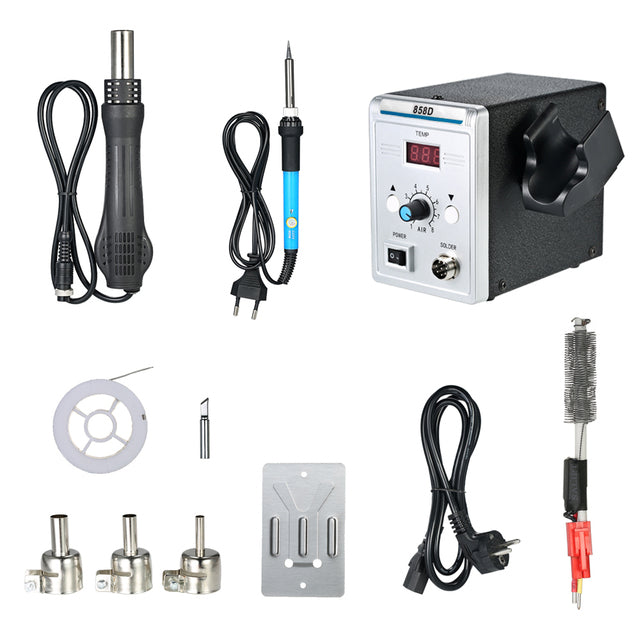

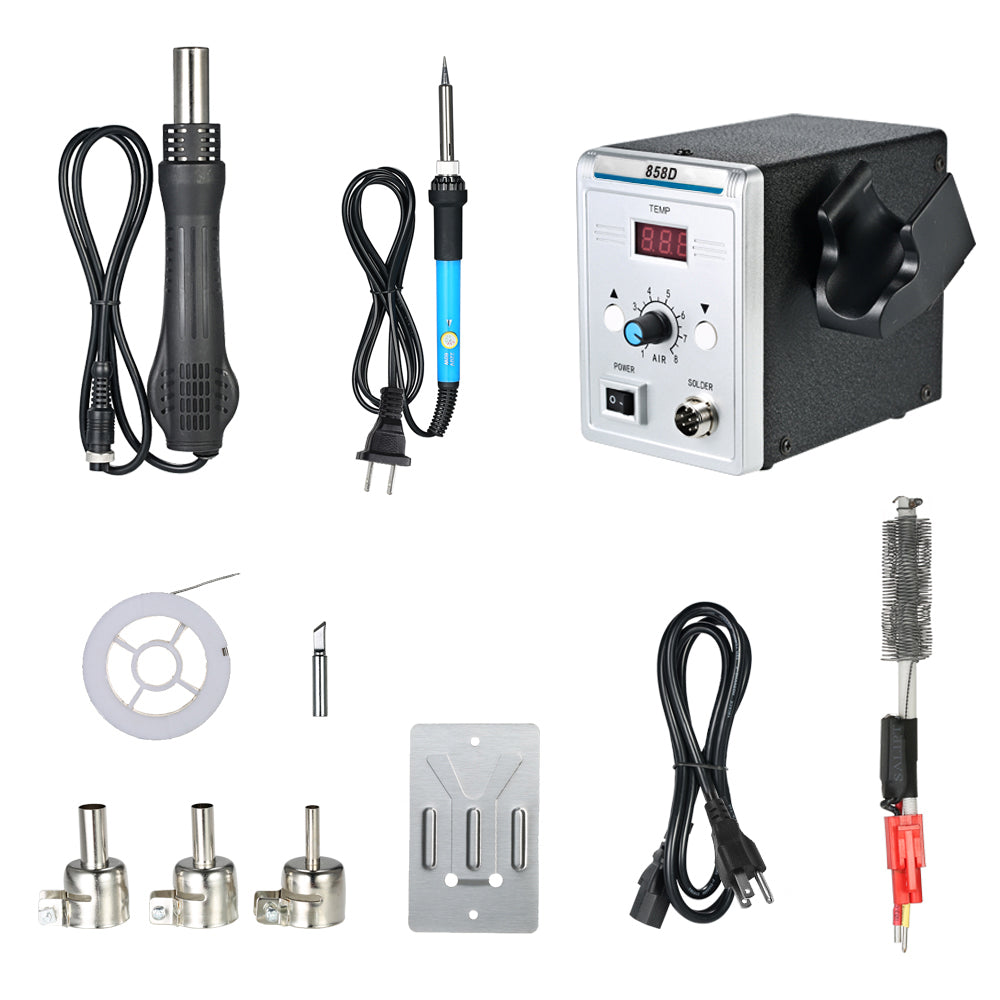

Package List:
1 * Soldering Station

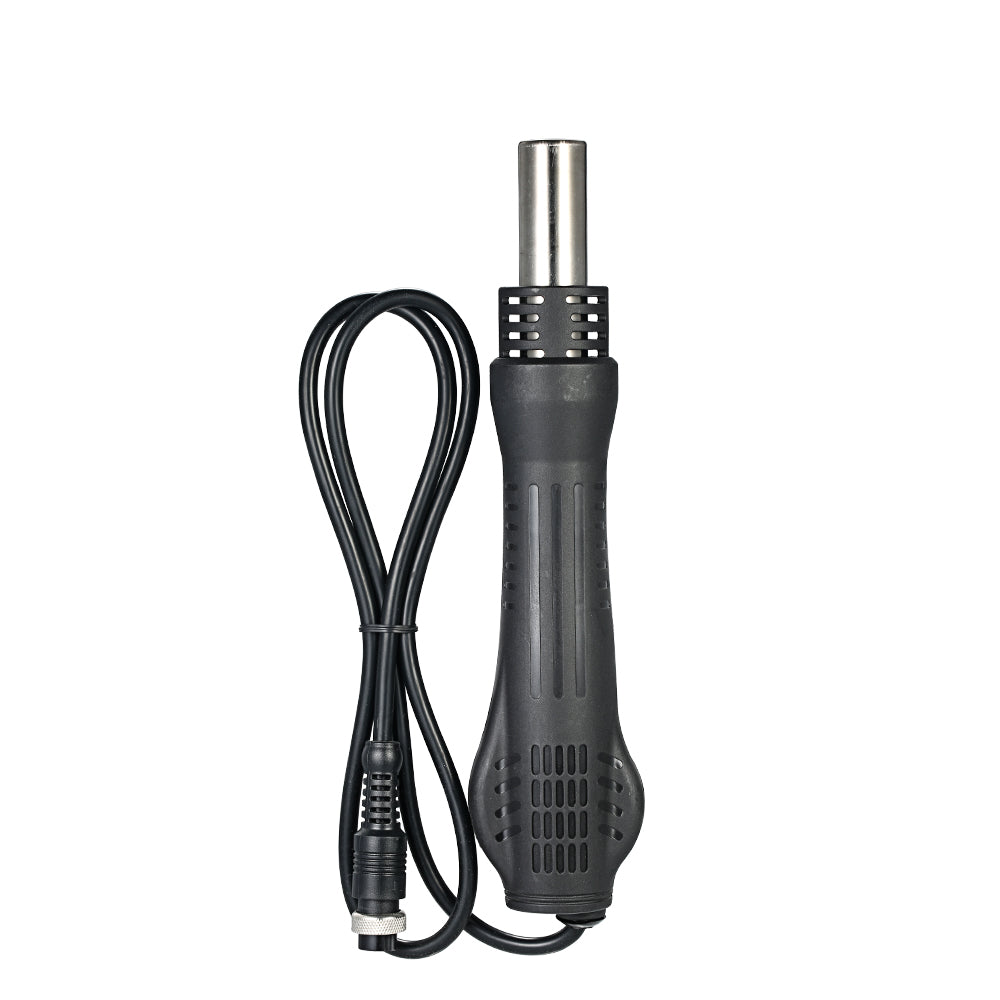

1 * Hot Air Gun
1 * Hot Air Gun Holder
1 * Hot Air Gun Heating Core

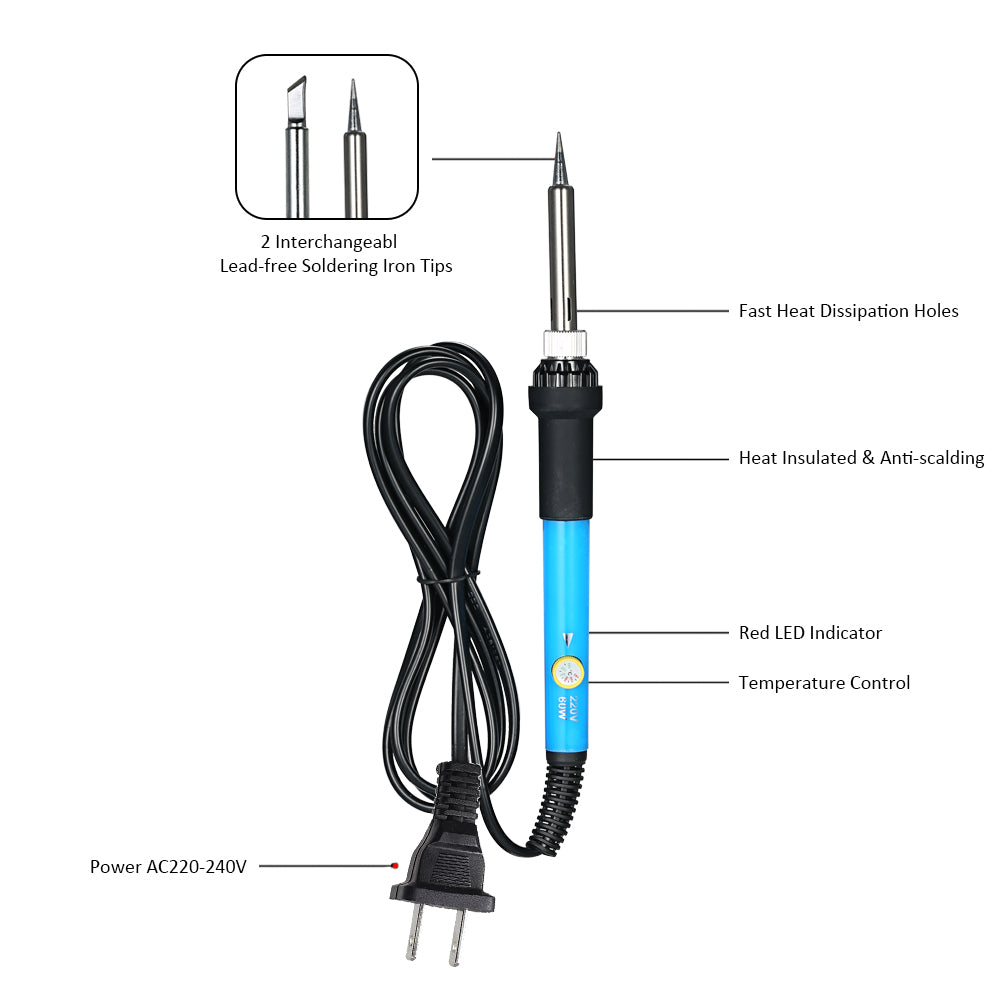

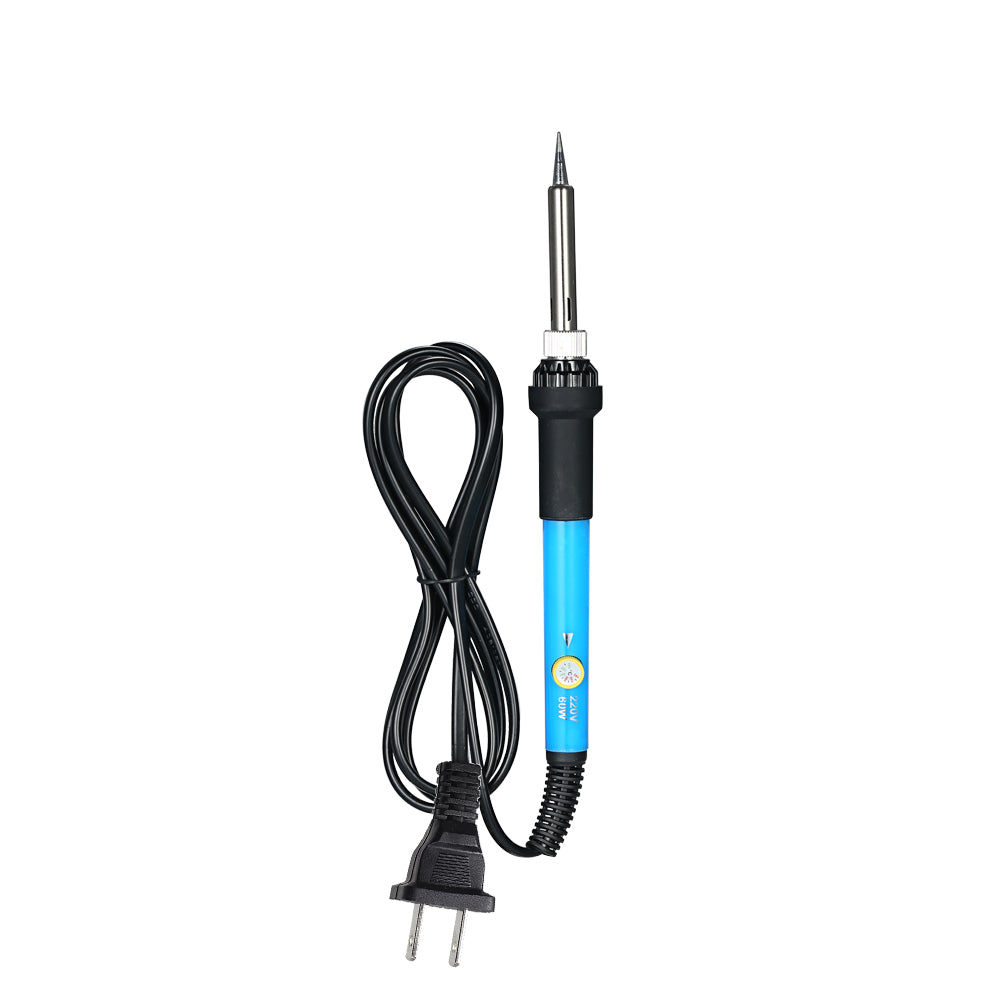

1 * 60W Solder Iron
3 * BGA Air Nozzles
1 * Y-shaped Soldering Iron Stand
1 * Solder Tip
1 * Tin Wire
1 * Power Line
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
