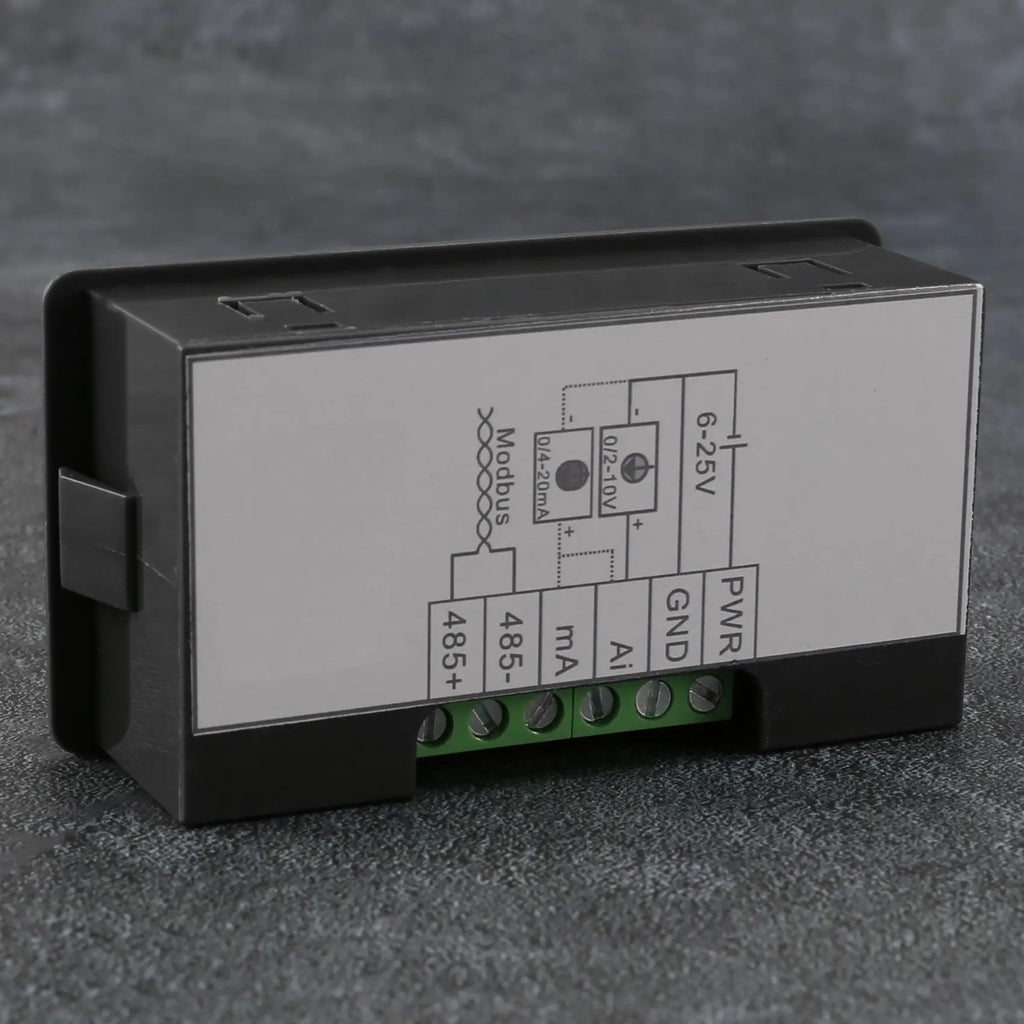

2. The instrument supports current input or voltage input.
3. Default adaptation: 0-10V, 2-10V, 0-20mA, 4-20mA. By setting the bias parameter and gain parameter, it can adapt to other inputs in the range of 0-10V, or 0-20mA.
4. It is displayed as a percentage by default. You can also set your own display range through F0-2 ~ F0-4.
5. The instrument with 485 interface has already supported the communication between the meters, and it is convenient to realize multiple displays.
Model description:standard version: HXDSBOXAH-NR:
With RS485 version: HXDSBOXA-485:
With relay output version: HX DS BOXAI-RL
Standard version and version with RS485, rated power supply voltage range: DC6~25V, power consumption: 24V/40mA: with relay output version, rated power supply voltage
Range: DC8~25V, power consumption: 24V/50mA: power supply anti-reverse connection and surge protection
Colour:gray
Material:plastic

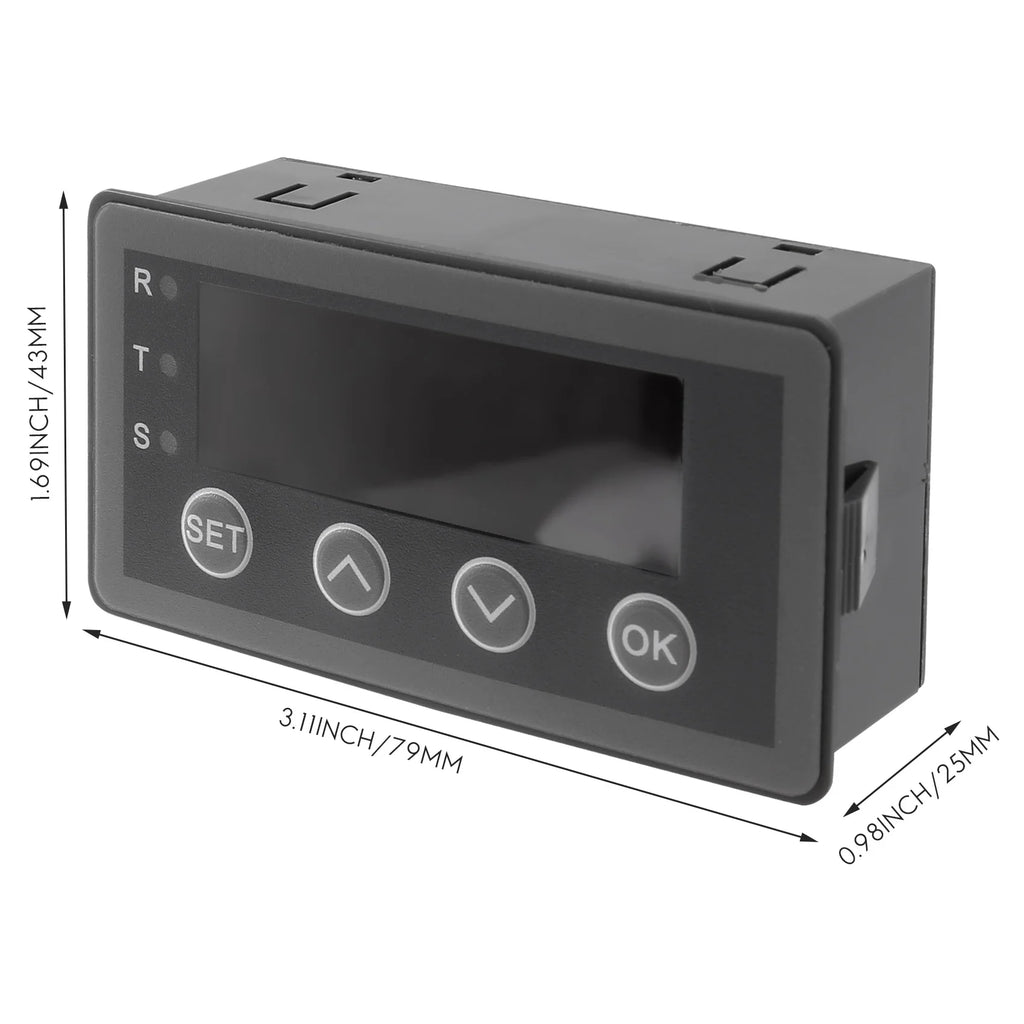

Size:79 x 43 x 25mm
Package Contents:
1 x Digital display meter
