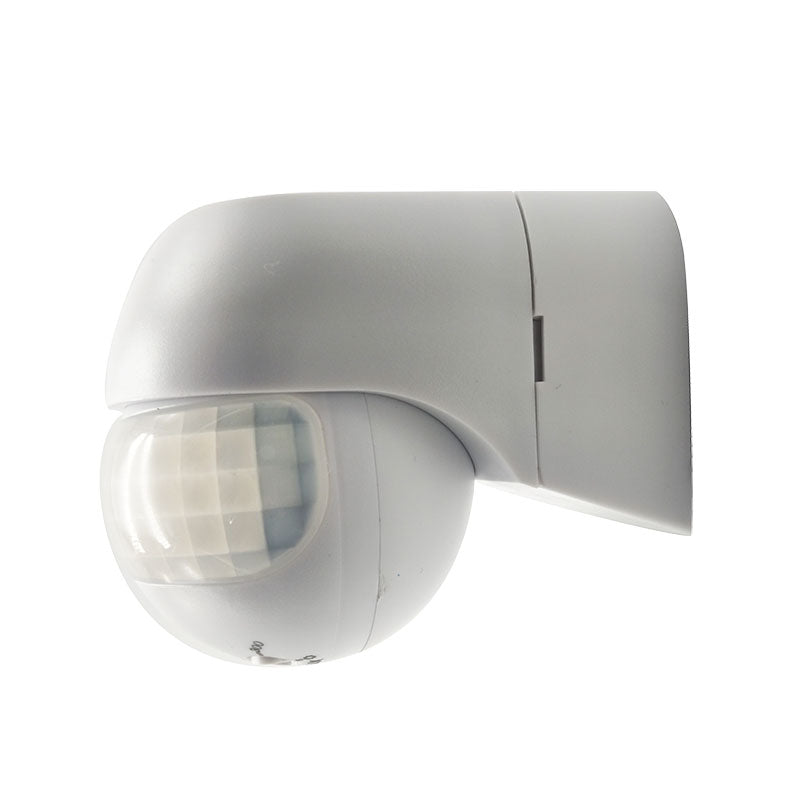

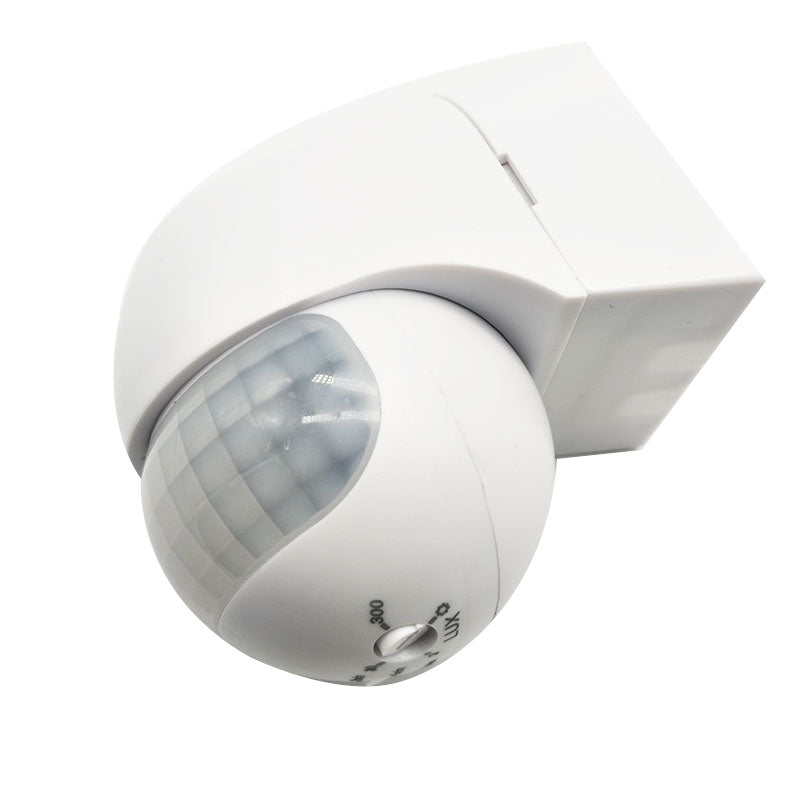

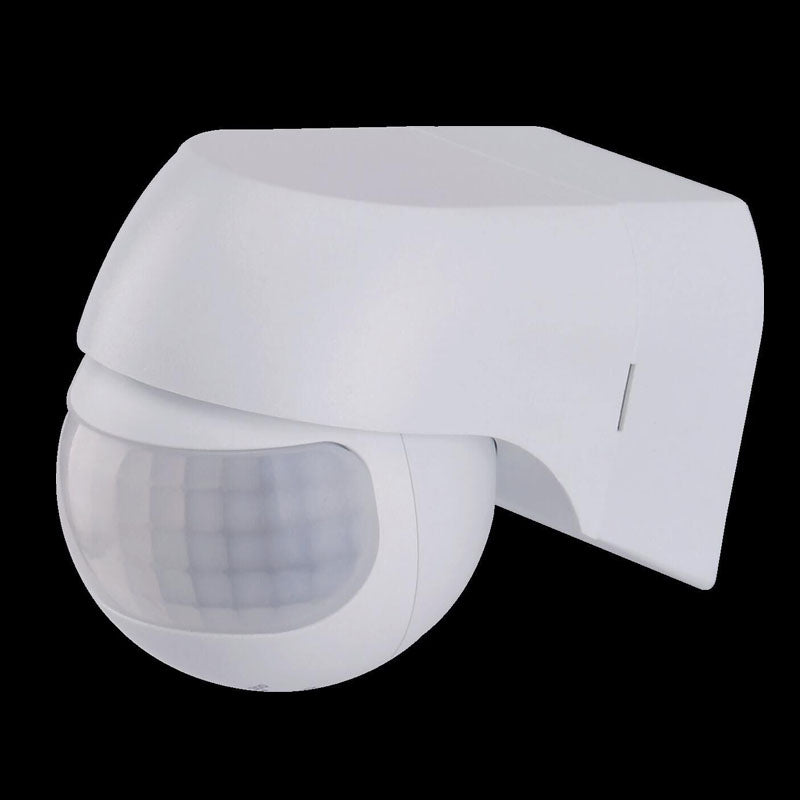

This product is a new type of energy-saving lighting switch,it adopts high sensitivity detector,integrate circuit and SMT. It gathers automatic,convenient,safe,energy-saving, practical functions. It has wide detection range made up of up and down, left and right services field.
It can identify day and night automatically. It is easy to install and its usage is wide. It has the function of power indiction and detection indication.
Power source: 110-240V AC
Detection angle: 180 degree
Type:Biosensor
Output:Switching Transducer
Model Number:1008A
Theory:Optical Sensor
Usage:Position Sensor
Detection distance: 30m max
Power frequency: 50/60Hz

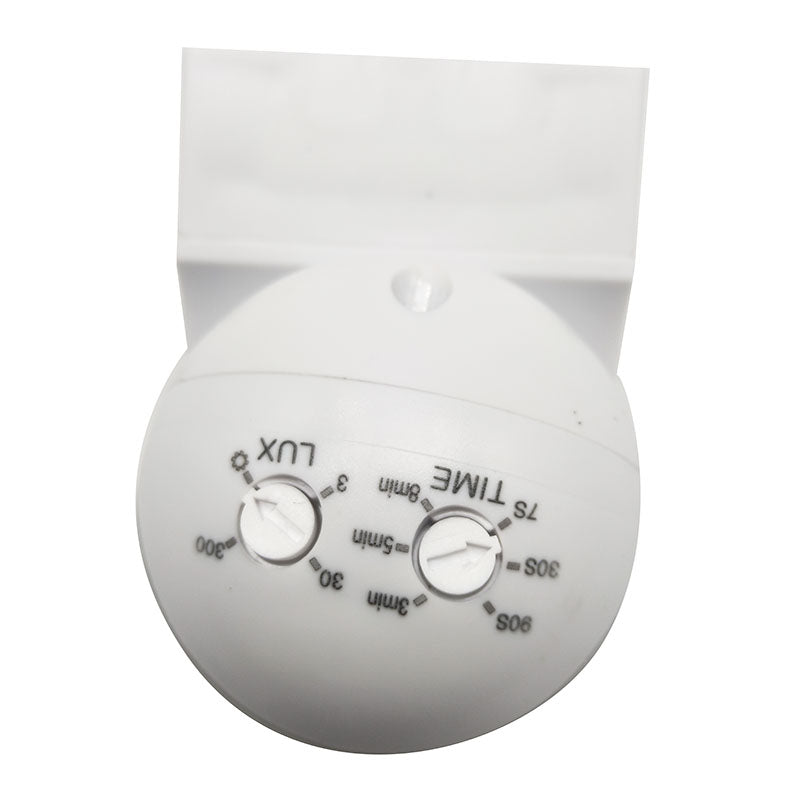

Ambient light: 3-2000LUX(adjustable)
Rated load:
800W (Resistive load like incandescent lamp)
200W (inductive load such as LED, energy saving lamp )
Working temperature: -20~+40
Time-delay:
min: 5sec +/- 3sec
Max: 8min +/- 2min
Power consumption: approx 0.5W
Working humidity: Less than 93%RH
Installation height:1.8m-2.5m
Detection motion speed: 0.6-1.5m/s
IP Grade: IP44(Suitable for indoor and outdoor)
Color: White
Material:ABS
size:10*5cm
Package Contents:
1 * PIR Infrared motion sensor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
