High-definition, high-contrast TFT display with Chinese and English menus for clearer and more intuitive operation.
Real-time spectrum monitoring function; directly access the spectrum to visually view the on-site wireless signal situation and ensure interference-free frequencies are selected.
Supports charging with a TYPE-C charging port.
Provides XLR balanced output; includes an XLR to 6.35 adapter for compatibility with more devices.
Uses ID numbering for quick identification and differentiation of corresponding receivers and transmitters.
System output gain adjustable from -18dB to +15dB.

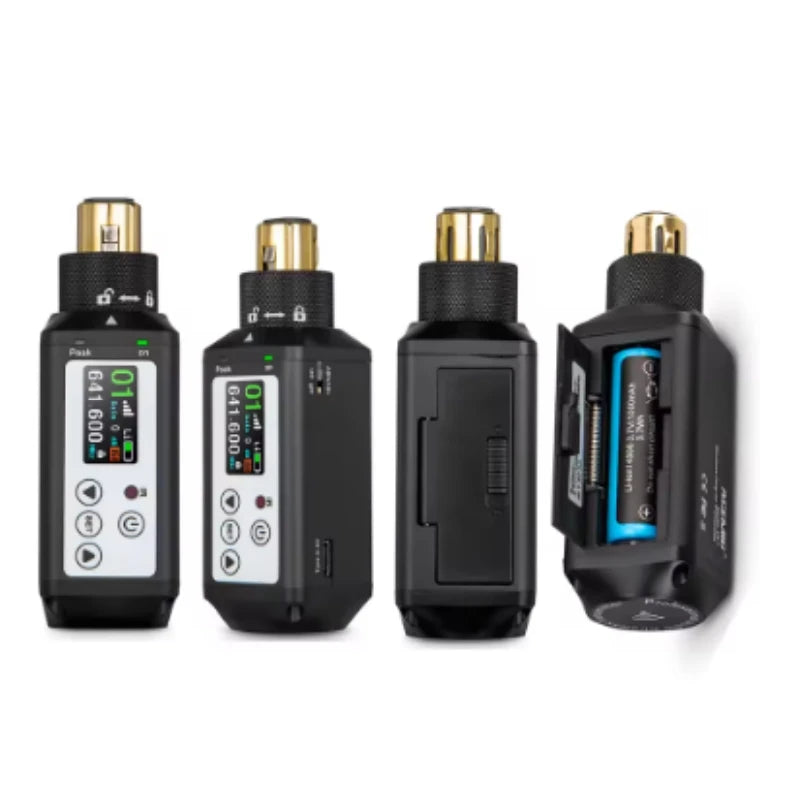

Simultaneously supports 14500 lithium batteries and standard 1.5V AA batteries.
The XLR wireless microphone adapter is suitable for stage performance, public speaking, classroom teaching, church etc.
Specifications
Frequency Range: UHF 600-937 MHz (region dependent)
System Performance
Dynamic Range: >105dB
Total Harmonic Distortion: <0.5% (Line)
Frequency Respons: 35Hz~18KHz (Line)
RECEIVER
Frequency Range: 610-640 MHz/640-670 MHz
(USA: 902-928, UK: 823-832,863-865; ROK: 925-937 MHz)
Bandwidth: 30MHz
Maximum Channels: 1200
Receiver Sensitivity: -95dBm/S/N=12dB
Frequency Stability: ±10PPM
Antenna Input: 1*SMA/50Ω
Image Rejection: >100dB
Third-Order Intermodulation Rejection: >75dB
Blocking Rejection: >75dB
Adjacent Channel Rejection: >100dB (±200KHz)
Power Requirements: 1 x 14500 Lithium Battery or 1 x AA Alkaline Battery
Battery Life: Standard 14500 Lithium Battery: Approximately 8 hours
TRANSMITTER
Frequency range: 610-670 MHz
(USA: 902-928, UK: 823-832,863-865; ROK: 925-937 MHz)
Bandwidth: 88M
Maximum number of channels: 8800
Transmit power: 10/20mW
Maximum frequency deviation: 65KHz
Phantom power supply for pins 2 and 3: 15V/48V
Power requirements: 1*14500 lithium battery or 1 AA alkaline battery
Battery life: Standard 14500 lithium battery 8-9 hours (high power mode) 10-11 hours (low power mode)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
