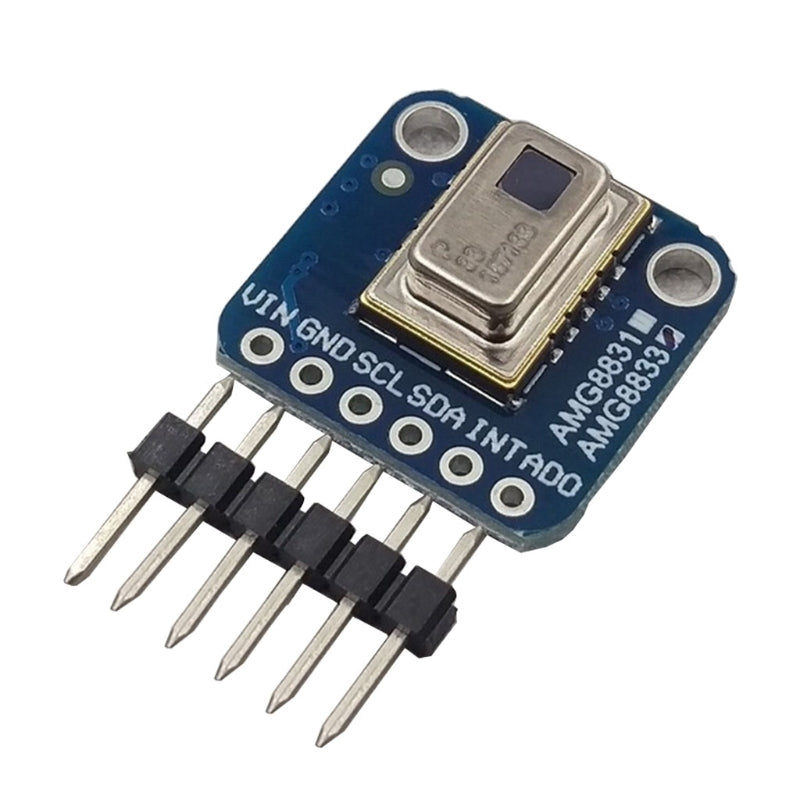

AMG8833 thermal imaging camera sensor is an 8x8 infrared thermal sensor array. When connected to your microcontroller, it will return a set of 64 individual infrared temperature readings via I2C. This is like those fancy thermal imaging cameras, but compact and simple for easy integration. The sensor only supports I2C and has a configurable interrupt pin, which can trigger when any single pixel is higher or lower than the threshold you set.
On Pi, with the help of image processing from SciPy python library, we can insert 8x8 grids and get some very good results.

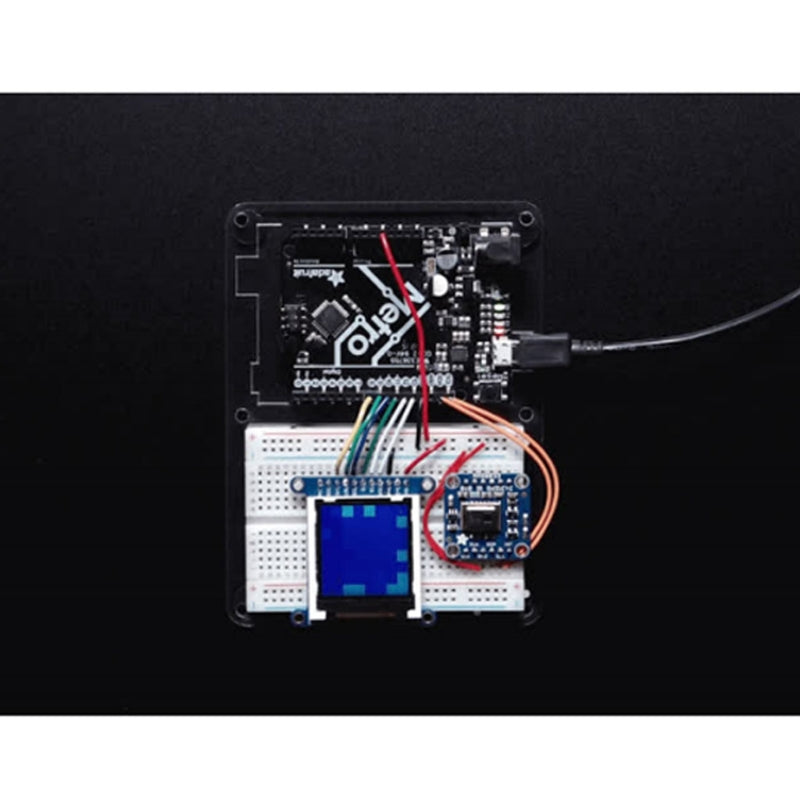

The AMG8833 thermal imaging camera sensor is very suitable for creating your own human detector or mini thermal imaging camera.
Specifications:
Product Name: Infrared Thermal Imager Sensor Module
Temperature measurement range: 0ðC~80ðC (32ðF~176ðF)
Accuracy: ñ2.5ðC (4.5ðF)
Detection distance: up to 7 meters
Maximum frame rate: 10Hz
Power supply: 3-5V
Material: ABS+metal

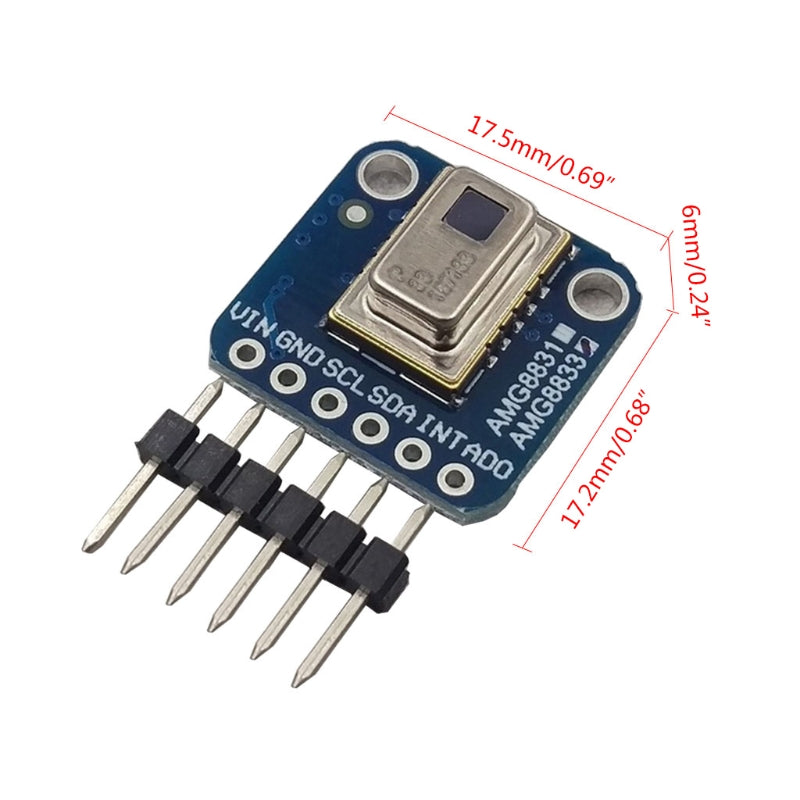

Size: app.25.8mm x 25.5mm x 6.0mm/1.02x1.00x0.24in
Color: As pictures shown
Quantity: 1pc
Note:
Please allow 0-2 cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x Infrared Thermal Imager Sensor Module (other accessories demo in the picture is not included.)
