100% brand new and high quality

 Features:

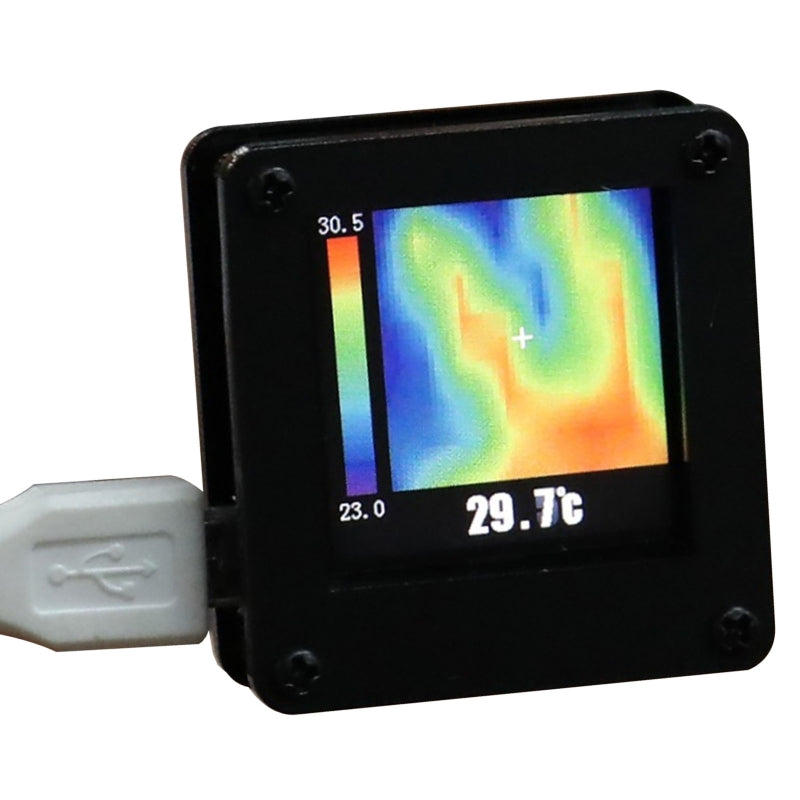

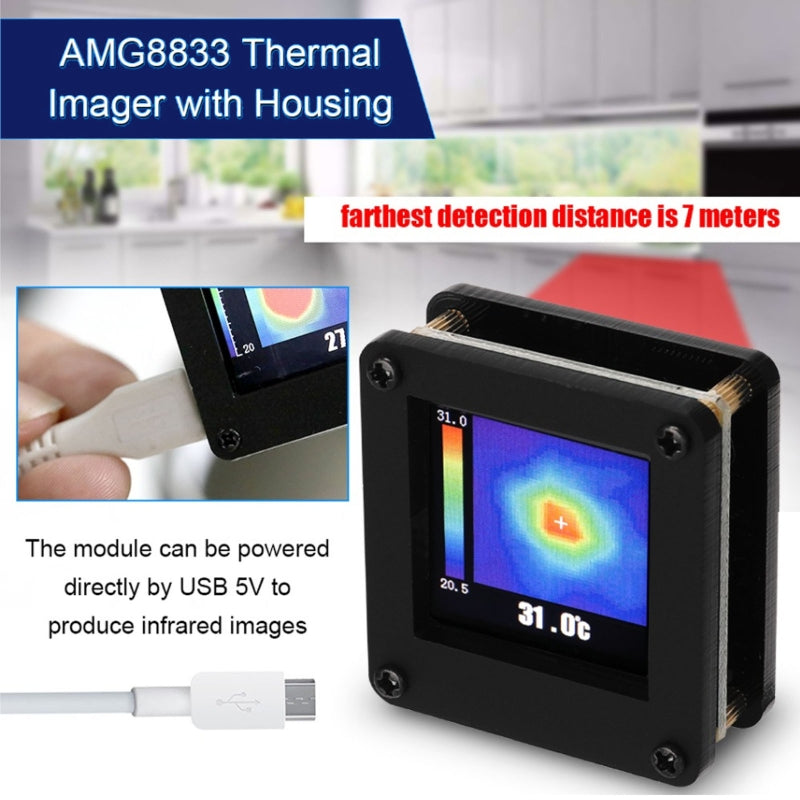

    This is an infrared thermal imager that combines the functions of surface temperature measurement and real-time thermal imaging. The traditional thermal imaging camera needs to measure each component one by one, while this instrument does not need to. Therefore, it helps to save your time. Even the potential problems can be clearly displayed on the color screen which helps users quickly locate the central point to measure cursor and temperature.    Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.    The module can be powered directly by USB 5V to produce infrared images.    Use AMG8833 infrared thermal sensor. The resolution is 8x8, and the farthest detection distance is 7 meters.    It can be applied to check electronic products.    Portable and compact, high performance, easy to use.

 Specification:

    Product name: Infrared Thermal Imager    Temperature accuracy:    High performance type high gain: typical ±2.5℃ ±4.5℉    High performance type low gain: typical ±3.0℃ ±5.4℉    Human detection distance: 7m or less (reference value) 22.966 ft

  NETD:

    Typ. 0.05℃ 32.900℉ 1Hz    Typ. 0.16℃ 32.288℉ 10Hz    Viewing angle: typical 60°    Optical axis gap: within typical ±5.6°    Current consumption:    Typical 4.5mA (normal mode)    Typical 0.2mA (sleep mode)    Typical 0.8mA (stand-by mode)

  Setup time:

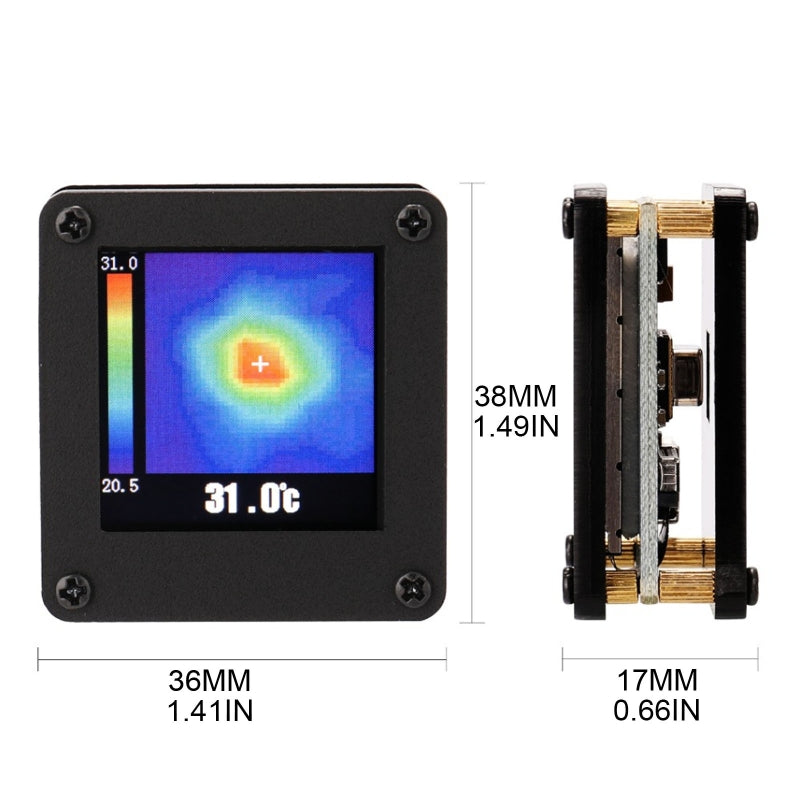

    Typical 50ms (time to enable communication after setup)    Typical 15s (time to stabilize output after setup)    Number of pixel: 64 (vertical 8 * horizontal 8 matrix)    External interface: 1²C (fast mode)    Frame rate: typical 10 frames/sec or 1 frame/sec    Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)    Output mode: temperature output    Calculate mode: no moving average or twice moving average    Temperature output resolution: 0.25℃ / 32.45℉    Number of sensor address: 2 (1²C slave address)    Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)    Thermistor output resolution: 0.0625℃ / 32.1125℉    Material: ABS    Size: app.38x36x17mm/1.50x1.42x0.67in    Color: Black    Quantity: 1pc

 Note:

    Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.    Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

 Package includes:

    1 x Infrared Thermal Imager(other accessories demo in the picture is not included.)
