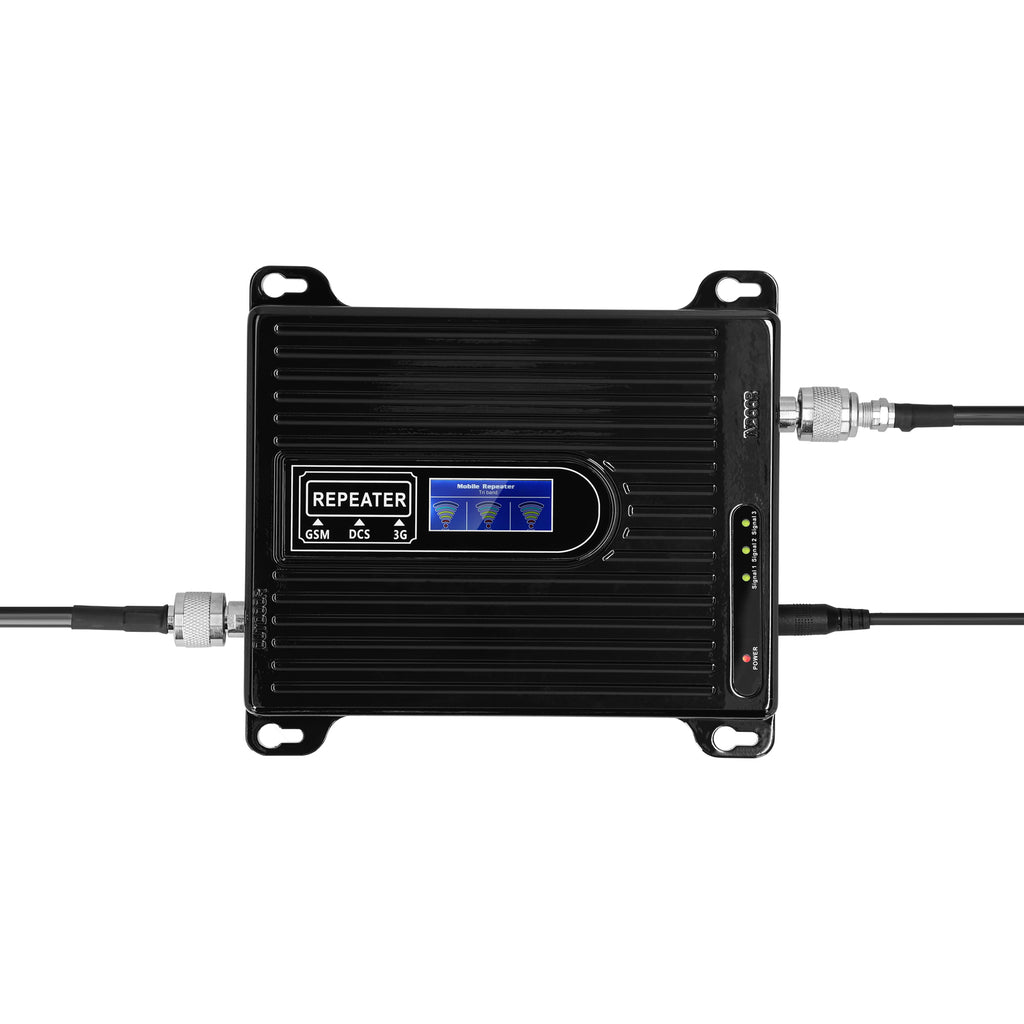

This communication re-peater station kit is designed to enhance mobilephone signal coverage for indoor applications by capturing a signal externally, amplifying and retransmitting a clear and reliable signal within the desired coverage area. The performance of this re-peater kit will depends on the external signal strength, which is provide as input to the re-peater base unit. Come on and enjoy it, it will not let you down.
Features:
Wide applications: This powerful signal b-ooster suitable for your home in rural and suburbans area to use, also suitable for the office, hotel and so on places.
Adopt LCD display screen, which can let you see the display data more clearly, give you a better using experience.

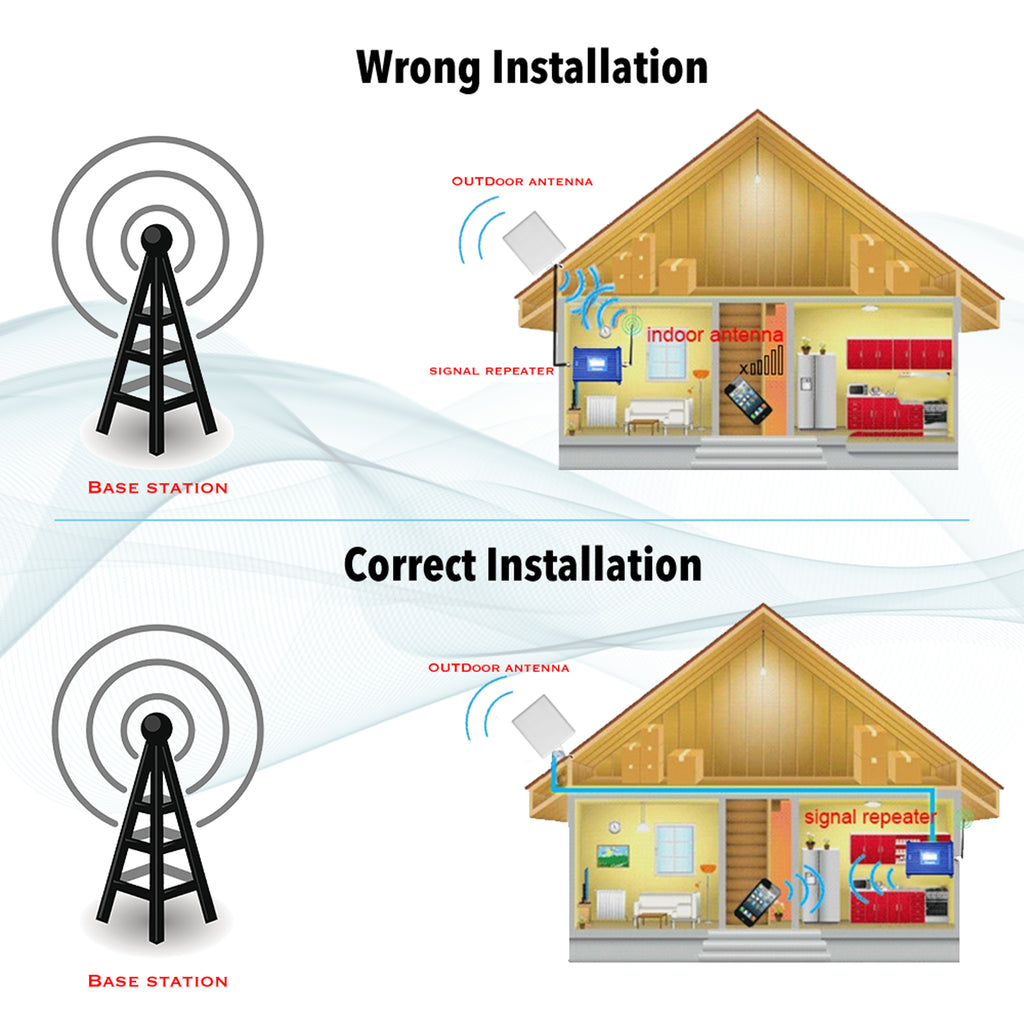

Easy to install: It just need a several step to install, you complete the installation yourself, you can refer to the user manual for faster installation.
Low radiation value, safer and no harm to the human body and can resolve the signal problems.
Use this signal-amplifier to increase the data speed of your mobilephone and avert dropped connections. A stronge mobilephone signal connection can improve work efficiency.

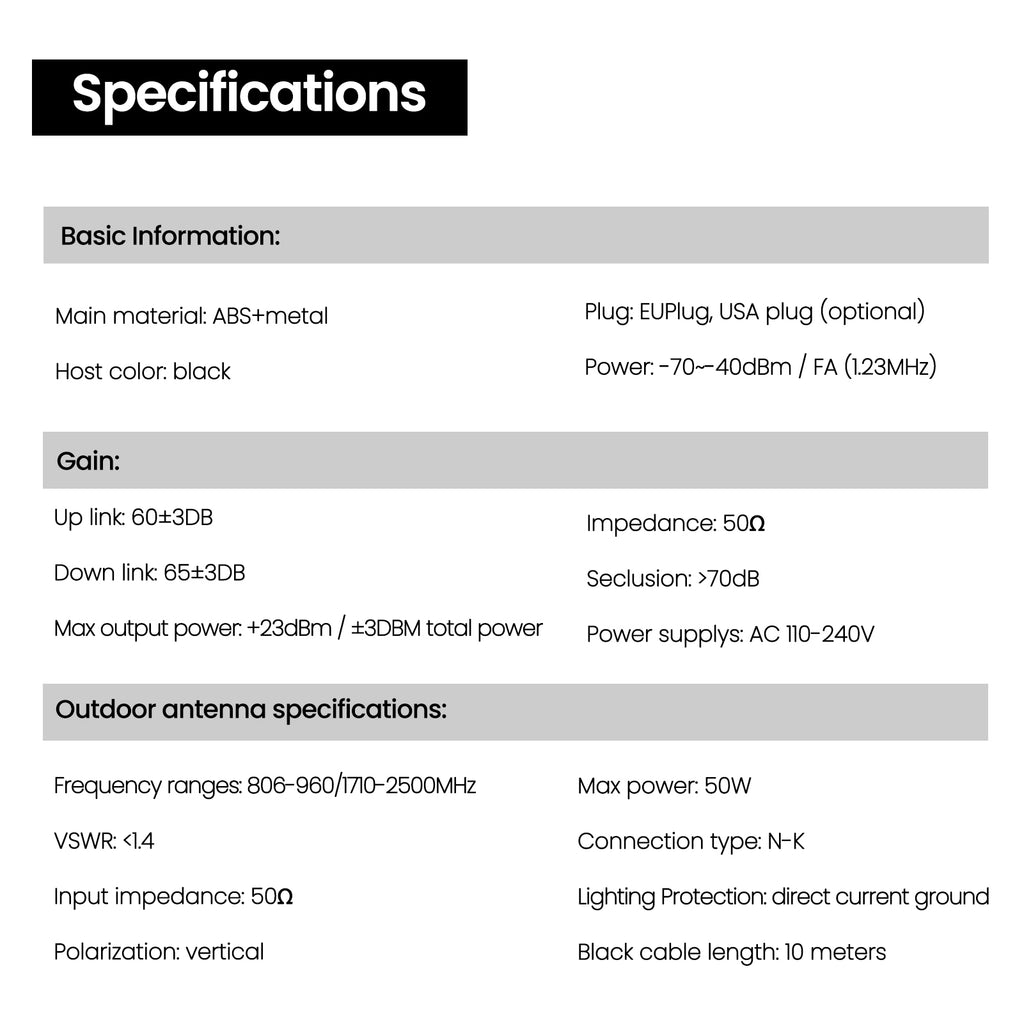

Specifications:
Main material: ABS+metal
Host color: black
Plug: EUPlug, USA plug (optional)
Power: -70~-40dBm / FA (1.23MHz)
Gain:
Up link: 60±3DB
Down link: 65±3DB
Max output power: +23dBm / ±3DBM total power
Impedance: 50Ω
Seclusion: >70dB
Power supplys: AC 110-240V
Outdoor antenna size: 206 * 177 * 44mm / 8.1 * 7.0 * 1.7in
Outdoor antenna weight: 369g / 13.0ounce

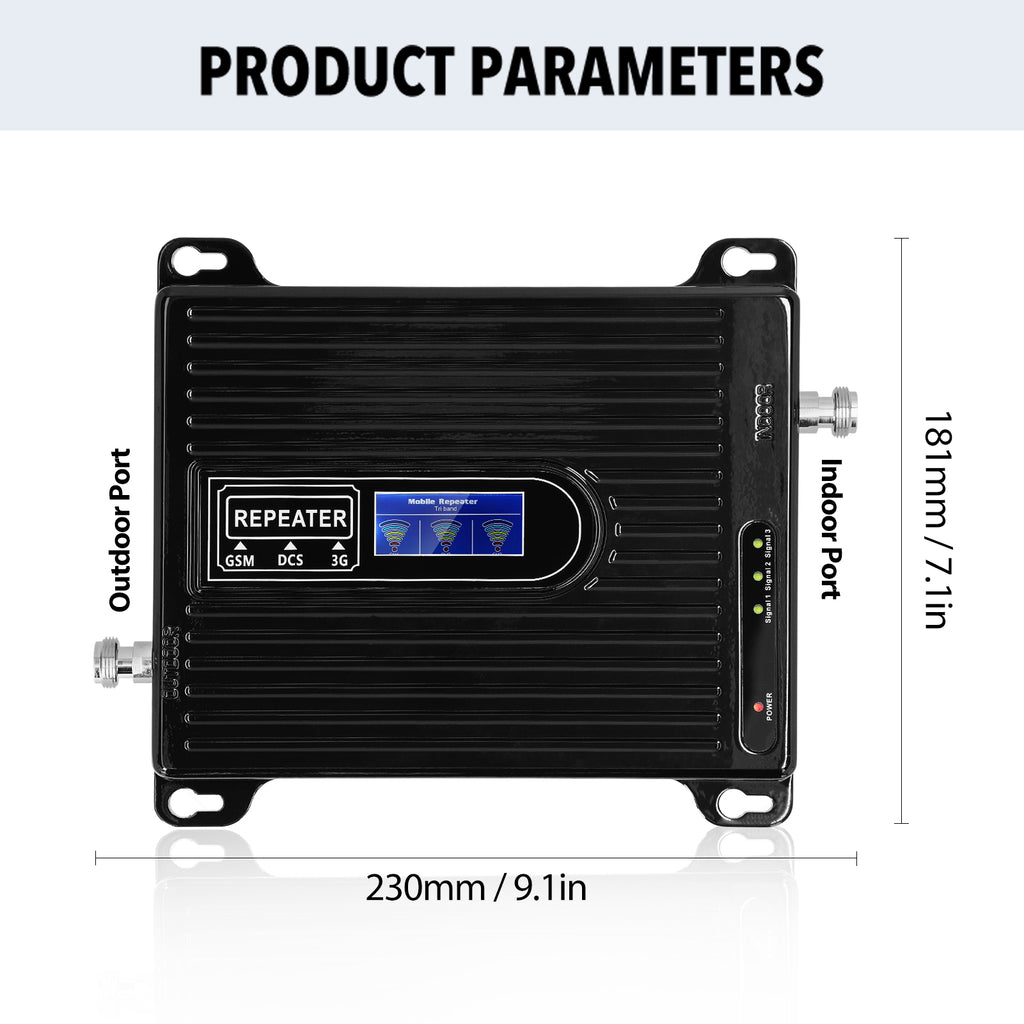

Tri-band re-peater size: 230 * 181 * 20mm / 9.1 * 7.1 * 0.8in
Tri-band re-peater weight: 859g / 1.9lb
Outdoor antenna specifications:
Frequency ranges: 806-960/1710-2500MHz
VSWR: <1.4
Input impedance: 50Ω
Polarization: vertical
Max power: 50W
Connection type: N-K
Lighting Protection: direct current ground
Black cable length: 10 meters
Package size: 470 * 330 * 190mm / 18.5 * 13.0 * 7.5in
Package weight: 3126g / 6.9lb
Note:
Not applicable to 800 and 2600MHz of 4G.

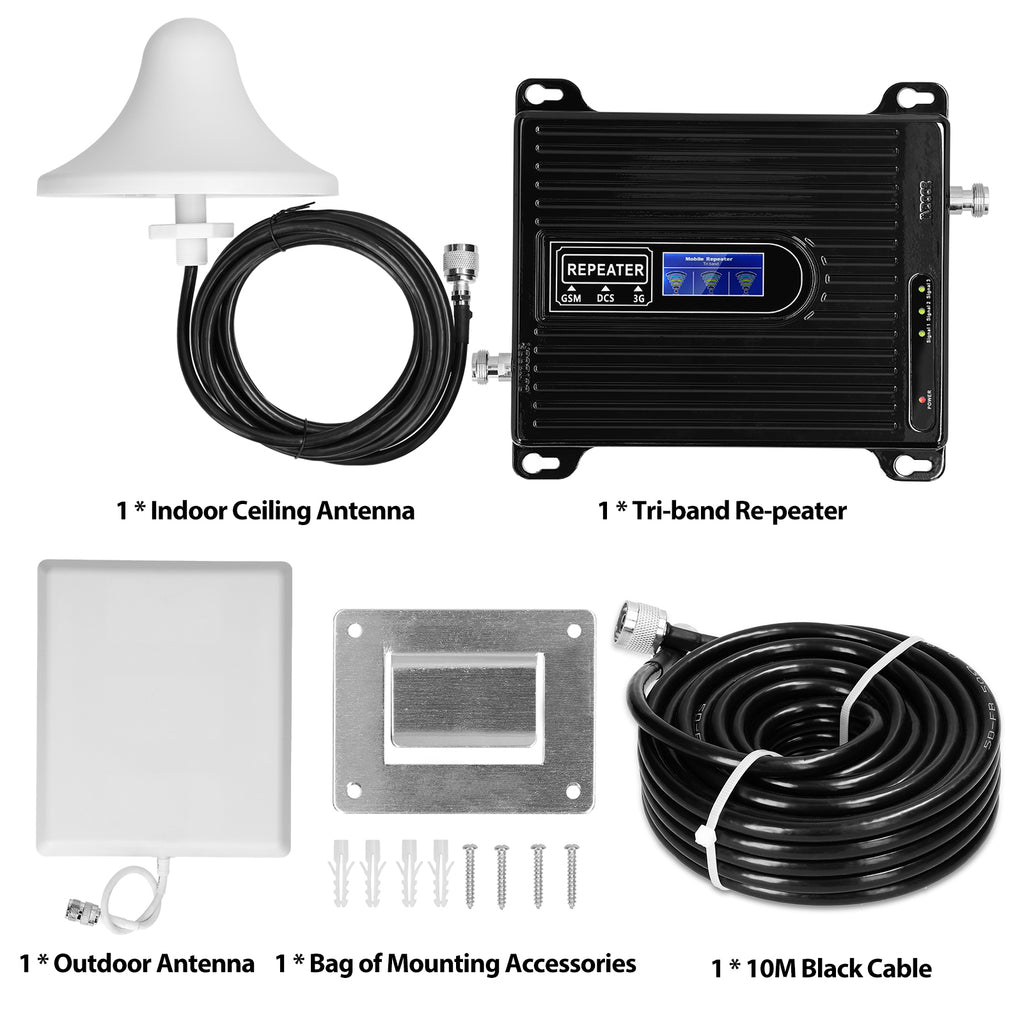

Packing list:
1 * Tri-band Re-peater
1 * Plug (Optional)
1 * Indoor Ceiling Antenna
1 * Outdoor Antenna
1 * Black Cable
1 * Bag of Mounting Accessories
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
