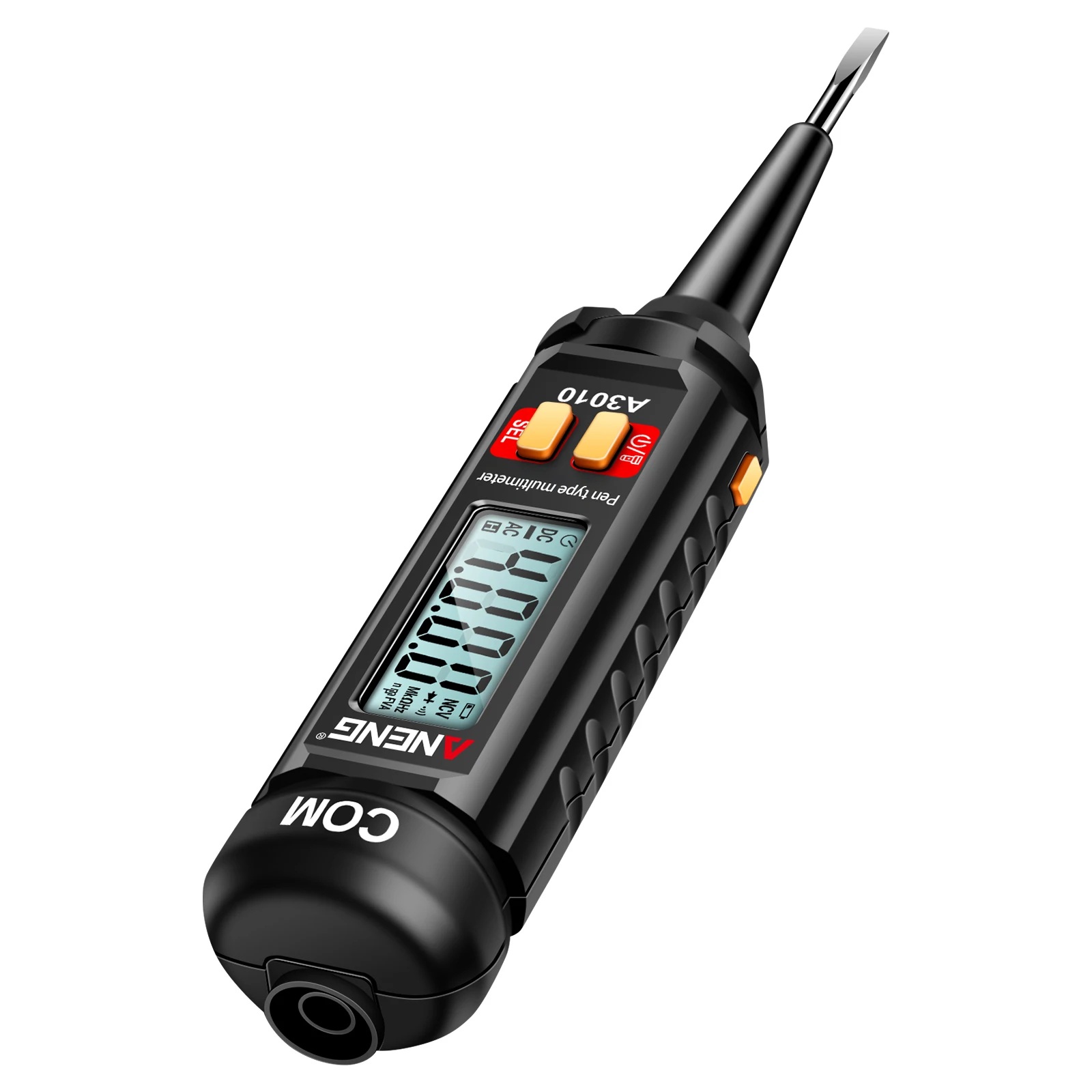

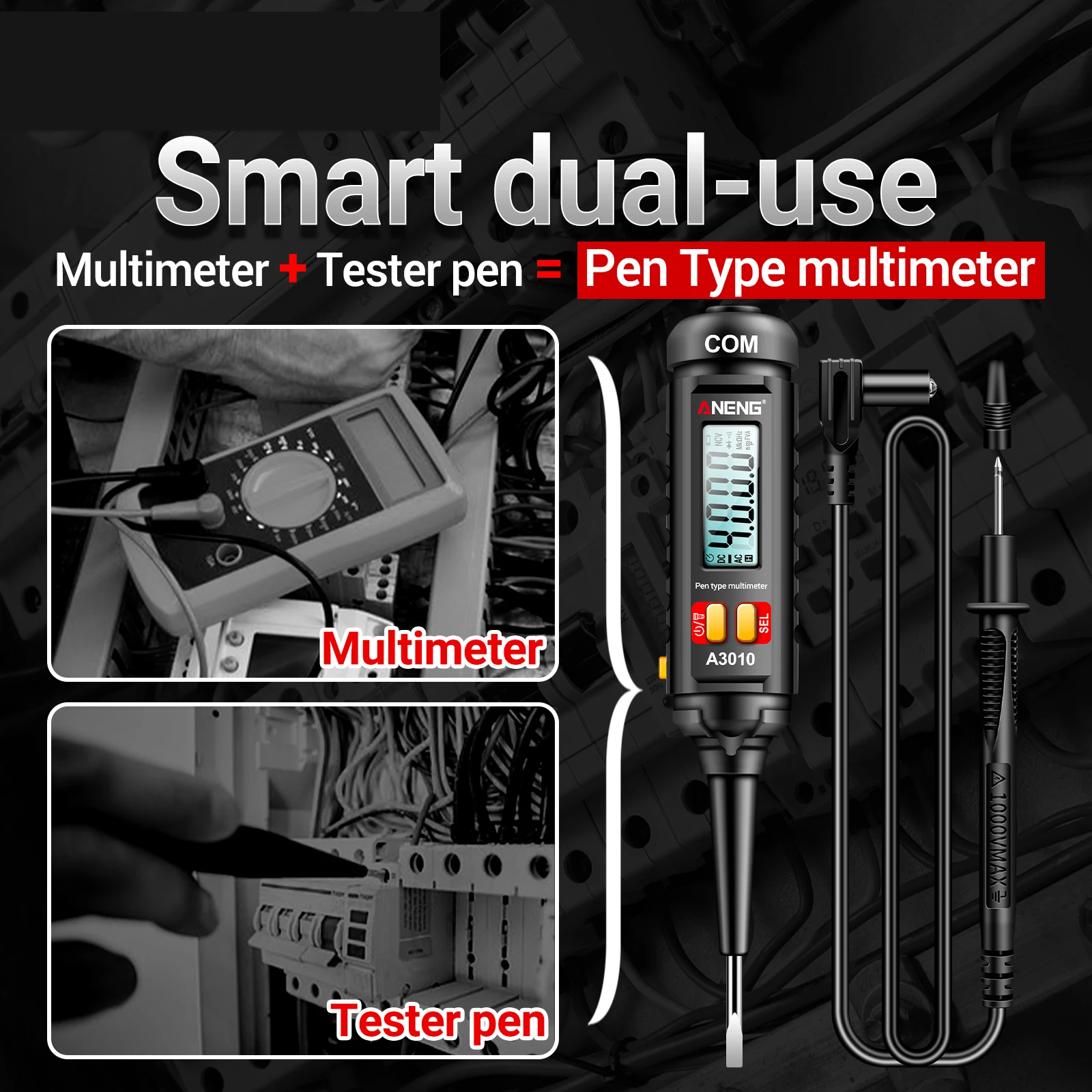

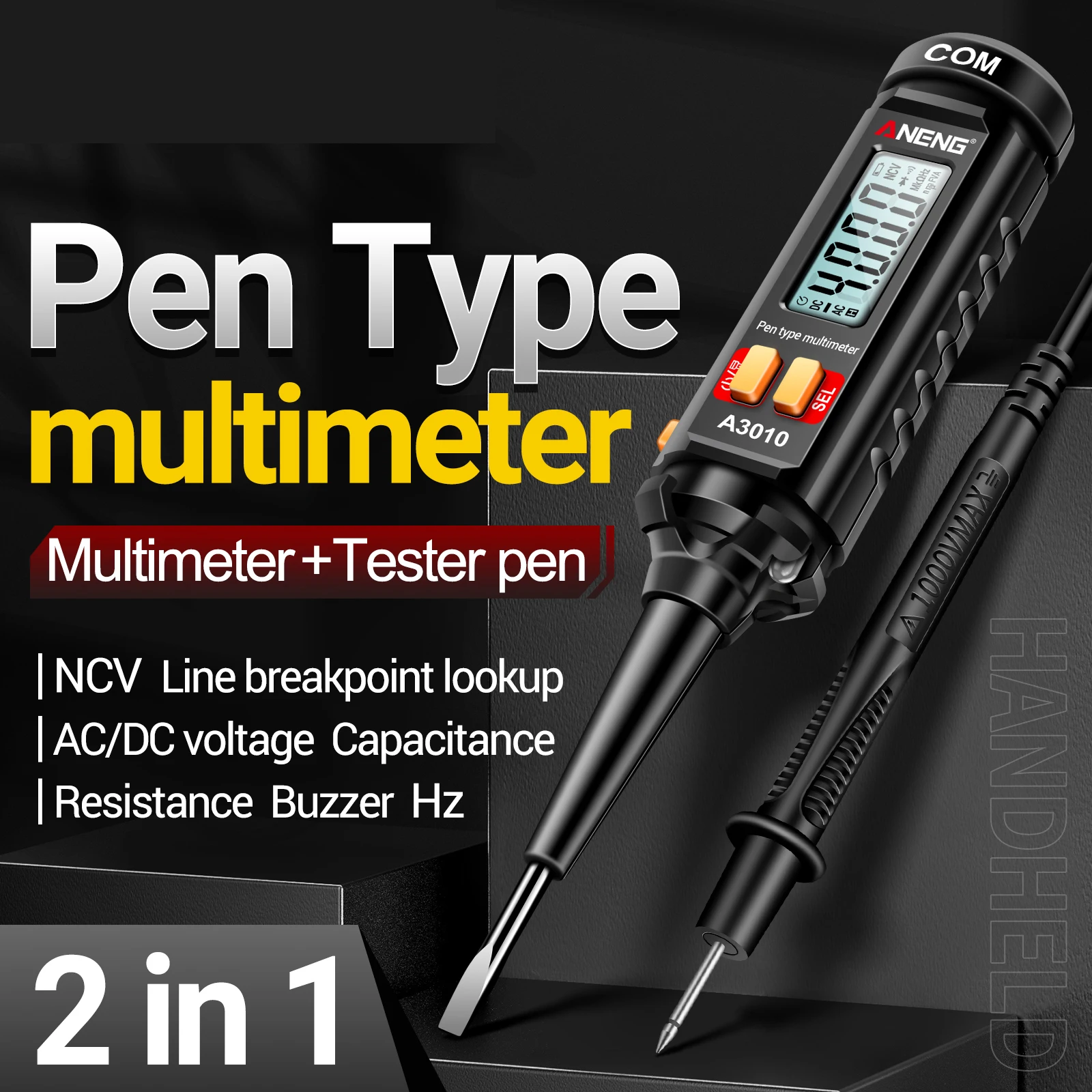

This instrument performs AC/DC voltage, resistance, capacitance, audible continuity, diode and frequency measurement. It has the functions of polarity indication, data hold, over range indication. It can be operated easily and is an ideal instrument tools.
Features:

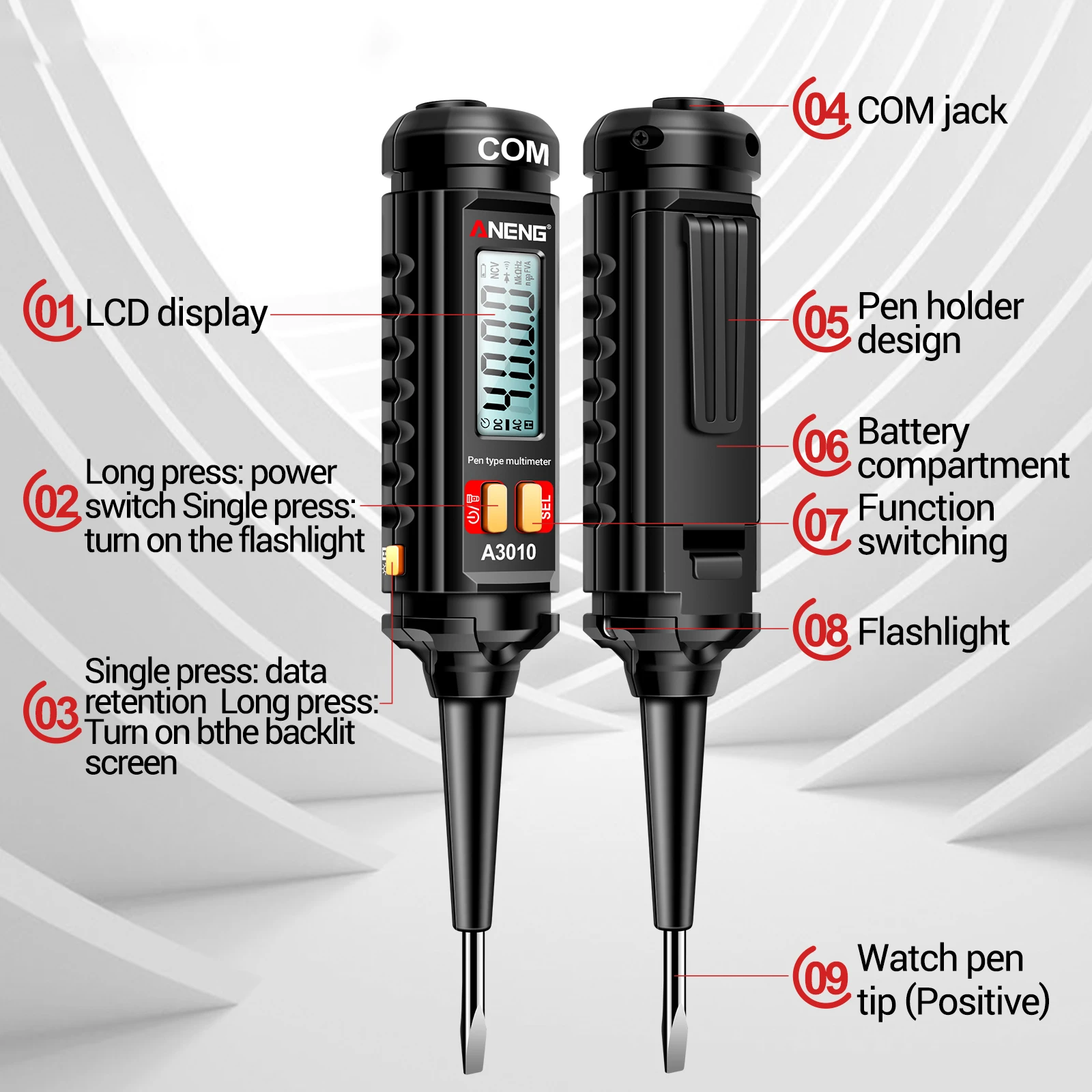

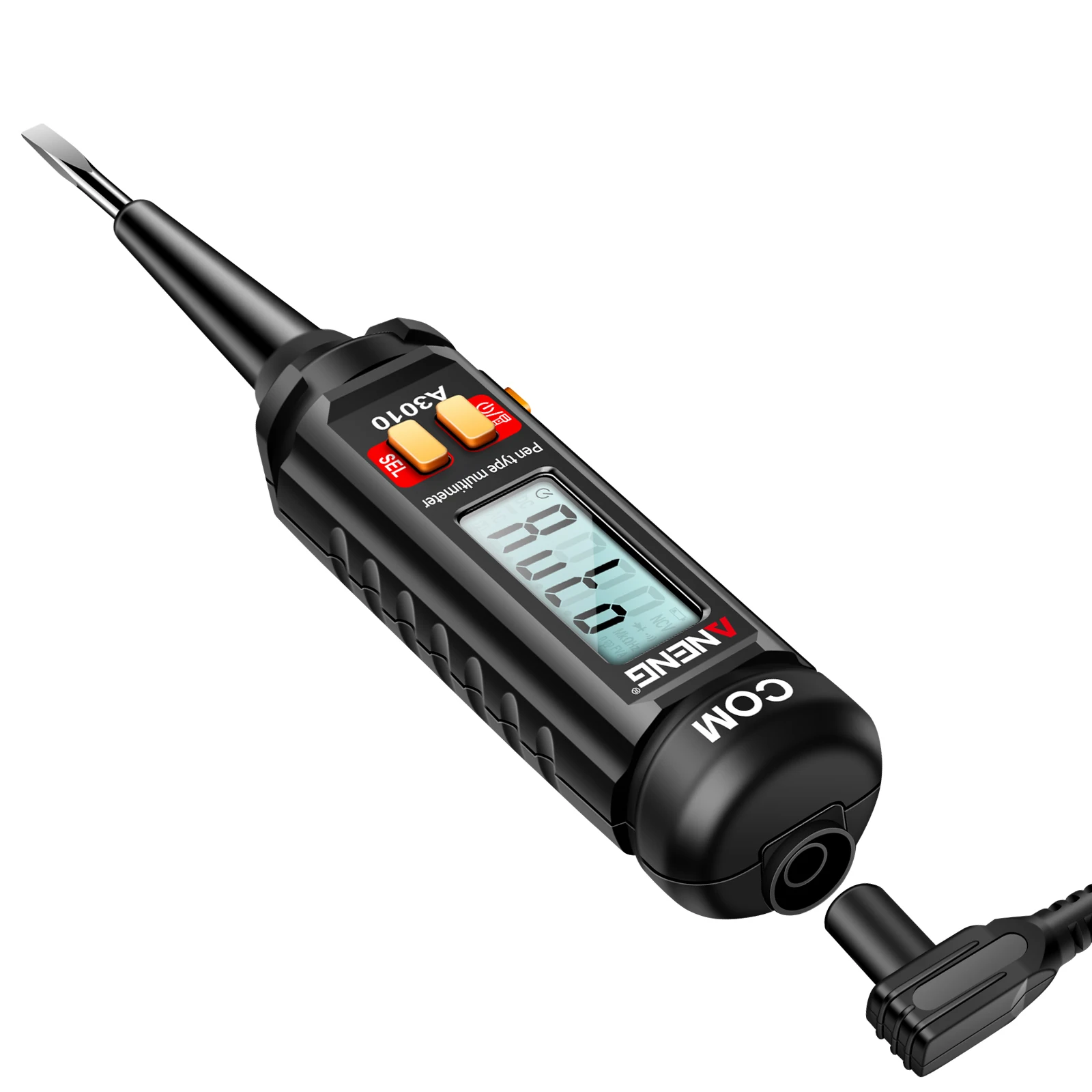

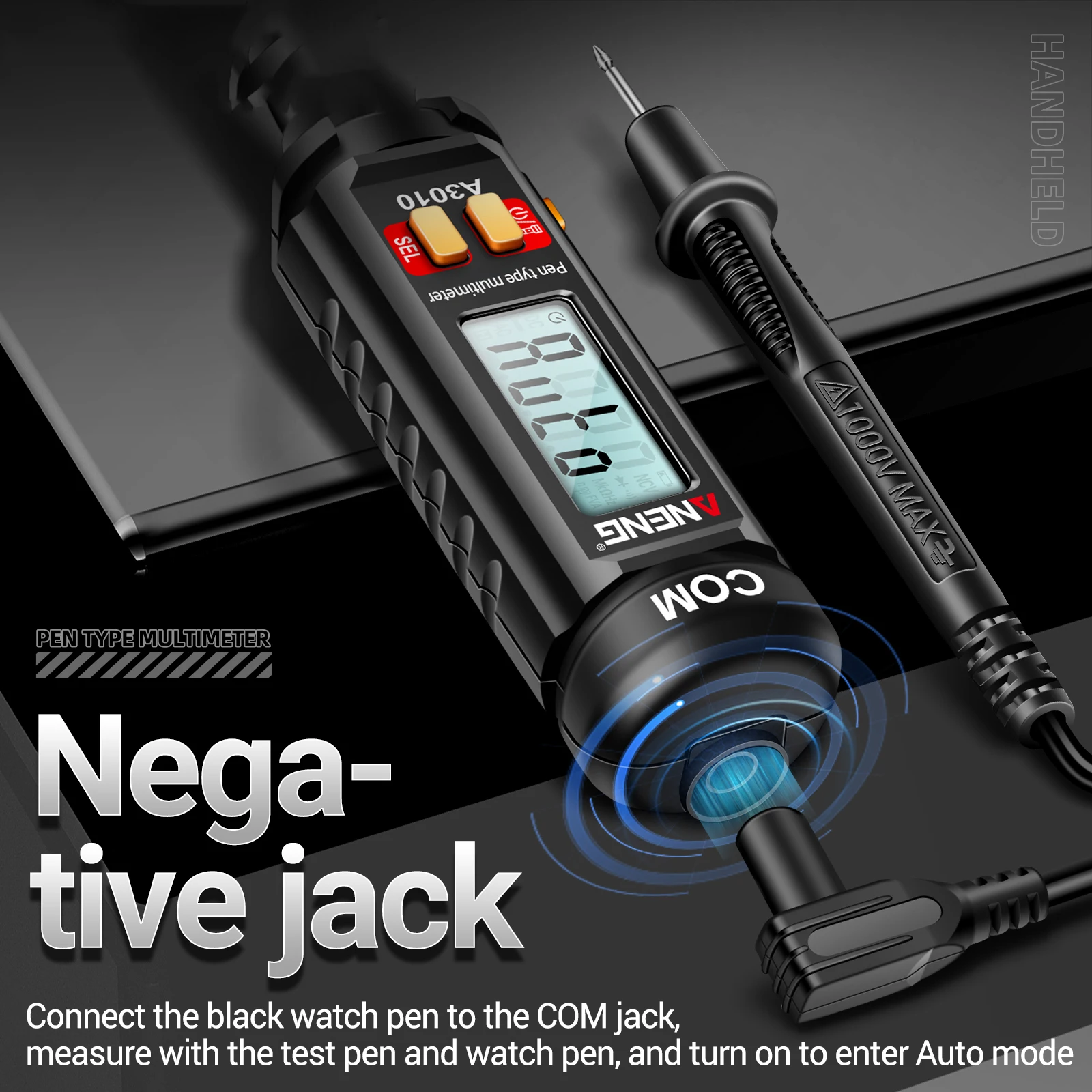

Negative Jack: Connect the black watch pen to the COM jack, measure with the test pen and watch pen, and turn on to enter Auto mode.

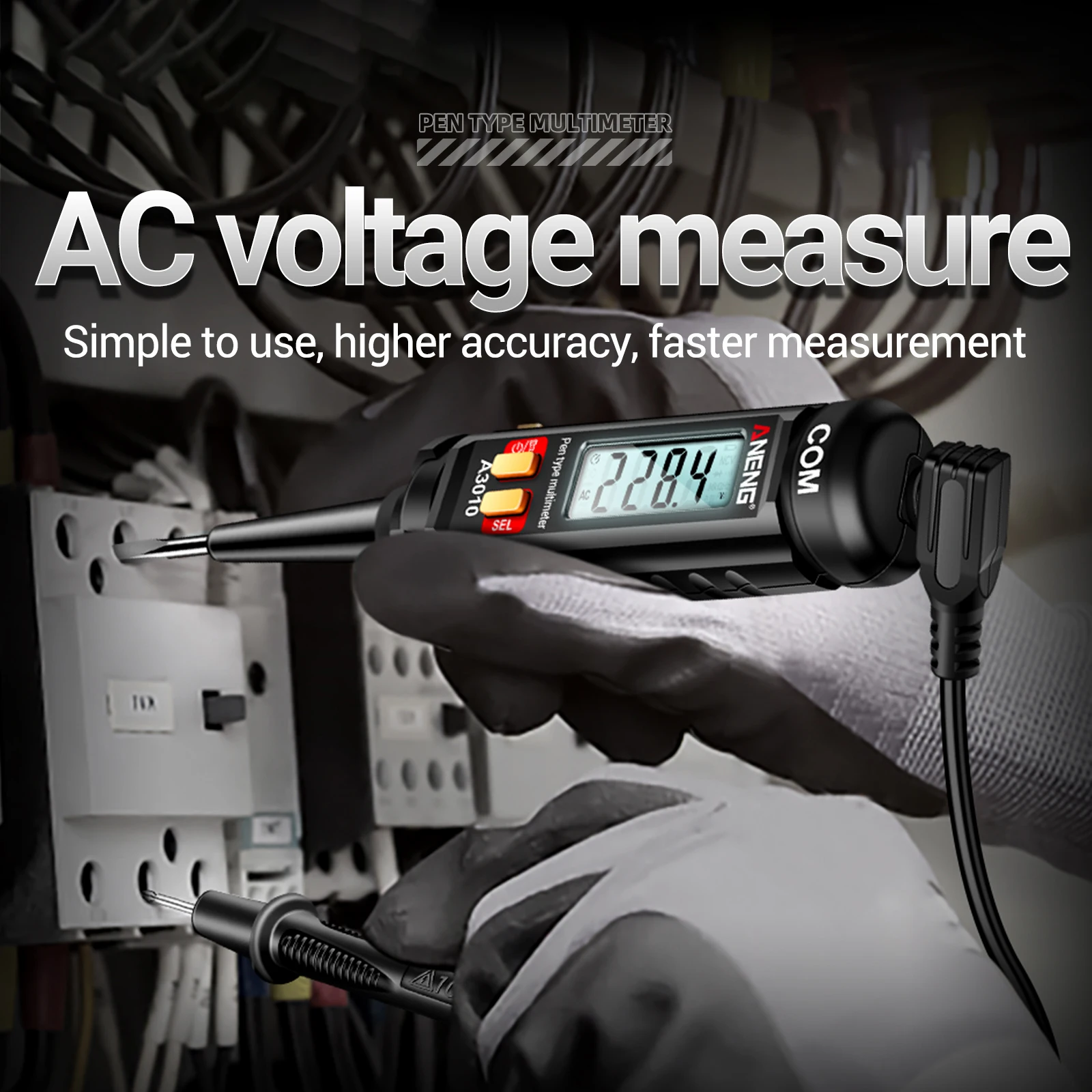

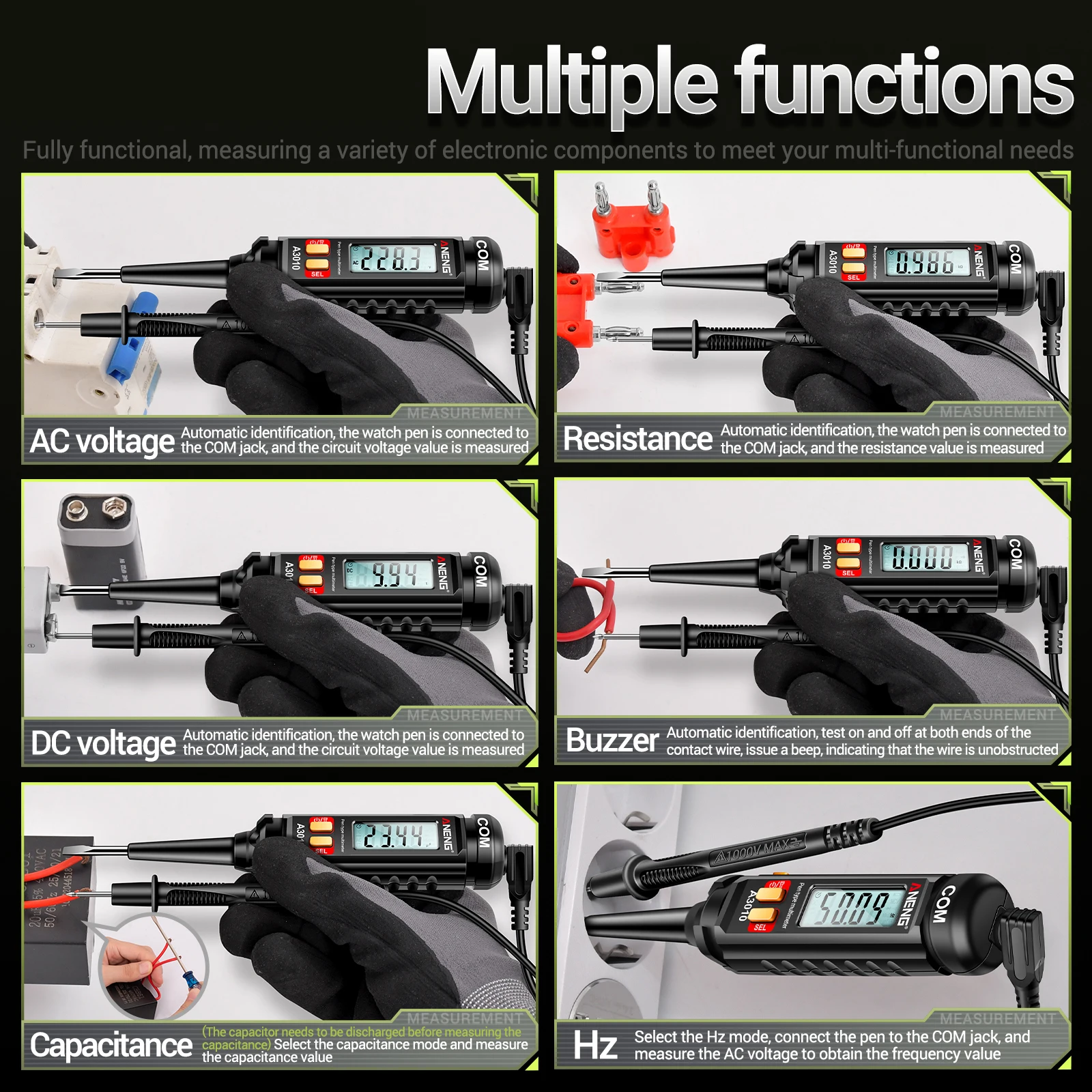

AC/DC Voltage Measure: Automatic identification, the watch pen is connected to the COM jack, and the circuit voltage value is measured.

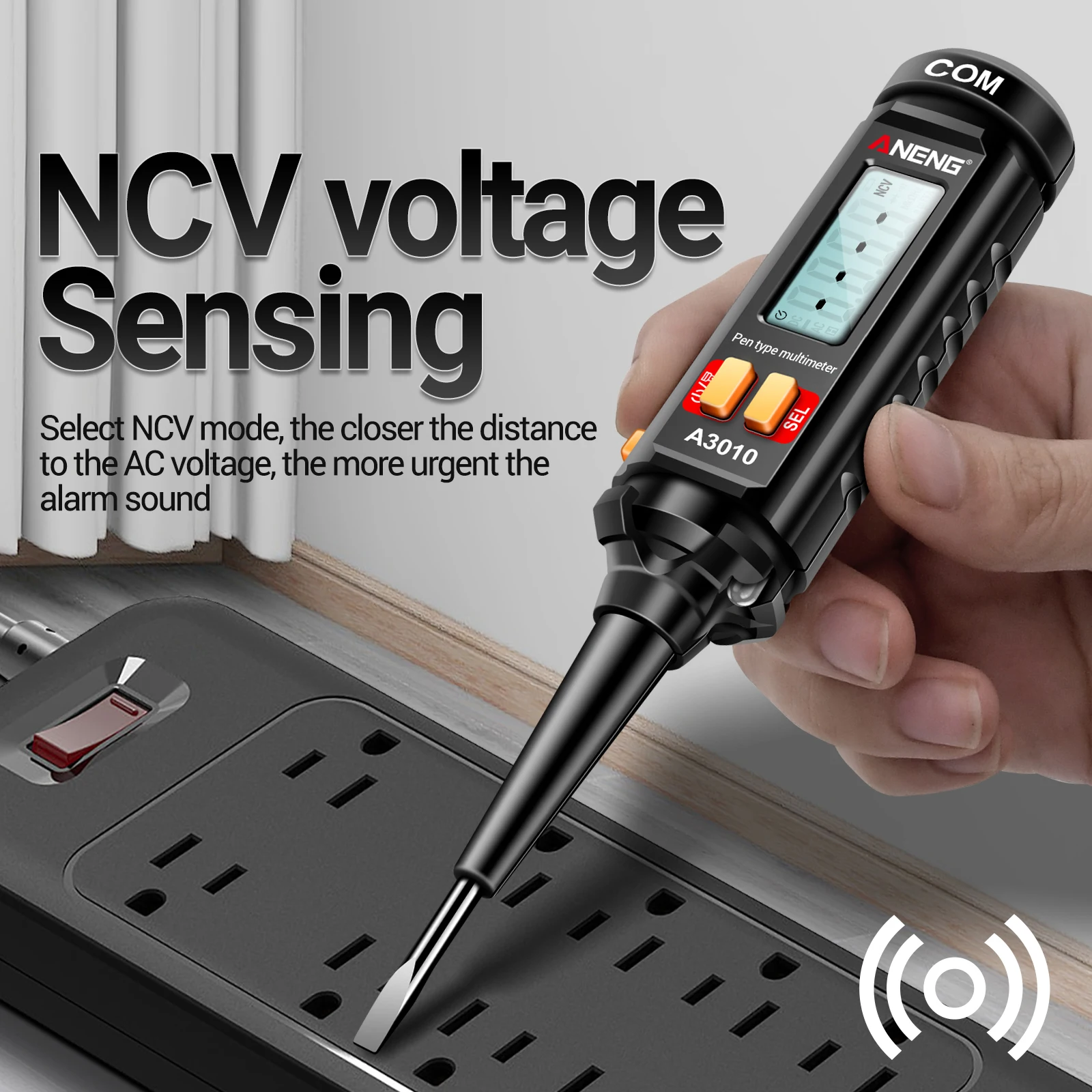

NCV Voltage Sensing: Select NCV mode, the closer the distance to the AC voltage, the more urgent the alarm sound.

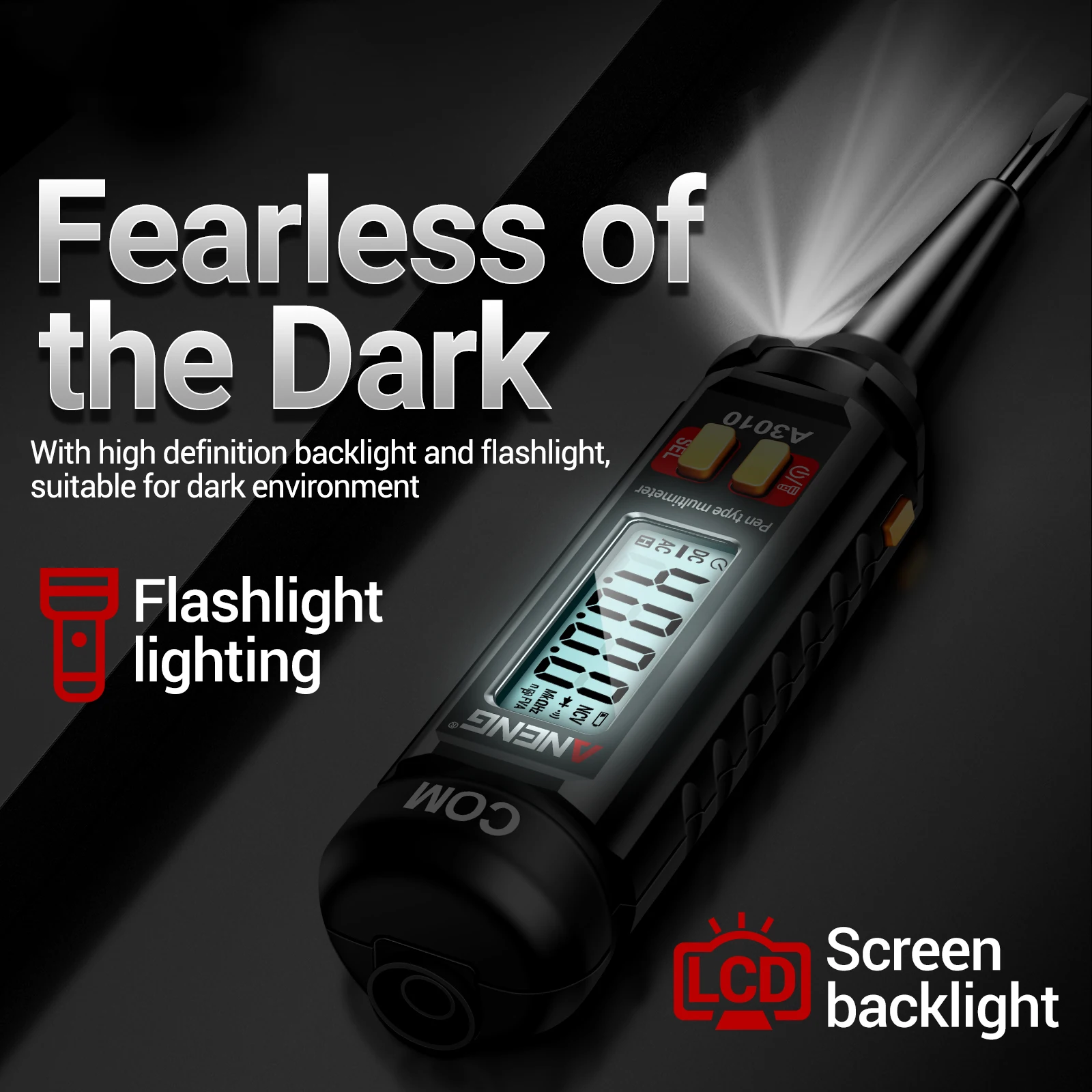

Fearless of the Dark: With high definition backlight and flashlight, suitable for dark environment.

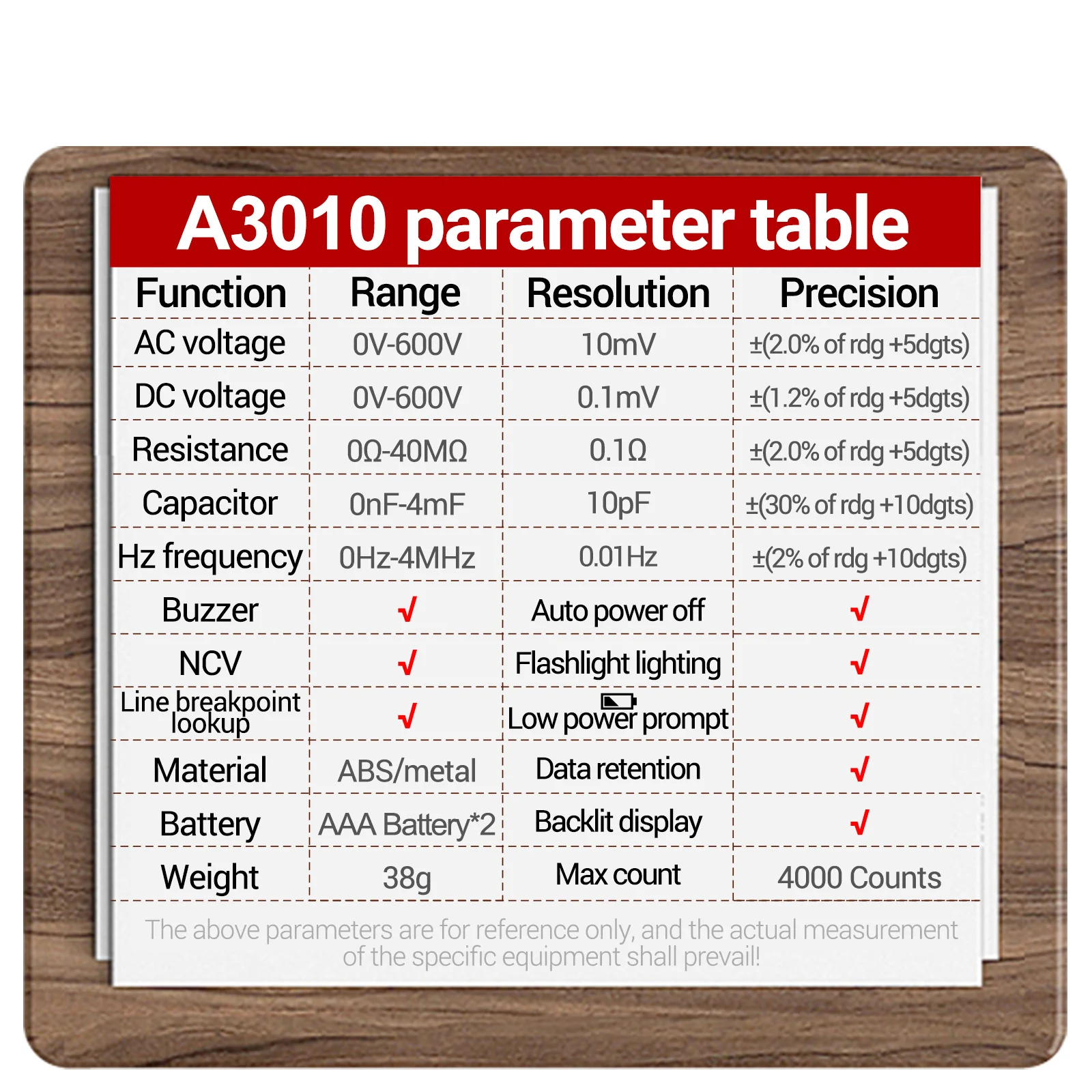

Specifications:
Material: ABS + Metal
AC Voltage: 0V-600V, 10mV, ±(2.0% of rdg + 5dgts)
DC Voltage: 0V-600V, 0.1mV, ±(1.2% of rdg + 5dgts)
Resistance: 0Ω-40MΩ, 0.1Ω, ±(2.0% of rdg + 5dgts)
Capacitor: 0nF-4mF, 10pF, ±(30% of rdg + 10dgts)
Hz Frequency: 0Hz-4MHz, 0.01Hz, ±(2.0% of rdg + 10dgts)
Buzzer: Yes
NCV: Yes

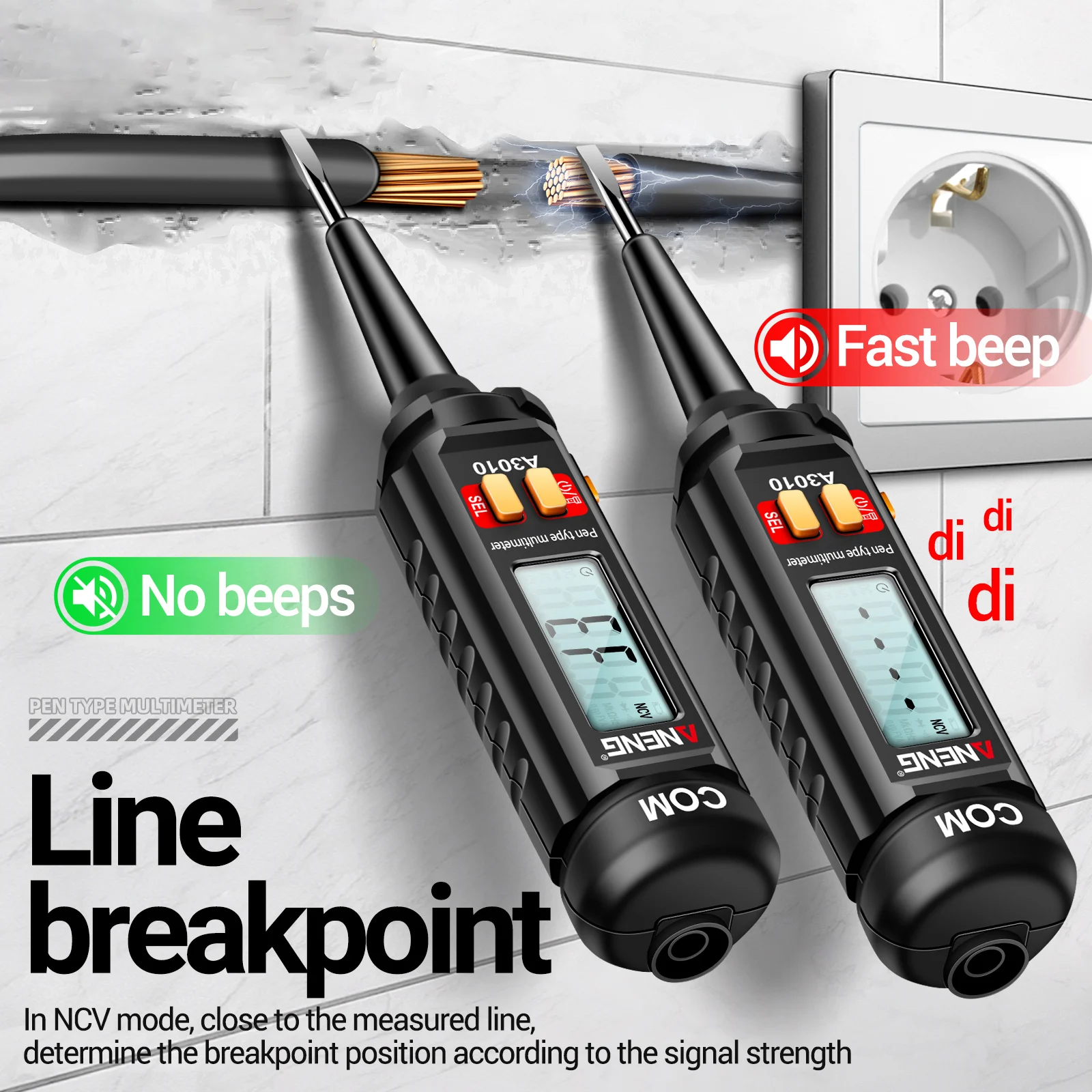

Line Breakpoint Lookup: Yes
Auto Power Off: Yes
Flashlight Lighting: Yes
Low Power Prompt: Yes
Data Retention: Yes
Backlit Display: Yes

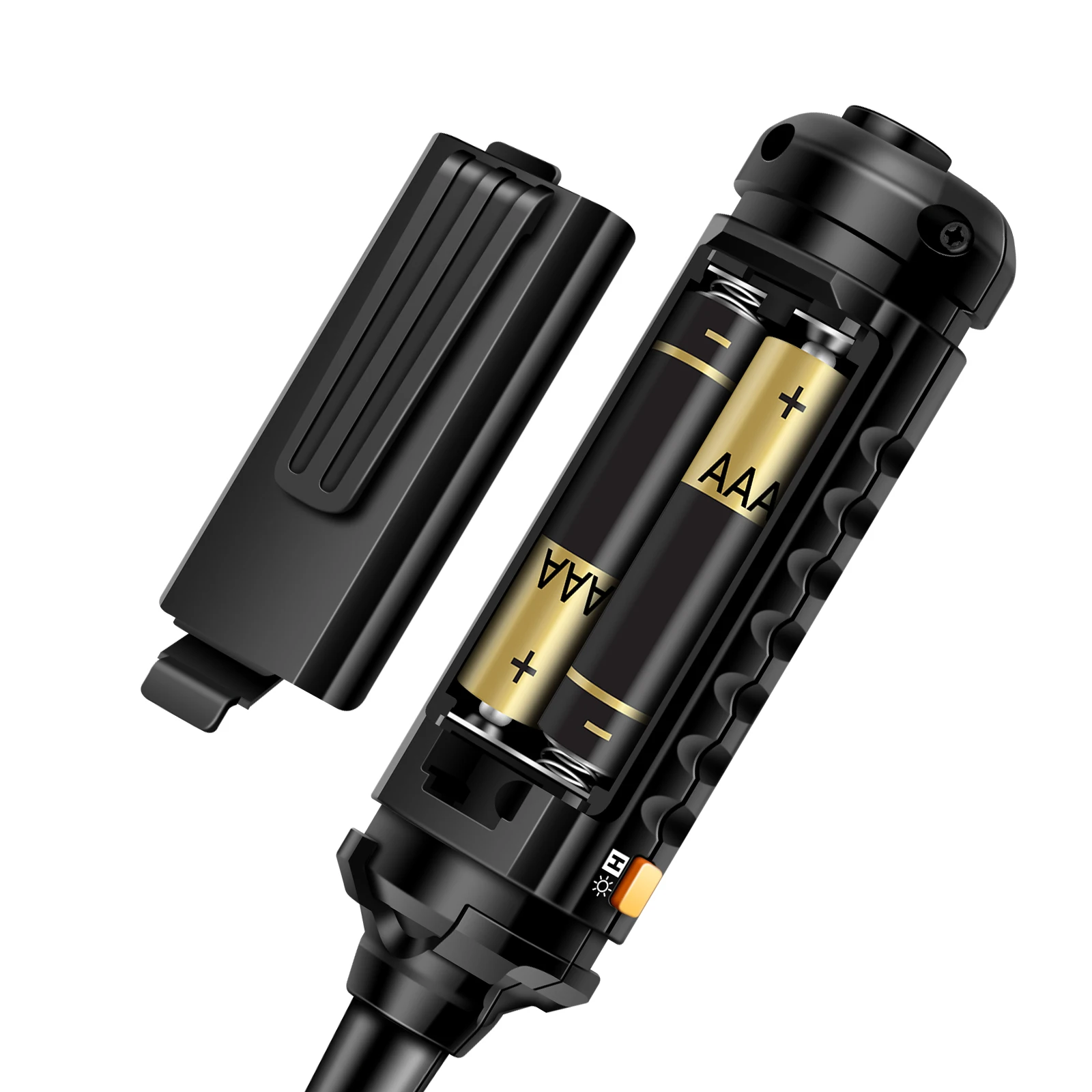

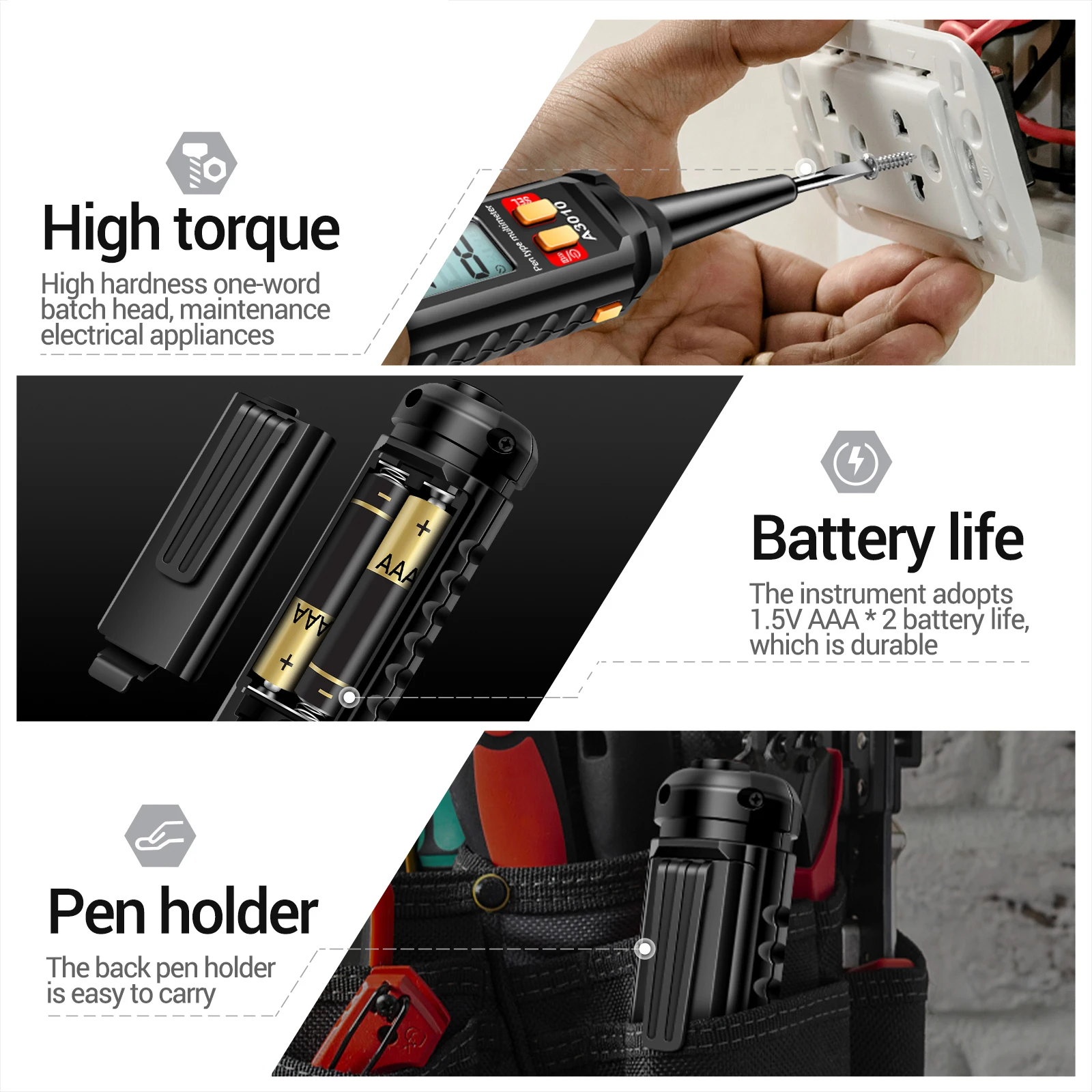

Battery: 2 * AAA batteries (Not included)
Max Count: 4000 counts

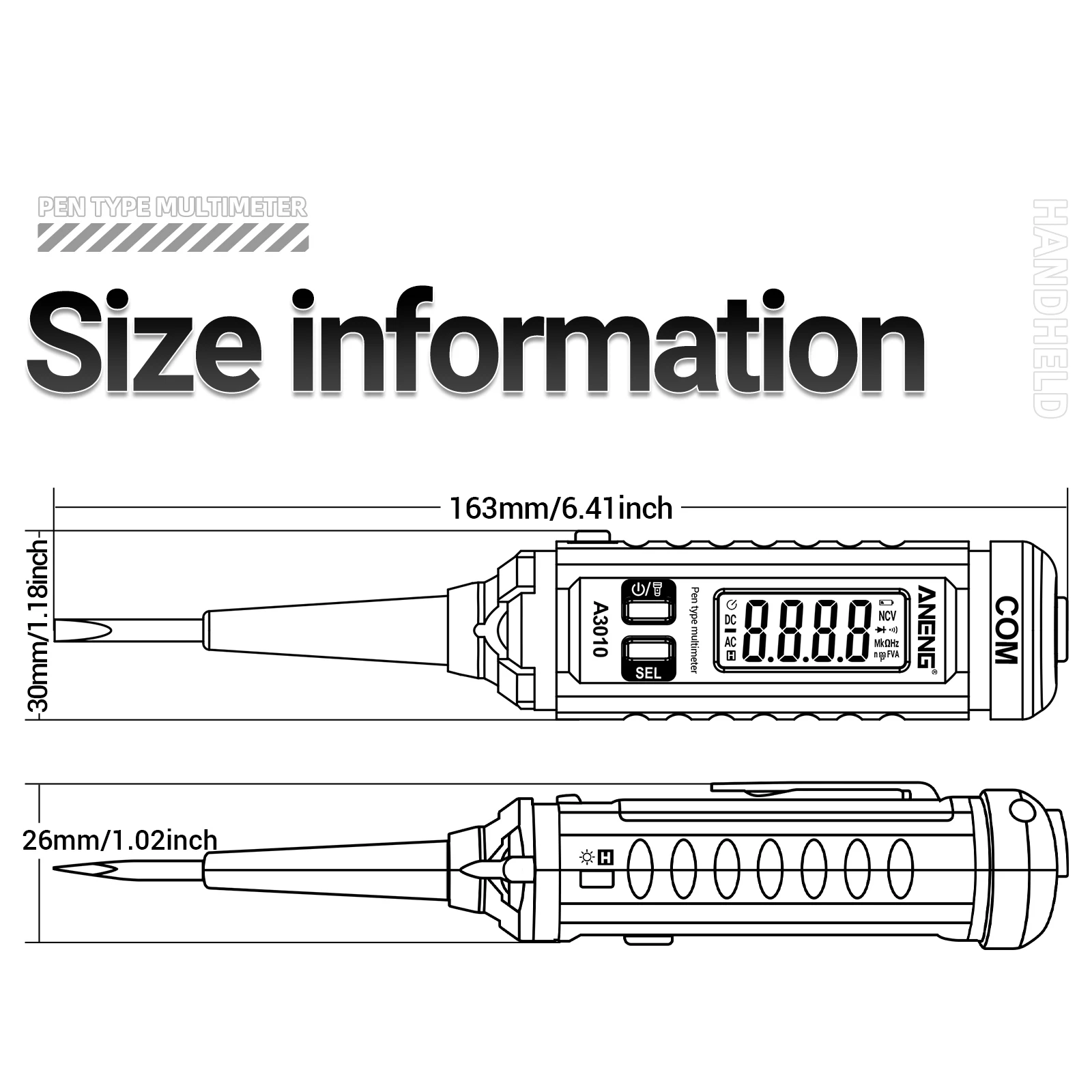

Item Size: 163 * 30 * 26mm / 6.41 * 1.18 * 1.02in
Item Weight: 38g / 1.34oz
Package Weight: 84g / 2.96oz
Package Size: 17 * 4.5 * 3.9cm / 6.69 * 1.77 * 1.53in

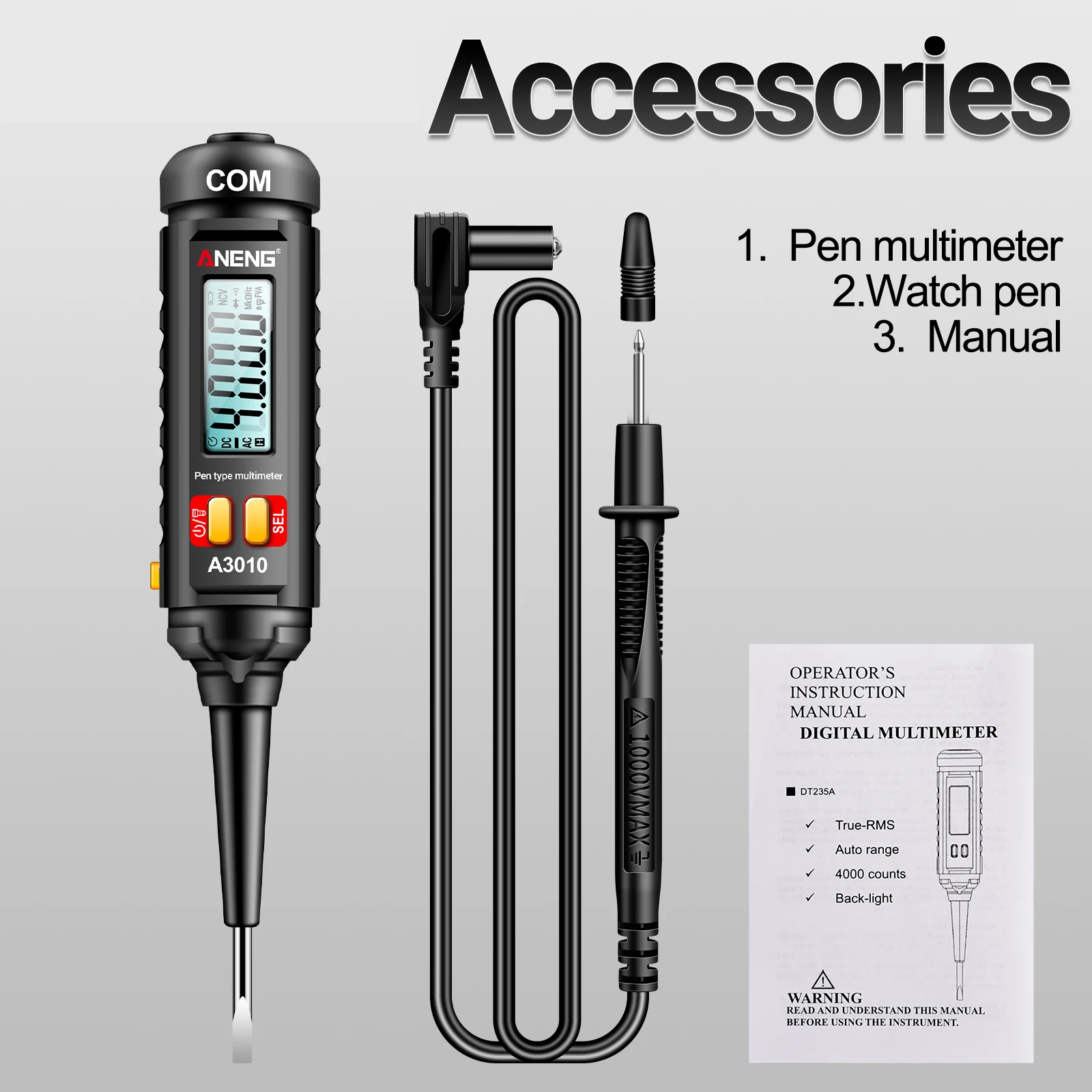

Package List:

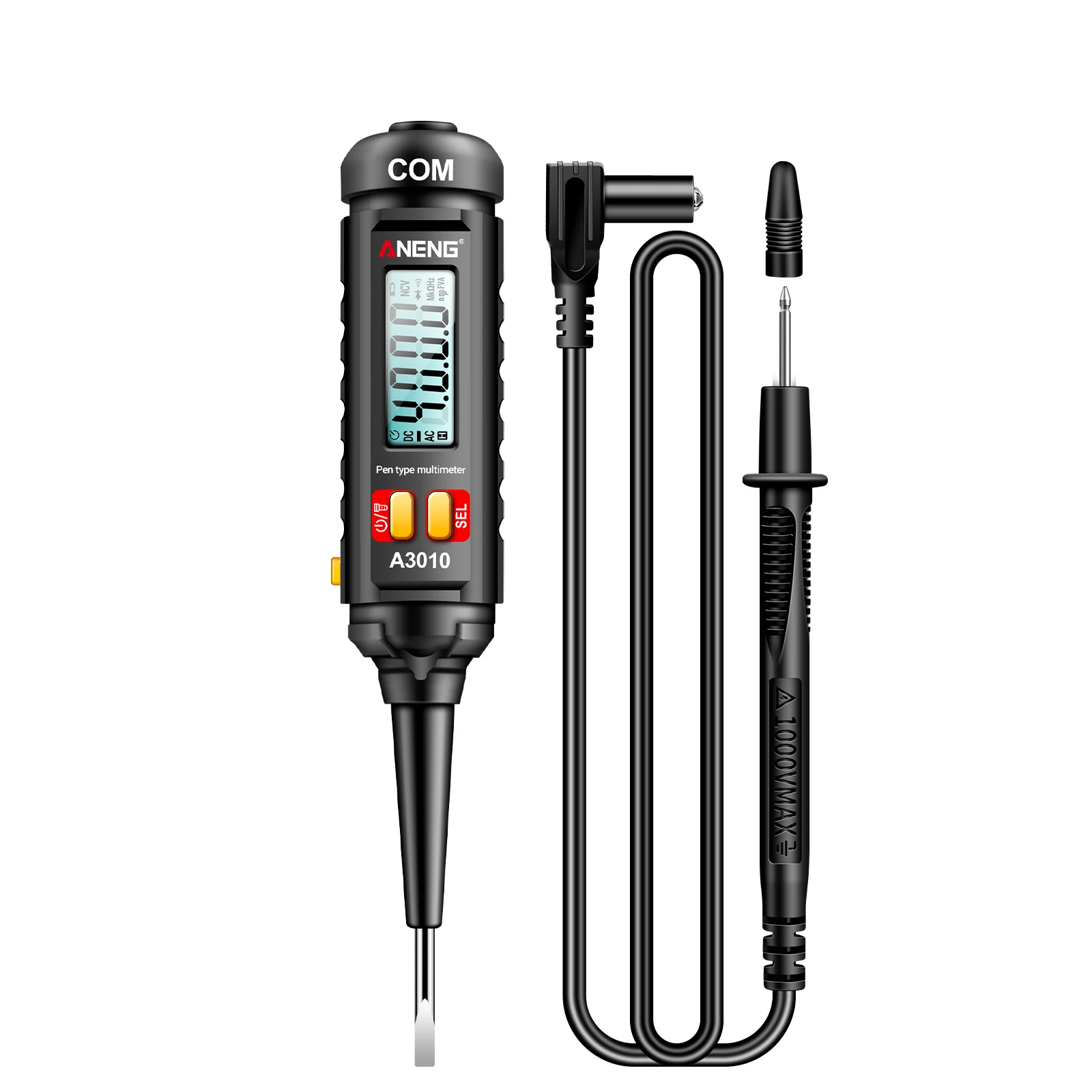

1 * Pen-Type Multimeter
1 * Watch Pen
1 * User Manual (English)
