-The meter has a reading hold function.
-The meter has an automatic shutdown function.
Feature:

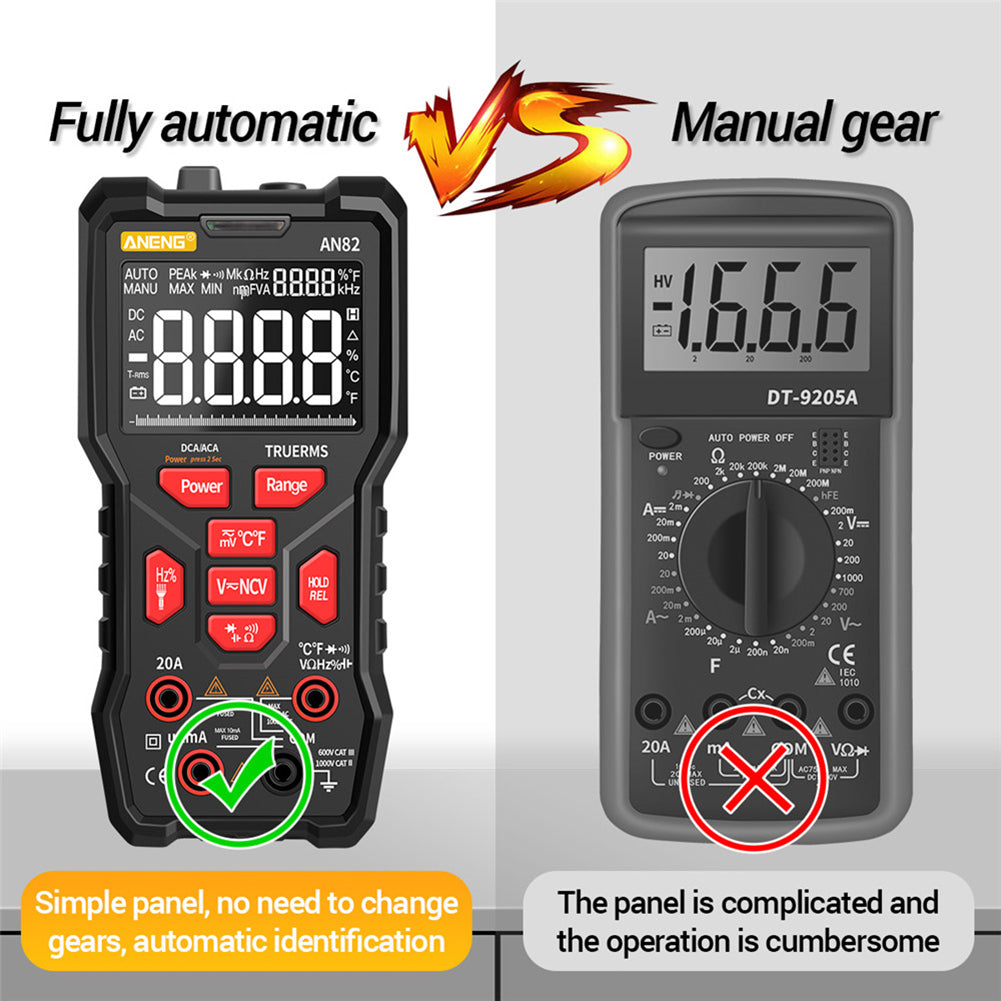

Auto range and manual range
Full range overload protection
Specification:
Maximum allowable voltage between the measuring terminal and the ground: 1000V DC or 750V AC
Fuse protection: uA, mA fuse FF200mA/250V; A fuse FF10A/250V
Working height: up to 2000m/6561.67ft
Display: LCD display
Maximum display value: 9999 numbers
Sampling time: about 3 times/sec
Battery type: 6F22 9V battery (not included)
Working temperature: 18℃-28℃
Storage temperature: -10-50
Material: ABS
Size: 157x78.5x48.5mm/6.18x3.09x1.91in
Color: Black, Red
Funtion Range Accuracy
DC voltage 999.9mV /9.999V /99.99V /9.999mV /99.99mV ± (0.5% + 3)
DC voltage 999.9 V ± (0.8% + 5)
AC voltage 999.9mV / 750V /9.999mV /99.99mV ±(1.0% + 10)
AC voltage 9.999V /99.99V ± (1.0% + 3)
AC current 999.9uA /9.999mA /999.9mA ± (1.0% +3)
AC current 9.999A ± (2.5% +10)
DC Current 999.9uA /9.999mA /999.9mA / ±(0.8% + 3)
DC Current 9.999A ± (2.0% +10)
Frequency 99.99Hz /999.9Hz /9.999kHz /99.99KHZ /999.9KHZ /5.000MHZ ± (0.1% + 2)
Duty Ratio 0.1 - 99.9% ± (0.1% + 2)
Resistance 99.99W ± (1.0% + 3)
Resistance 999.9W ± (0.5% + 3)
Resistance 9.999KW /99.99KW /999.9KW /9.999MW ± (1.5% + 35)
Resistance 99.99MW ±(3.0% + 5)
Capacitance 9.999nF ±(5.0% + 20)
Capacitance 99.99nF /999.9nF /99.99MF /999.9MF /9.999MF ± (2.0% + 5 )
Capacitance 9.999mF ± (5.0% + 5)
Capacitance 99.99mF
Temperature test -20 ° C to 300 ° C ± (2.5% + 5d)
301 ℃ - 1000 ℃ ± (2.5% + 5d)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
1 X Digital Multimeter
2 X Test Lines
1 X 16 in 1 Multi-function Test Line
1 X Thermocouple
2 X Spare Fuse
1 X User Manual

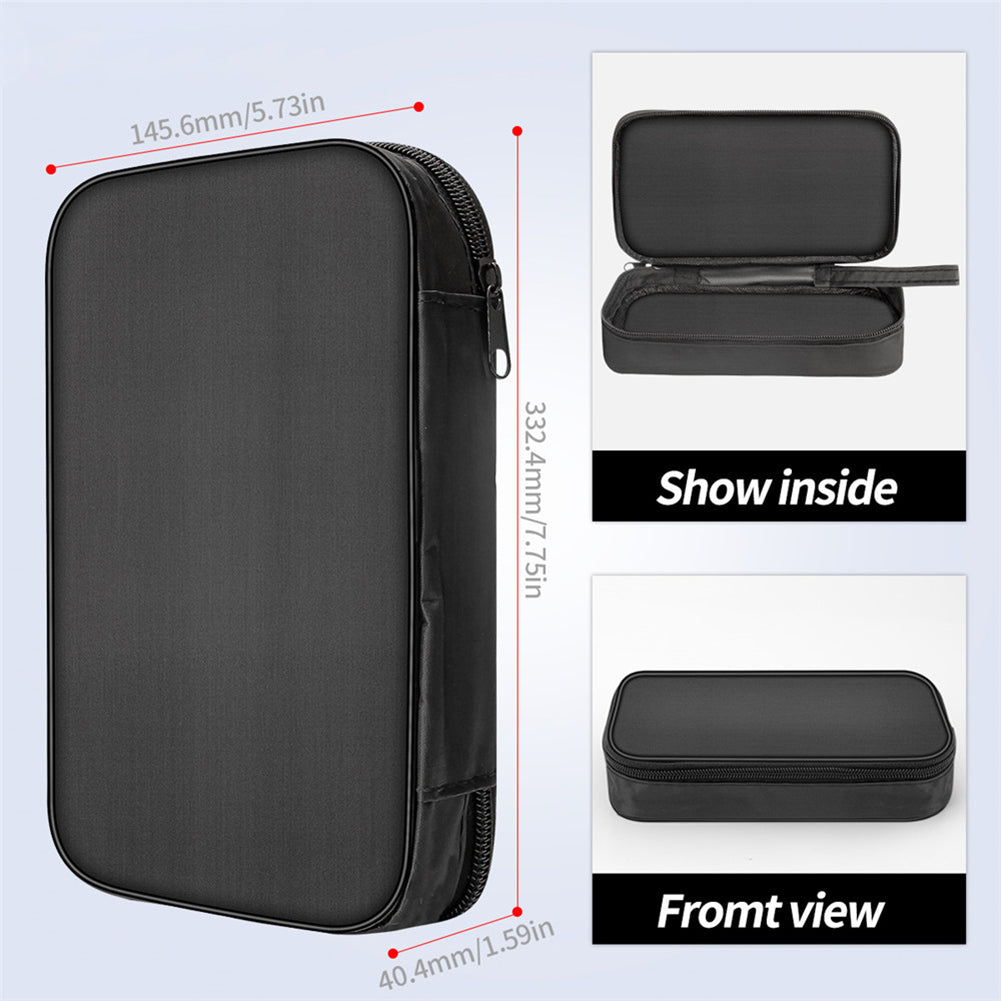

1 X Storage Bag
1 X Packing Box
