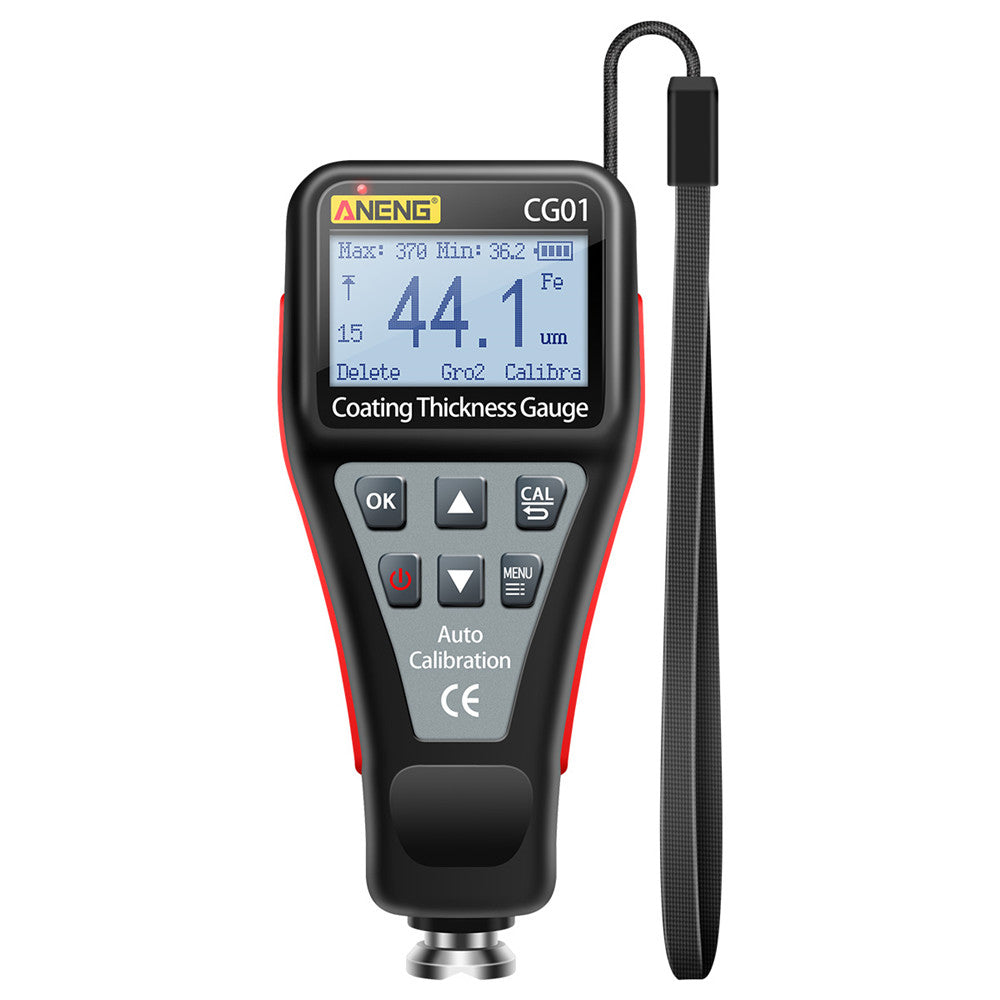

ANENG CG01 Car Paint Coating Thickness Gauge Car Paint Electroplate Metal Coating Thickness Tester Meter 0-1500um Fe & NFe Probe

 Describe

 This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, and can be used to measure the thickness of coatings on ferrous and non-ferrous metal substrates. The dual-function built-in probe is used to automatically identify iron-based or non-ferrous-based materials, and select the corresponding measurement method for accurate measurement. It is suitable for coating, metal processing, sales measurement, automobile paint inspection, second-hand automobile, accident vehicle assessment and other industries.

 Feature

 1: High measurement accuracy, wide measurement range 0~1500um (0~59.0 mil).

 2: 128X64 dot matrix black background and white COG LCD display, you can clearly see the data even when the backlight is turned off during the day, which saves electricity, and the brightness of the backlight can be adjusted.

 3: With gravity sensing function, it can automatically rotate the display screen to keep the direction consistent with gravity, making it easy to read the measurement data.

 4: With 6 groups of data group storage function, it is convenient to count and compare the data and deviation of different parts.

 5: With 4-point smooth calibration function, making the measured data more accurate.

 6: With upper and lower limit settings and prompt functions, the red and green dual-color LED lights can flash, and the display screen can prompt over limit status.

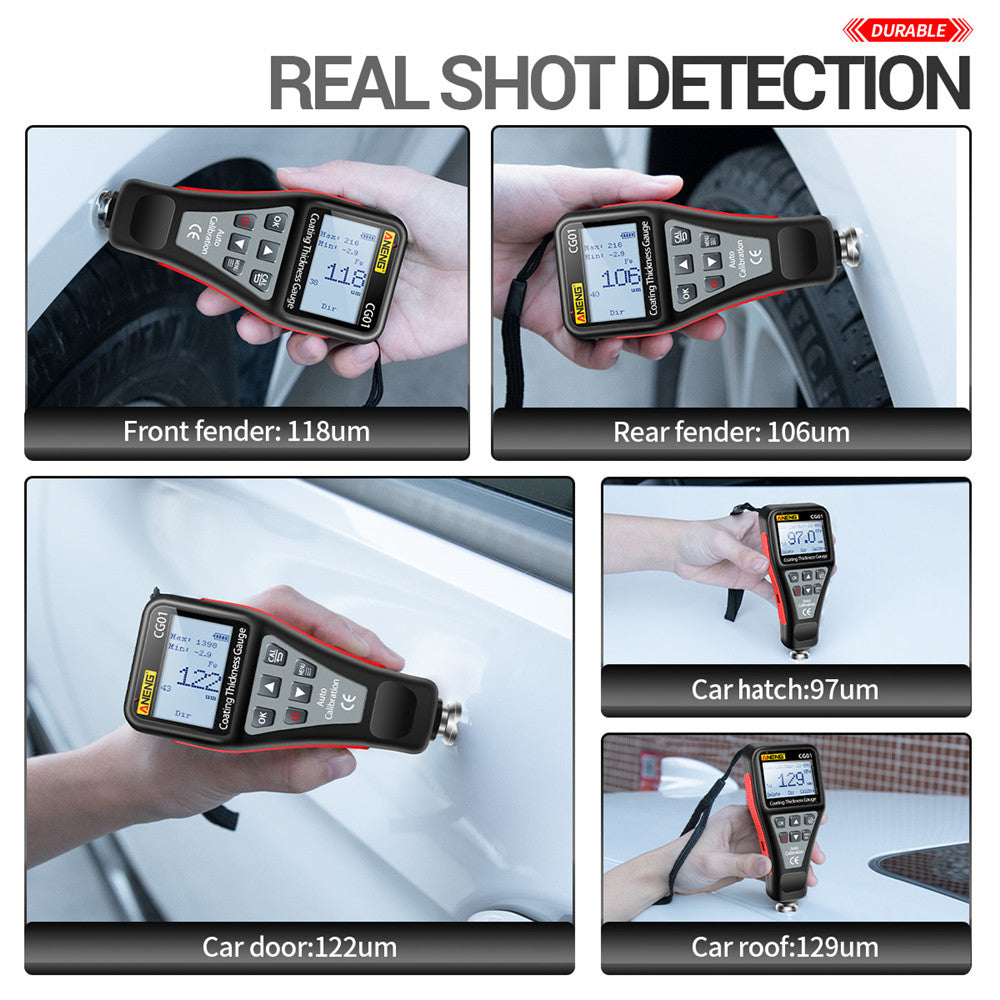

 7: Suitable for coating, metal processing, sales measurement, automotive paint inspection, second-hand cars, accident car evaluation and other industries.

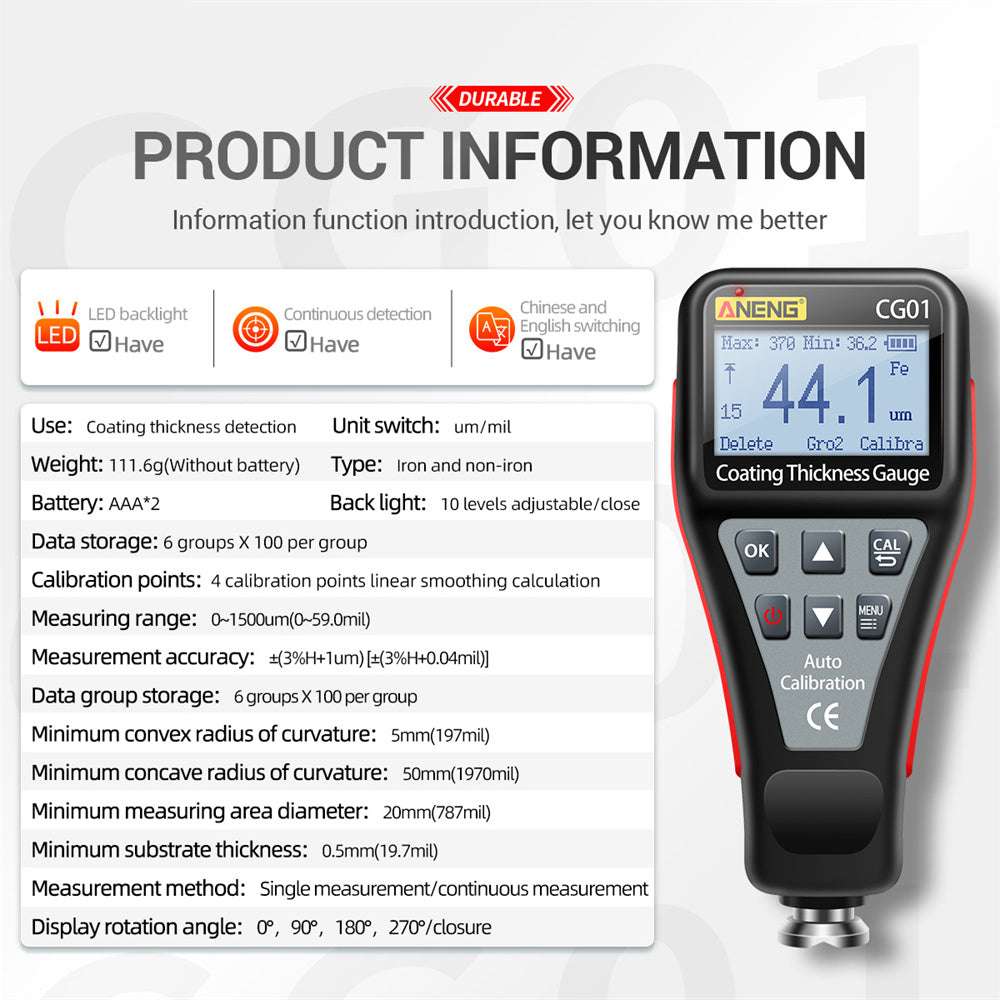

 Specification

 1 Type of iron base: magnetic metal iron base (FE)/non-magnetic metal non-ferrous base

 (NFE)/Automatic recognition.

 2 Measuring range: 0~1500um (0~59.0 mil).

 3 Measurement accuracy: ± (3%H + 1 um) [±(3%H +0.04 mil) ].

 4 Measurement method: single measurement / continuous measurement

 5 Statistics function: maximum value/minimum value/average value/variance

 6 Number of calibration points: 4 calibration points are calculated linearly and smoothly.

 7 Data group storage: 6 groups x 100 per group.

 8 Minimum convex curvature radius: 5mm (197mil)

 9 Minimum concave radius of curvature: 50mm (1970mil)

 10Minimum measuring area diameter: 20mm (787mil)

 11Minimum substrate thickness: 0.5mm (19.7mil)

 12 Display rotation angle: 0°, 90°, 180°, 270°/close

 13 Unit conversion: um / mil.

 14 Range of upper and lower limits: 0~1500um (0~59.0 mil) freely set/ closure.

 15 Backlight brightness: 10 levels adjustable / off.

 16 power supply battery: 2X1.5V AAA battery (not included)

 17 Duration of battery replacement: 40 hours

 18 Low battery reminder: lower than 2.4V.

 19 Automatic shutdown: Automatic shutdown without any operation within 3 minutes.

 Packing list

 Coating Thickness Gauge X1

 Storage bag X1

 Lanyard X1

 Packing box X1

 User Manual X1

 U Disk (1Gb) X1

 Iron sheet test substrate X1

 Aluminum skin test substrate X1

 Calibration standard test piece X1

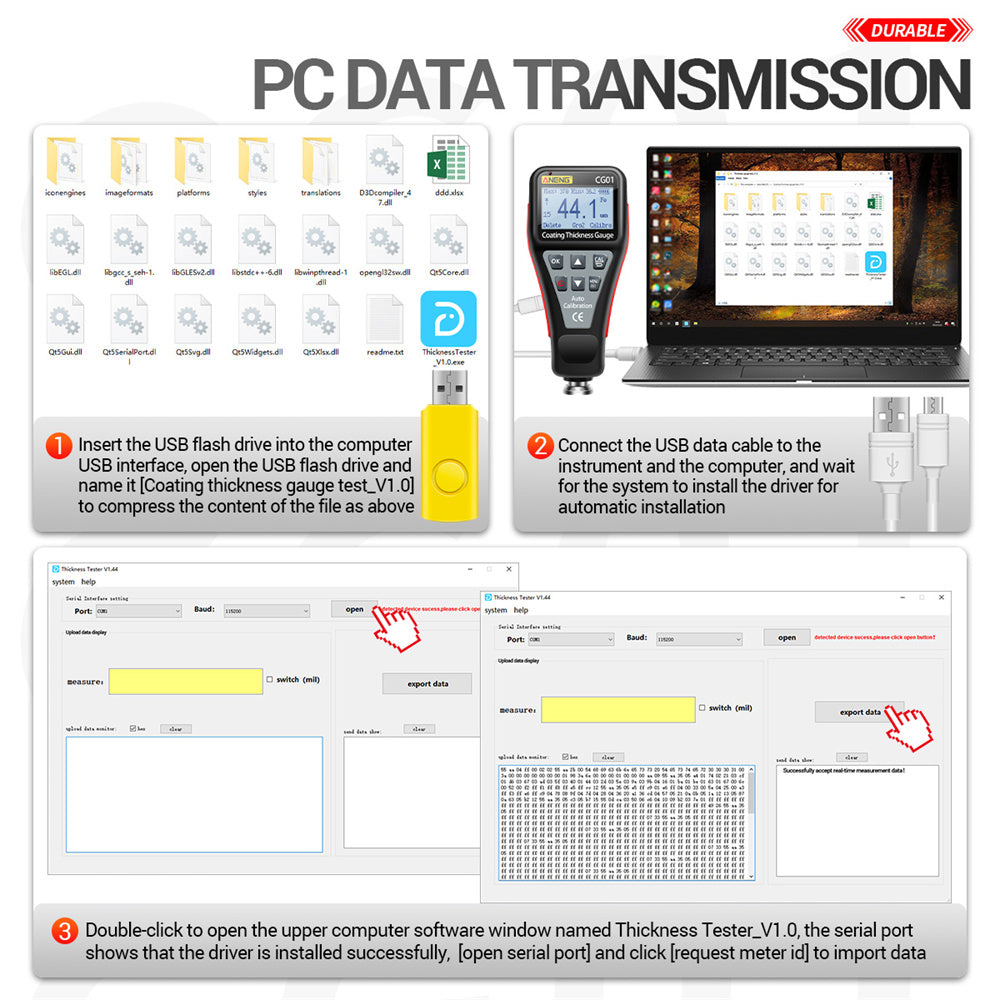

 USB data cable X1
