Specifications：
General

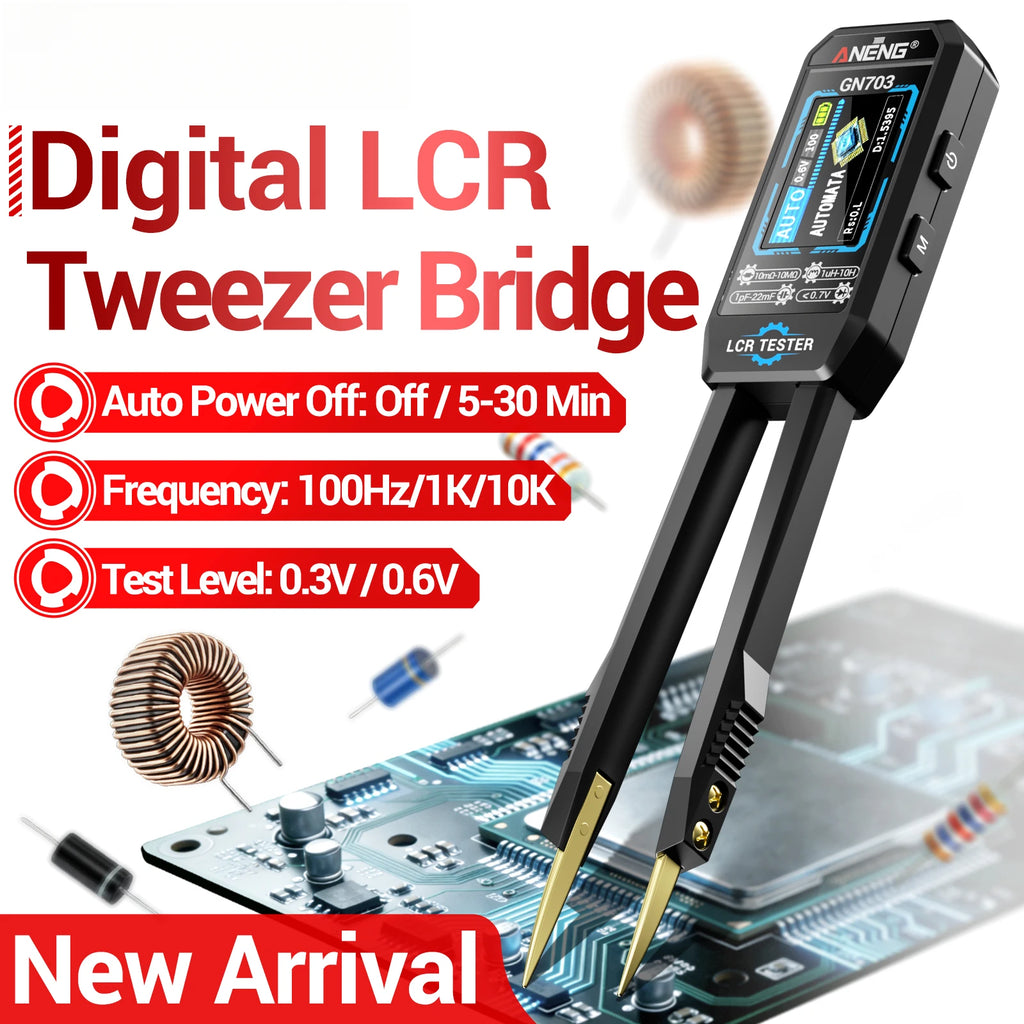

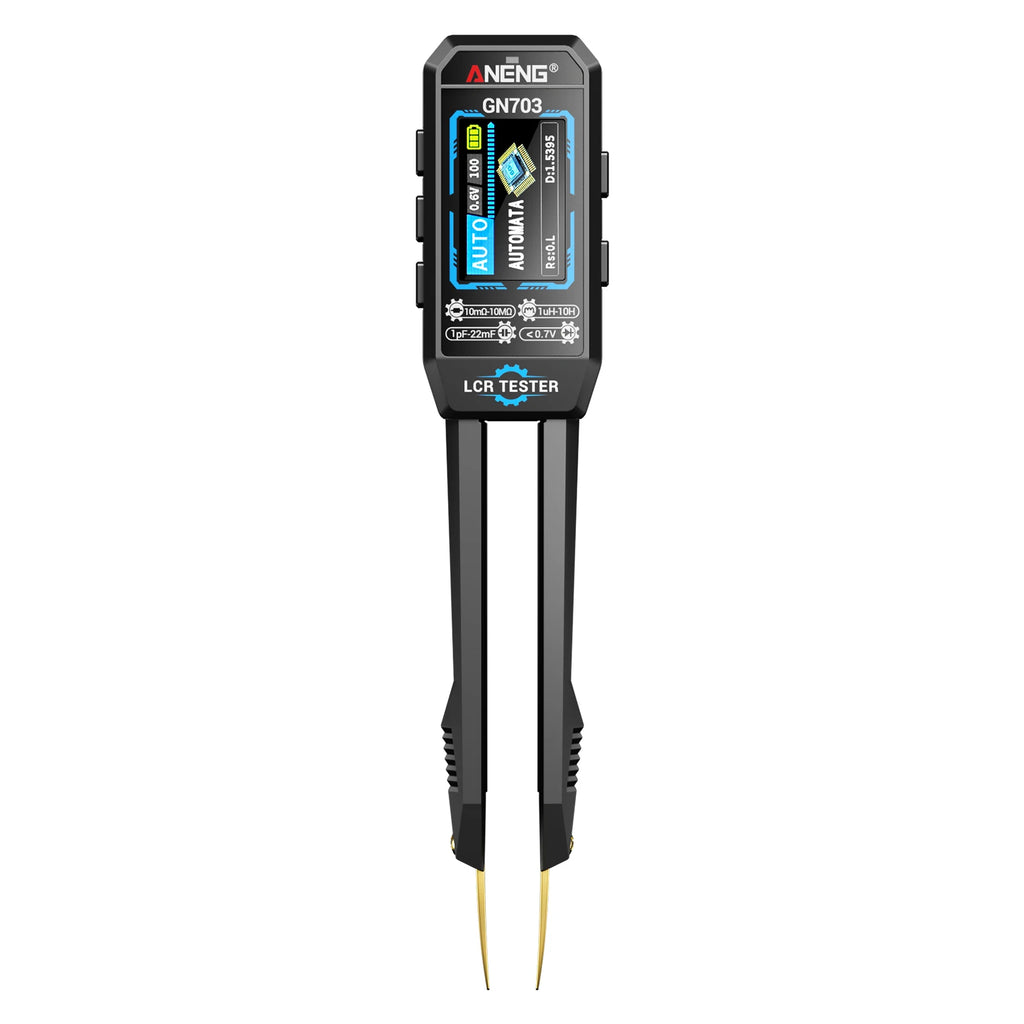

Product Type: LCR Tweezer Meter (Auto Recognition)

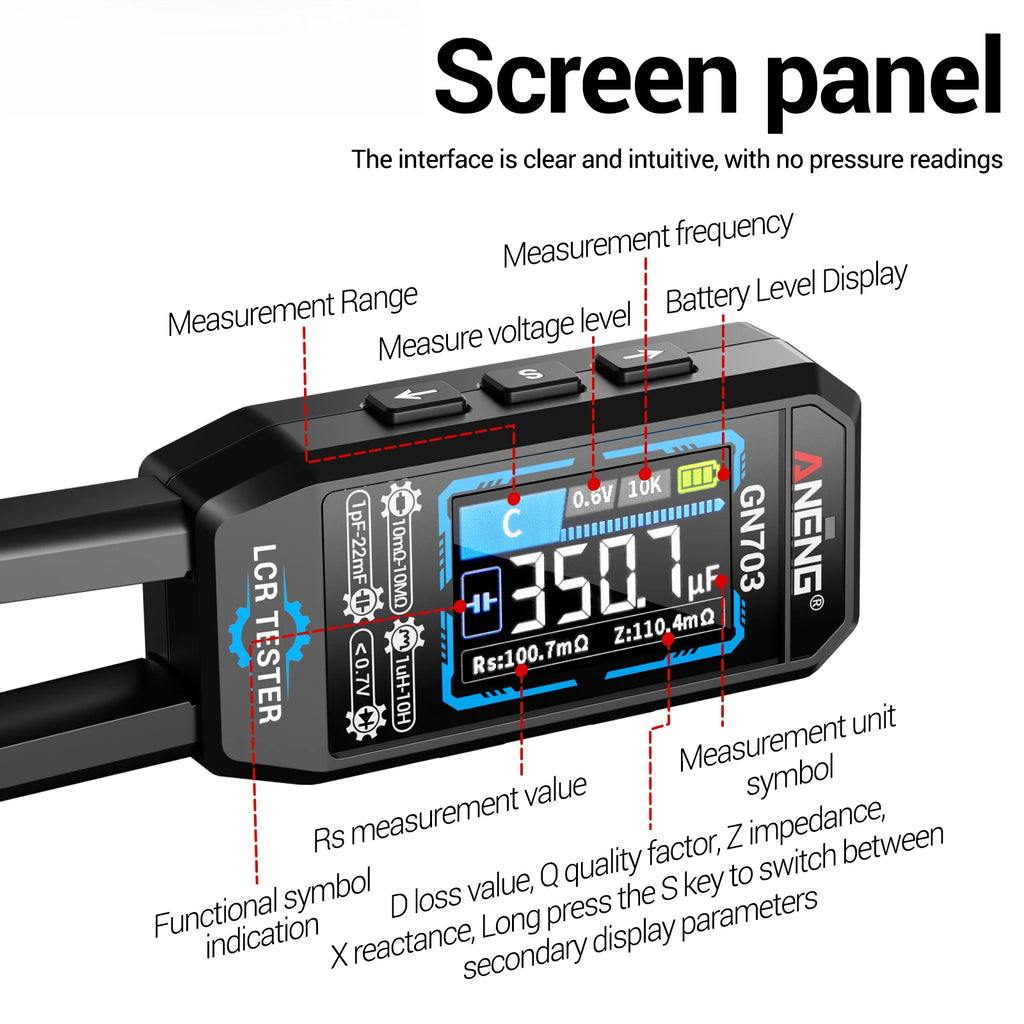

Display: High-definition color screen with stepless brightness (0–100)
Test Frequency: 100Hz, 1kHz, 10kHz
Test Level: 0.3V / 0.6V
System Language: Chinese / English
Material: ABS
Weight: 36g

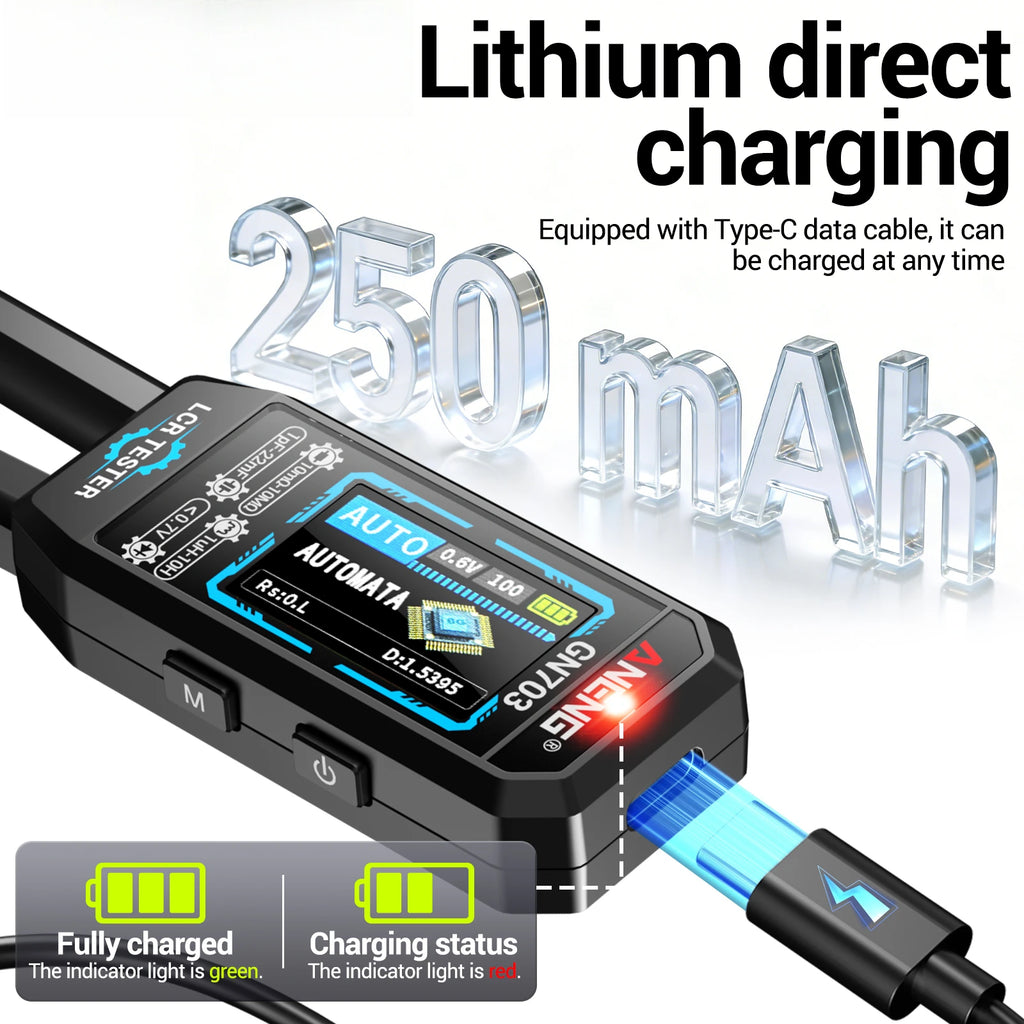

Battery: Built-in 250mAh rechargeable lithium battery
Charging: Type-C, 5V/1A (charging LED light: red = charging, green = full)

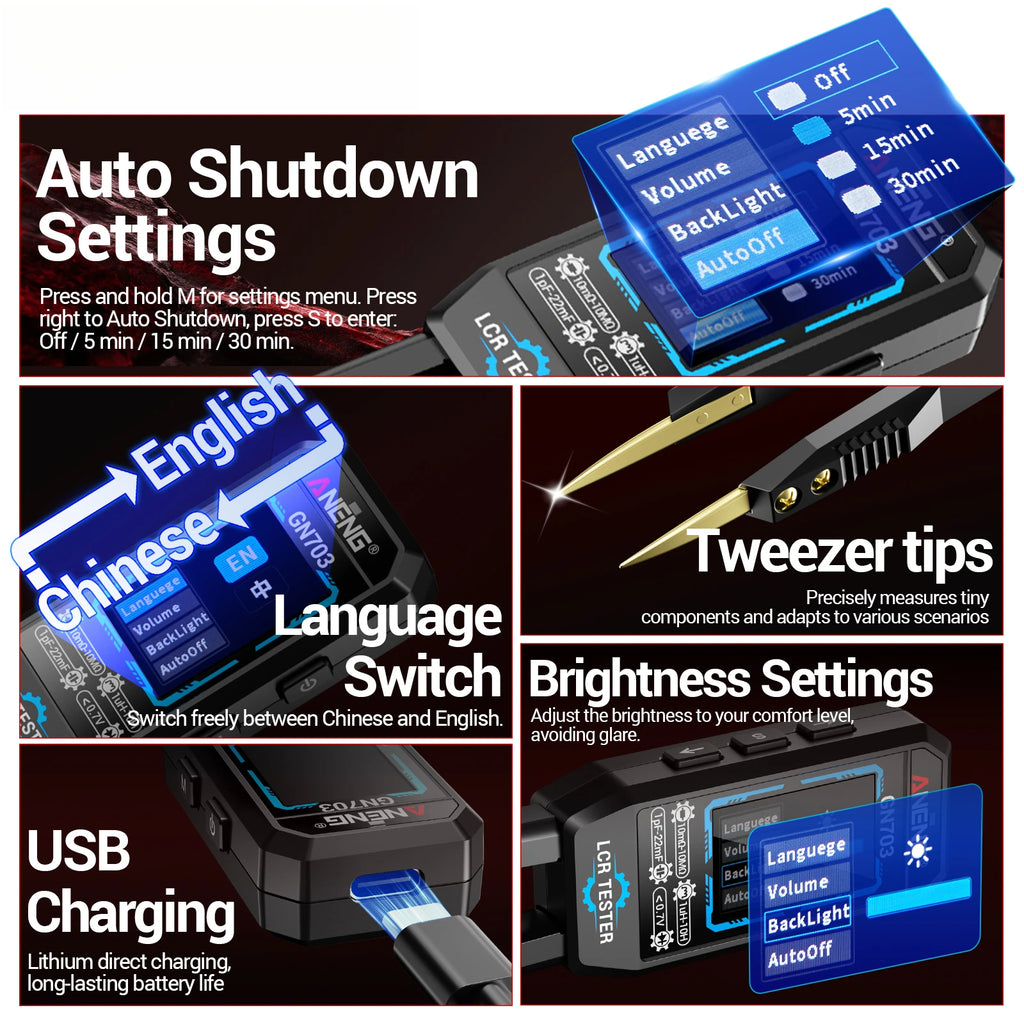

Auto Power Off: Off / 5 min / 15 min / 30 min (selectable)
Volume Adjustment: 5 levels (0–5)
Data Hold: Supported
Calibration: Supported
Factory Reset: Supported

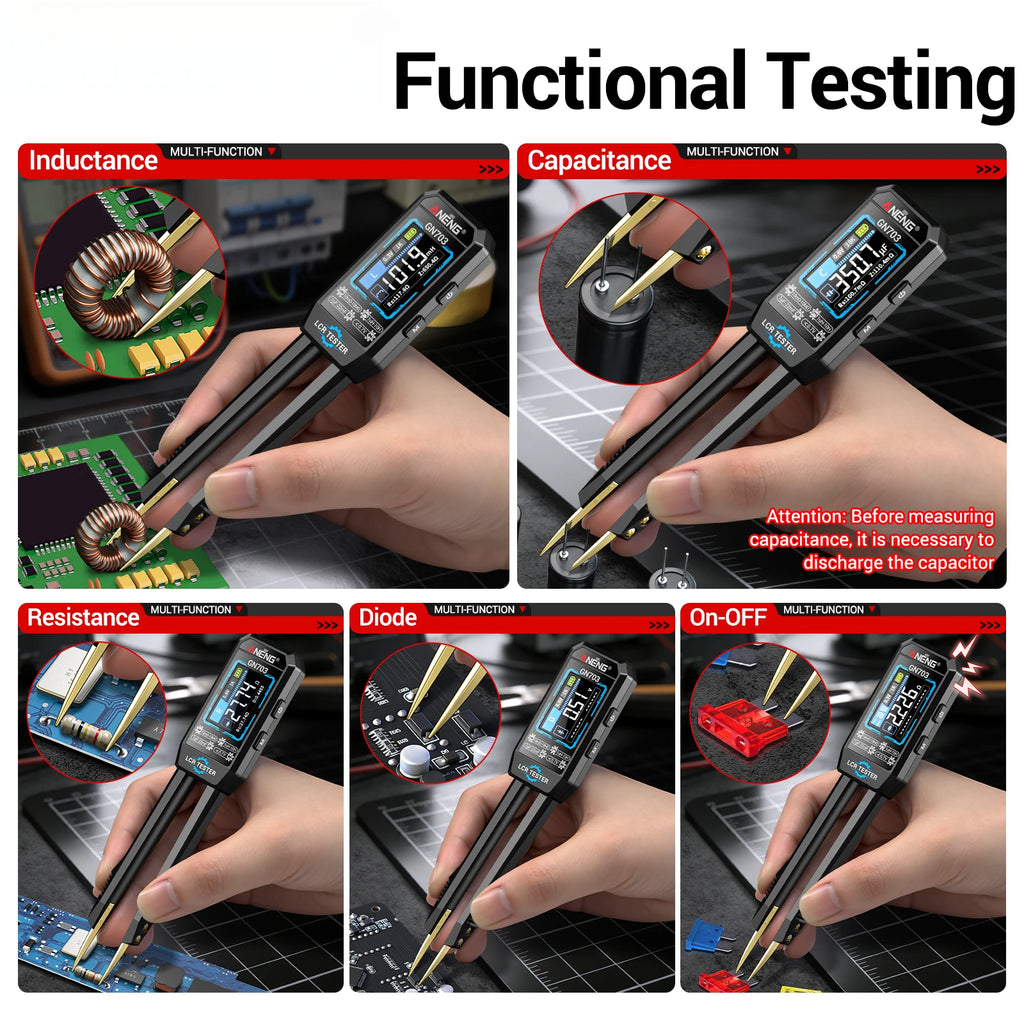

Resistor Measurement Accuracy (by range and frequency)
For 10mΩ to 1Ω: accuracy is 3%±5 at 100Hz and 1kHz, and 2%±5 at 10kHz.
For 1Ω to 1kΩ: accuracy is 1%±3 at 100Hz, 0.5%±5 at 1kHz, and 0.5%±5 at 10kHz.
For 1kΩ to 1MΩ: accuracy is 1%±5 at 100Hz, 0.5%±5 at 1kHz, and 1%±5 at 10kHz.
For 1MΩ to 10MΩ: accuracy is 5%±3 at both 100Hz and 1kHz (no specification at 10kHz).
Capacitance Measurement Accuracy (by range and frequency)
For 1pF to 1nF: accuracy is 5%±5 at both 1kHz and 10kHz (not specified at 100Hz).
For 1nF to 1μF: accuracy is 2%±5 at 100Hz, 0.5%±5 at 1kHz, and 0.5%±5 at 10kHz.
For 1μF to 1mF: accuracy is 2%±5 at all three frequencies (100Hz, 1kHz, 10kHz).
For 1mF to 22mF: accuracy is 5%±5 at 100Hz and 1kHz (not specified at 10kHz).
Inductance Measurement Accuracy (by range and frequency)
For 1μH to 10μH: accuracy is 2%±3 at 10kHz only (not specified at 100Hz or 1kHz).
For 10μH to 1mH: accuracy is 2%±3 at 100Hz, 0.5%±3 at 1kHz, and 0.5%±3 at 10kHz.
For 1mH to 100mH: accuracy is 2%±3 at all three frequencies (100Hz, 1kHz, 10kHz).
For 100mH to 10H: accuracy is 5%±3 at 100Hz only (not specified at 1kHz or 10kHz).
Semiconductor & Continuity
Semiconductor: Conduction voltage < 0.7V
Continuity Test: Supported
Package Contents：
1 × LCR Tweezer Meter (Main Unit)
1 × Type-C Charging Cable
1 × User Manual
1 × Packing Box
